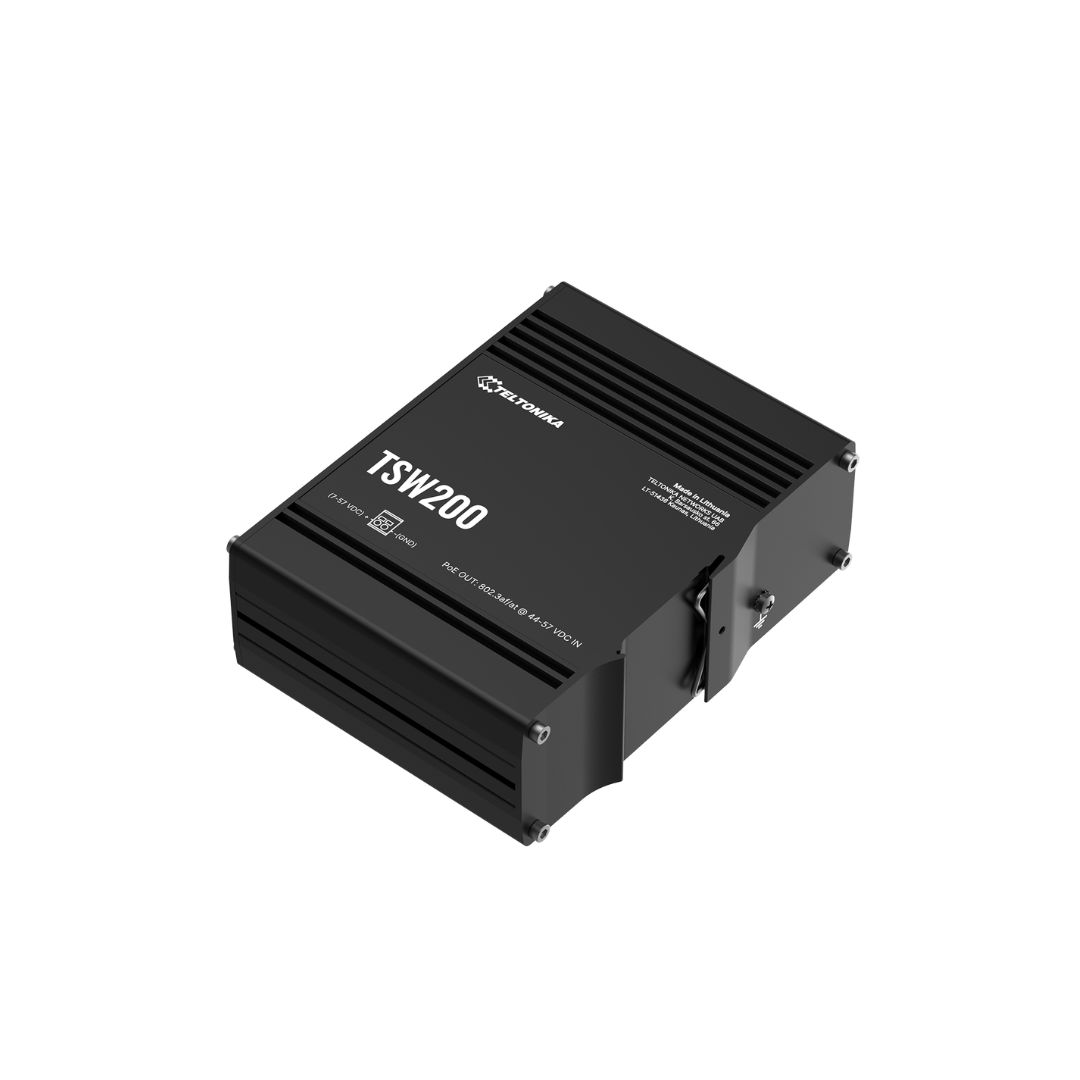

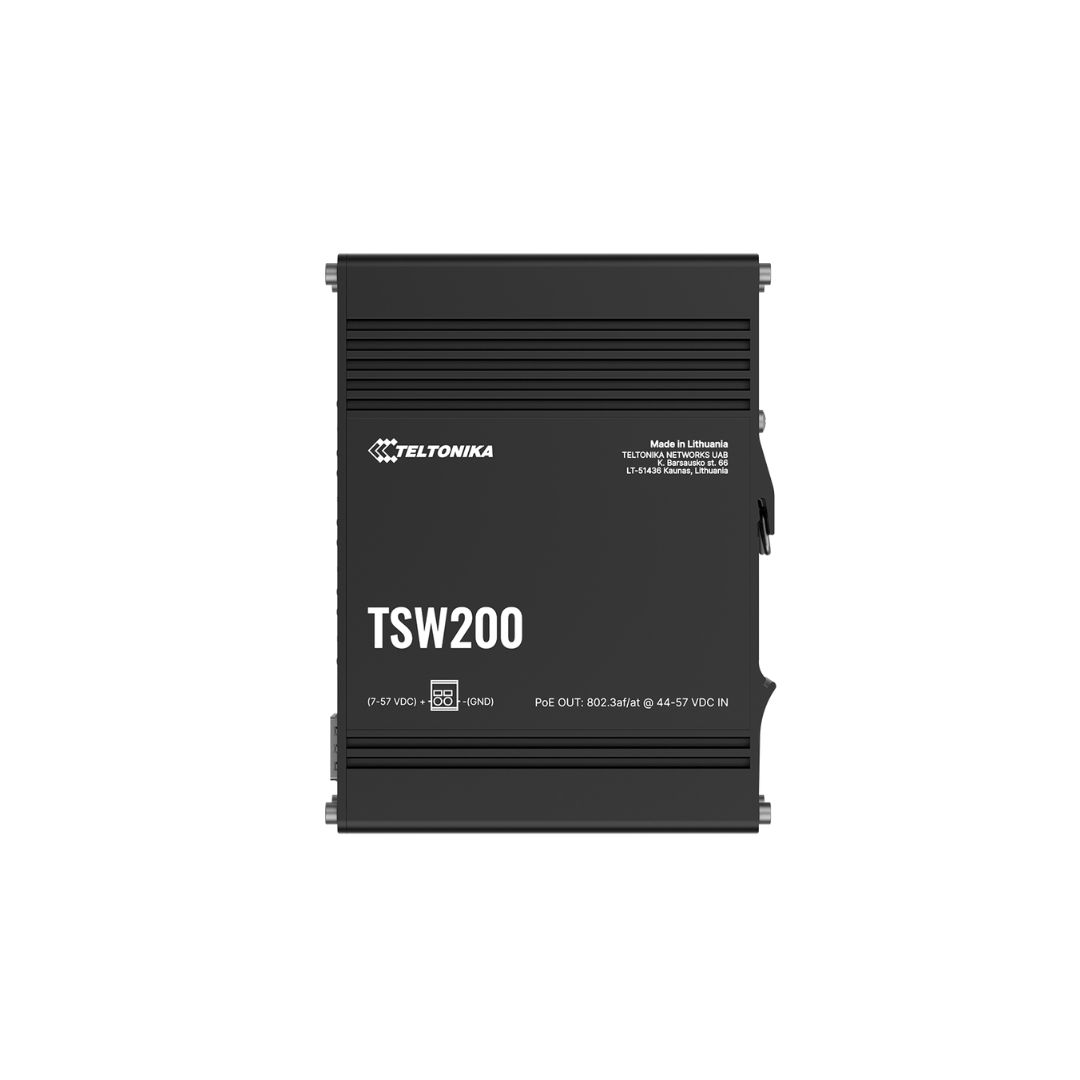

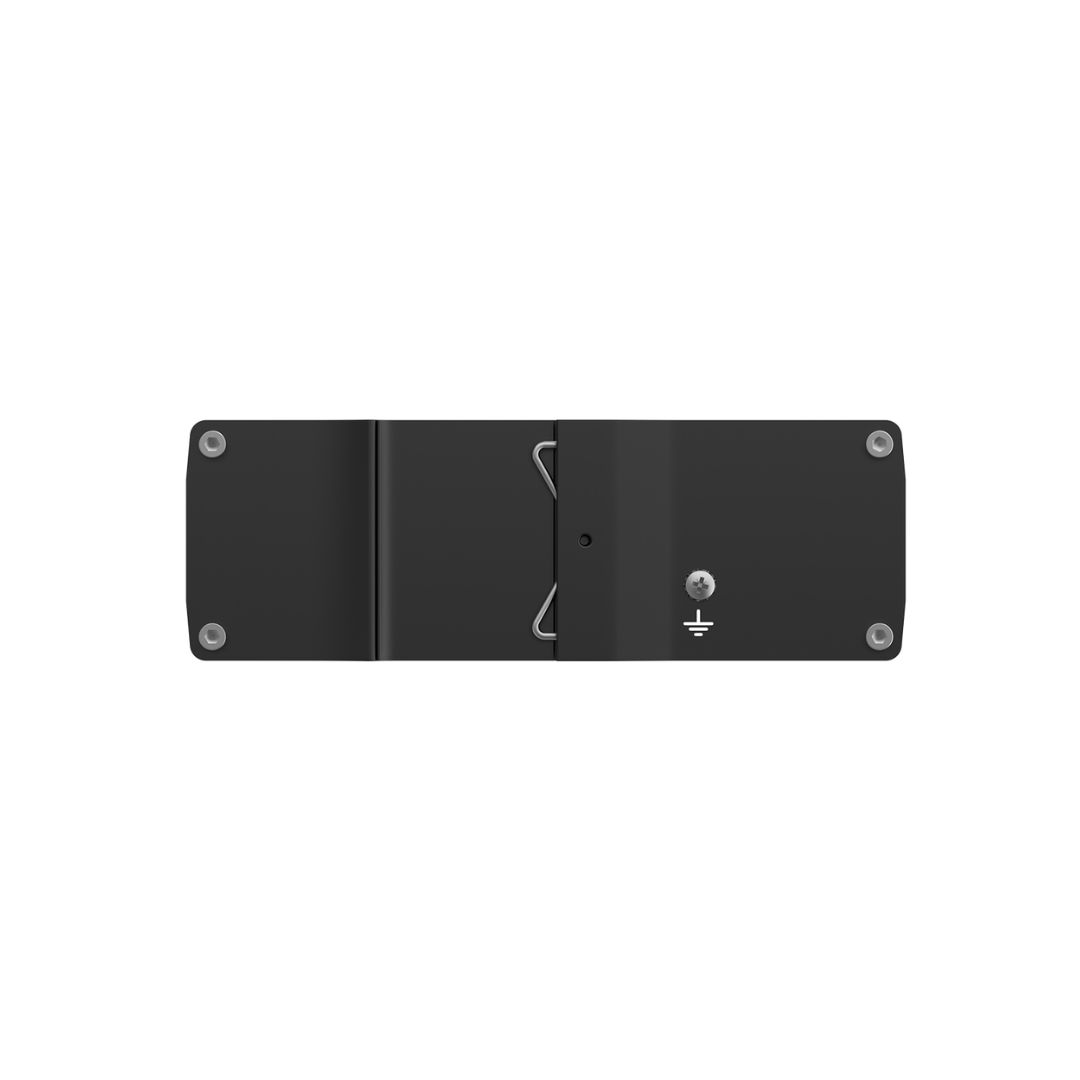

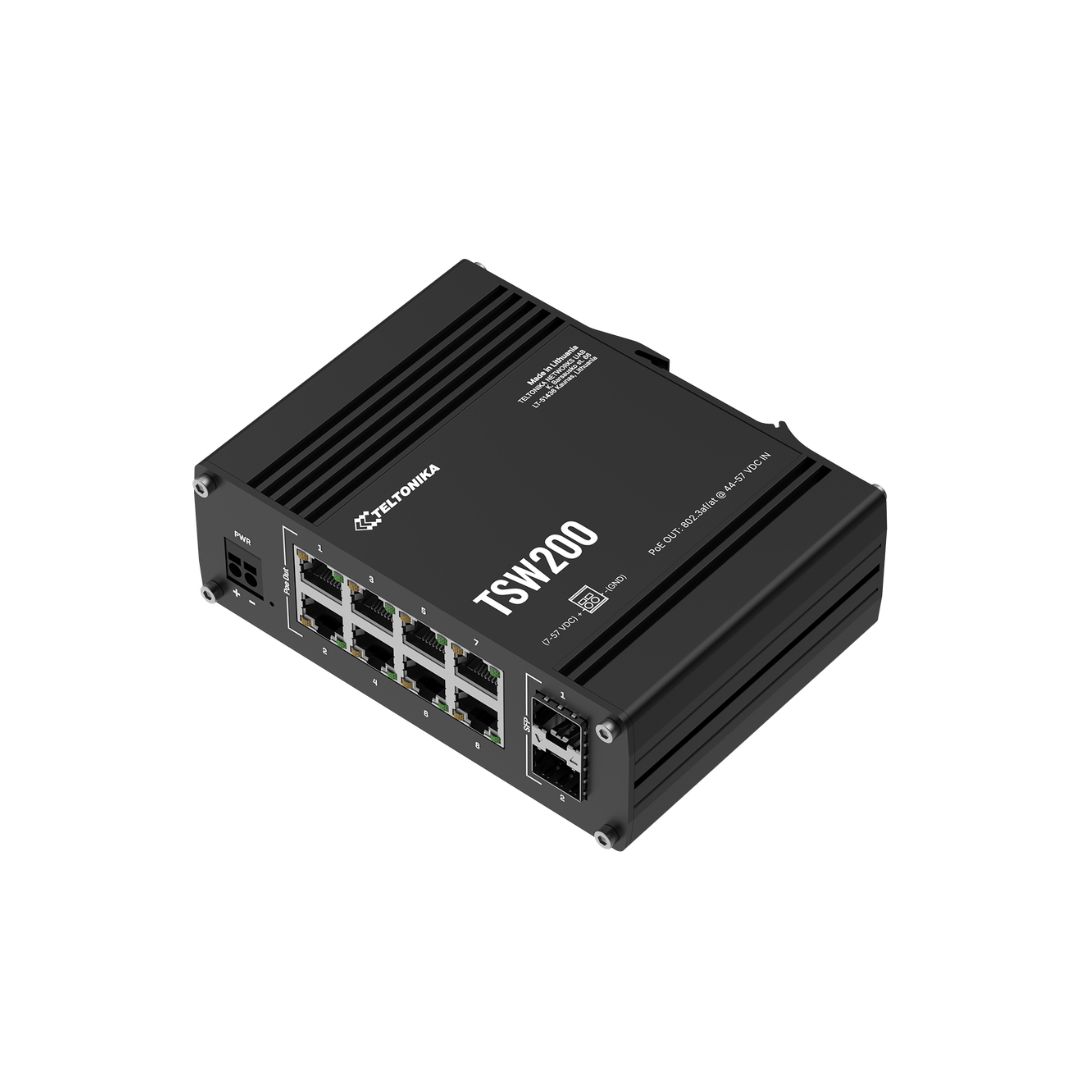

TSW200
INDUSTRIAL POE+ ETHERNET SWITCH
- SFP : 2 x SFP ports for long-range Fiber-optic communication
- PoE+ : 8 x PoE+ ports with 802.af, 802.3at standard support
- POWER BUDGET : Total power budget at PSE up to 240 W
- ETHERNET : 8 x Gigabit Ethernet with speeds up to 1000 Mbps
TECHNICAL SPECIFICATIONS
| Details | |
|---|---|

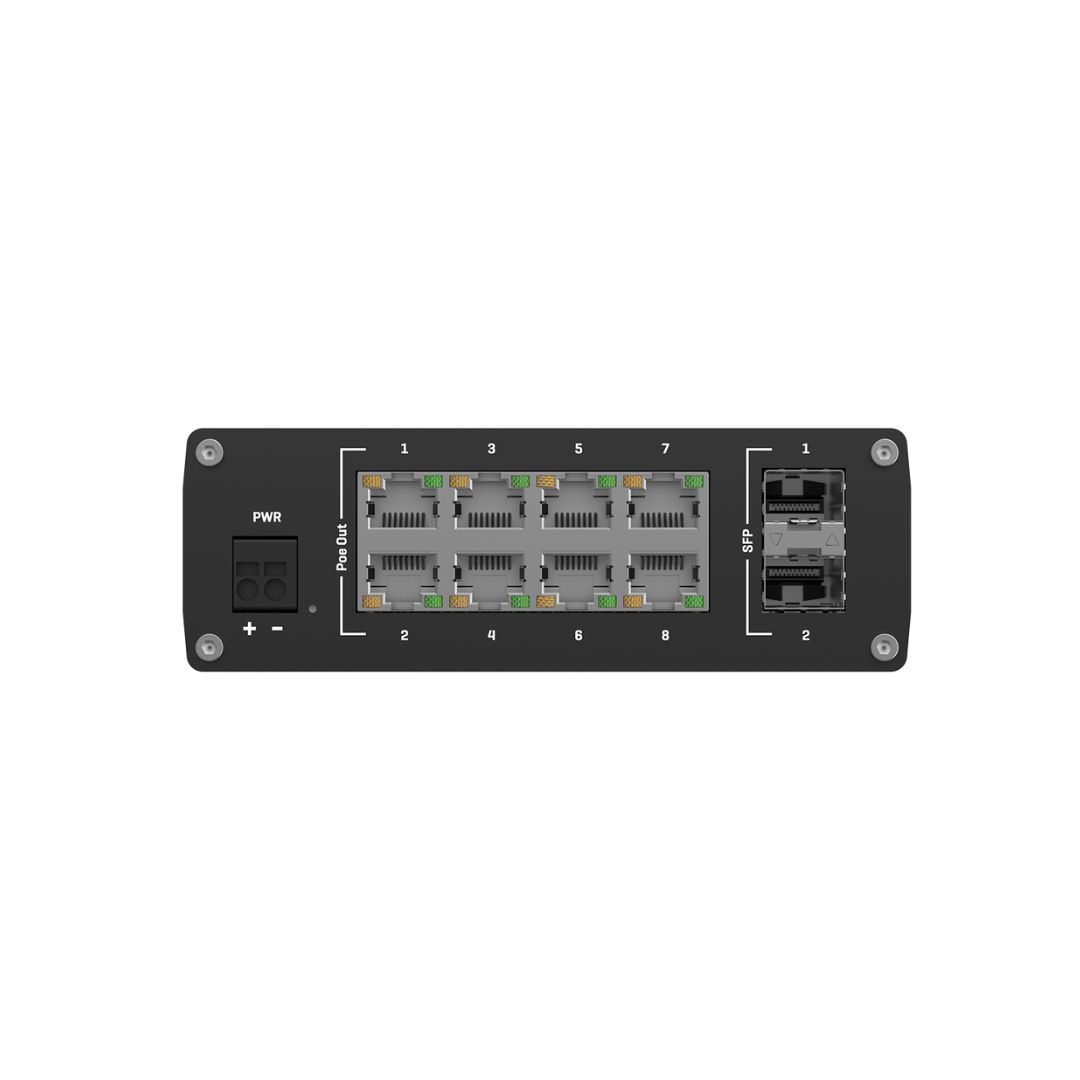

| Fixed Service Port | 8 x ETH ports, 10/100/1000 Mbps 2 x SFP ports |
| Protection Class | IP30 |
| Switching capacity | 20Gbps |
| MAC Address Table | 2000 |
| Operating Temperature | -40 °C to 75 °C |
| Power Consumption | Idle: 1.81 W / Max: 5.5 W / PoE Max: 245.5 W |
| Dimensions (W x D x H) (mm) | 132 x 44.2 x 95.1 mm |
| Unit Weight | 517 g |
