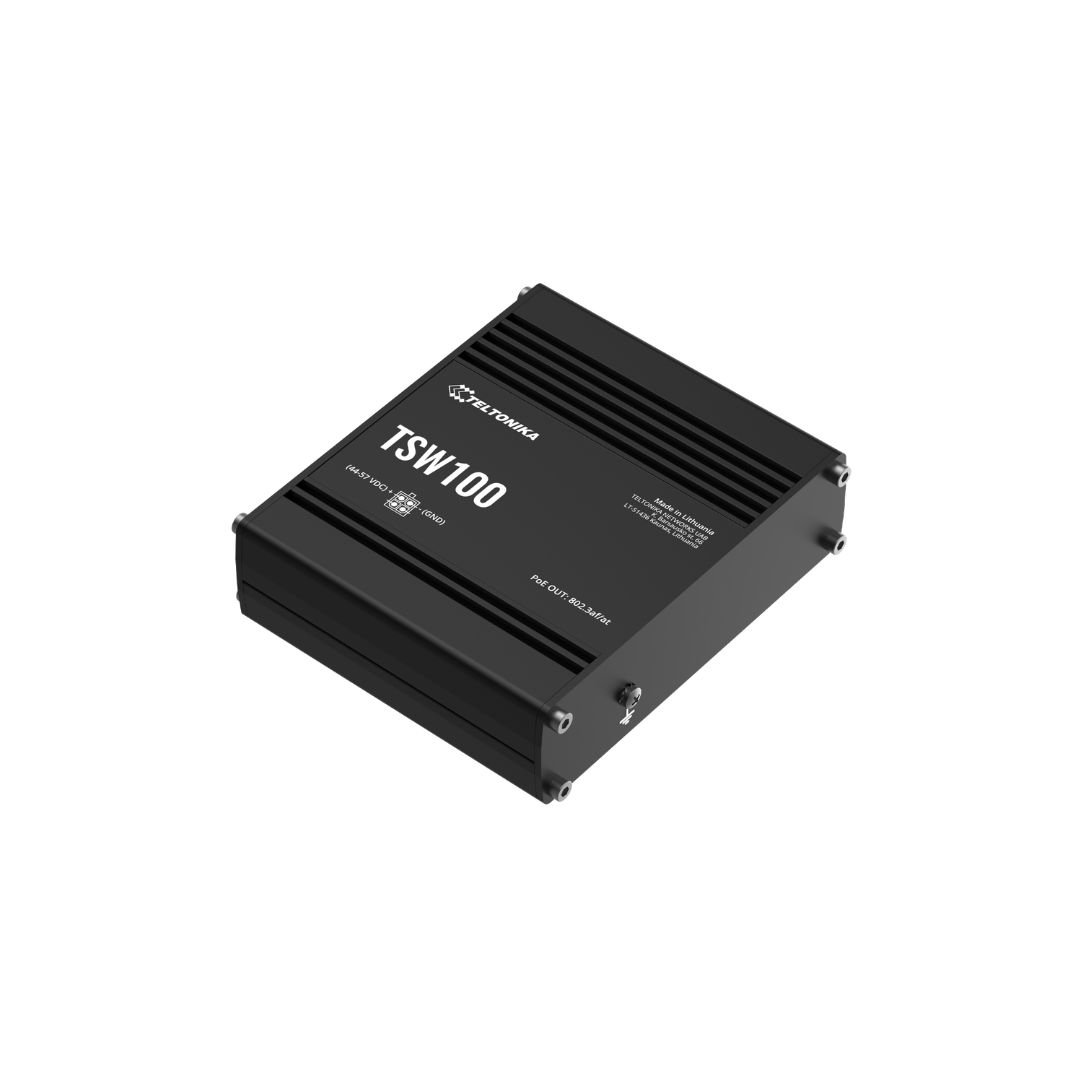

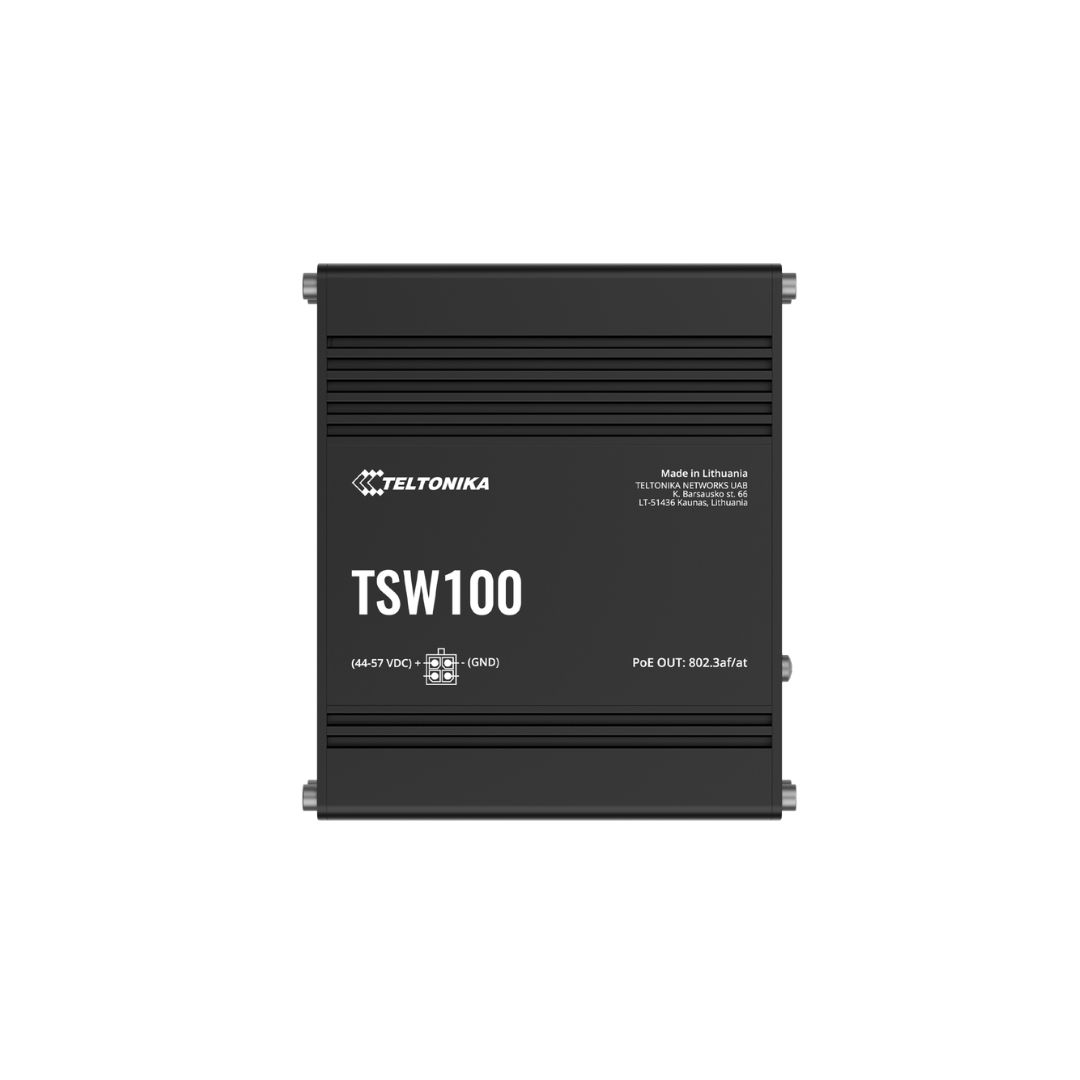

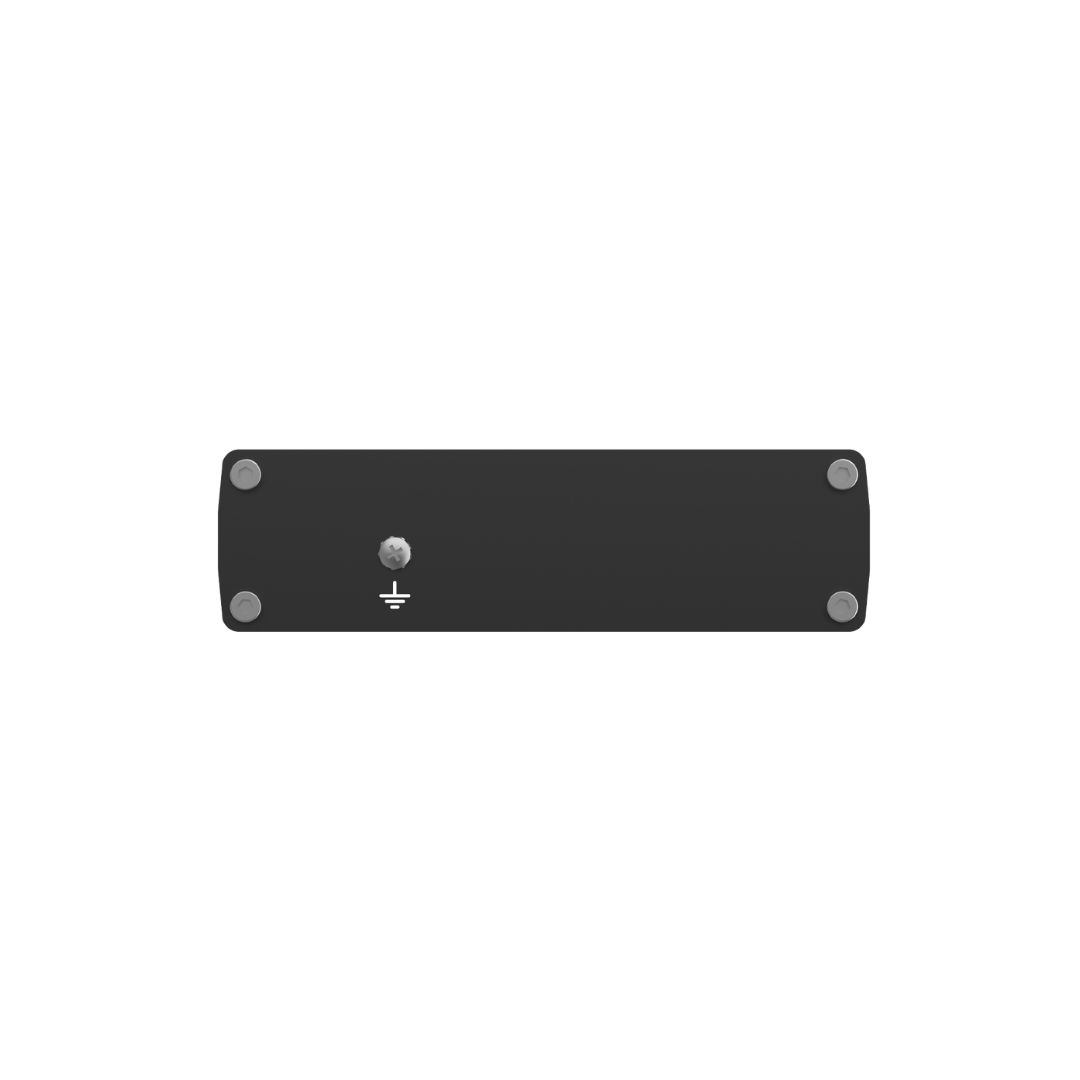

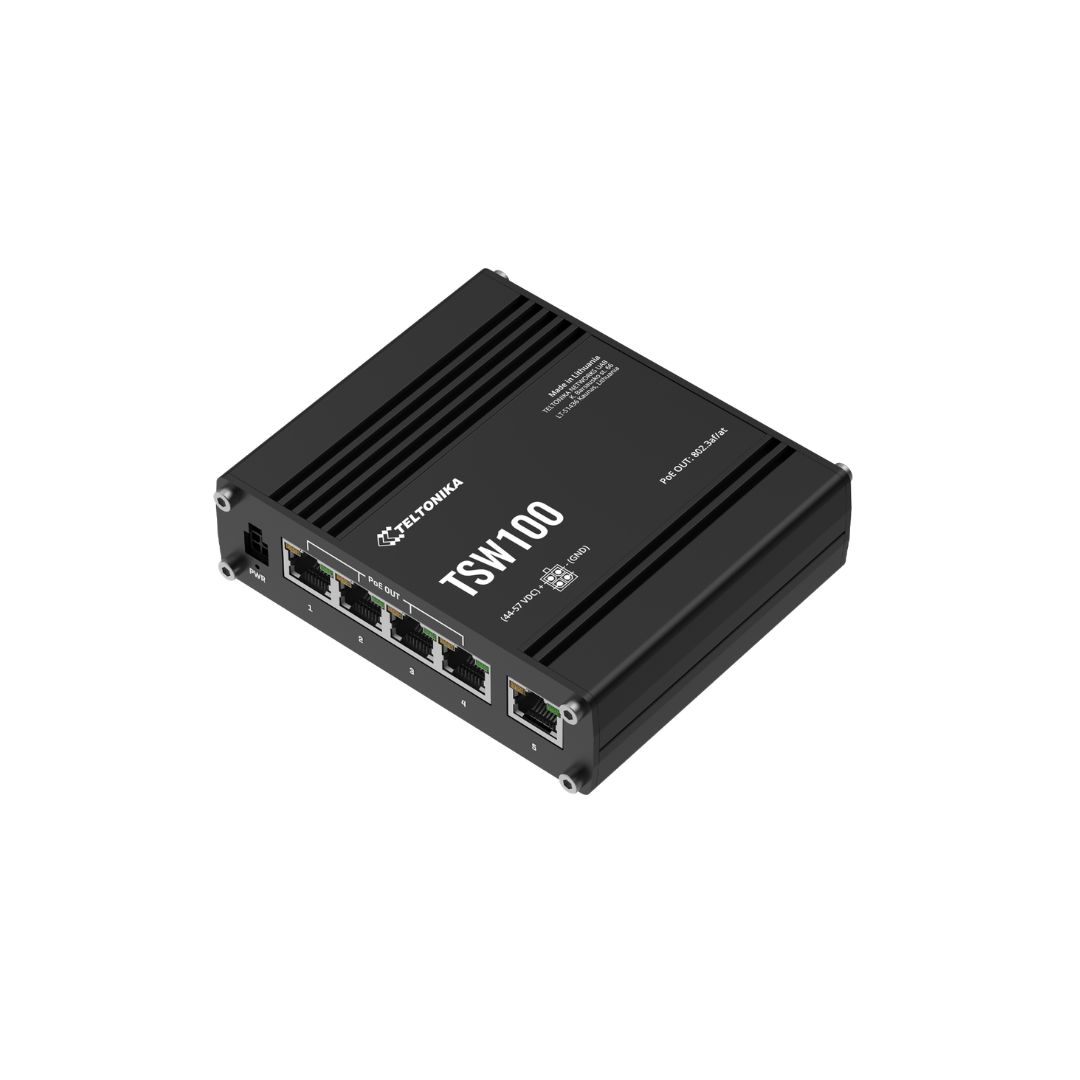

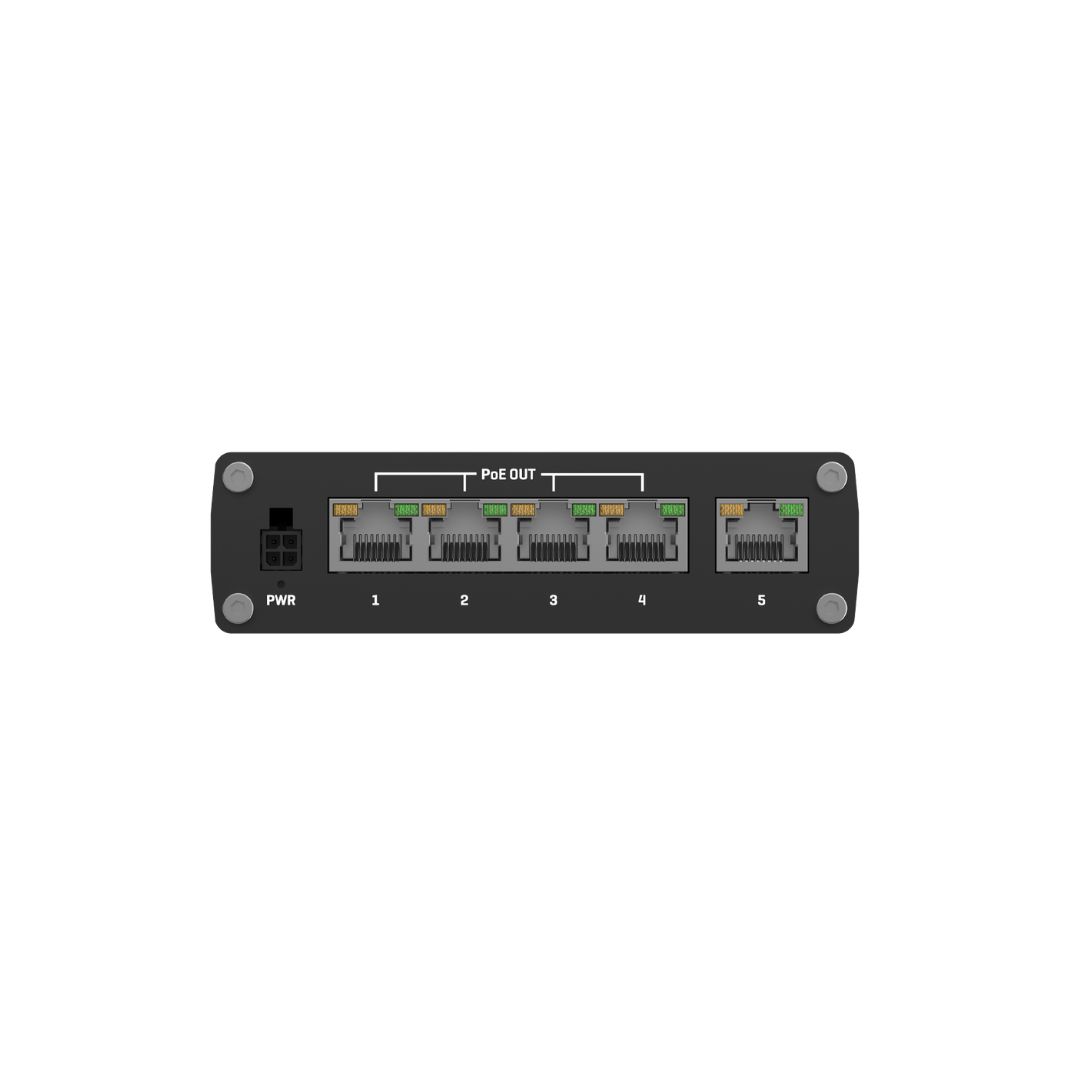

TSW100
INDUSTRIAL POE+ ETHERNET SWITCH
- POE+ : 4 x PoE+ ports with 802.3af and 802.3at support
- POWER BUDGET : Total power budget at PSE up to 120 W
- ETHERNET : 5 x Gigabit Ethernet with speeds up to 1000 Mbps
- MOUNTING : DIN rail and surface mounting options
TECHNICAL SPECIFICATIONS
| Details | |
|---|---|
| Fixed Service Port | 5 x ETH port, 10/100 Mbps, supports auto MDI/MDIX crossover |
| Protection Class | IP30 |
| Switching capacity | 10 Gbps |
| MAC Address Table | 2000 |
| Operating Temperature | -40 °C to 75 °C |
| Power Consumption | Idle: 2 W / Max (no PoE): 9 W / PoE Max: 129 W |
| Dimensions (W x D x H) (mm) | 115 x 32.2 x 101.2 mm |
| Unit Weight | 350 g |
