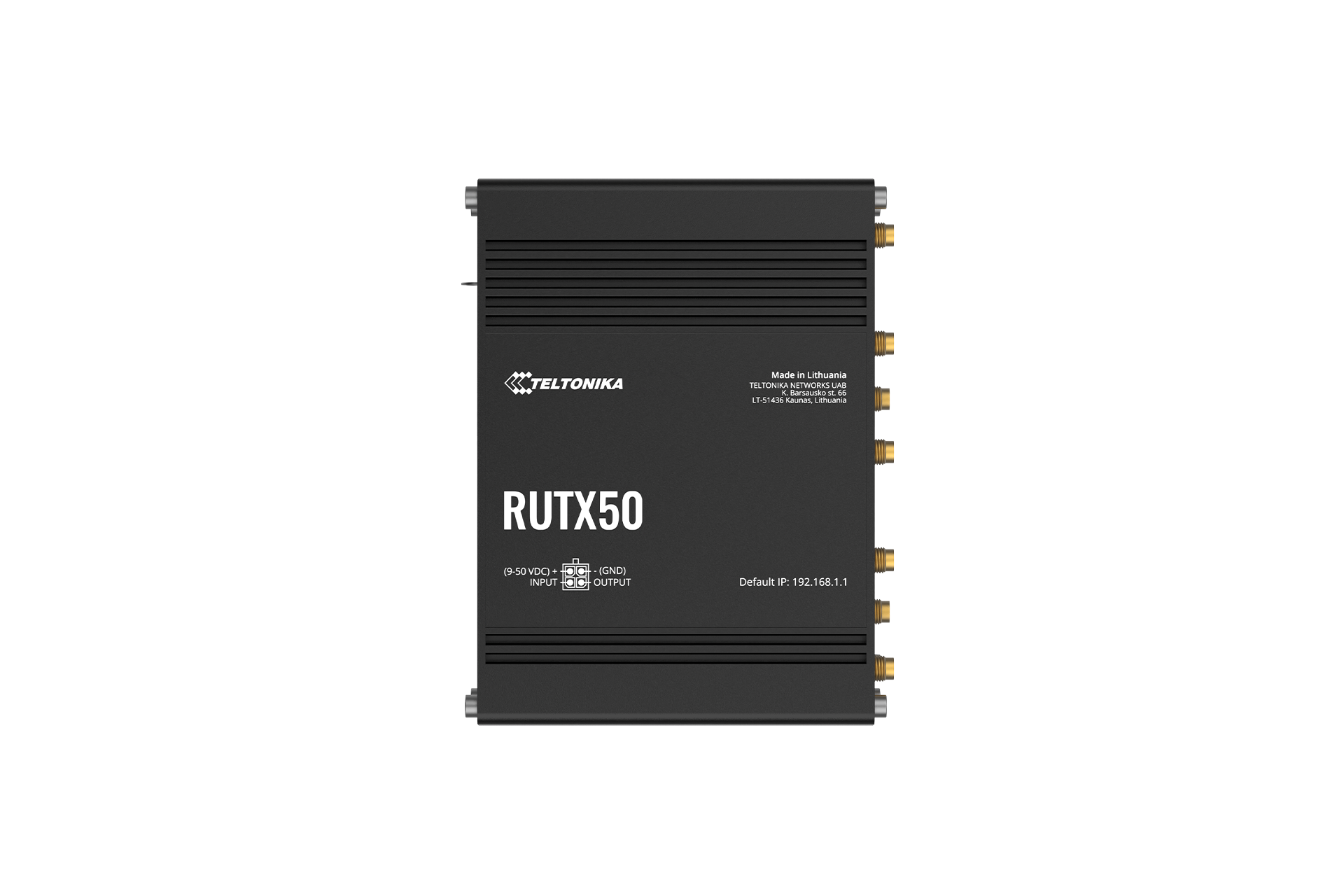

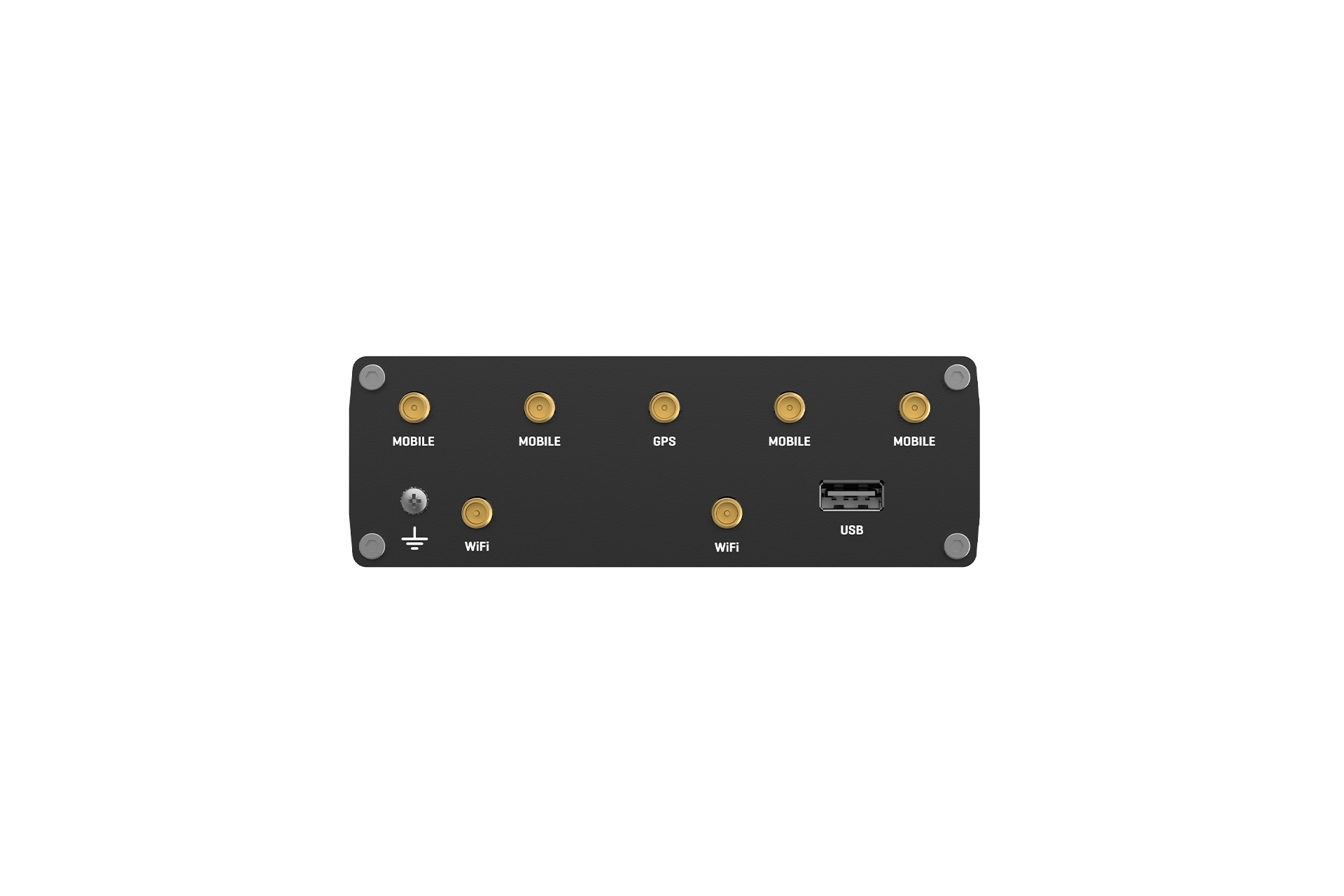

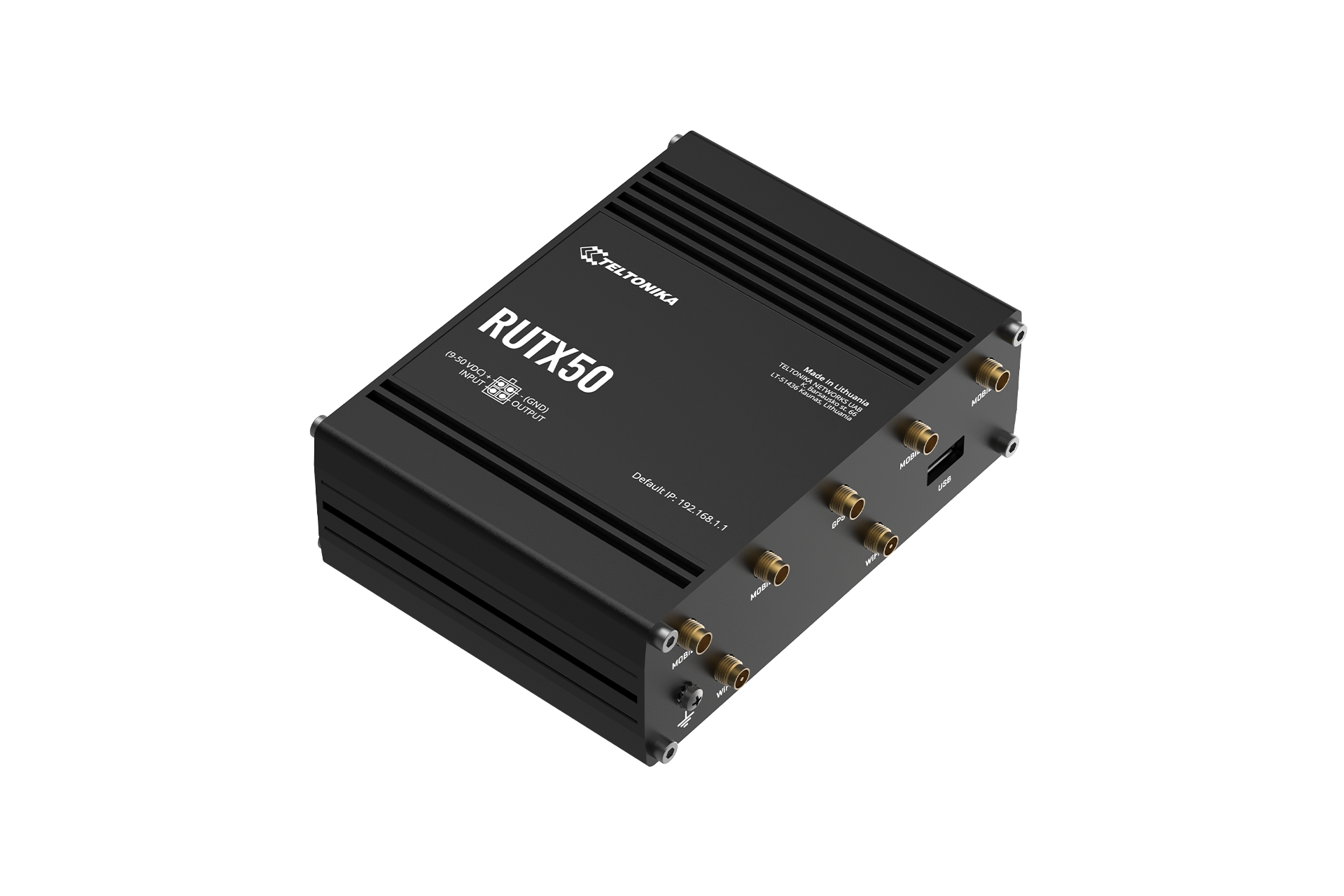

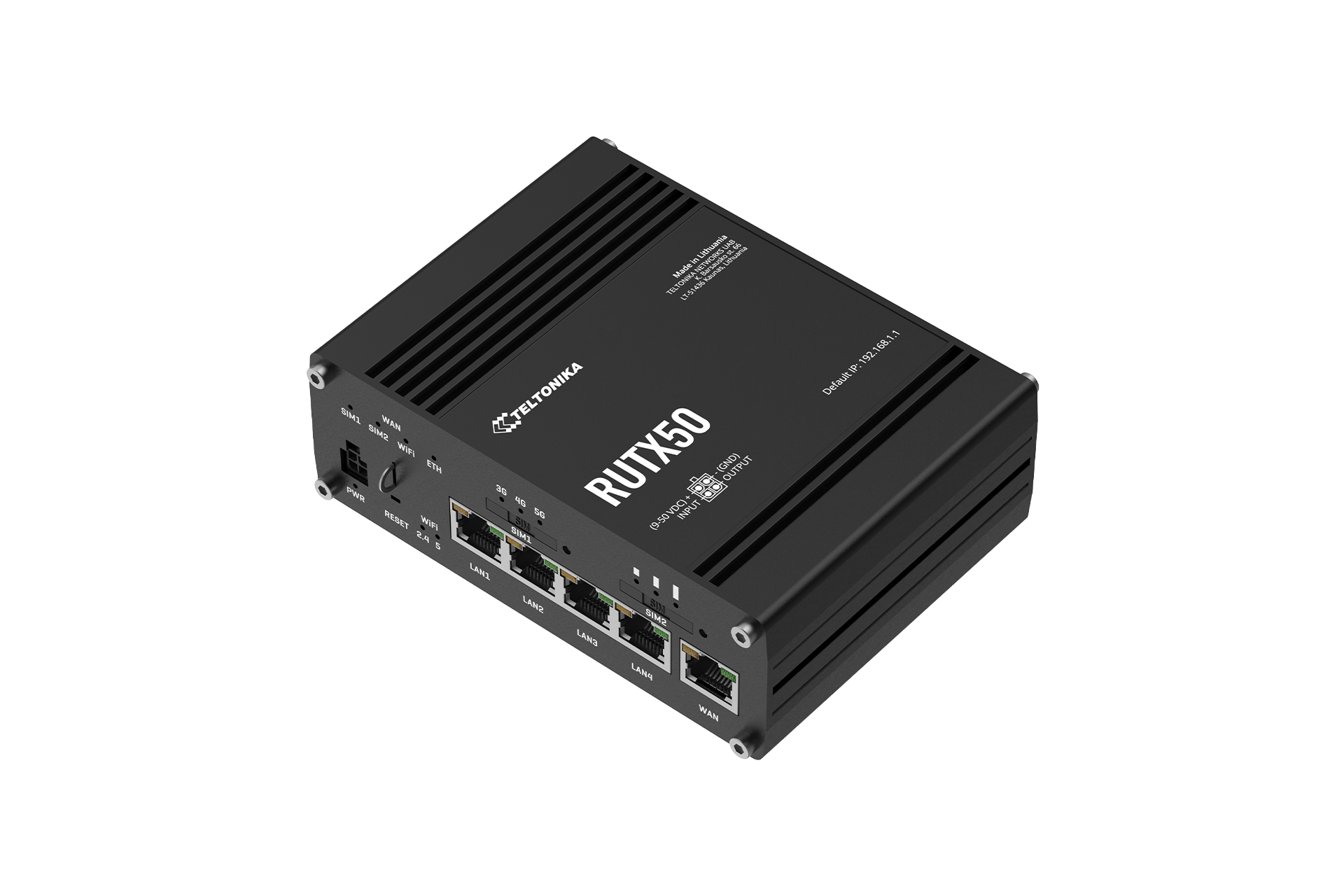

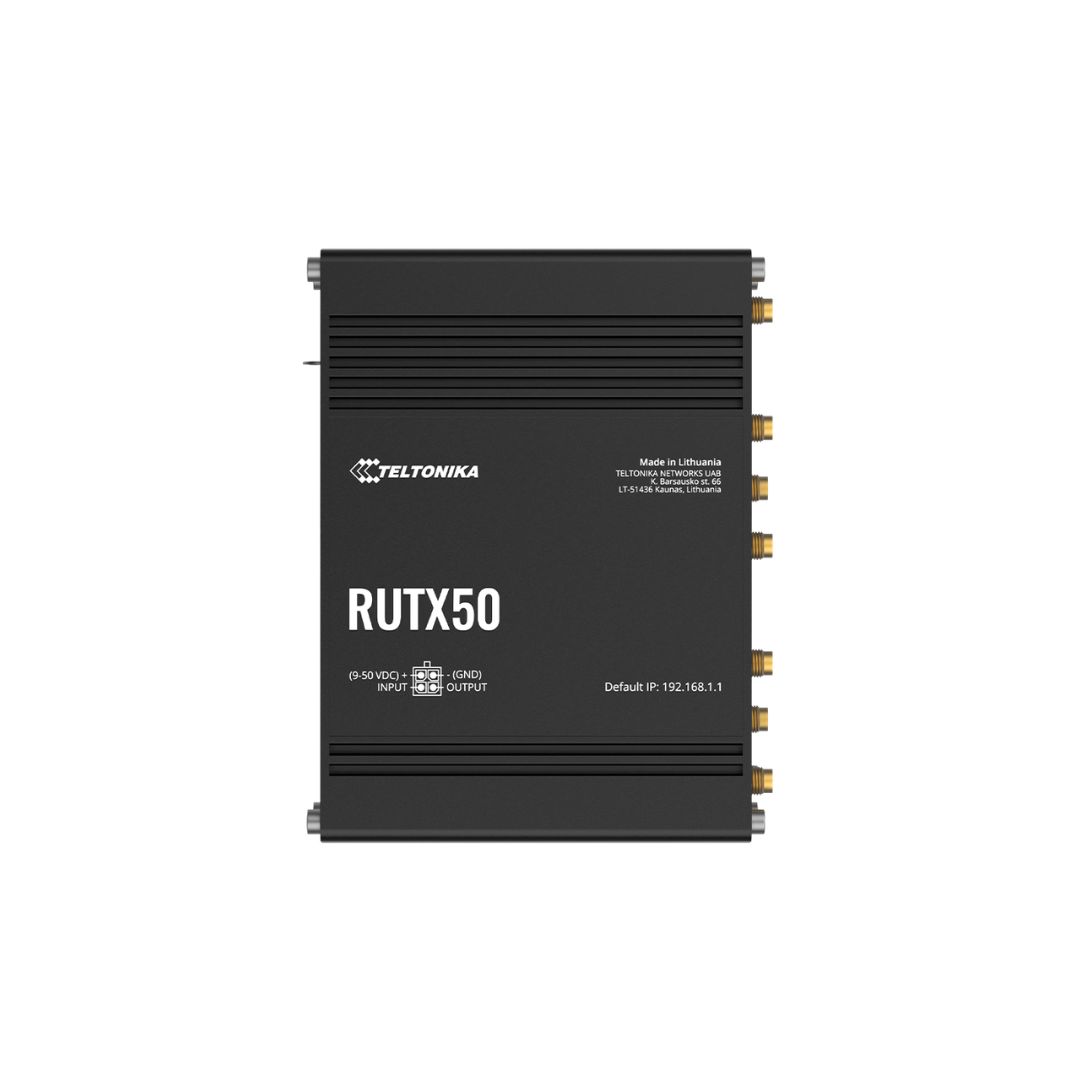

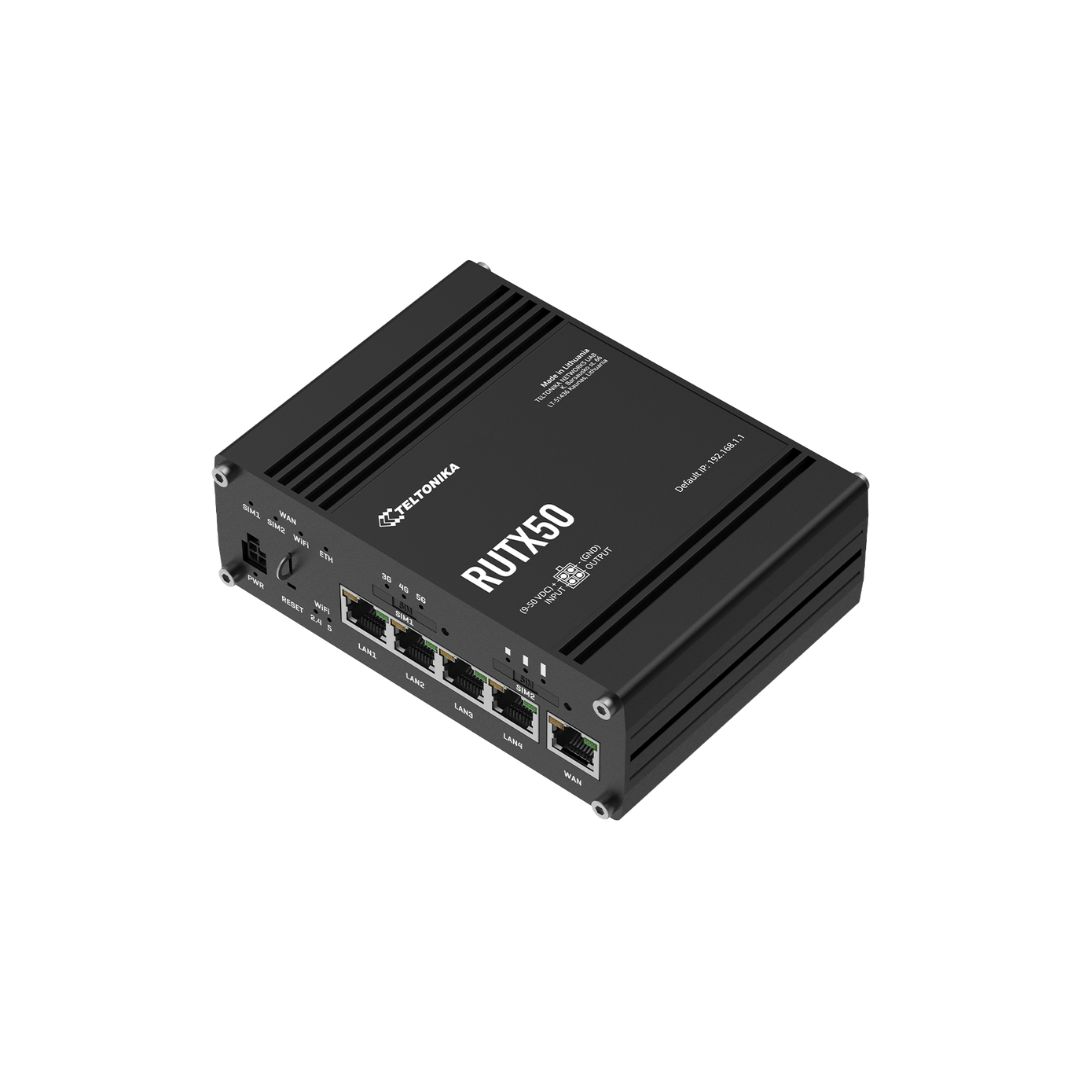

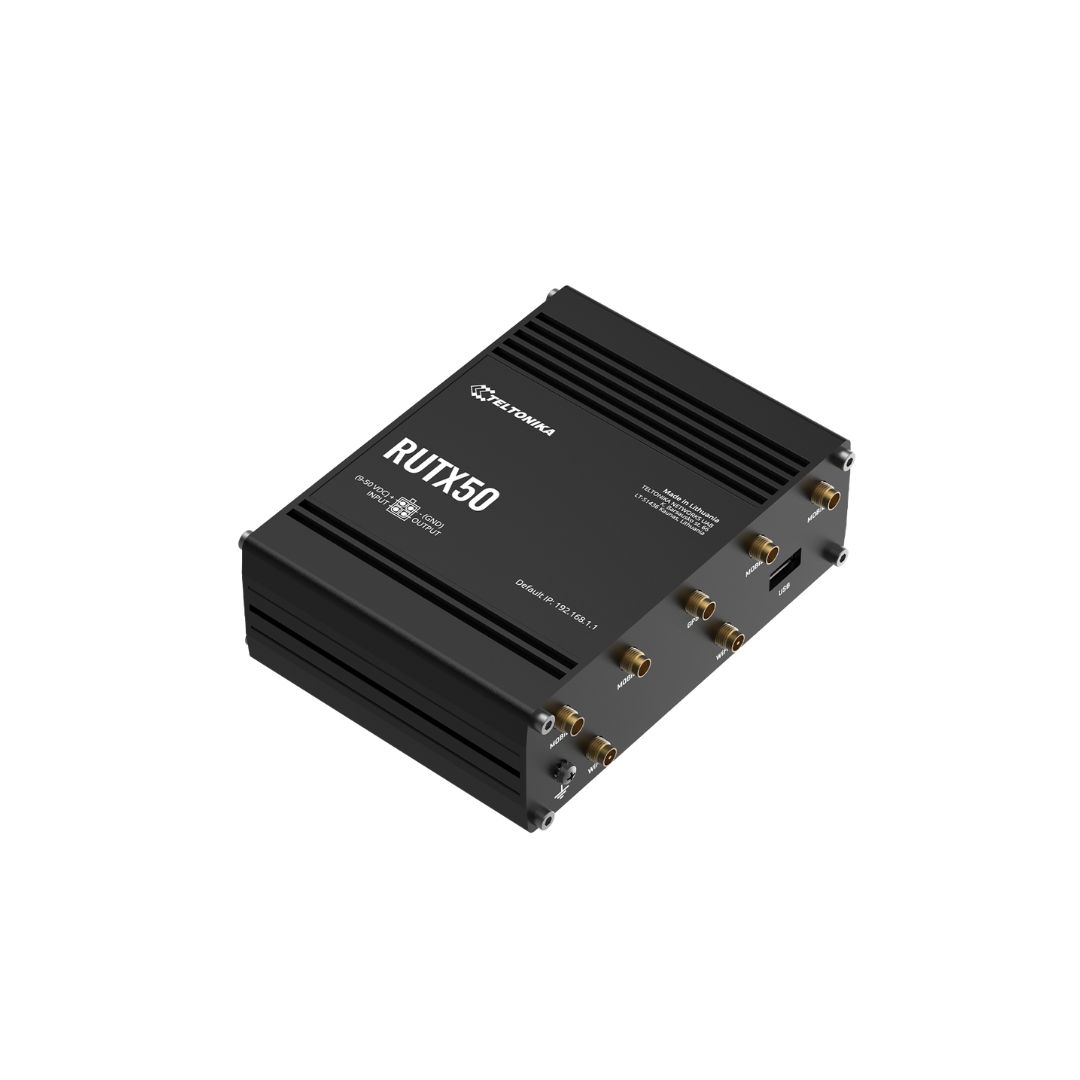

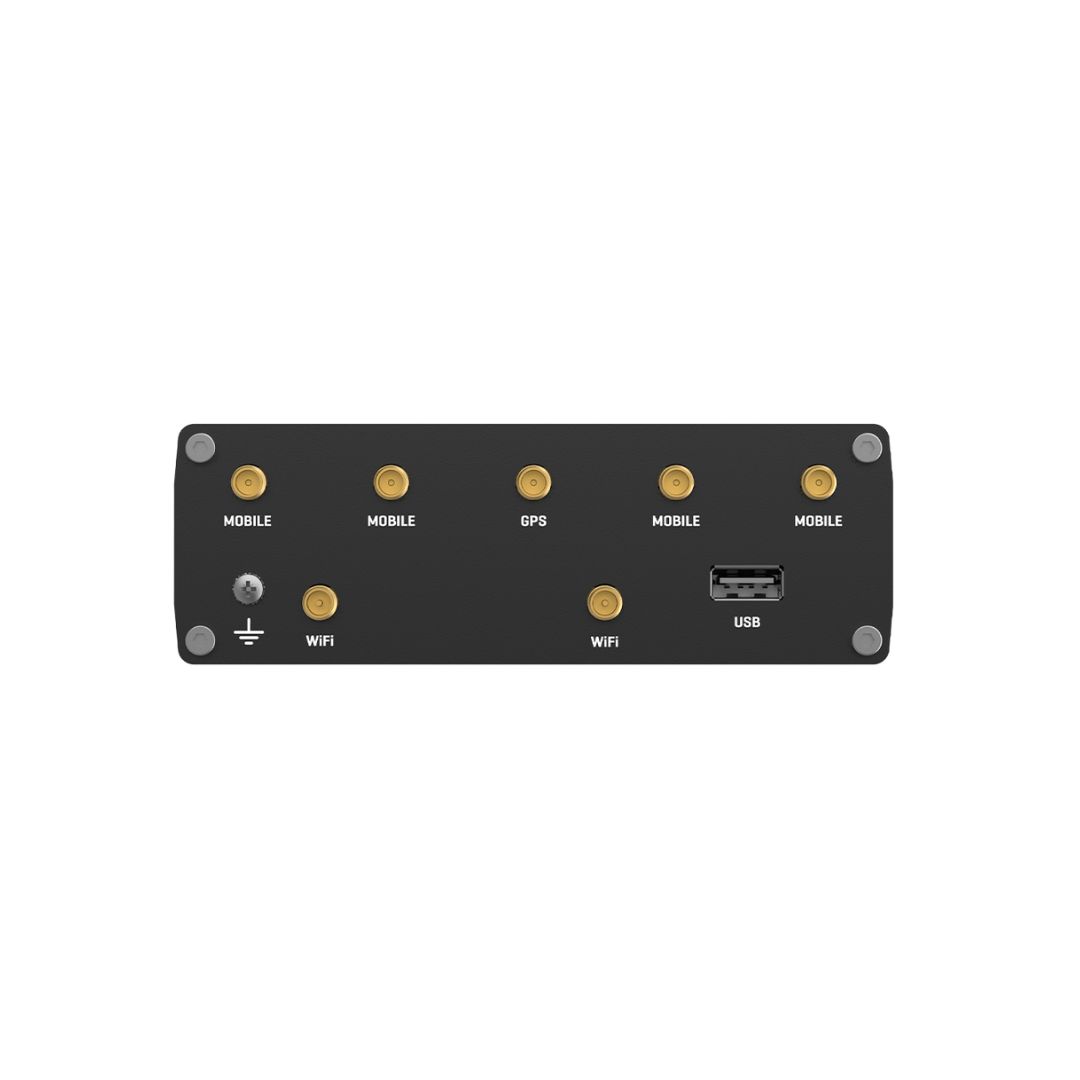

RUTX50
INDUSTRIAL 5G ROUTER
- 5G: Ultra-high cellular speeds of up to 3.3 Gbps
- DUAL SIM : With auto failover, backup WAN and other switching scenarios
- SA & NSA: Supports both architectures to leverage the 5G infrastructure
- FUTURE-PROOFING: Backward compatible with 4G (LTE CAT 20) and 3G network technologies
TECHNICAL SPECIFICATIONS
| Details | |
|---|---|
| Dimensions | 132 x 44.2 x 95.1 mm |
| Weight | 533 g |
| Input voltage range | • 9 – 50 VDC, reverse polarity protection • surge protection >51 VDC 10us max |
| Power Consumption | Idle: < 4 W, Max: < 16.5 W |
| Wireless Mode | • 802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO) • 802.11r fast transition • Access Point (AP) • Station (STA) |
| CPU | Quad-core ARM Cortex A7, 717 MHz |
| RAM | 256 MB |
| Flash | 256 MB |

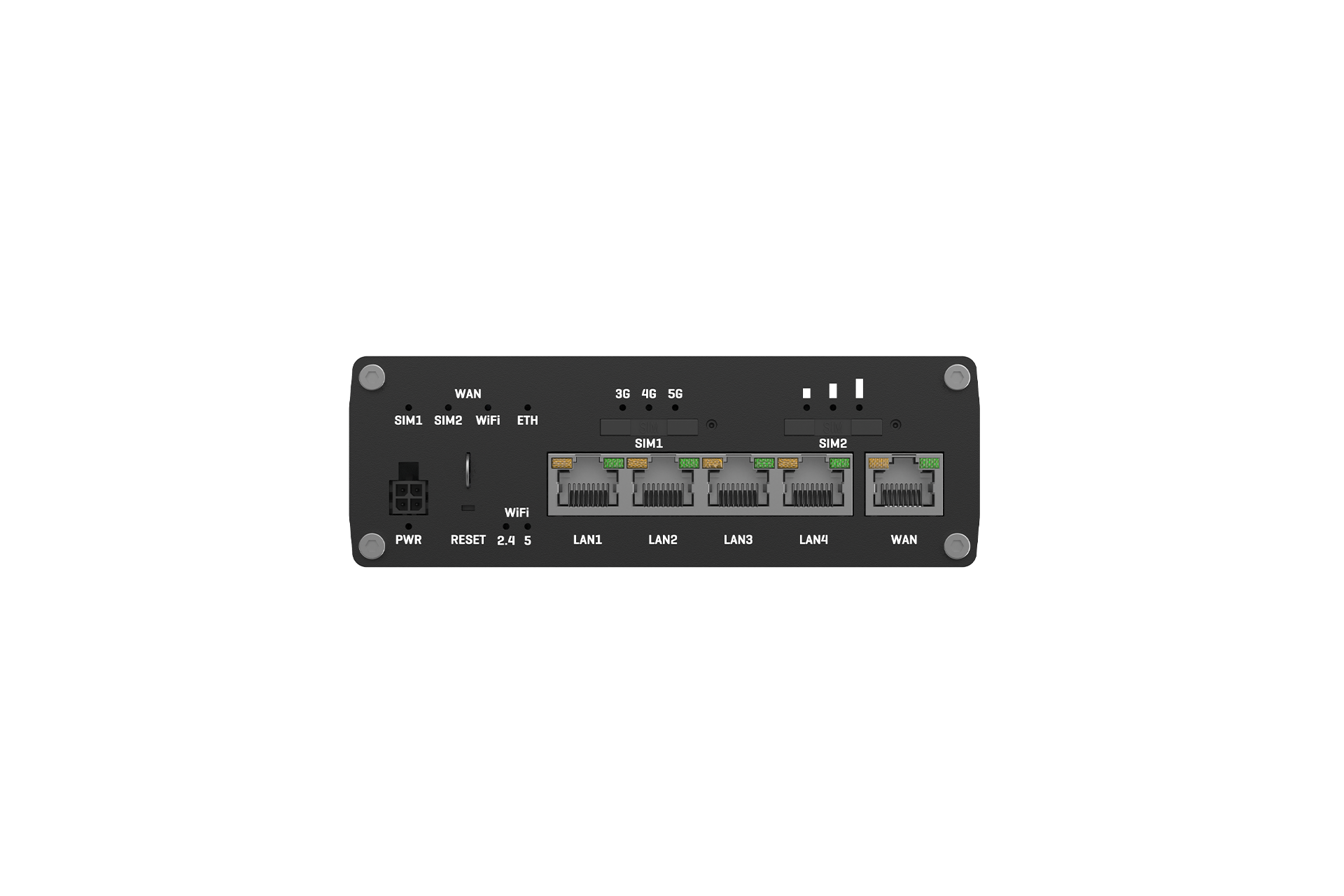

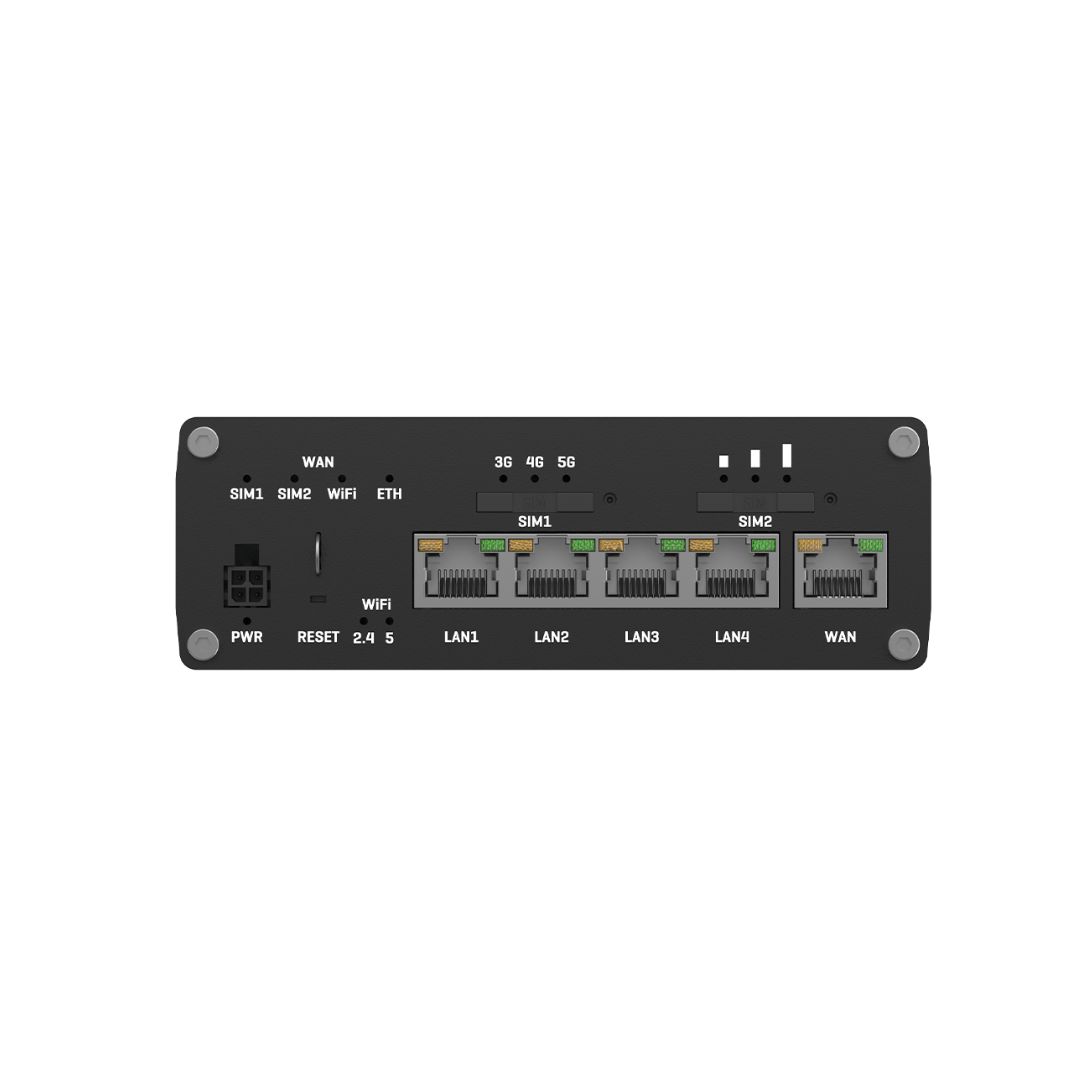

| WAN Port(s) | 1 x WAN port, 10/100/1000 Mbps |
| LAN Port(s) | 4 x LAN ports, 10/100/1000 Mbps |
| PoE/PoE+ | Passive PoE only |
| Mobile Feature | • Dual SIM and eSIM • Auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection |
