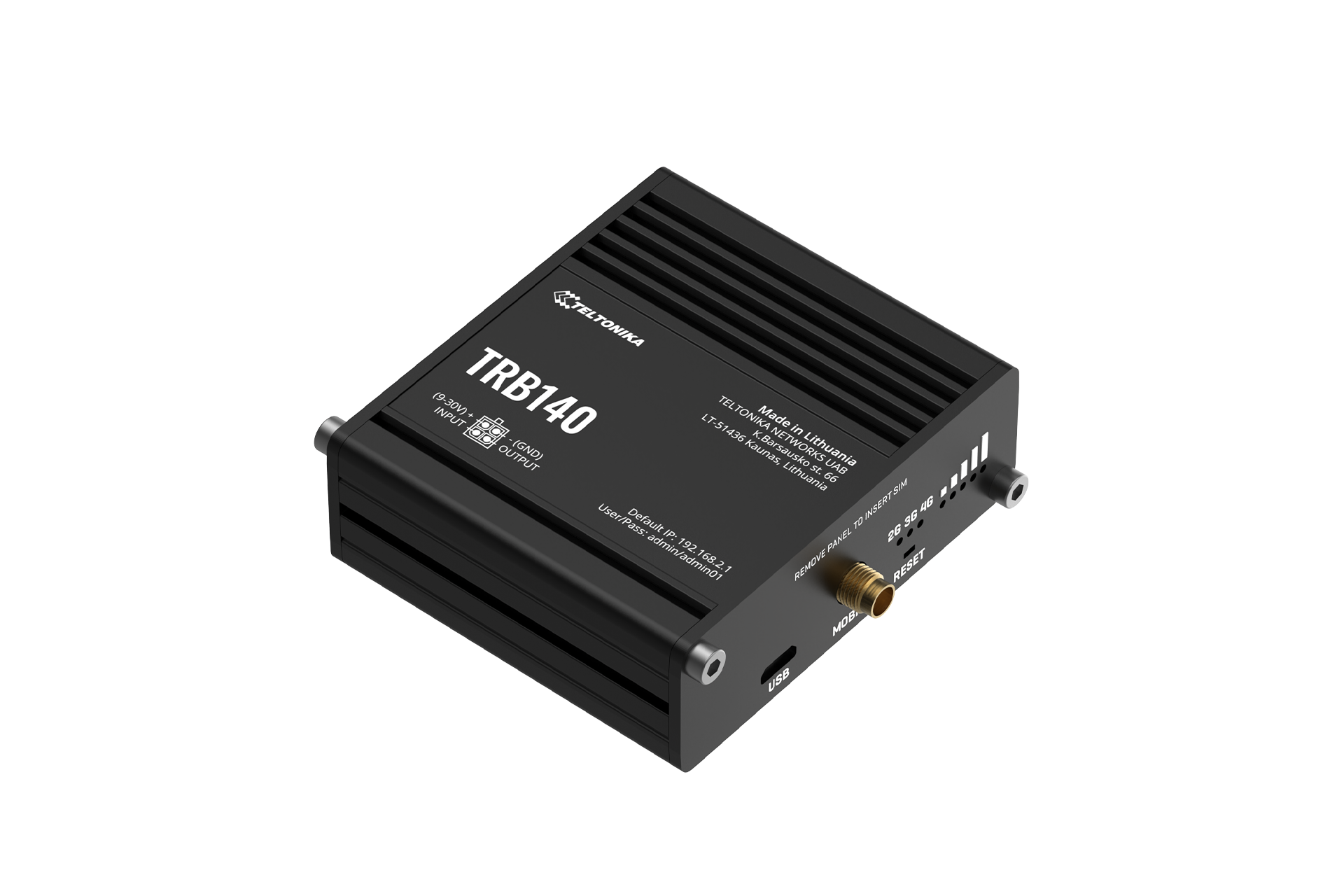

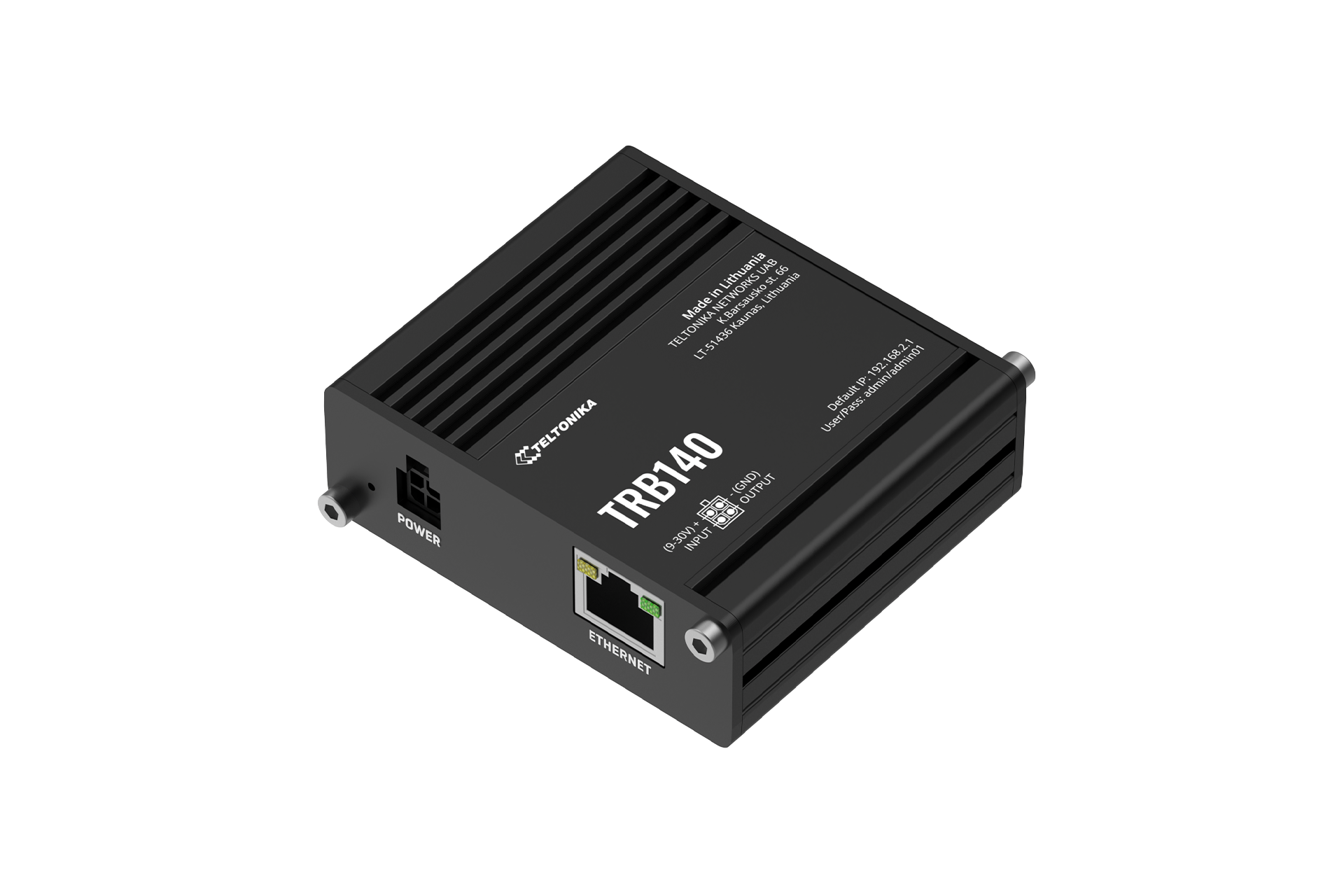

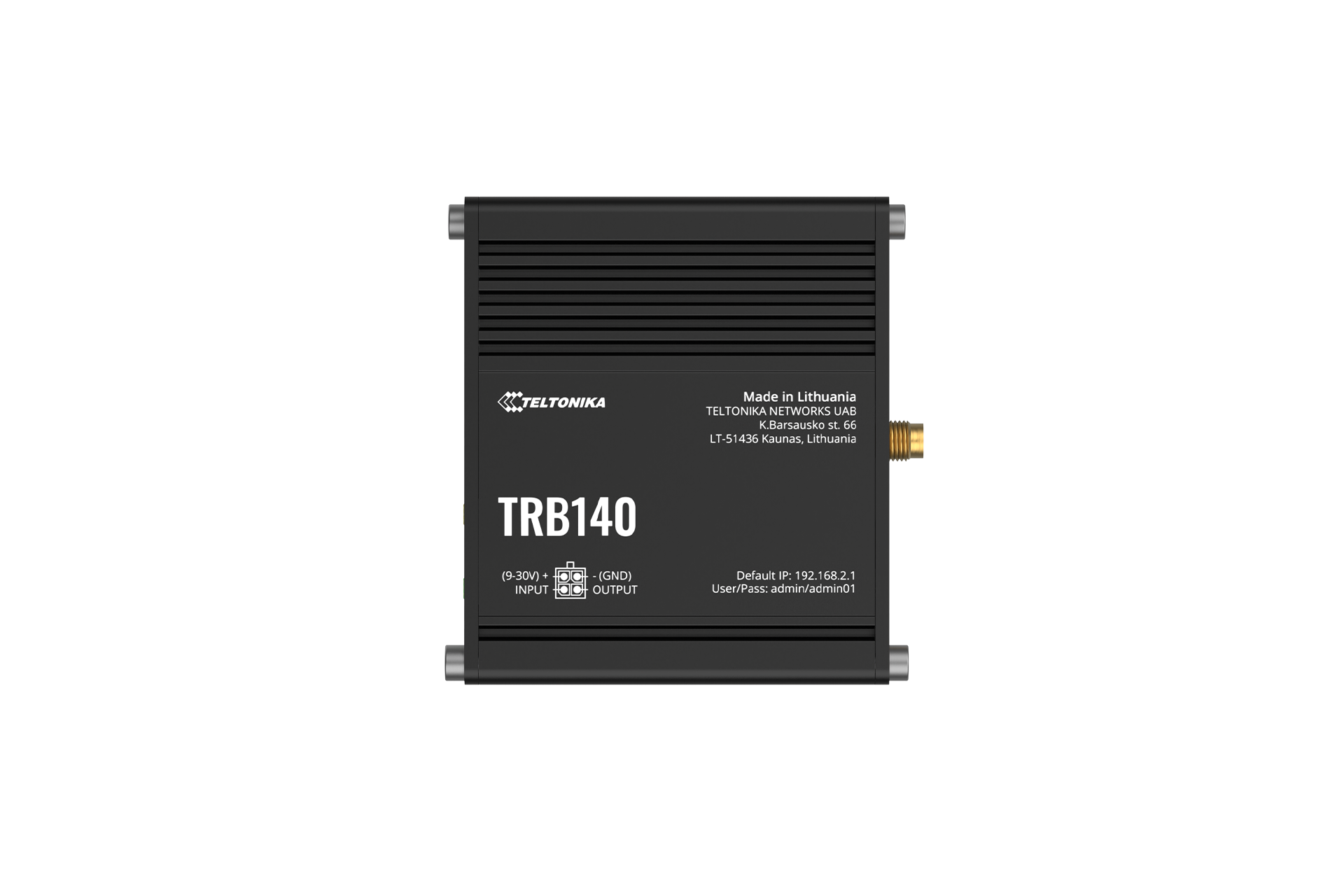

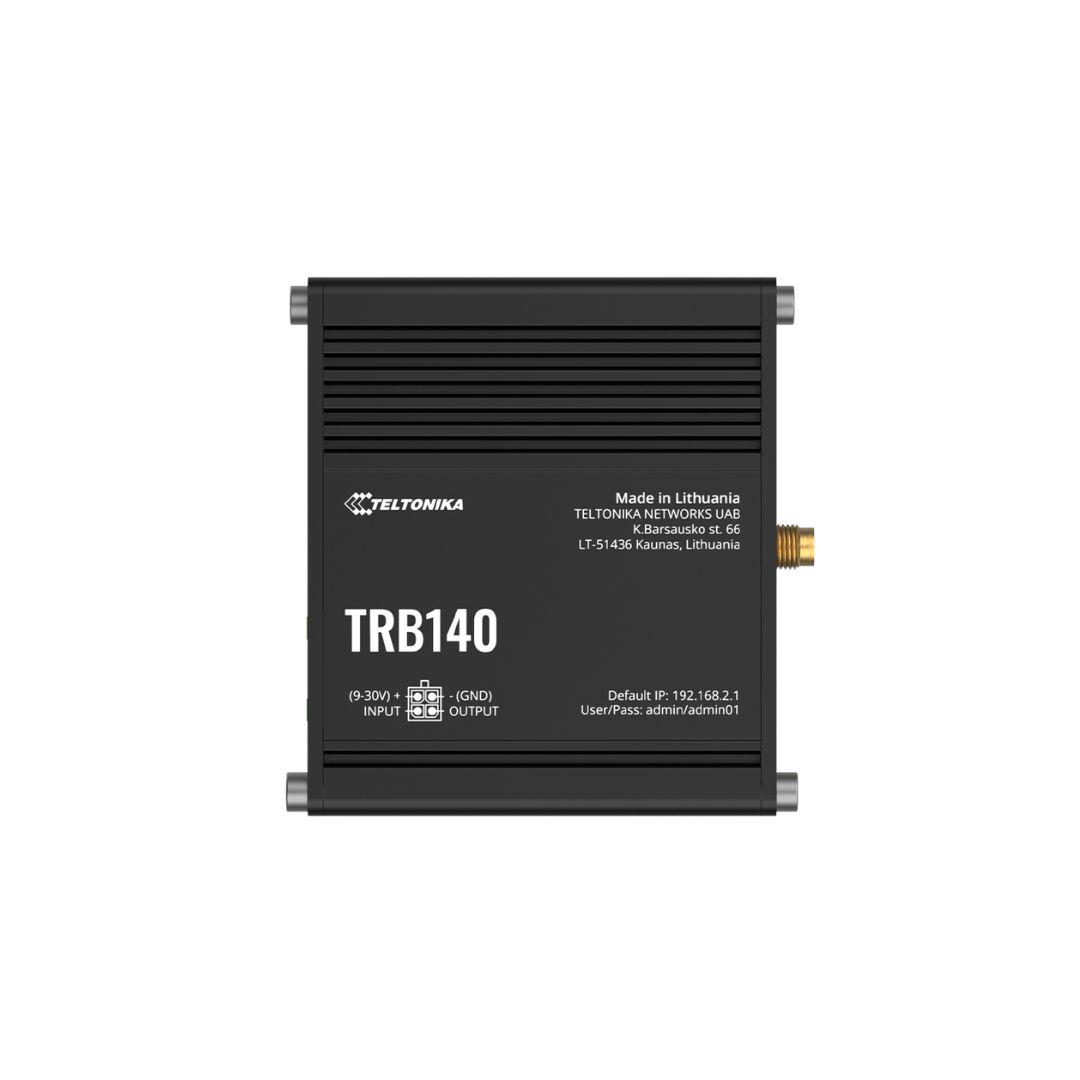

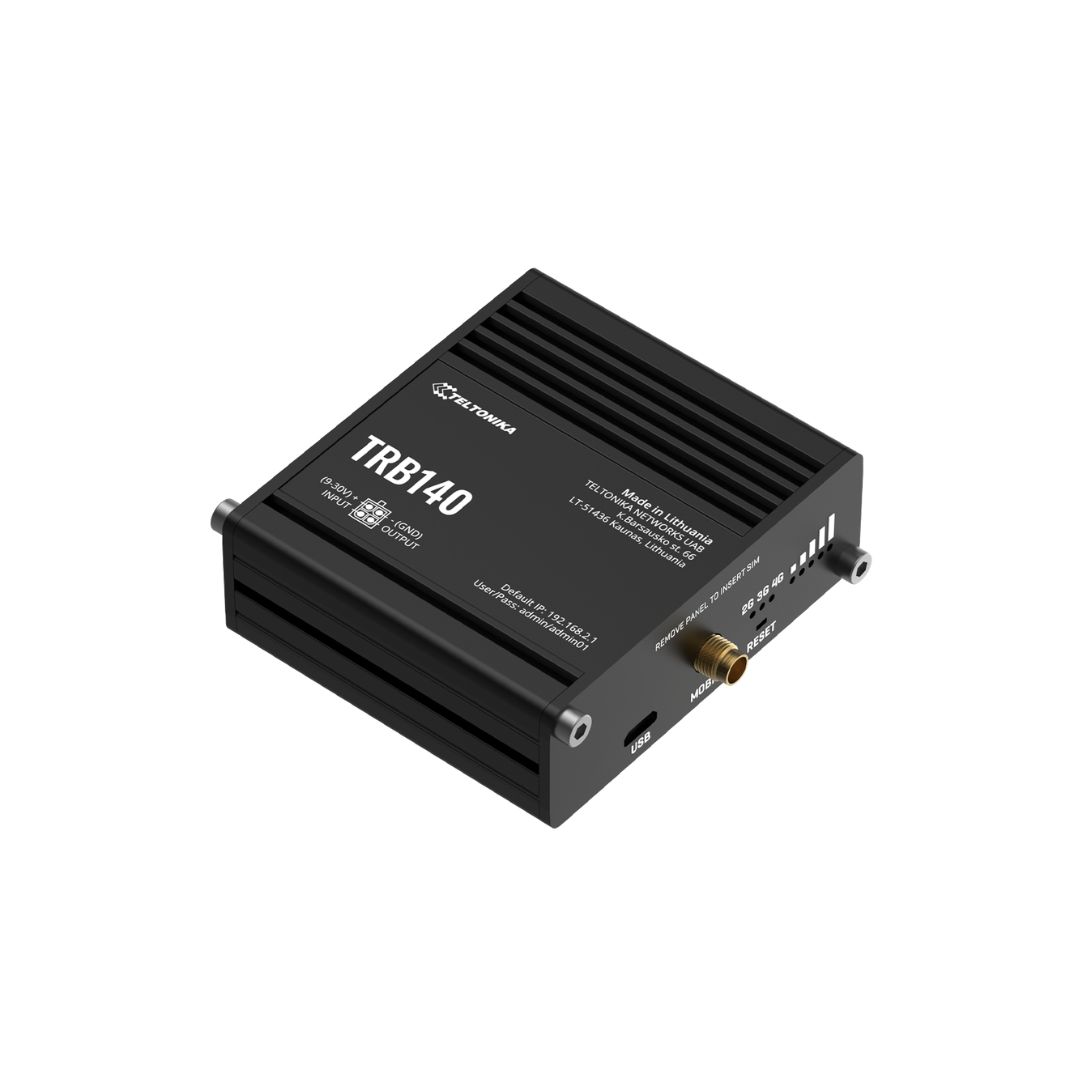

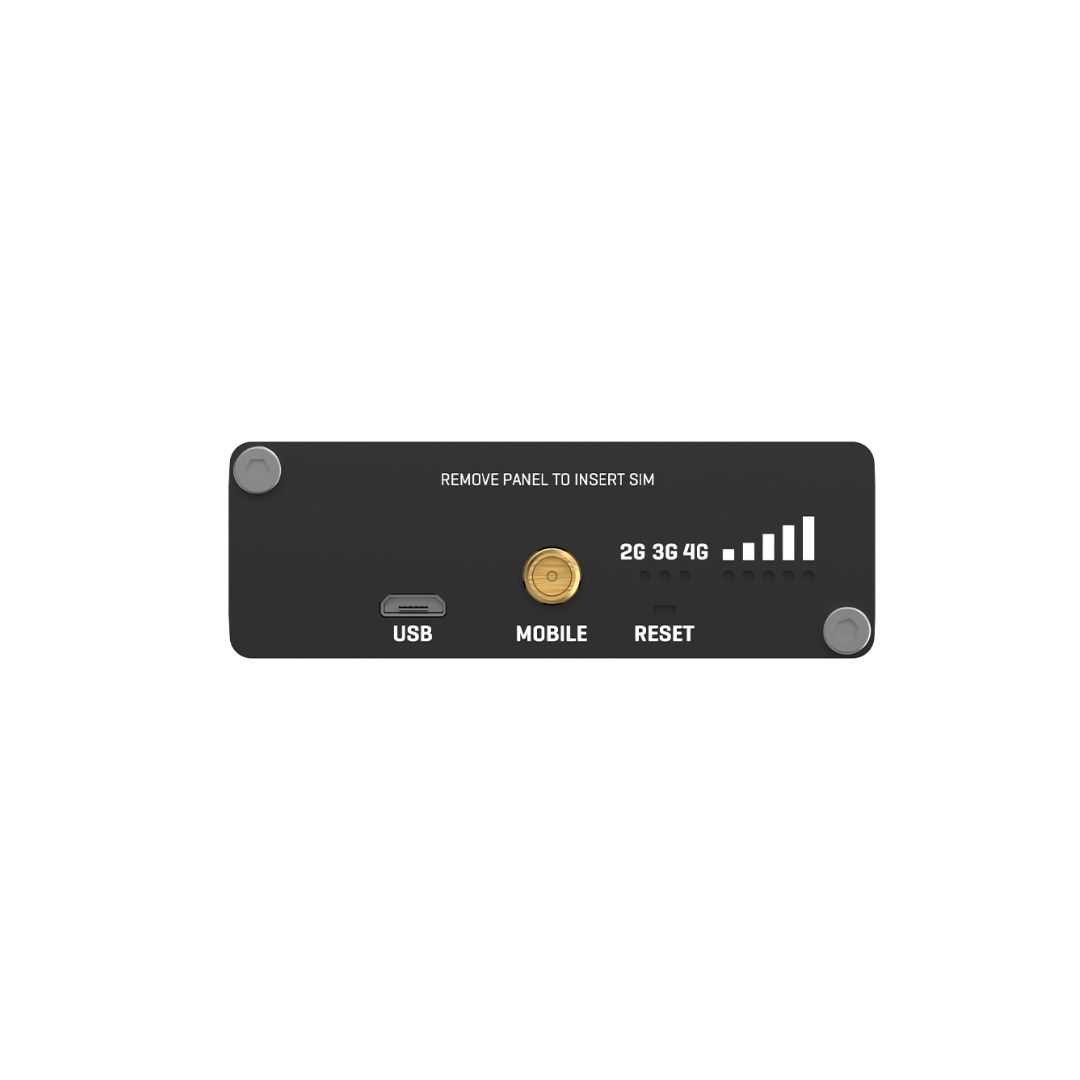

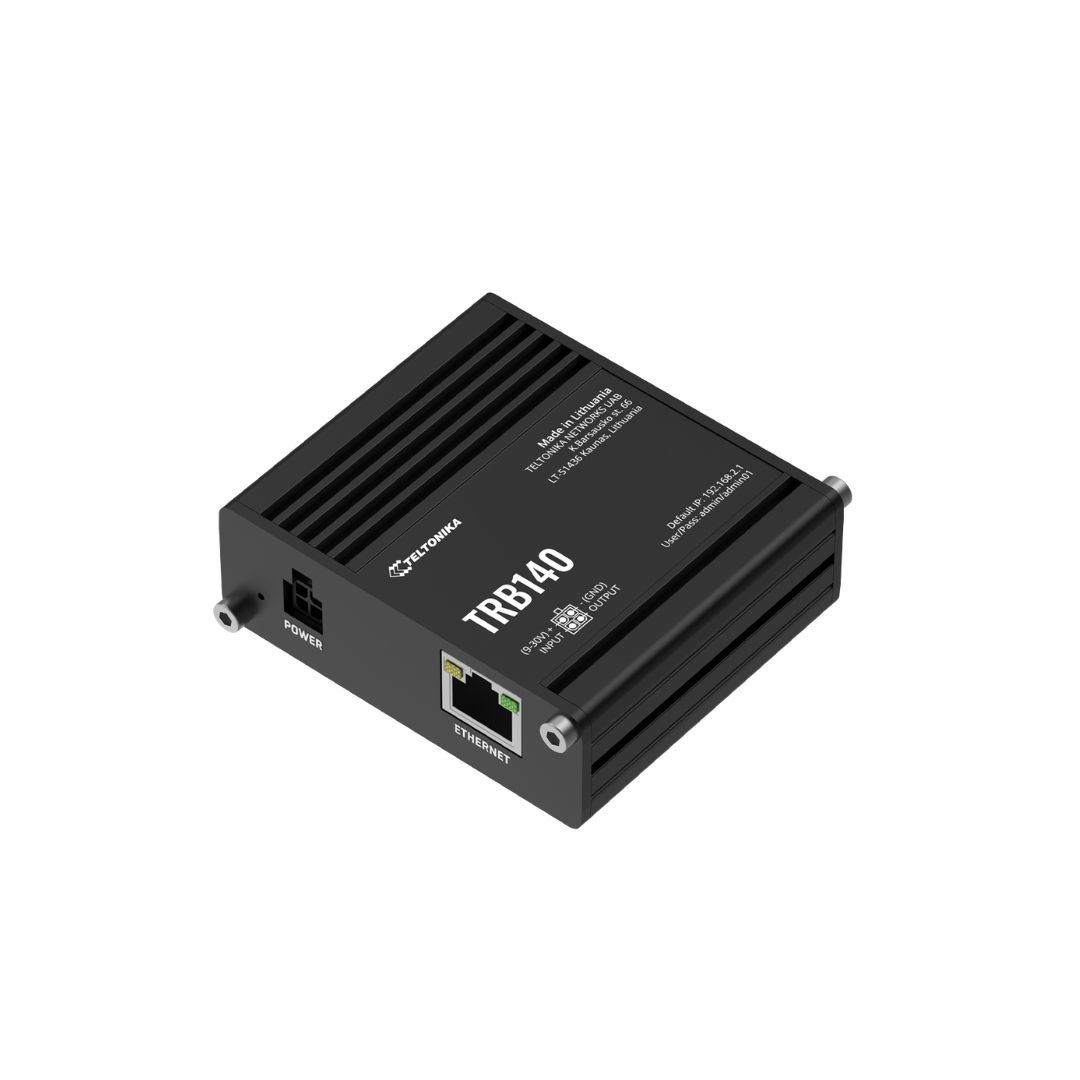

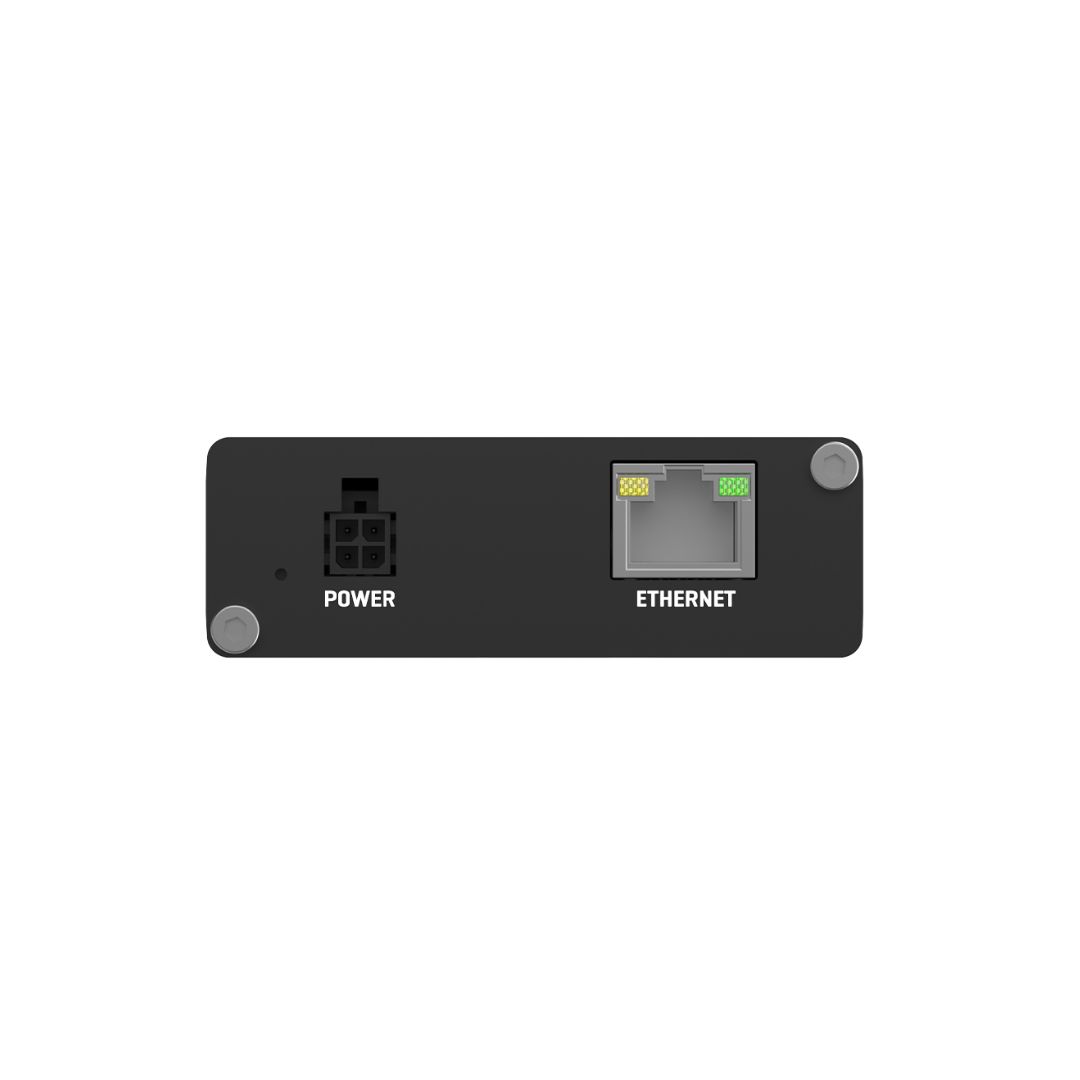

TRB140
INDUSTRIAL RUGGED LTE GATEWAY
- CONNECTIVITY: 4G/LTE (Cat 4), 3G, 2G
- COMPACTNESS: Small size, easy installation
- PROTOCOLS: Compatible with industrial DNP3 & Modbus communication protocols
- RMS: Compatible with Teltonika Networks Remote Management System
TECHNICAL SPECIFICATIONS
| Details | |
|---|---|
| Dimensions | 74.5 x 25 x 64.4 mm |
| Weight | 136g |
| Input voltage range | • 9 – 30 VDC, reverse polarity protection; • surge protection >31 VDC 10us max |
| Power Consumption | < 5 W |

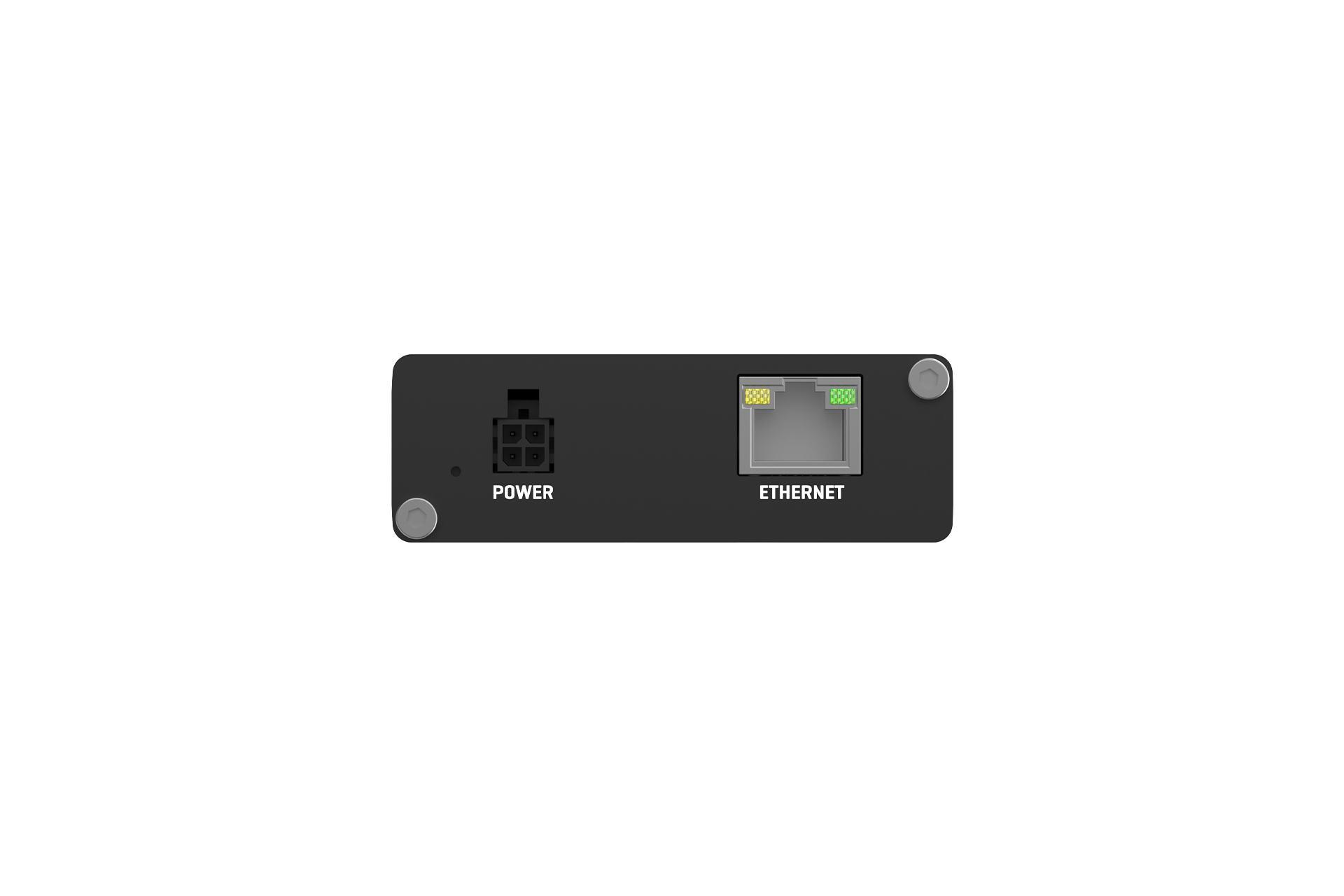

| Power Supply | 4-pin industrial DC power socket |
| CPU | ARM Cortex-A7 1.2 GHz |
| RAM | 128MB, DDR2 |
| Flash | 512 MB, SPI Flash |
| Ethernet Port(s) | 1 x ETH port, 10/100/1000 Mbps |
| PoE/PoE+ | Passive PoE only |
| Mobile Feature | • 4G LTE Cat 4 up to 150 DL/50 UL Mbps • 3G up to 21 DL/5.76 UL Mbps • 2G up to 236.8 DL/236.8 UL kbps |
