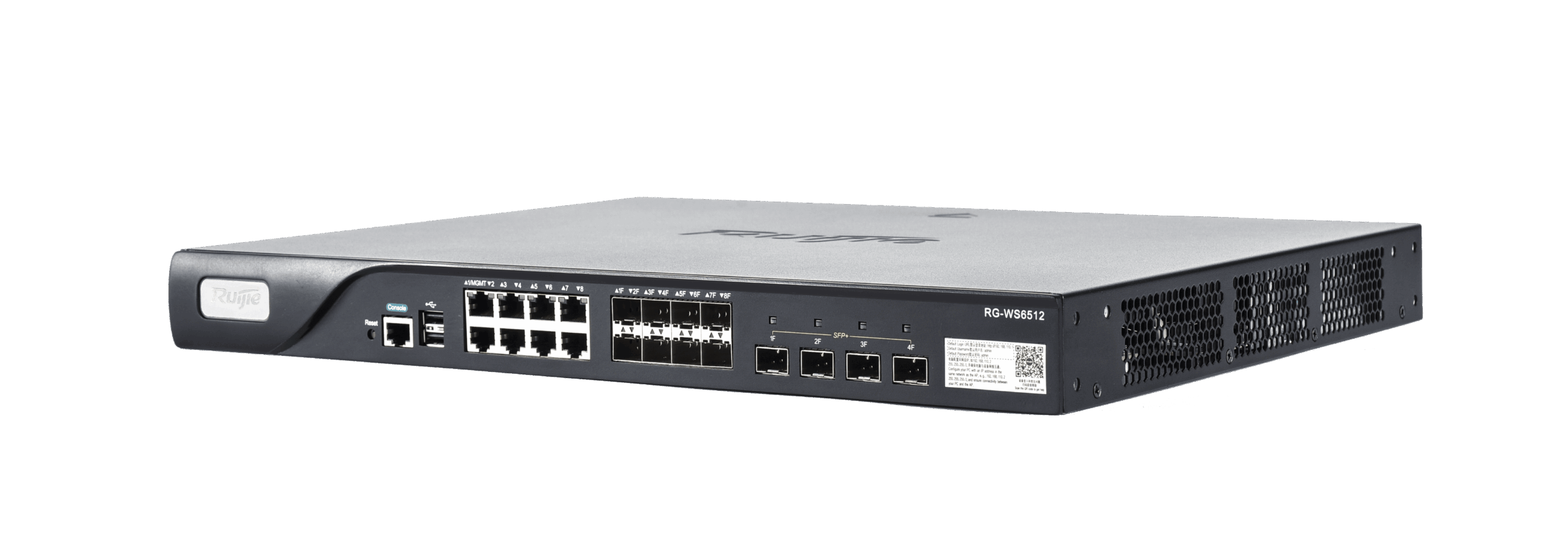

RG-WS6512-L
High-Performance Large Campus Wireless Access Controller
- Layered management and control for large networks
- Switching between centralized and local forwarding
- Load balancing between APs, dynamic bandwidth allocation for STAs, 5G band-select, smooth network connection
- Ruijie cloud management, intelligent optimization
TECHNICAL SPECIFICATIONS
| Details | |
|---|---|
| Service Port | 8 x GE combo ports , when the combo port is used as an electrical port,
Port 1 can be used as an out-of-band management port (MGMT). Supports 10/100/1000Base-T auto-negotiation. Supports Auto MDI/MDIX crossover. 4 x 10GE SFP + ports |
| Power Supply | Fixed power supply 100 V AC to 240 V AC, 50 Hz to 60 Hz |
| Power Consumption | 70 W |
| Dimensions (W × D × H) (mm) | 440 mm x 340 mm x 43.6 mm (17.32 in. x 13.39 in. x 1.72 in.) |
| Rack Height | 1 RU |
| Weight | Main unit: 5.9 kg (13.01 lbs)
Power module: 0.4 kg (0.88 lbs) |
