RG-RAP1260

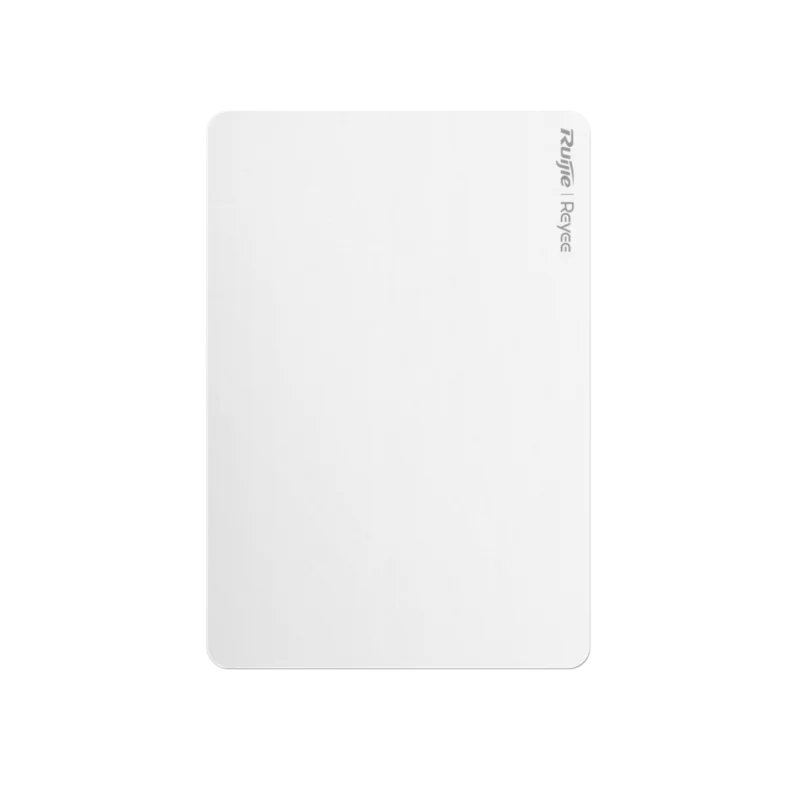

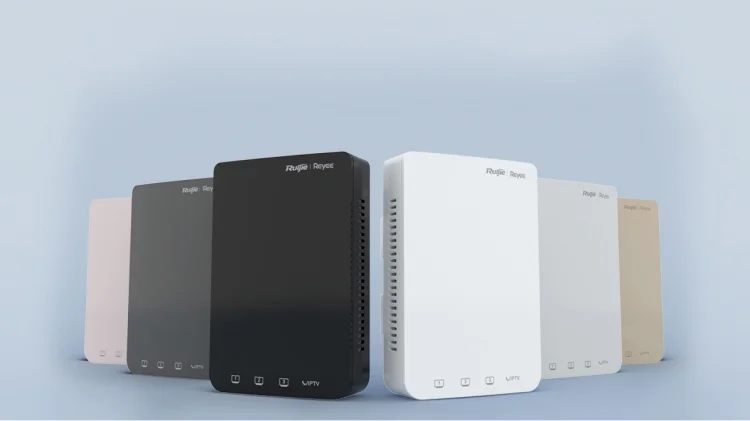

RG-RAP1260, Reyee Wi-Fi 6 AX3000 Dual-Band Wall Plate Access Point
- Dual-radio performance, gigabit wireless wall-mounted AP
- Better experience with MU-MIMO under 802.11ax
- Easy installation, worldwide compatible
- Capable of Reyee Mesh and 802.11K/V/R
- Powerful Standalone Portal via Ruijie Cloud
TECHNICAL SPECIFICATIONS
| Service Ports | Front： 4 downlink 10/100/1000Base-T Ethernet ports Rear： 1 uplink 10/100/1000Base-T Ethernet port with IEEE 802.3af/at PoE In |
| Max Throughput | 2.4 GHz: up to 574 Mbps 5 GHz: up to 2402 Mbps Access rate per AP: 2.976 Gbps |
| Clients | Max 512 / Recommended 110 |
| Protocol | 2.4 GHz 2×2 MU-MIMO, 802.11 b/g/n/ax 5 GHz 2×2 MU-MIMO, 802.11 a/n/ac/ax |
| Antenna | Built-in omnidirectional antennas 2.4 GHz: 3 dBi, 5GHz: 5 dBi |
| Power Consumption | Max power consumption is 12W |
| Dimensions (W x D x H) | 122mm×80mm×3.8mm (4.80 in. x 3.15 in. x 0.15 in). Excluding brackets |
| Weight | ≤0.5kg(excluding brackets) |
