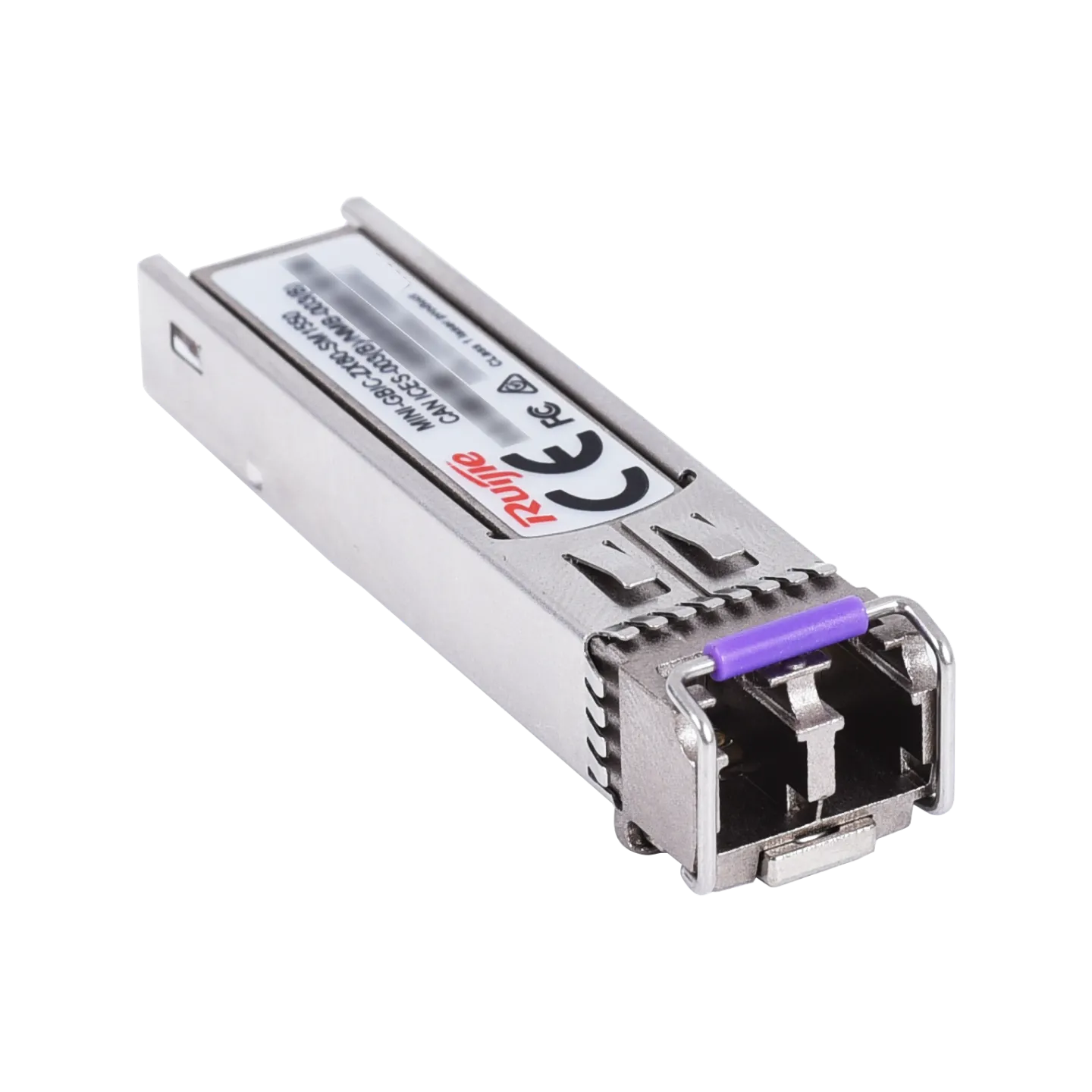

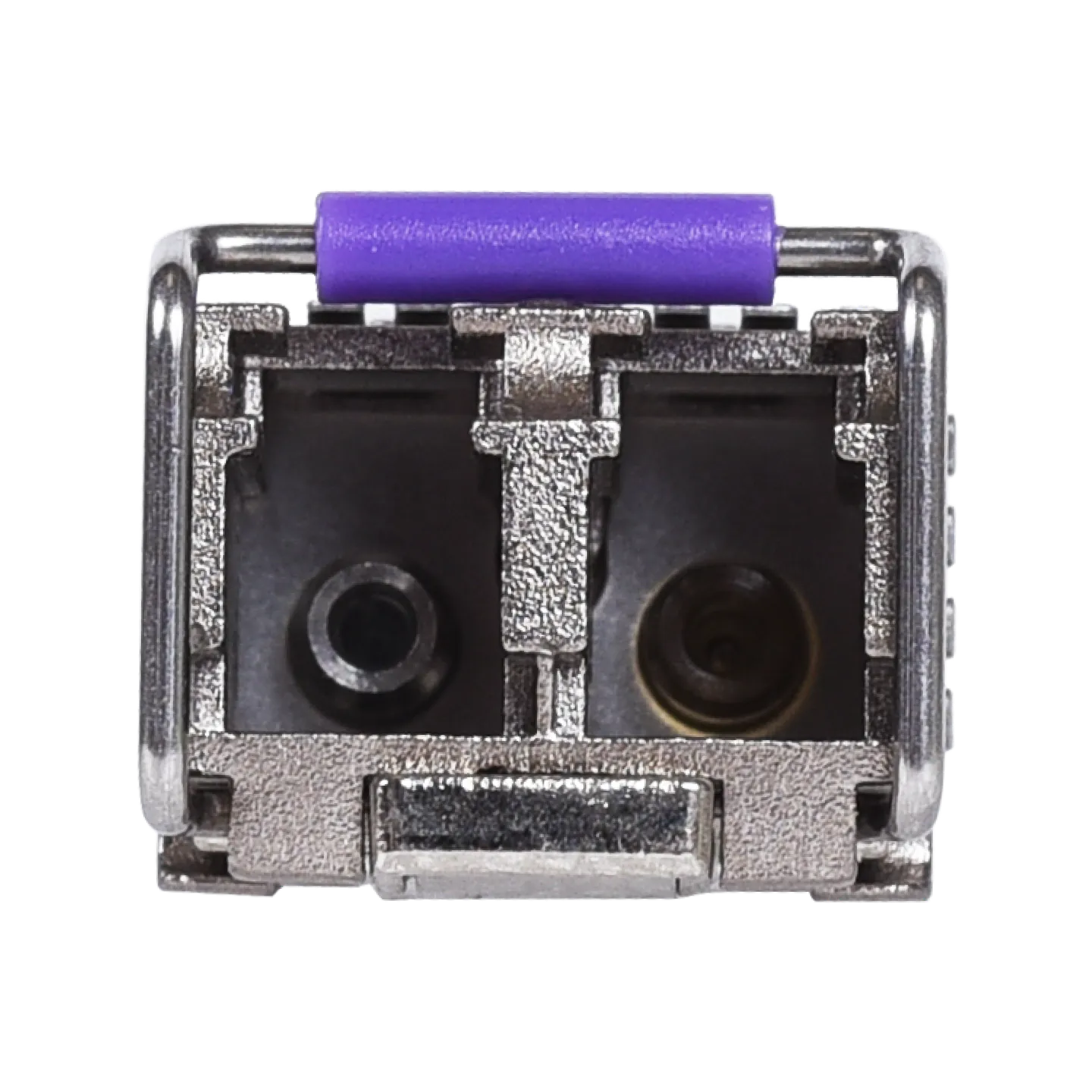

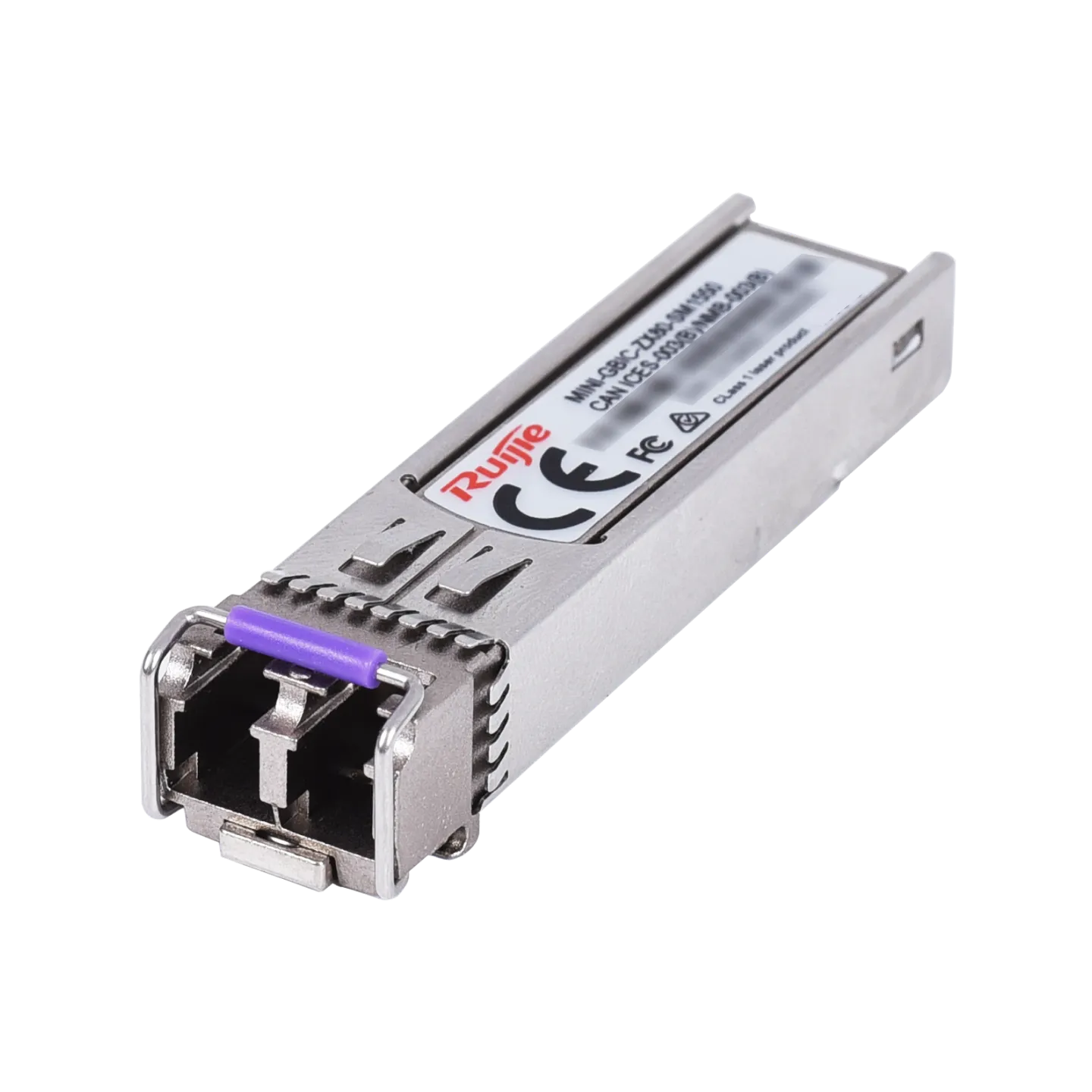

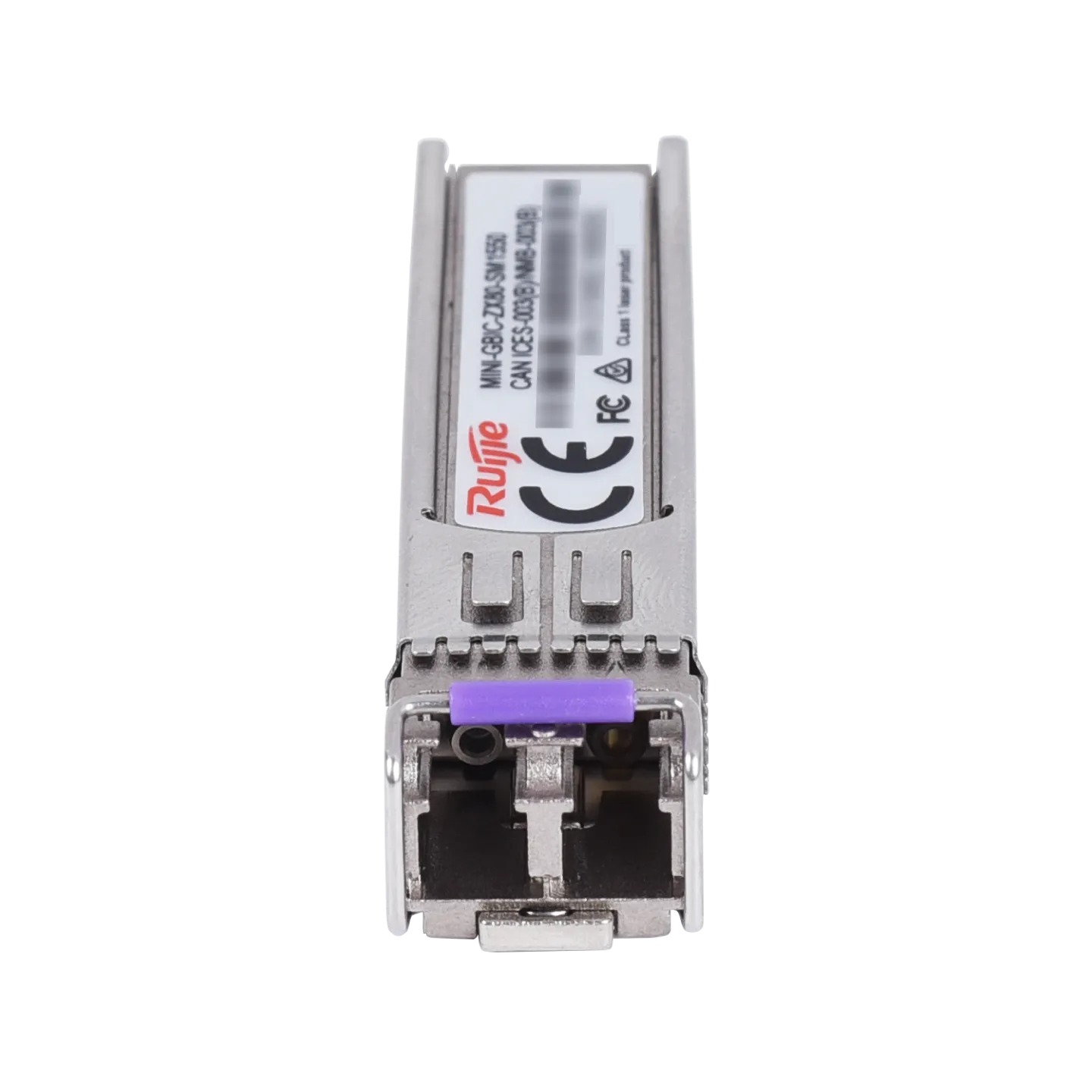

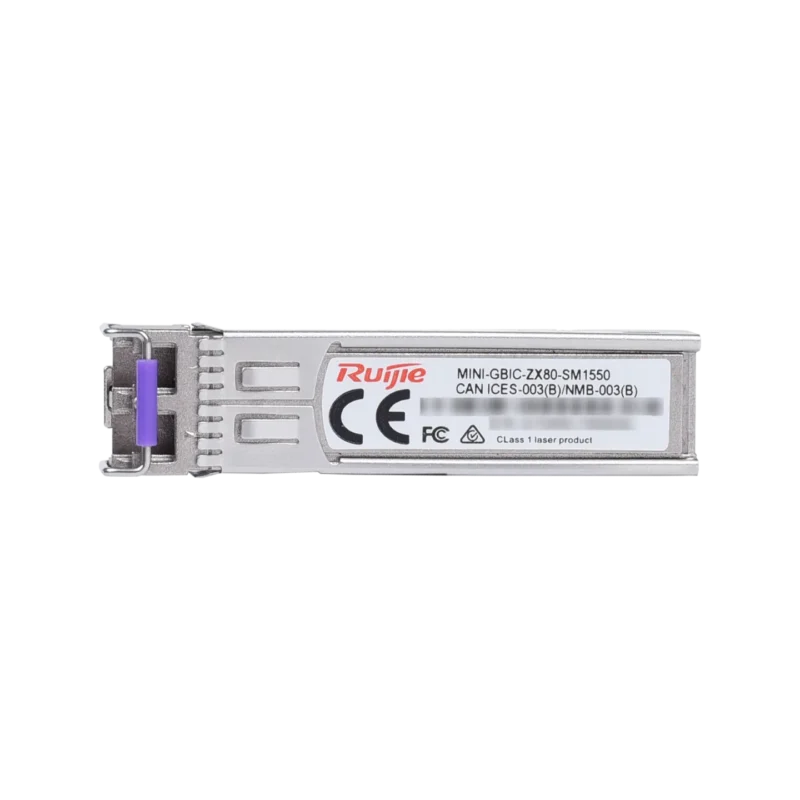

MINI-GBIC-ZX80-SM1550
1000BASE-SX SFP 1550-nm 80-km DDM Duplex LC SMF Optical Transceiver Module
- Max. power consumption 1.5 W
- Saving half fiber by using only one fiber for transmitting and receiving
- Hot pluggable SFP MSA compliant
- Digital optical monitoring capability for strong diagnostic capabilities
- Compliant with IEEE 802.3z Gigabit Ethernet
- Class 1 Laser safety and RoHS compliant
TECHNICAL SPECIFICATIONS
| Details | |
|---|---|
| Wavelength (nm) | 1310 |
| DDM | Yes |
| Fiber Type | SMF |
| Transmit Sensitivity (dbm) | Min: 0, Max: -5 |
| Receive Sensitivity (dbm) | < –27 |
| Connector Type | Duplex LC |
| Data Rate (Gbps) | 1.25 |
| Reach | 80 km (262,467.19 ft.) |
