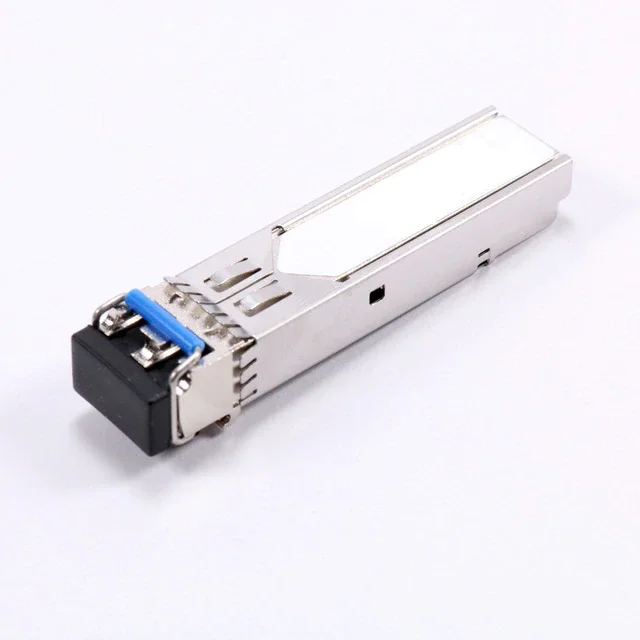

MINI-GBIC-SX-MM850
1000BASE-SX SFP 850-nm 550-m DDM Duplex LC MMF Optical Transceiver Module
- Max power consumption 1.5 W
- Hot pluggable SFP MSA compliant
- Digital optical monitoring capability for strong diagnostic capabilities
- Compliant with IEEE 802.3z Gigabit Ethernet
- Class 1 Laser safety and RoHS compliant
TECHNICAL SPECIFICATIONS
| Details | |
|---|---|
| Wavelength (nm) | 850 |
| DDM | No |
| Fiber Type | MMF1 |
| Transmit Sensitivity (dbm) | Min -9.5, Max -3 |
| Receive Sensitivity(dbm) | Min -17, Max -0 |
| Connector Type | LC |
| Core Size | 62.5/125 50/125 |
| Cabling Distance | 275m 550m |
