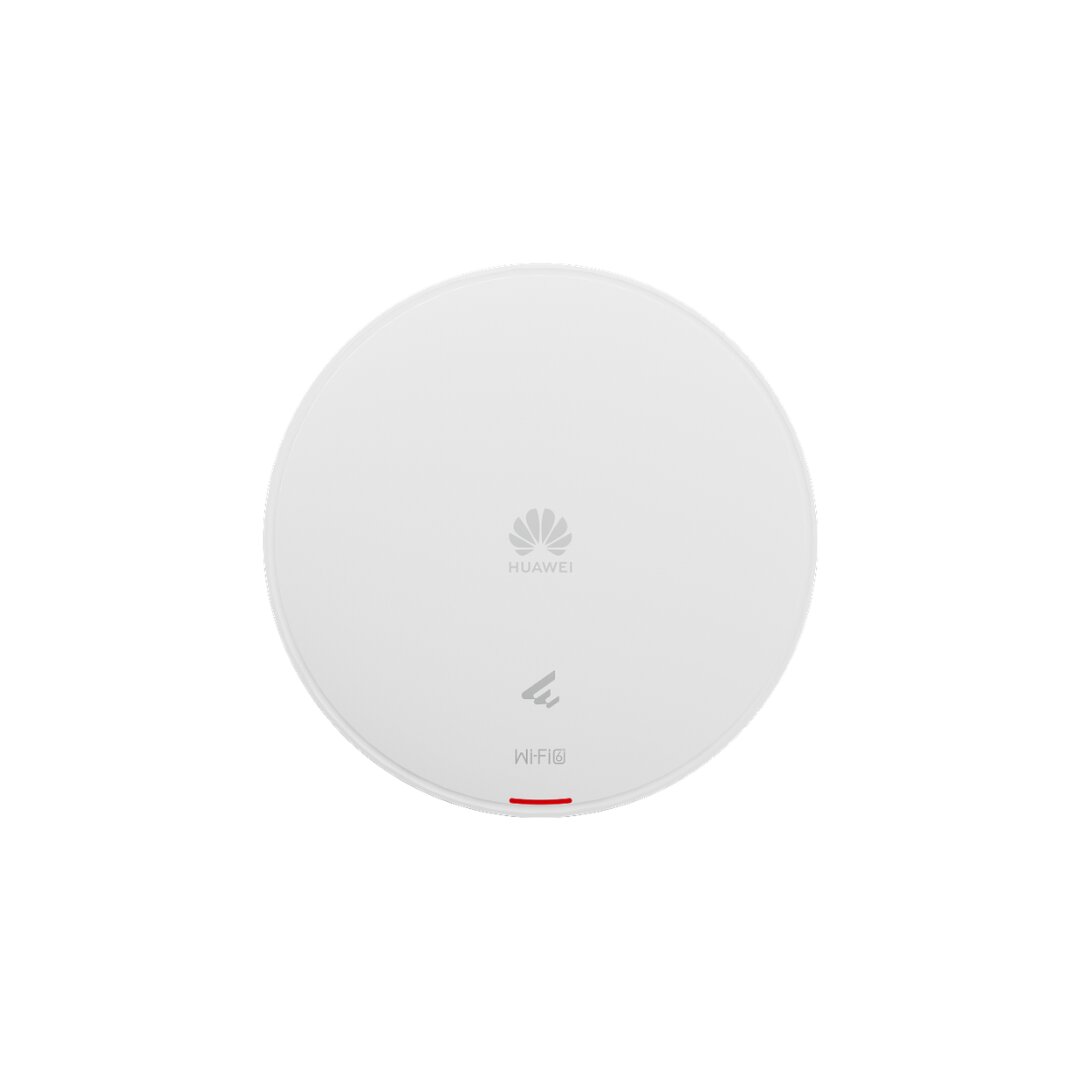

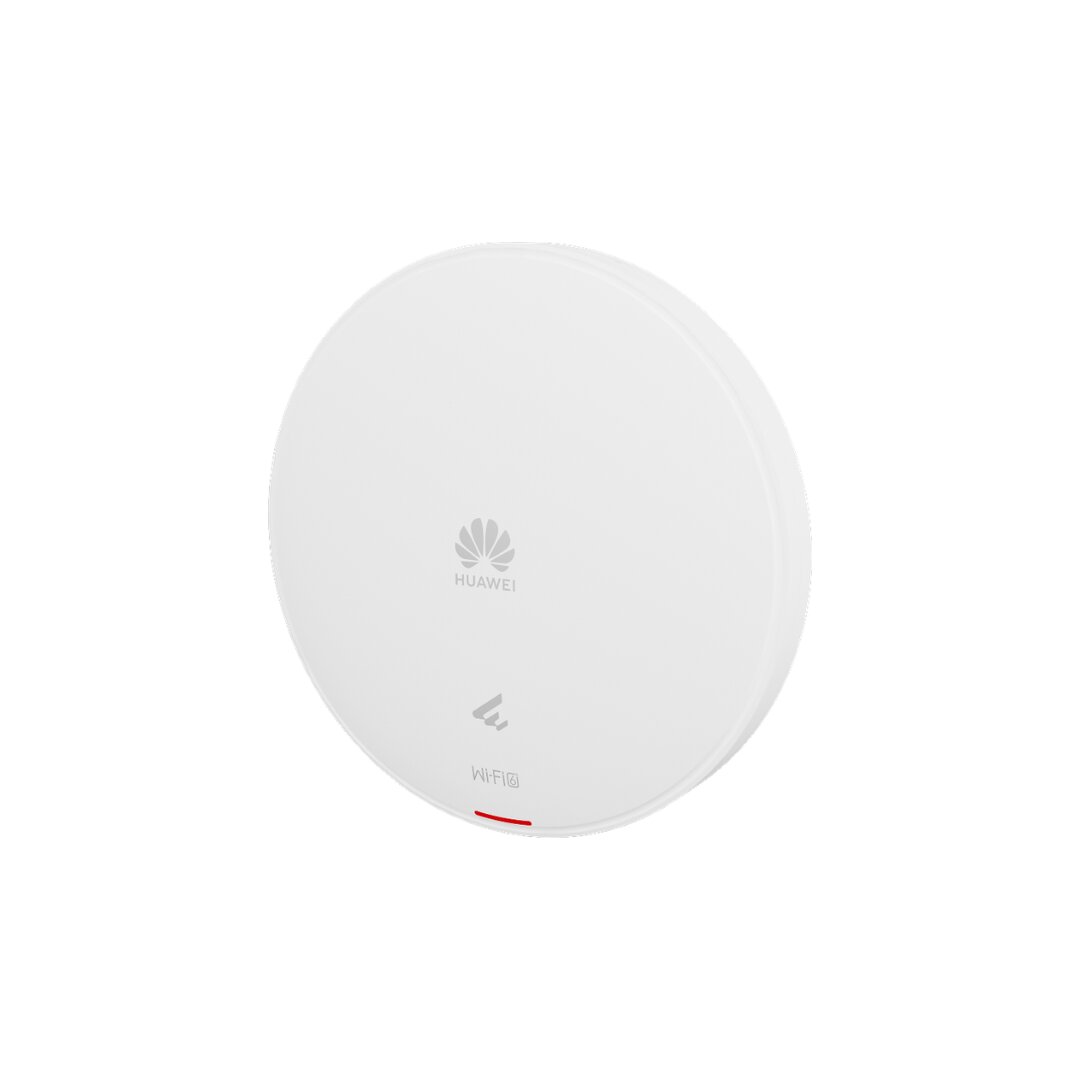

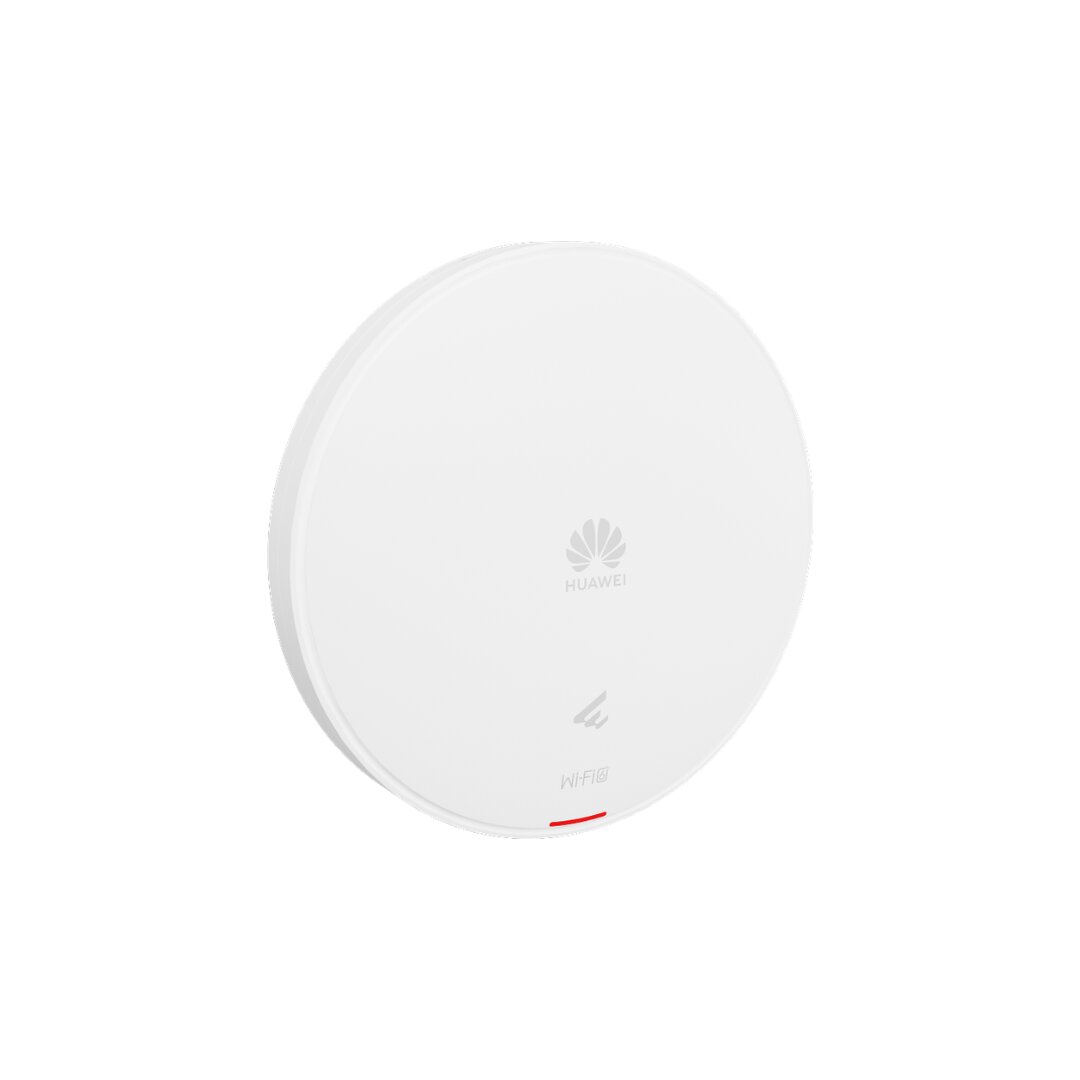

AP661

AX3000 Wi-Fi 6 delivers high-performance triple-radio wireless connectivity with ultra-high-density access.
Built-in smart antenna provides ultra-long-distance coverage and seamless roaming for uninterrupted connectivity.
2.5GE uplink and PoE-powered design enable high-speed deployment without upgrading existing switches.
Easy cloud management via the Huawei eKit App, SNC, or Web, with enterprise-grade wireless security.

Category: Huawei eKit

Dimensions (diameter x length)	220 mm x 50 mm
Weight	1.08kg

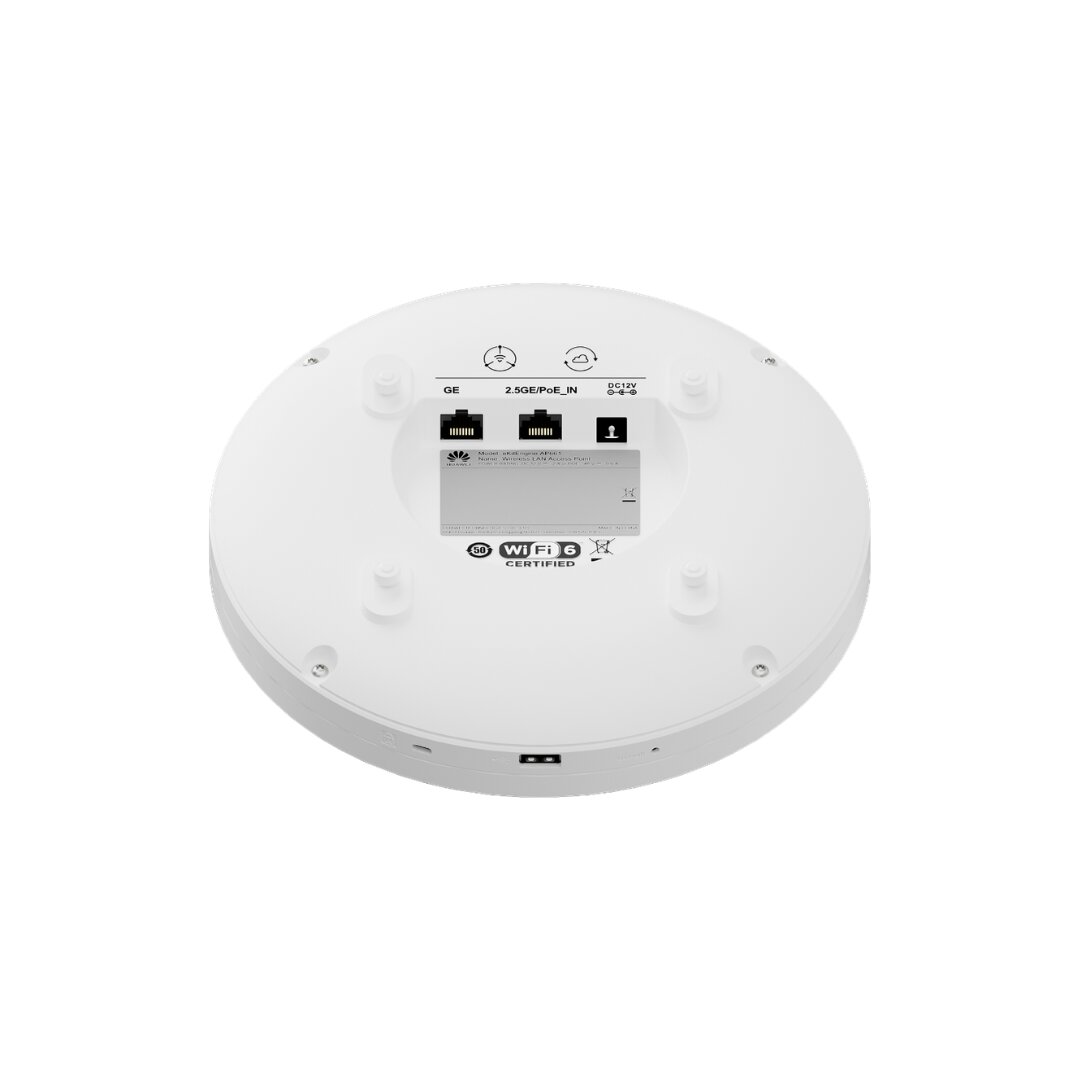

Service Ports	1 x 10M/100M/GE/2.5GE electrical port 1 x 10M/100M/GE electrical port
Max Power Consumption	21.2 W (excluding USB)
Protocol	• 2.4G: 802.11b/g/n/ax • 5G: 802.11a/n/ac/ac Wave 2/ax
Max Throughput	• Radio1: 2.4GHz, 0.575 Gbps • Radio2: 5GHz, 6 Gbps Maximum throughput per AP 2.4GHz+5GHz, 6.575 Gbps
Client	1536 (Max), 300 (recommended)
Antenna Gain	• 2.4G: 4 dBi/chain (peak value) 2 dBi (combined gain) • 5G: 5 dBi/chain (peak value) 3 dBi (combined gain) • BLE: 4 dBi
