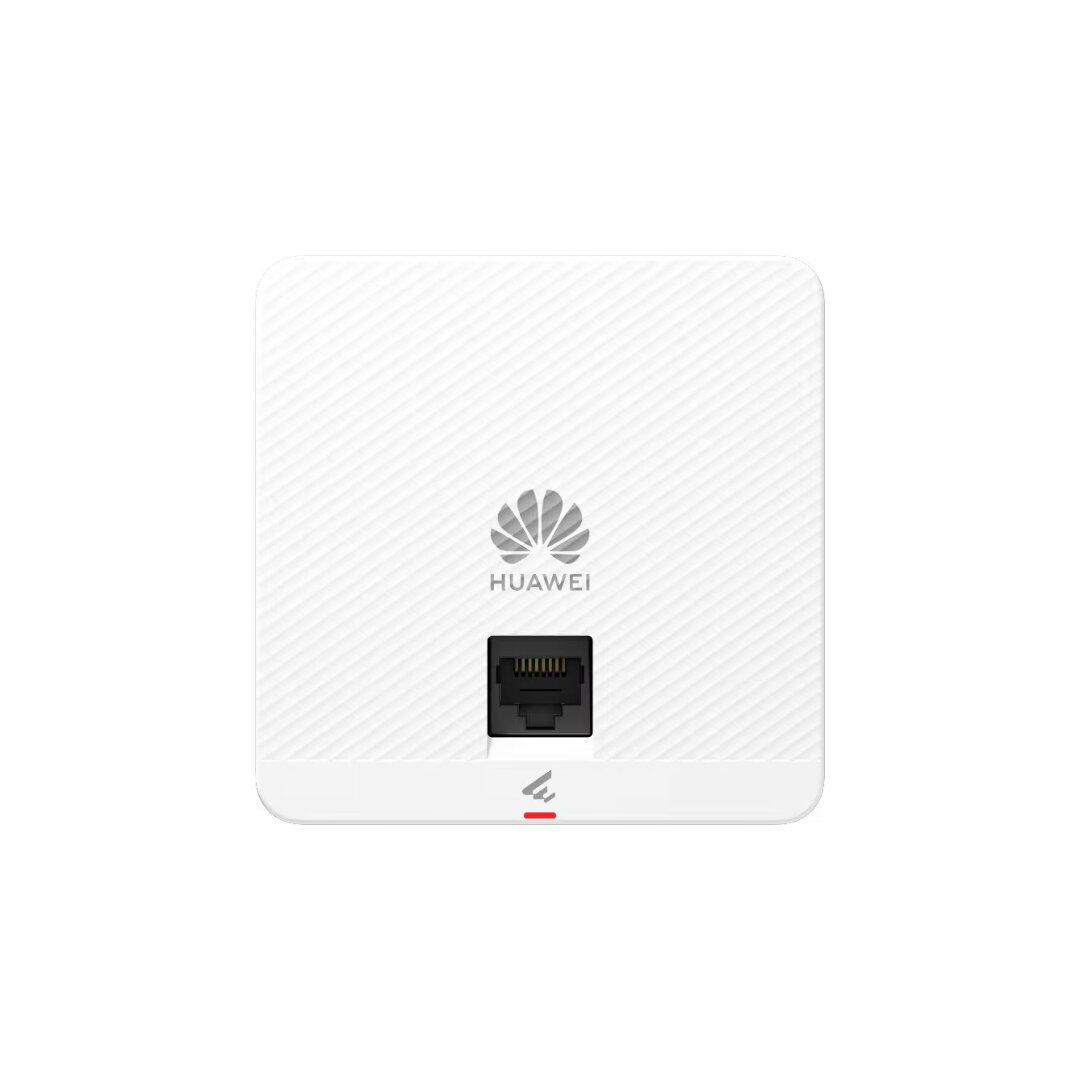

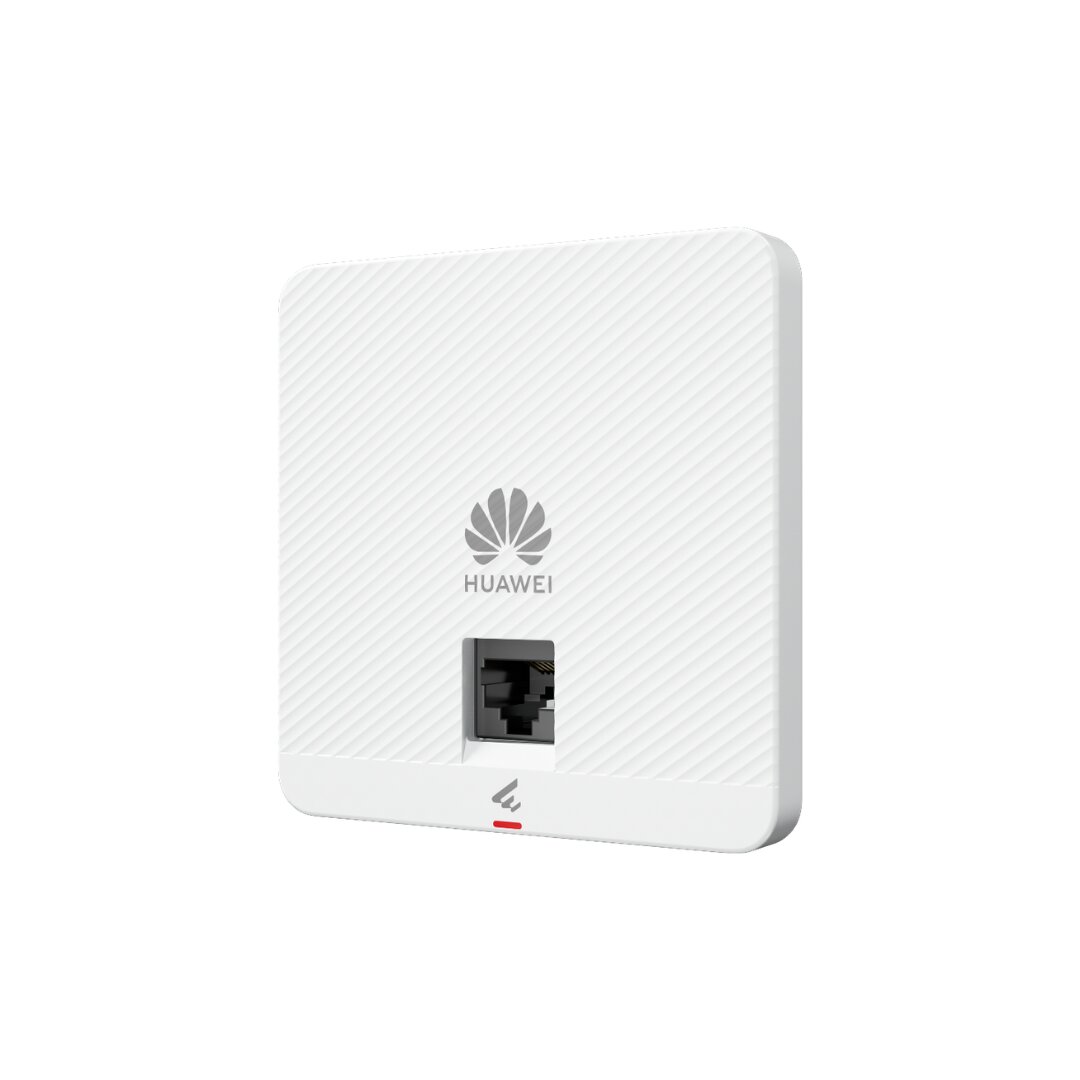

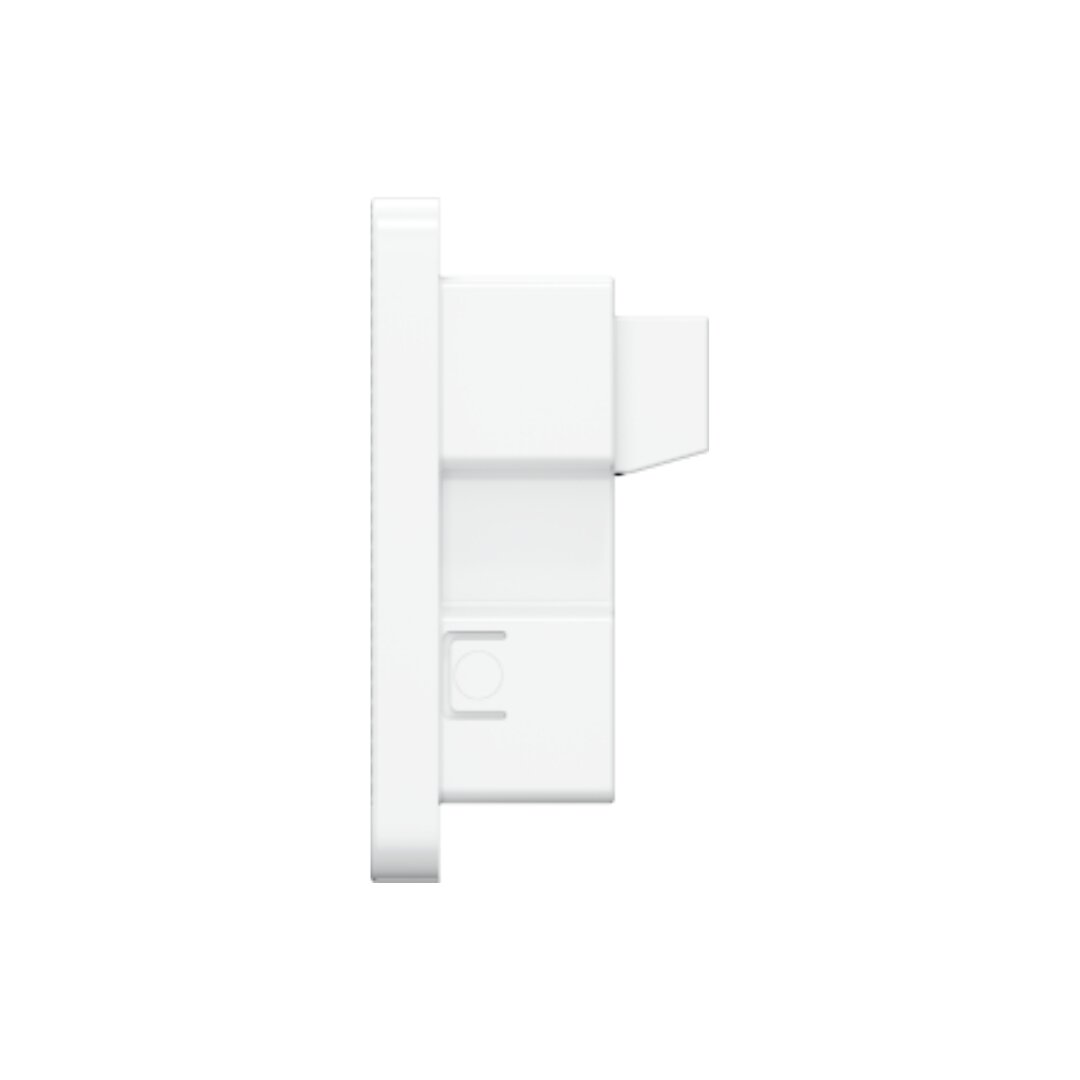

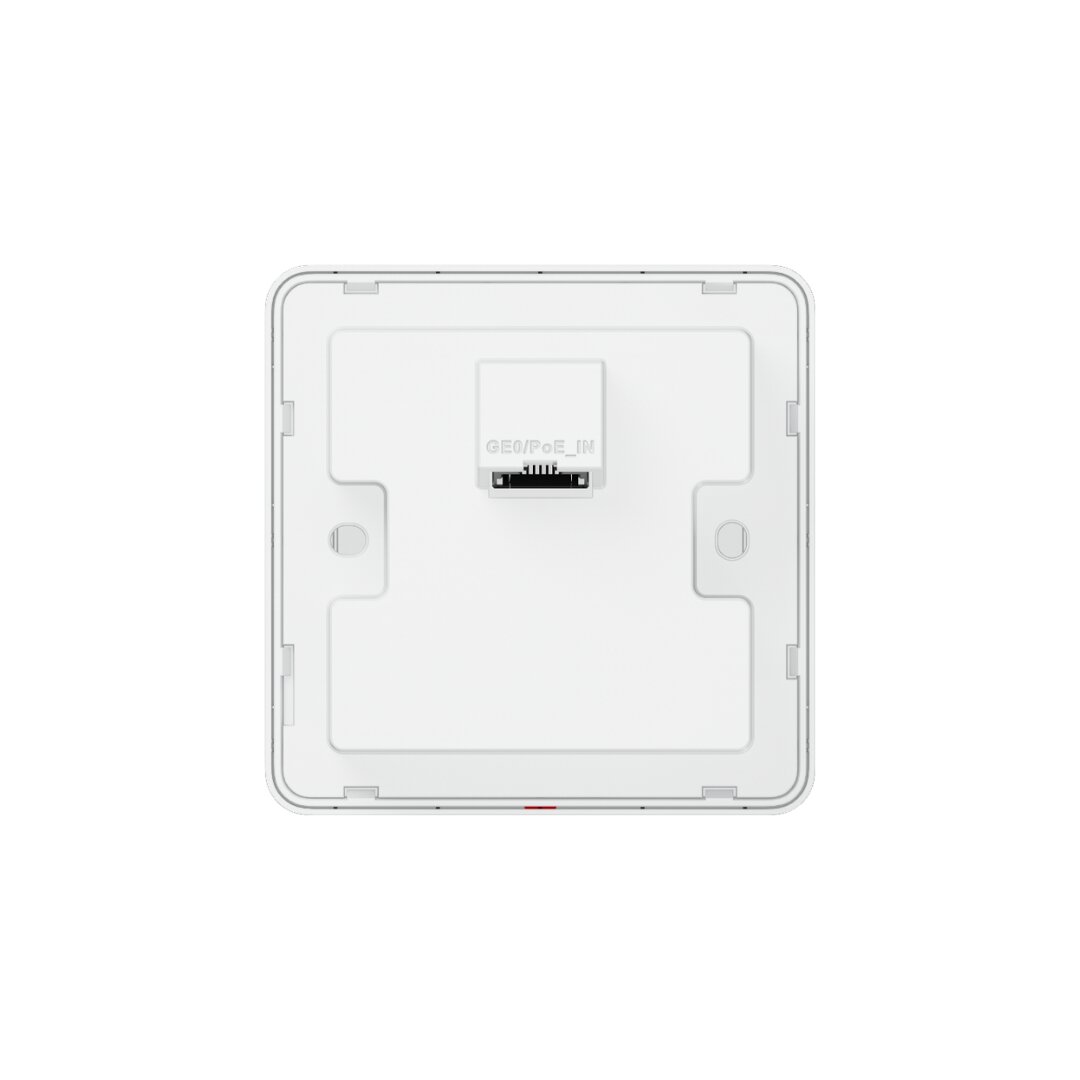

AP162E
Wi-Fi 6 Ultra-Thin Wall Plate AP
- AX3000 Wi-Fi 6 with up to 2.975 Gbps dual-band wireless speed.
- Ultra-thin 8 mm wall plate design for seamless and aesthetic installation.
- Smart Antenna & MU-MIMO provide stable, high-performance Wi-Fi coverage.
- Cloud-managed via Huawei eKit App, Web, or SNC for easy deployment and maintenance.
TECHNICAL SPECIFICATIONS
| Dimensions (H x W x D) | 86 mm x 86 mm x 42.5 mm |
| Weight | 0.14kg |
| Service Ports | 1 x 100M/GE electrical port |
| Max Power Consumption | 9.1W |
| Protocol | • 2.4 GHz: 802.11b/g/n/ax • 5 GHz: 802.11a/n/ac/ac Wave 2/ax |
| Max Throughput | • Radio1: 2.4GHz, 575Mbps • Radio2: 5GHz, 2400Mbps Maximum throughput per AP 2.4GHz+5GHz，2.975Gbps |
| Client | 128 (Max), 48 (Recommended) |
| Antenna Gain | • 2.4 GHz: 3 dBi/chain (peak value) 3 dBi (combined gain) • 5 GHz: 2 dBi/chain (peak value) 1 dBi (combined gain) |
