AIRFIBER 24HD

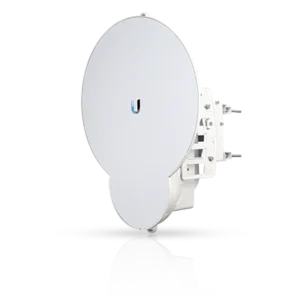

airFiber HD 24 GHz Bridge
- High Performance Wireless Backhaul
- Extreme, Long-Range Links
- Worldwide License-Free Operation
TECHNICAL SPECIFICATIONS
| Details | |
|---|---|
| Dimensions | 593 x 768 x 370 mm |
| Weight | 17.3 kg (Mount Included) |
| Gain | TX Gain: 33 dBi RX Gain: 40 dBi |
| Max. Power Concumption | 50W |
| Interface | Data Port: (1) 10/100/1000 Ethernet Port Configuration Port: (1) 10/100 Ethernet Port Auxiliary Port: (1) RJ-12, Alignment Tone Port |
| Maximum Throughput | 2 Gbps |
| Power Supply | 50V, 1.2A PoE GigE Adapter (Included) |
| Power Method | Passive Power over Ethernet (42-58VDC) |
| Operating Frequency | 24.05 – 24.25 GHz |
