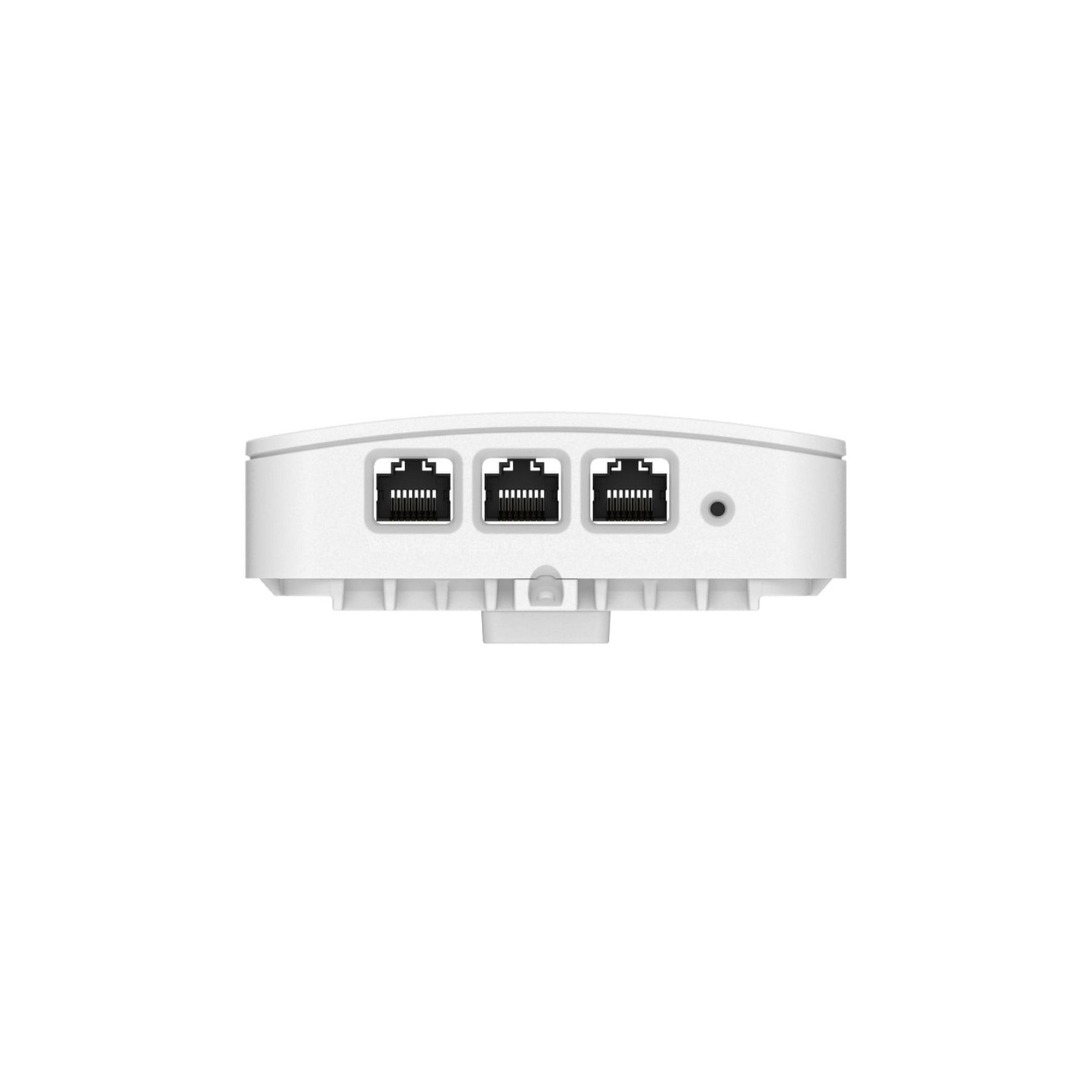

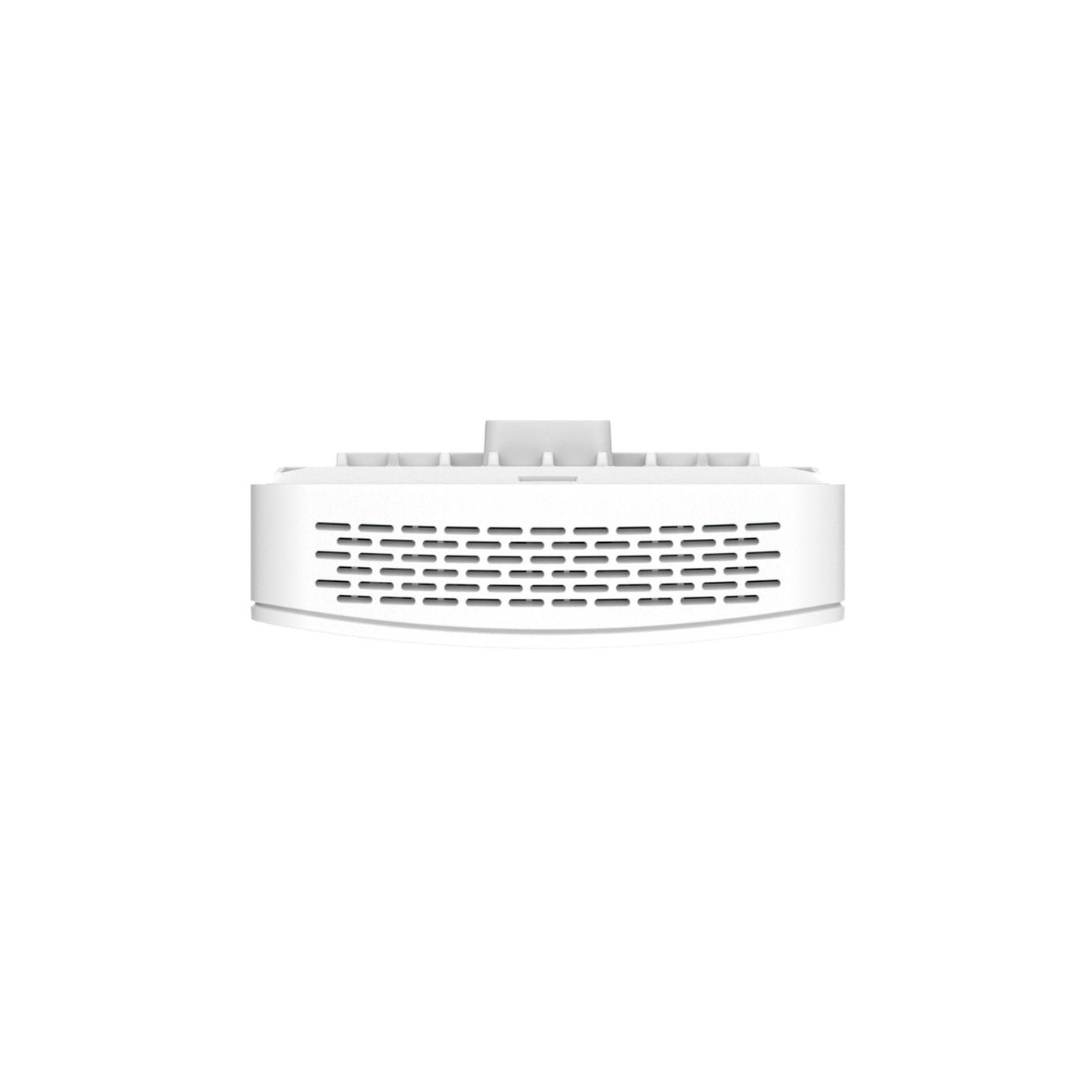

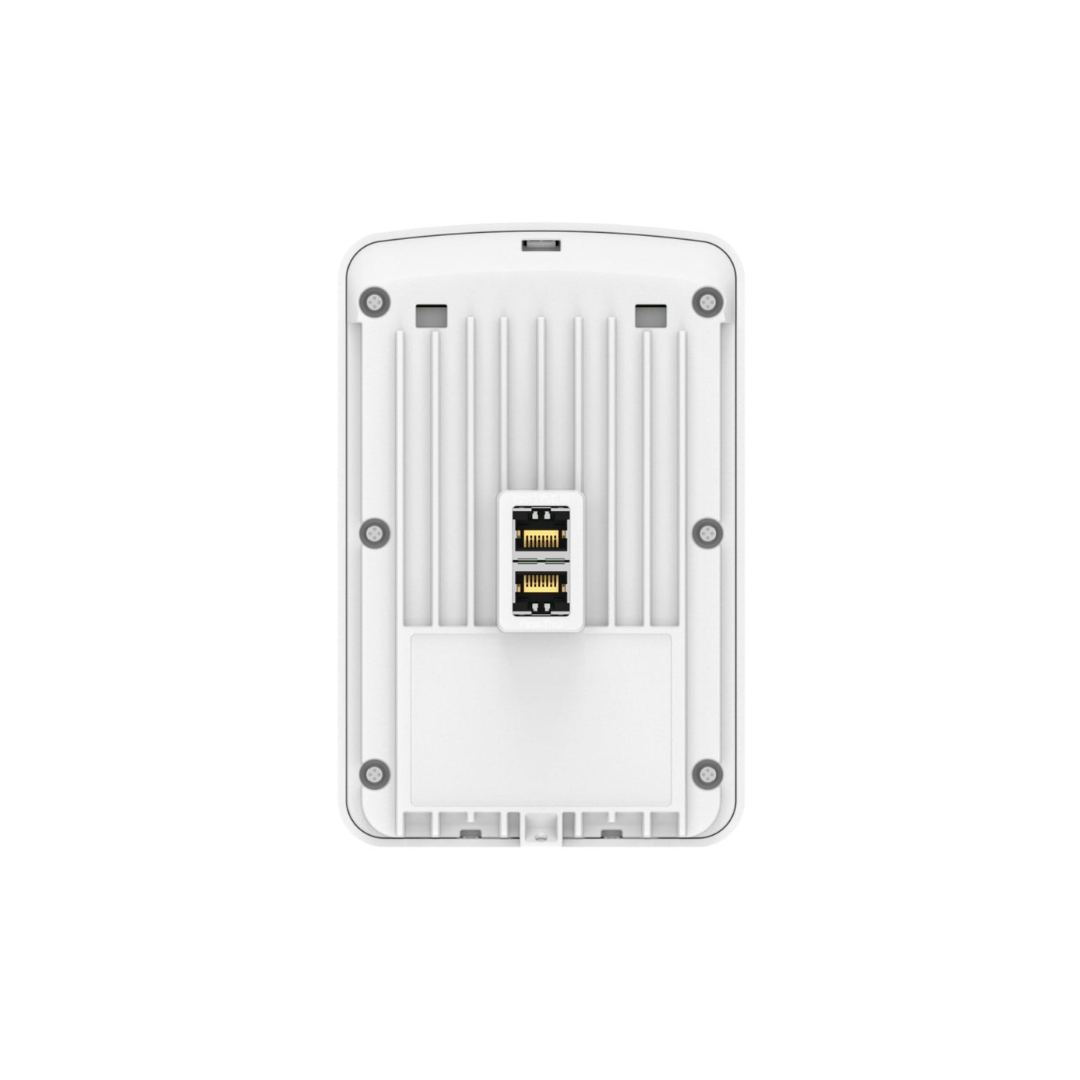

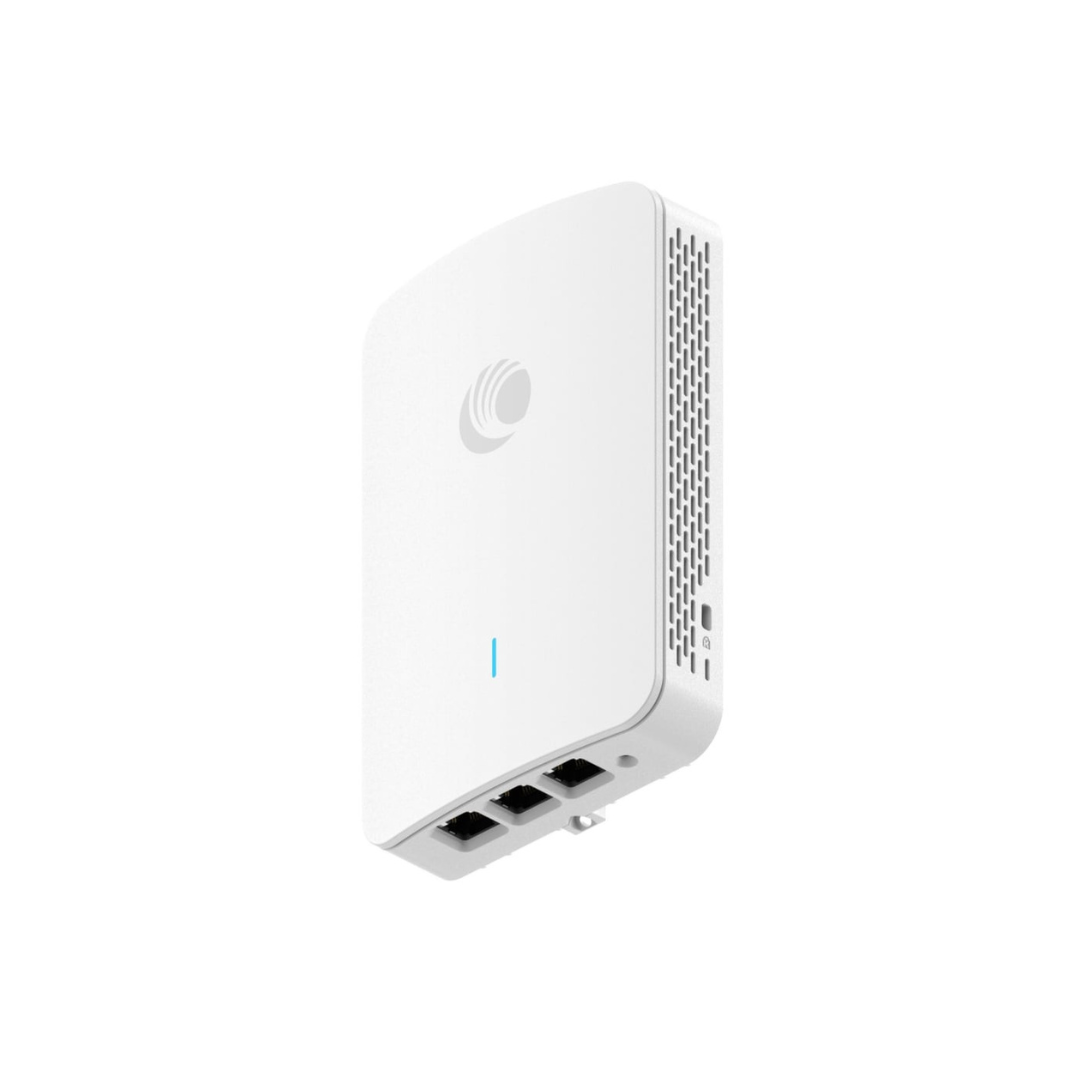

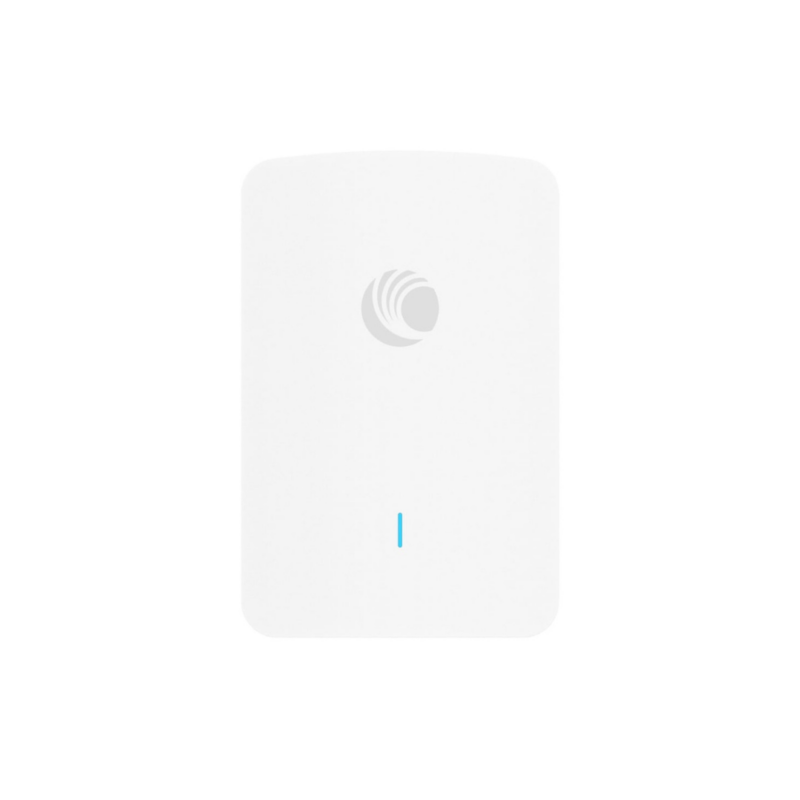

XV2-22H
Wi-Fi 6 Indoor Wall Plate Access Point
- Offers 2.97 Gbps of bandwidth and an integrated switch.
- Offers cnMaestro™ AI-driven cloud management to provide real-time analytics for efficient hotel Wi-Fi management.
- Ideal for hospitality, MDU, education, and SMB applications.
TECHNICAL SPECIFICATIONS
| Radios | 1 x 5 GHz radio (802.11ax Wi-Fi 6), 2×2:2 1 x 2.4 GHz 802.11ax Wi-Fi 6), 2×2:2 1 x 802.15.4 or 1 x 802.15.1 IoT transceiver, multi-protocol |
| Ports | 1 x GE WAN 2 x GE LAN |
| Antenna | Internal omni-directional IoT Antenna Gain: 5.18 dBi 2.4 GHz: 4.47 dBi 5 GHz: 5.56 dBi |
| Power | 802.3af or 802.3at powered device Typical load, no power out: 10W Typical load, with 10W power out: 20W |
| Dimensions | 160 mm x 105 mm x 32 mm (6.3 in x 4.1 in x 1.26 in) |
| Weight | 417 g (0.92 lb) |
