SRS2000-SW26HH2G24T

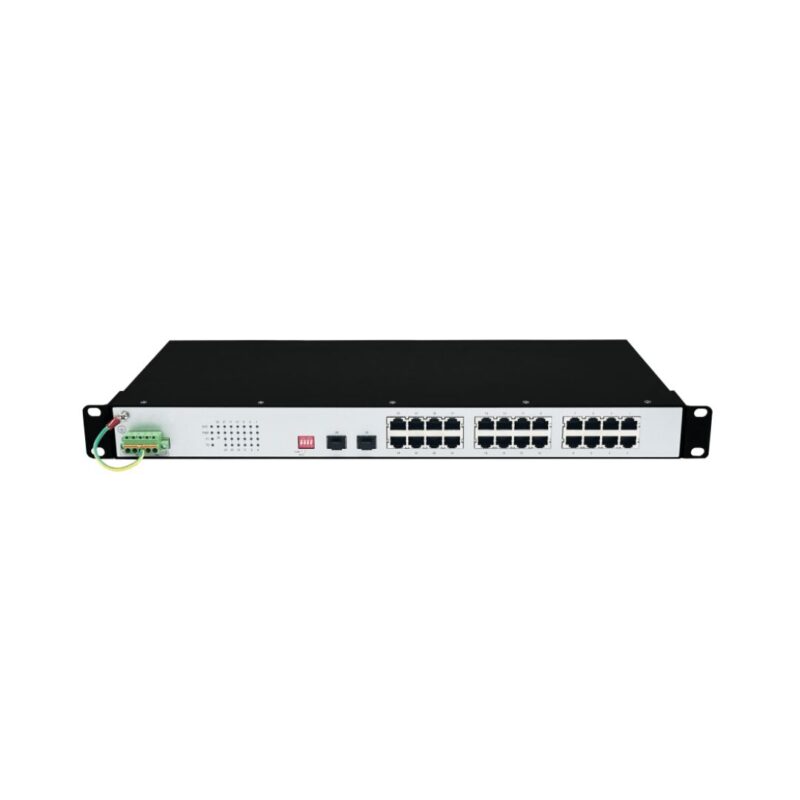

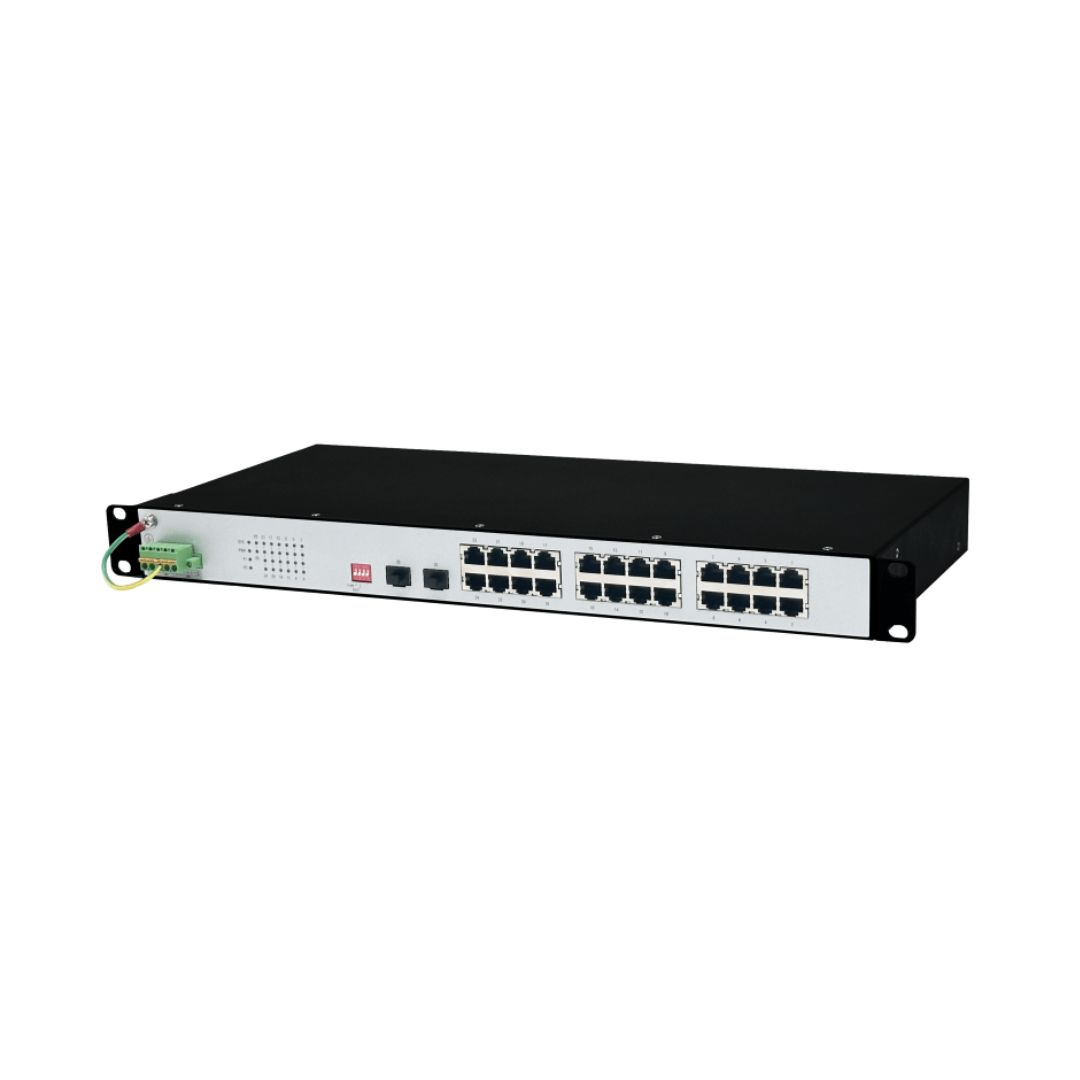

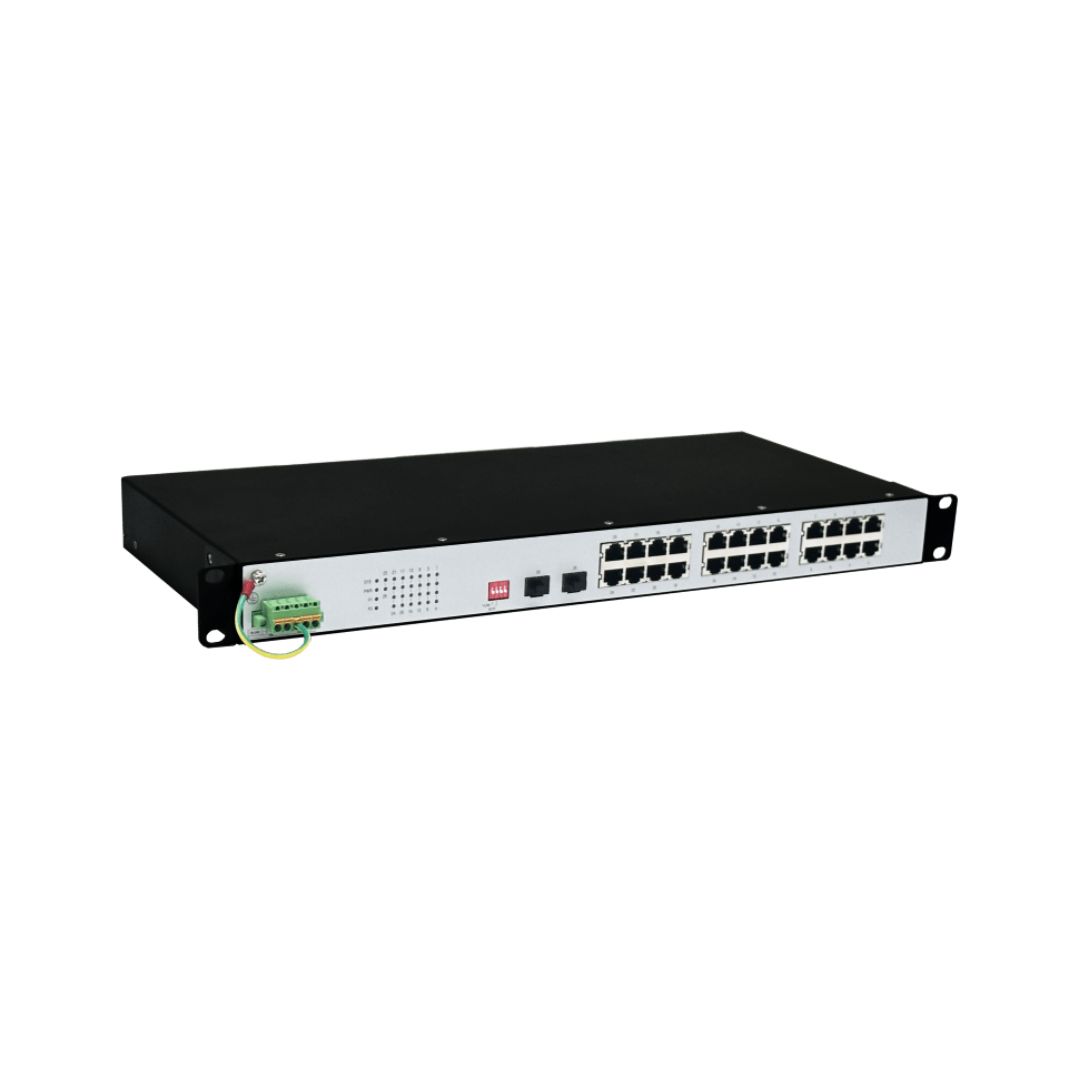

26-port WEB managed Industrial Switch
- Made from Anti-corrosion aluminum alloy
- Dual isolated power inputs (48~54VDC)
- Lightning Protection: power port ±4KV, RJ45 port ±4KV
- Compact and easy to install, plug and play without configuring
- Fanless design, wide working temperature and quiet operation
TECHNICAL SPECIFICATIONS
| Details | |
|---|---|
| Fixed Service Port | 2 x 100/1000BaseX SFP ports (SFP module not included) 24 x 10/100/1000BaseT ports |
| Protection Class | IP40 |
| Forwarding/Exchange rate | 148,800 pps /100M port 1,488,000 pps/1000M port |
| MAC address table | 8000 |
| Operating temperature | -40°C ~ +75 ° C. |
| Power Consumption | 9.6 ~ 60VDC & 18 ~ 30VAC, dual redundant inputs |
| Dimensions (W x D x H) (mm) | 440mm × 43.8mm × 200mm |
| Unit Weight | 1.7kg |
