SDS300-W6R2040P

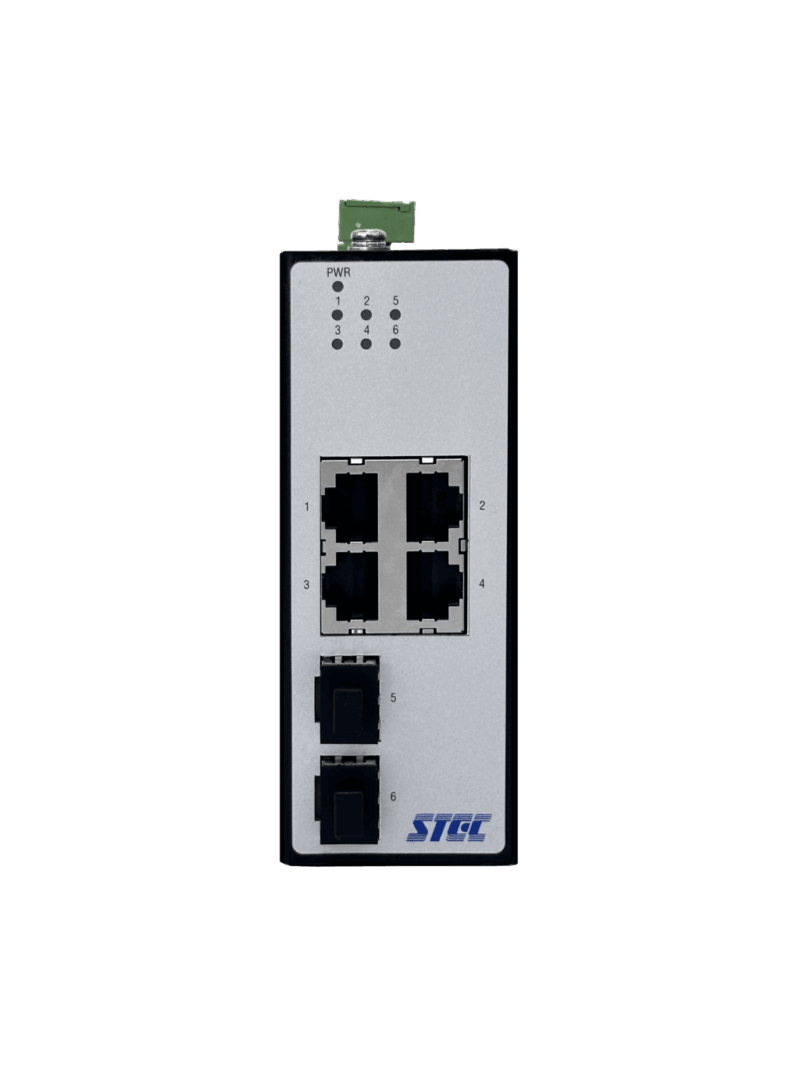

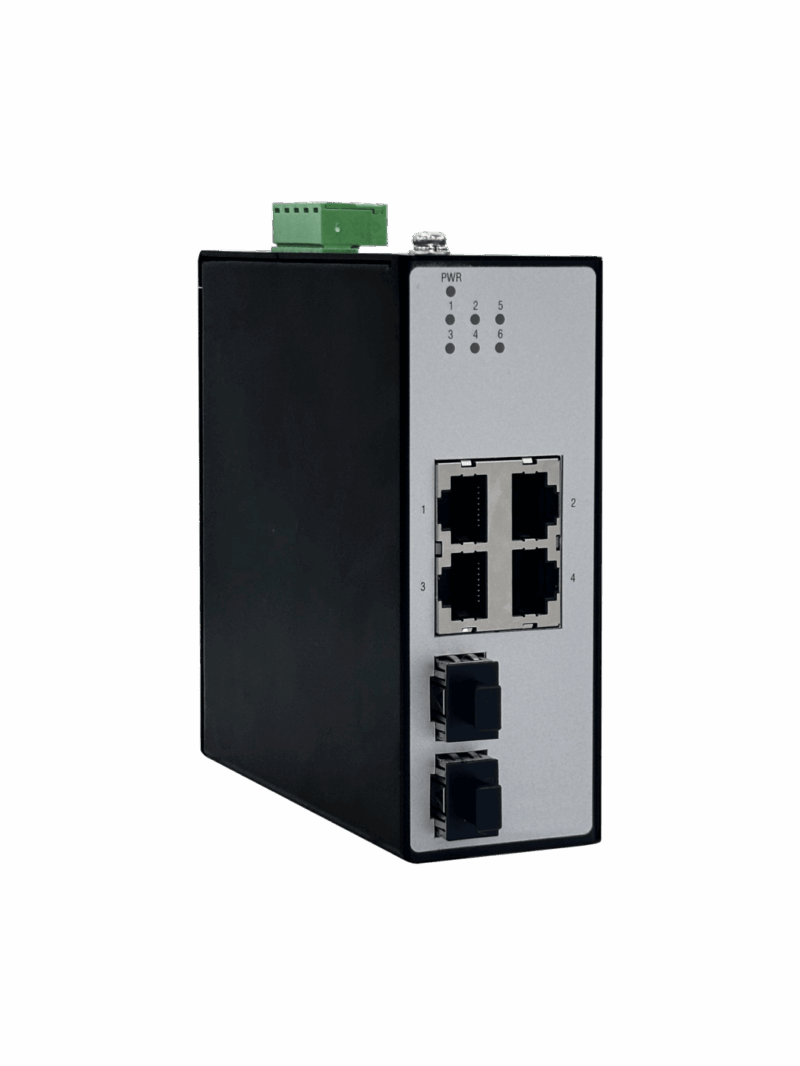

6-Port DIN-Rail WEB Managed PoE Industrial Switch
- Specially designed for harsh industrial environments, providing economic solutions for industrial Ethernet connections.
- Lightning protection: power supply ±4KV, RJ45 port ±4KV
- Small and easy to install, plug and play without configuring
- Fanless design, wide working temperature and quiet operation
TECHNICAL SPECIFICATIONS
| Details | |
|---|---|
| Fixed Service Port | 2 x 100/1000BaseX SFP ports (SFP module not included)
4 x 10/100/1000BaseT PoE ports |
| Protection Class | IP40 |
| Forwarding/Exchange rate | 148,800 pps /100M port
1,488,000 pps/1000M port |
| MAC address table |
2000
|
| Operating temperature | -25 ° C ~ +75 ° C |
| Power Consumption | 9.6 ~ 60VDC & 18 ~ 30VAC, dual redundant inputs |
| Dimensions (W x D x H) (mm) | 42mm × 110mm × 105mm |
| Unit Weight | < 0.6kg |
