SG3428

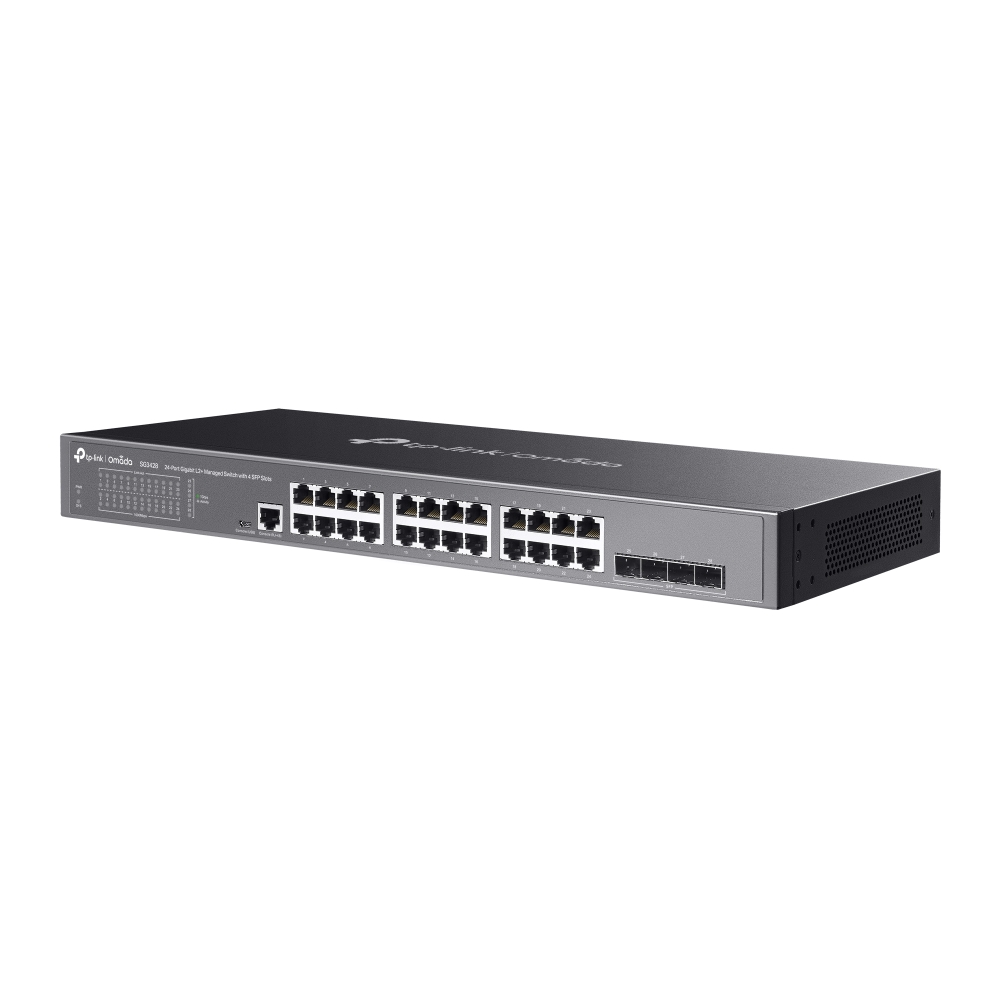

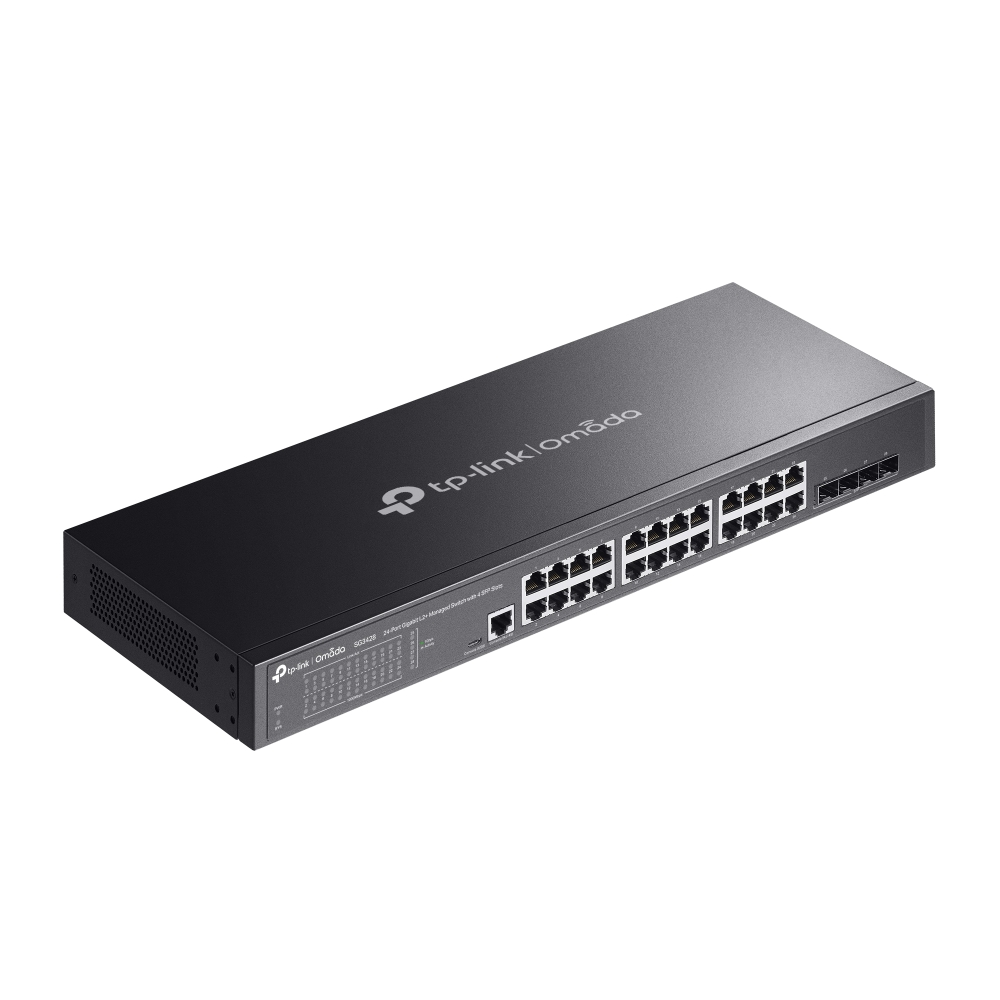

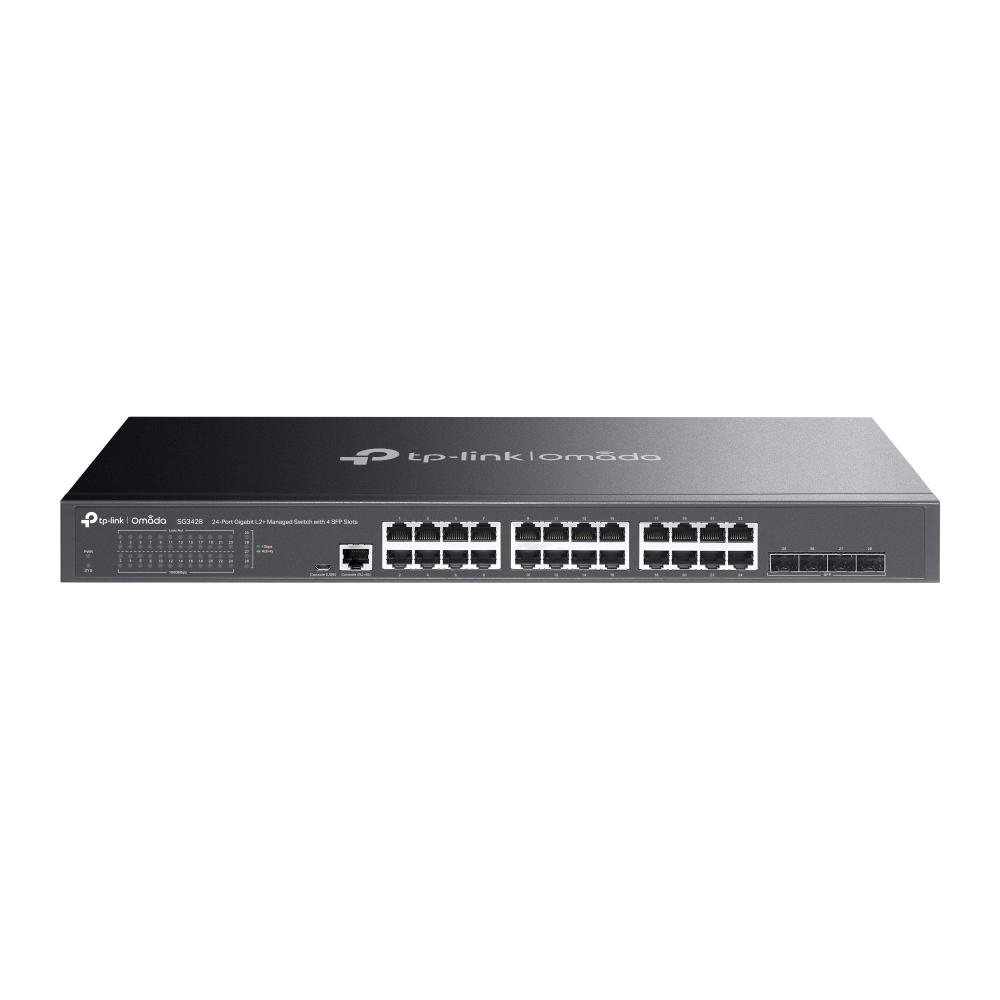

Omada 24-Port Gigabit L2+ Managed Switch with 4 SFP Slots
- 56 Gbps switching capacity
- Centralized cloud management via the web or the Omada app
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS supports rapid protection and recovery in a ring topology
- Fanless design for silent operation
- Durable metal casing and rack-mountable design
TECHNICAL SPECIFICATIONS
| Details | |
|---|---|
| Fixed Service Port | • 24× 10/100/1000 Mbps RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX) • 4× 100/1000 Mbps SFP Slots • 1× RJ45 Console Port • 1× Micro-USB Console Port |
| Switching capacity | 56 Gbps |
| Forwarding rate | 41.66 Mpps |
| Management | Omada (Cloud-Based/Software/Hardware)Controller, Omada APP |
| Max. Power Consumption | 20.6 W (220 V/50 Hz) |
| Dimensions (W x D x H) | 17.3×7.1×1.7 in (440×180×44 mm) |
| Operating Temperature | 0–45 ℃ (32–113 ℉) |
