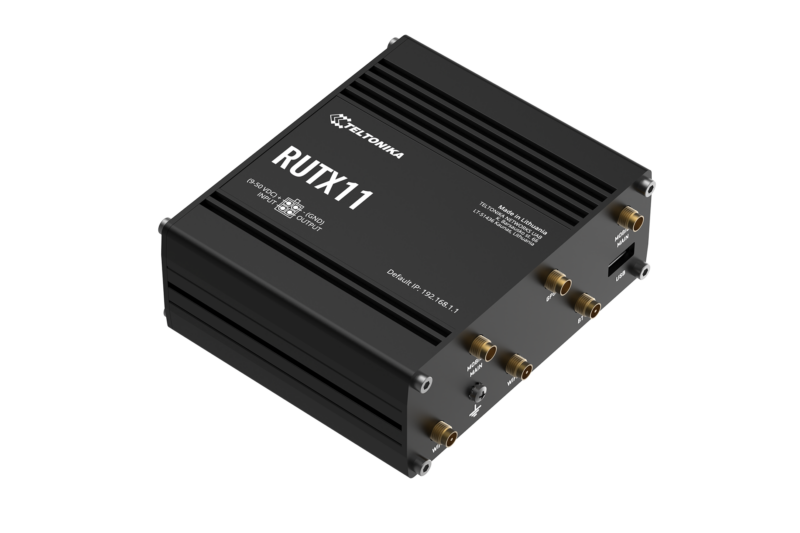

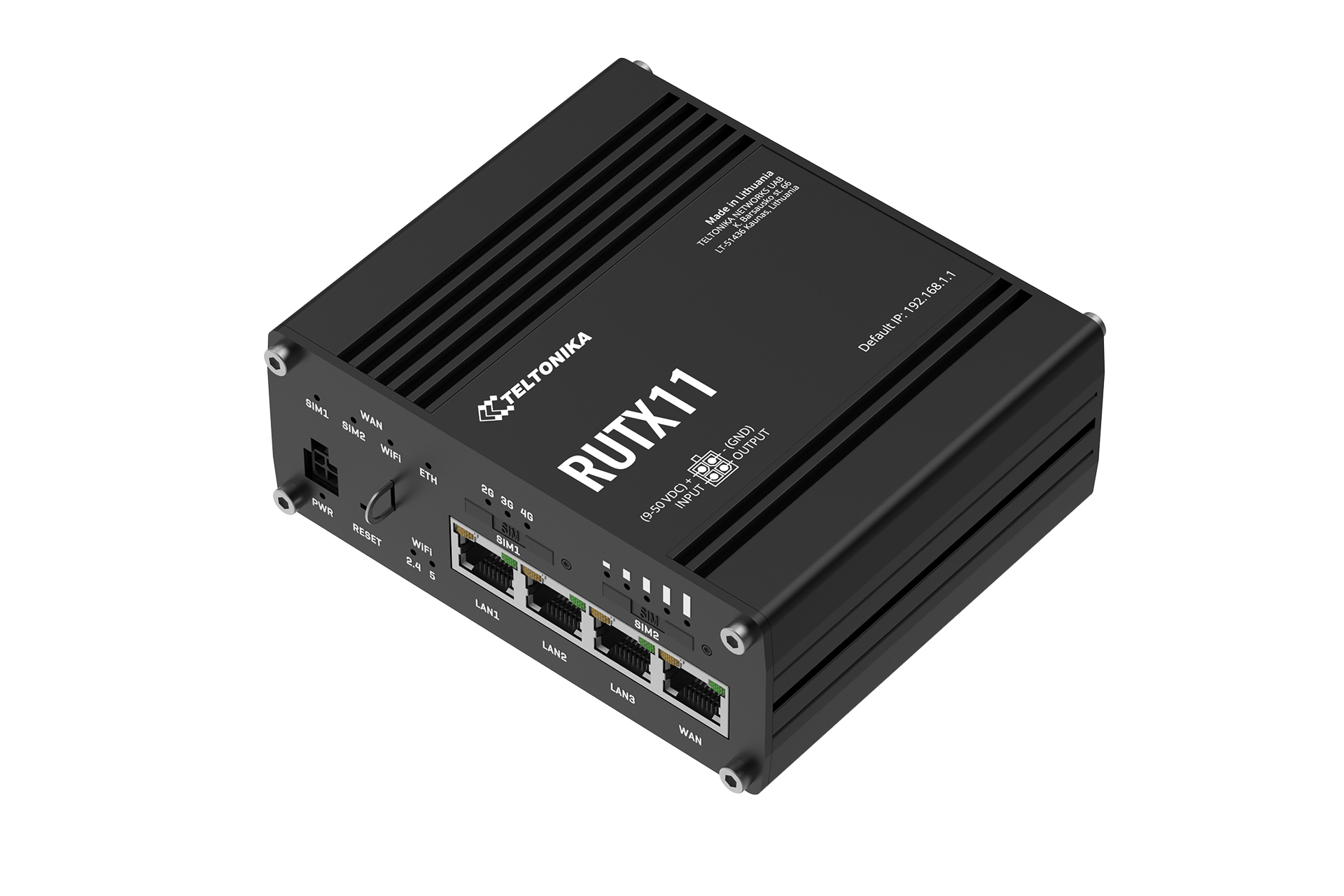

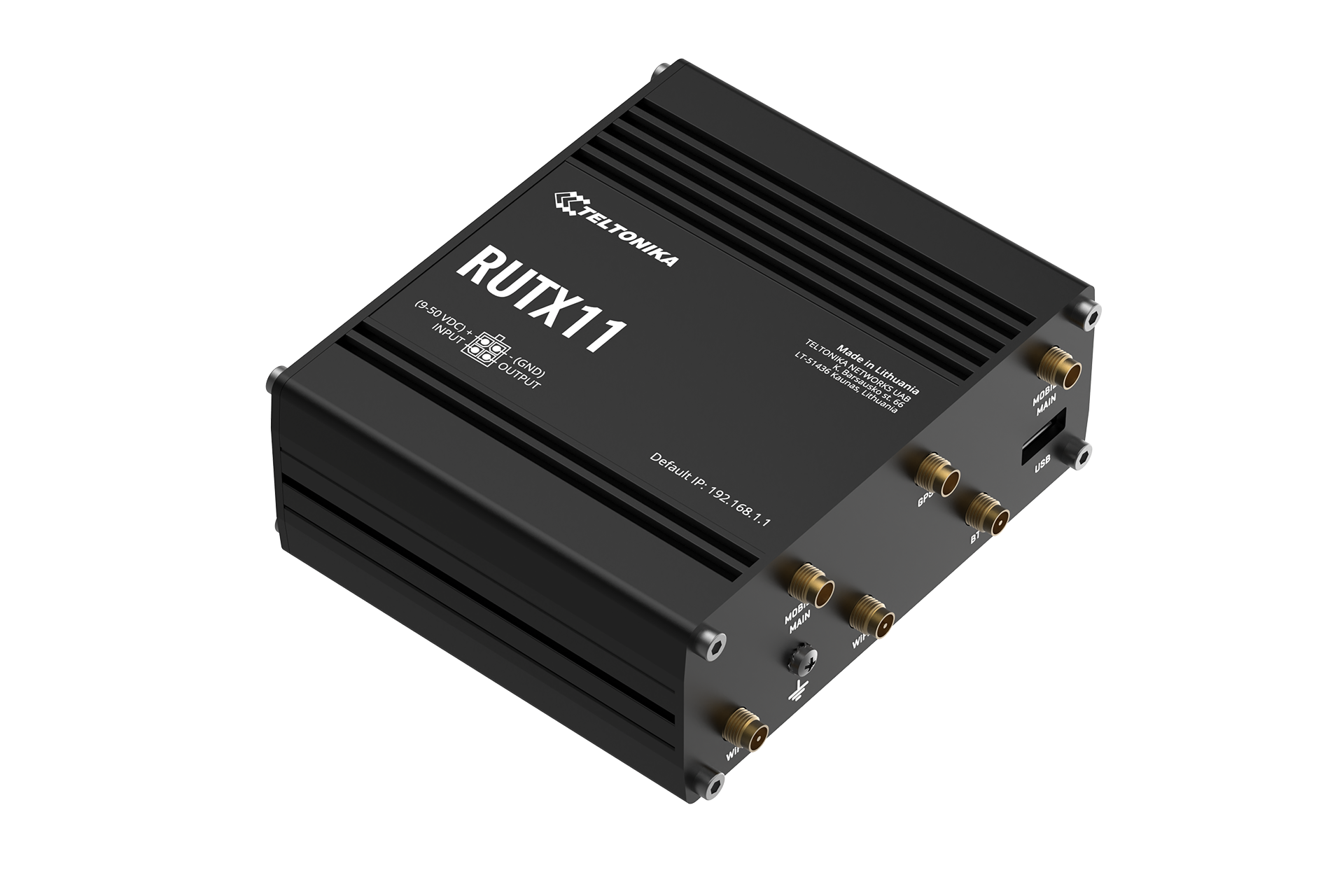

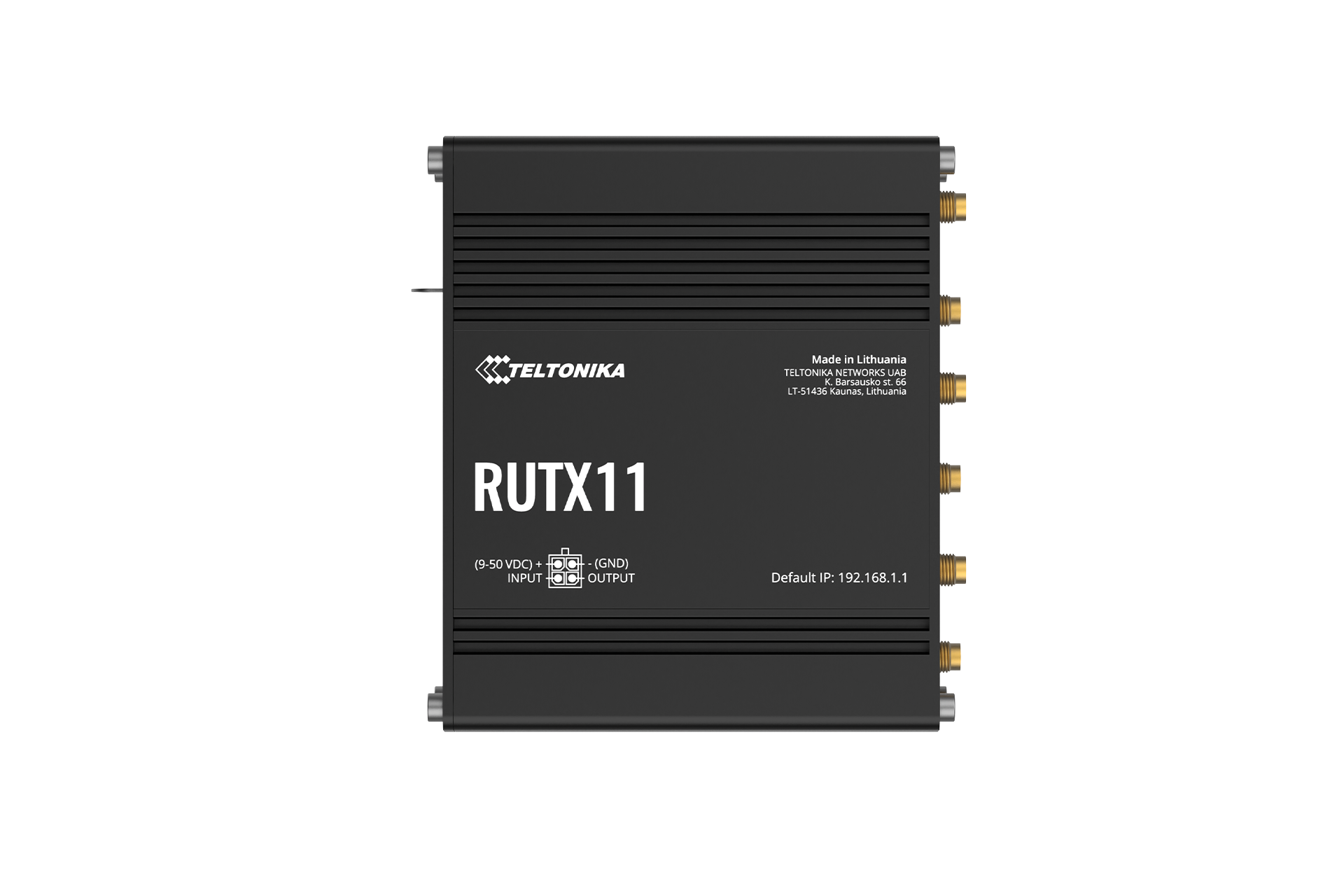

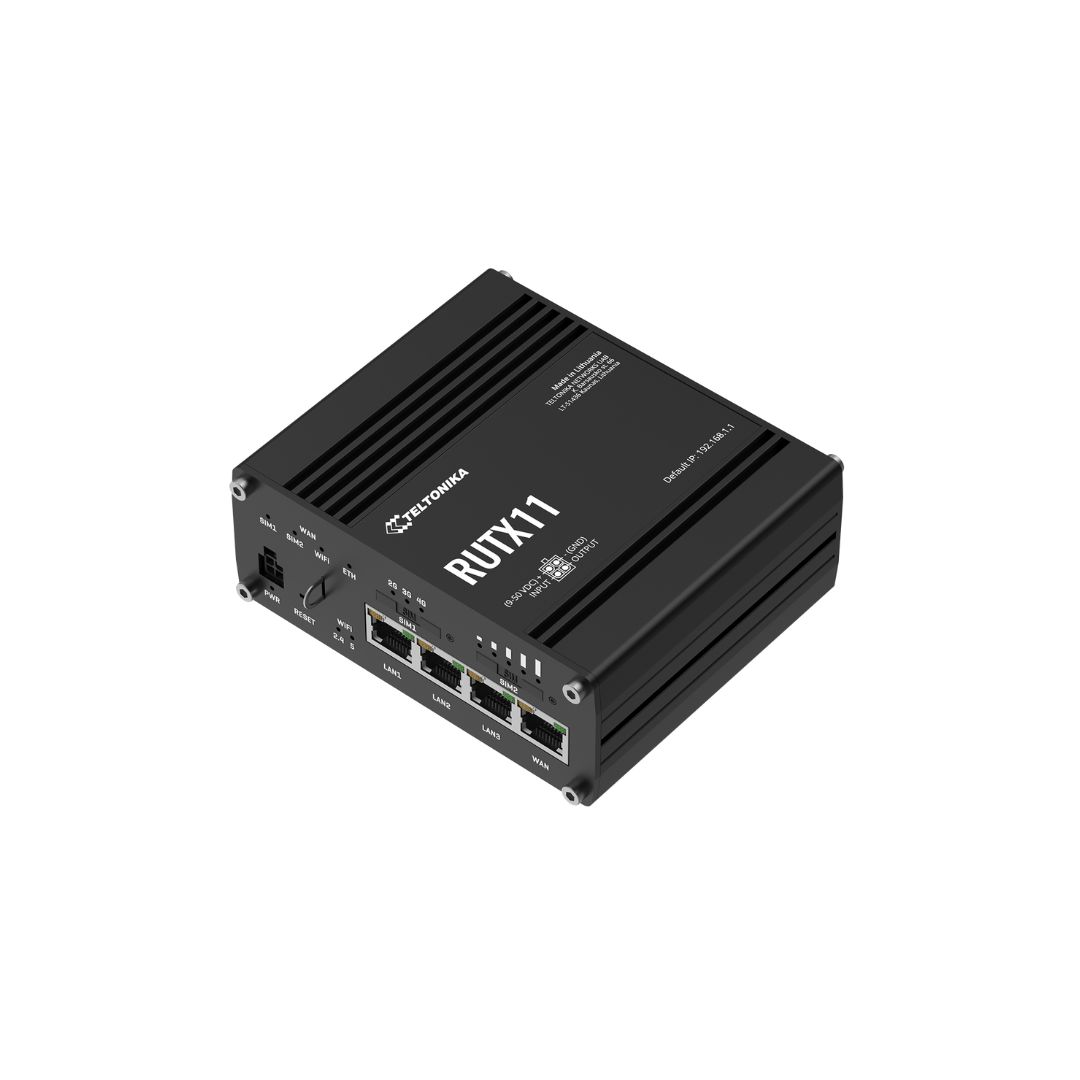

RUTX11
INDUSTRIAL CELLULAR ROUTER
- 4G LTE CAT 6: Cellular speeds up to 300Mbps with Carrier Aggregation
- DUAL SIM: With auto failover, backup WAN and other switching scenarios

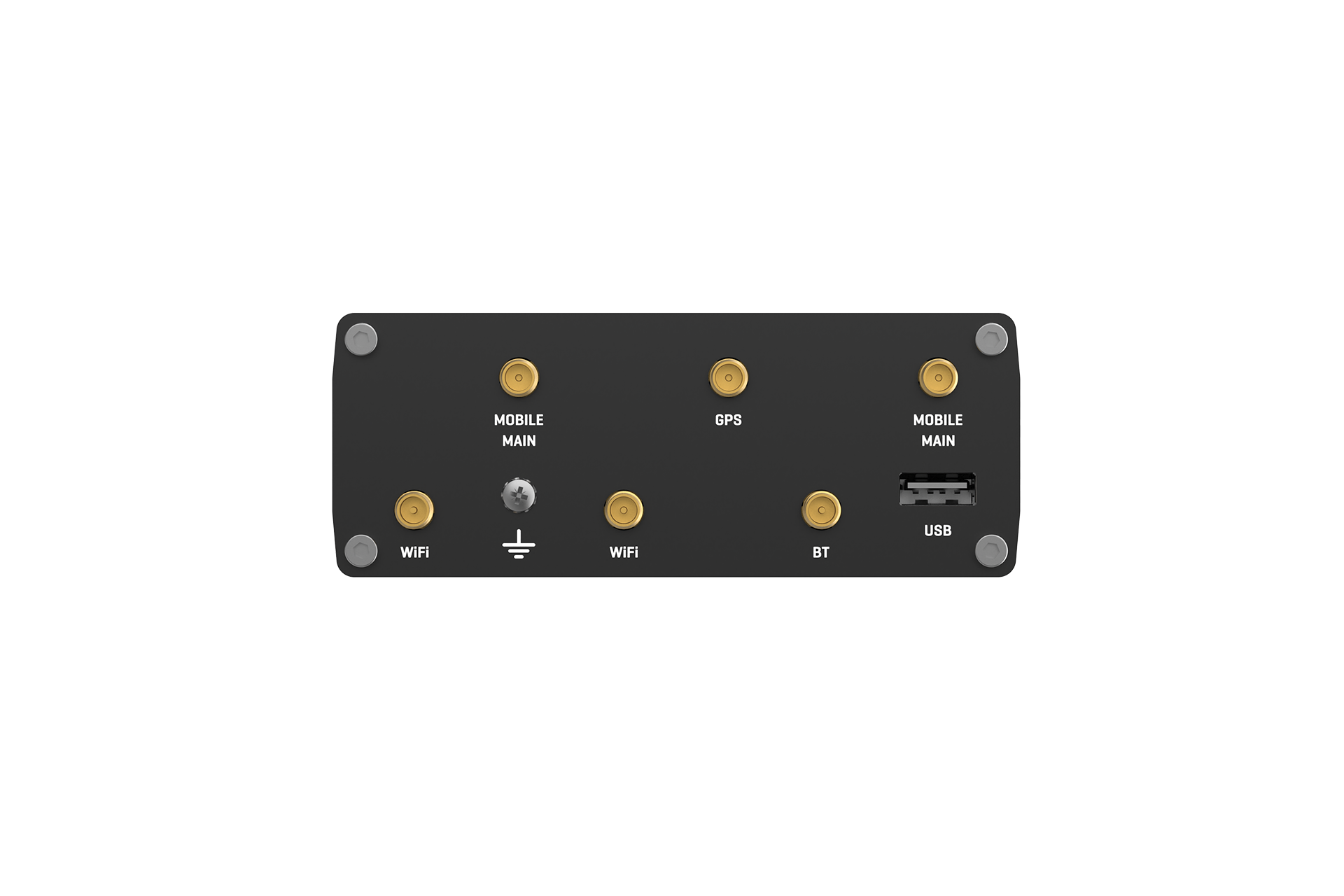

- WI-FI & BT: Wave-2 802.11ac Dual Band Wi-Fi and Bluetooth LE

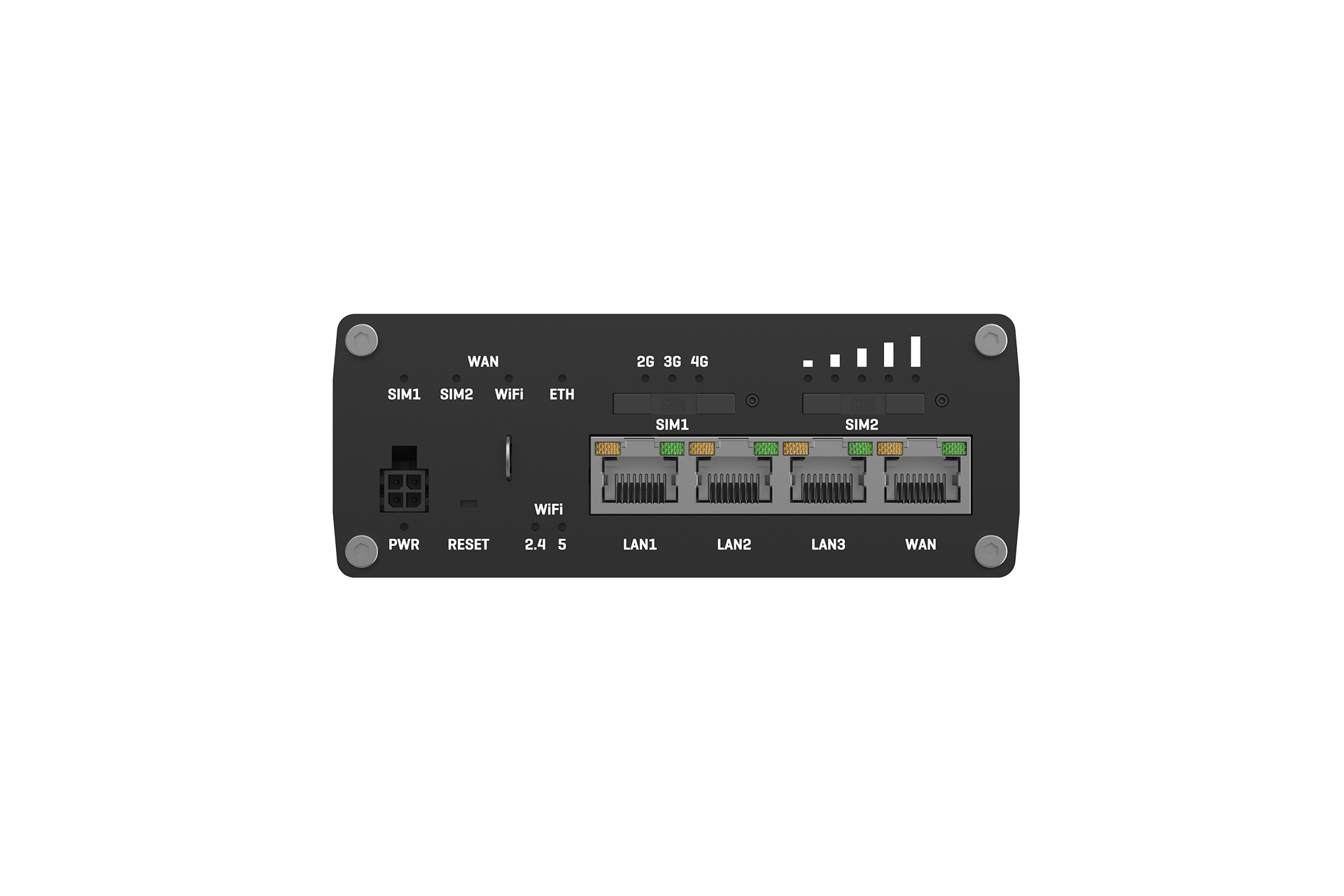

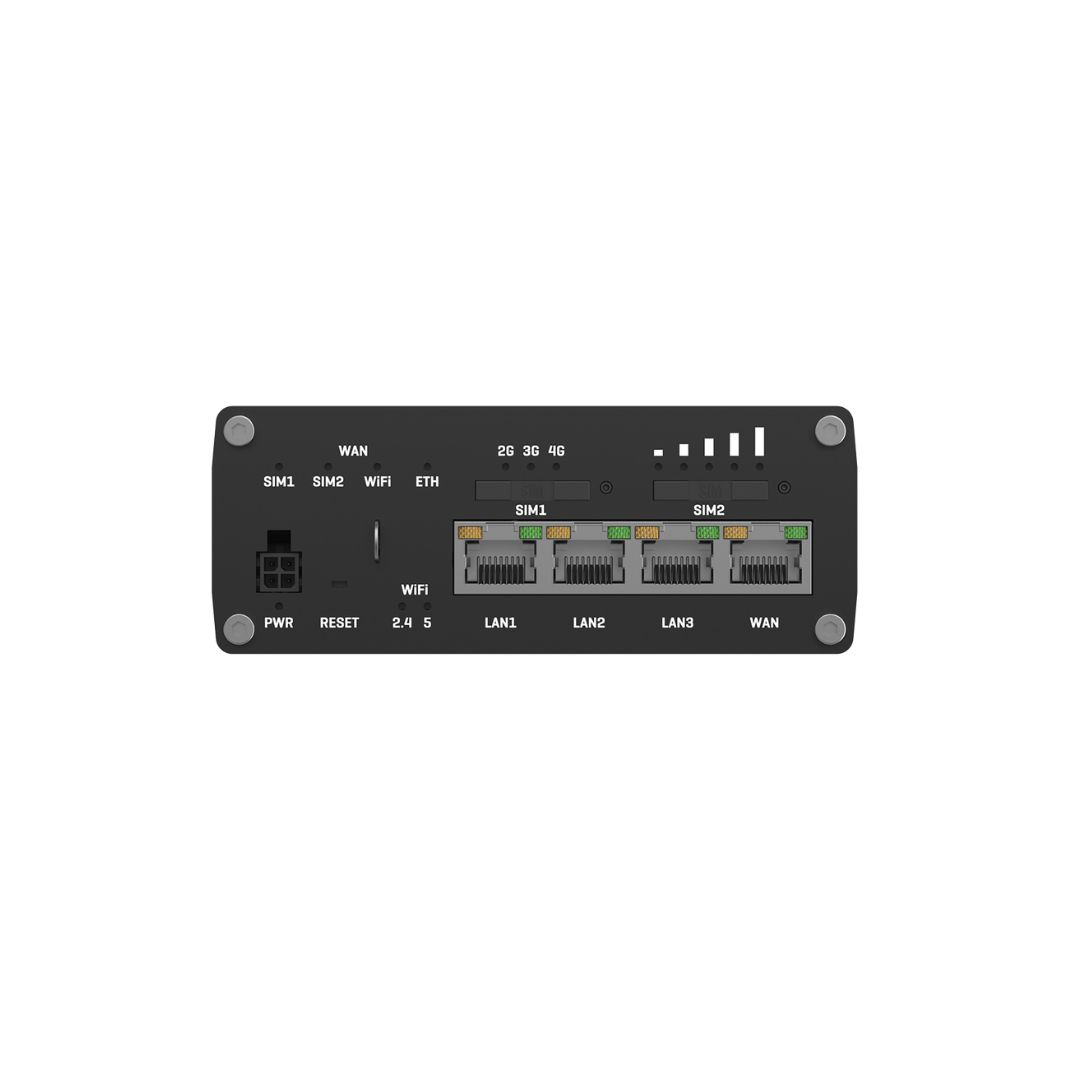

- GIGABIT ETH: 4 x Gigabit Ethernet ports with up to 128 port/tag-based VLANs supported
TECHNICAL SPECIFICATIONS
| Details | |
|---|---|
| Dimensions | 115 x 44.2 x 95.1 mm |
| Weight | 456 g |
| Input voltage range | • 9 – 50 VDC, reverse polarity protection, voltage surge/transient protection • 24 – 36 VDC for railway version of the code RUTX11 020G00 |
| Power Consumption | 16 W Max |
| Wireless Mode | • 802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MUMIMO) • 802.11r fast transition • Access Point (AP) • Station (STA) |
| CPU | Quad-core ARM Cortex A7, 717 MHz |
| RAM | 256 MB, DDR3 |
| Flash | 256 MB, SPI Flash |
| WAN Port(s) | 1 x WAN ports, 10/100/1000 Mbps |
| LAN Port(s) | 3 x LAN ports, 10/100/1000 Mbps |
| PoE/PoE+ | Passive PoE only |
| Mobile Feature | • Dual SIM and eSIM • Auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection |
