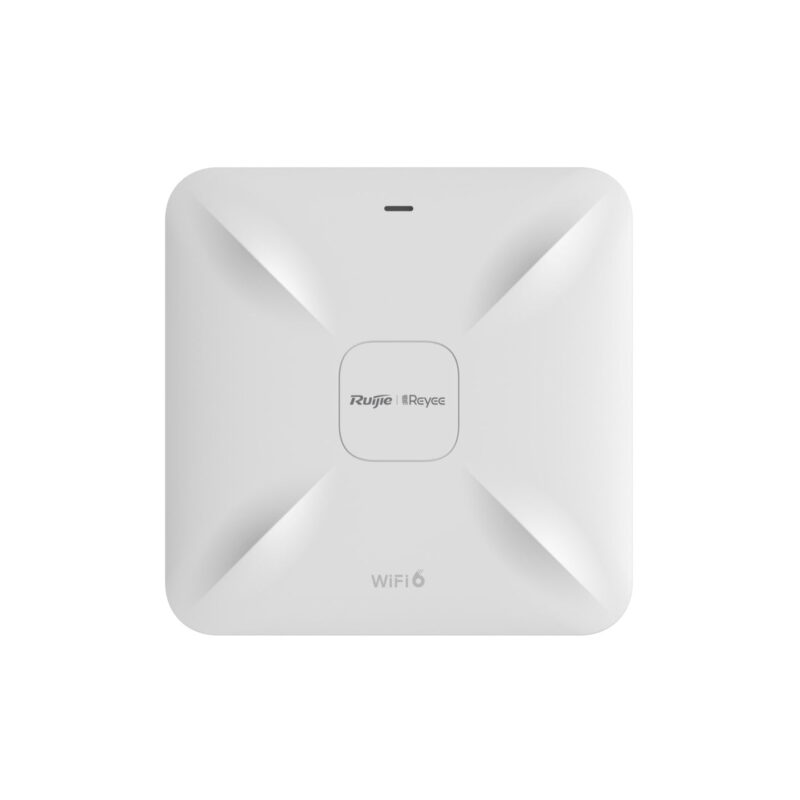

RG-RAP2260(H) Reyee Wi-Fi 6 AX6000 High-density Multi-G Ceiling Access Point
Ruijie Reyee RG-RAP2260(H) is build for ultra-high performance Wi-Fi with 5.95Gbps throughput. It can operate concurrently at 2.4GHz and 5GHz, providing high-speed wireless access of 1148Mbps at 2.4GHz, 4804Mbps at 5GHz. The device supports client connections Max to 512. Easily install extra AP with Reyee Mesh technology to meet the needs of more networking scenarios especially in offices, commercial industry, hotels, service scenarios. Compliant with 802.11a/b/g/n/ac/ax Wi-Fi protocol. RG-RAP2260(H) supports 4×4 MU-MIMO technology and offers built-in omnidirectional antennas. Its coverage Max to 150 meters makes it an ideal choice for many wireless scenarios.
Category: Reyee
TECHNICAL SPECIFICATIONS
Protocol | Concurrent 802.11ax / 802.11ac wave2 / 802.11a/b/g/n |
Max Throughput | Up to 1148Mbps at 2.4G Up to 4804Mbps at 5G 5.95Gbp per AP |
Clients | Max 512, Recomended 130 |
Antenna | Internal antennas (2.4G: 3dBi,5G: 4dBi) |
Coverage Radius | 2.4Ghz: 40 Meters 5Ghz: 70 Meters |
Dimensions | 230mm×230mm×49.5mm (excluding mounting kits) |
Service Ports | 2 10/100/1000Base-T Ethernet ports / PoE/LAN1 port supports PoE |
Power | IEEE 802.3bt PoE Consumption <4oW |
