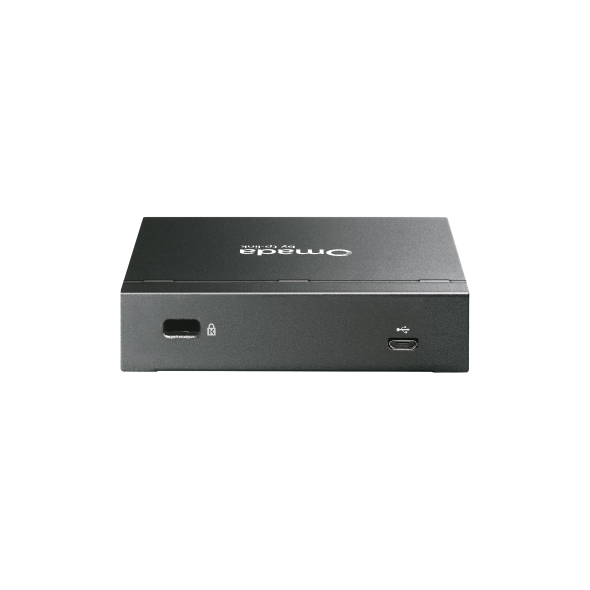

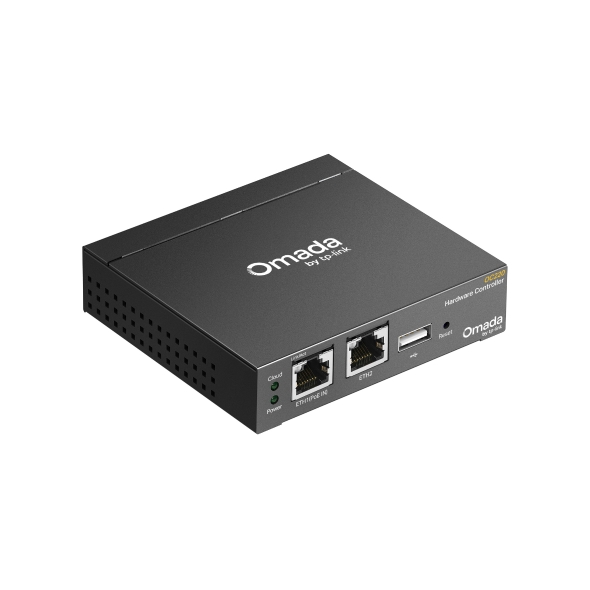

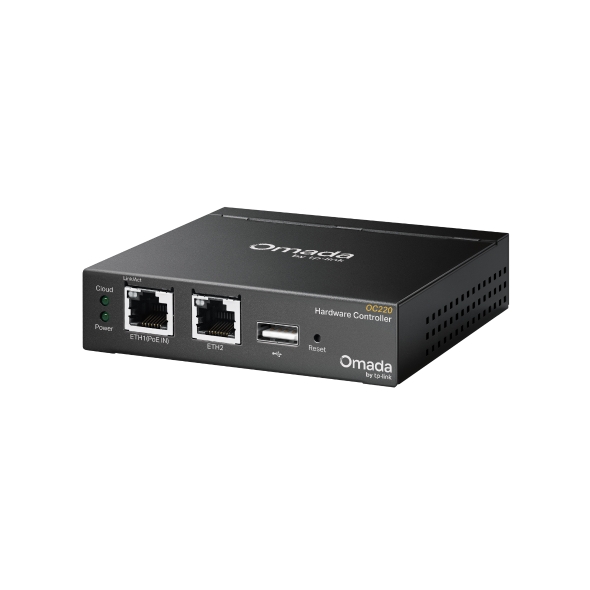

OC220
Omada Hardware Controller
- Centralized Management: Supports up to 100 Omada access points, 10 Omada gateways, a maximum of 20 Omada switches, and a maximum of 2 certain DeltaStream GPON OLTs*
- Free Cloud Access: Manage and monitor with the Omada app or Web UI from anywhere, anytime.
- On-Premises Management: Locally monitor and manage devices with the ultimate stability and complete privacy.
- Hardware Design for Businesses: A powerful chipset, durable metal casing, USB 2.0 port for data backup, and two Gigabit Ethernet ports.

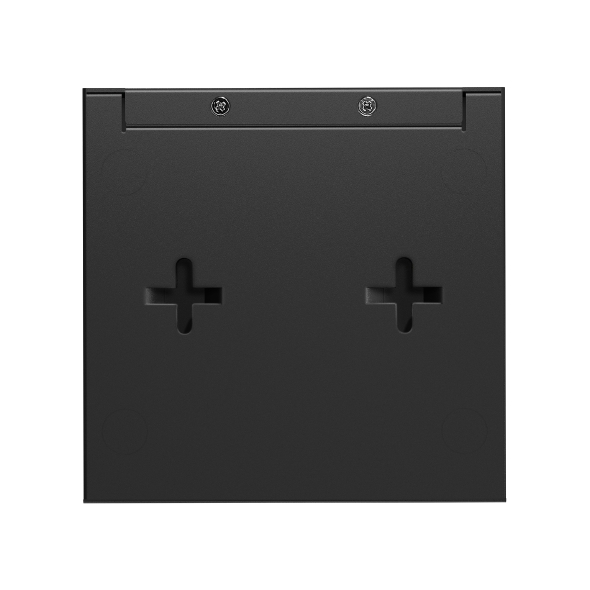

- Flexible Deployment: 802.3af PoE or Micro USB (DC 5V/Minimum 1A) power supply and compact desktop or wall mount installation.
TECHNICAL SPECIFICATIONS
| Details | |
|---|---|
| Service Port | • 2× Gigabit Ethernet Port • 1× USB 2.0 Port • 1× Micro USB Port |
| Power Supply | 802.3af/at PoE; Micro-USB (DC 5 V/ Minimum 1 A) |
| Max Power Consumption | 9.5 W (powered by a PoE device, with USB 2.0 connected);
3.3 W (powered via Micro-USB port, no USB 2.0 connected) |
| Dimensions (W × D × H) (mm) | 3.9×3.9×1.0 in (100×98×25 mm) |
| Operating Temperature | -5–50 ℃ (23–122 ℉) |
| Package Content | • Omada Hardware Controller OC220 • Quick Installation Guide • RJ45 Ethernet Cable |
