ER701-5G-Outdoor

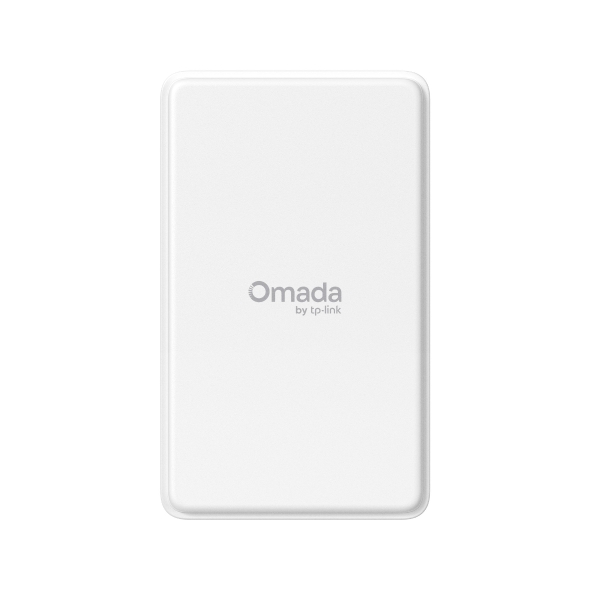

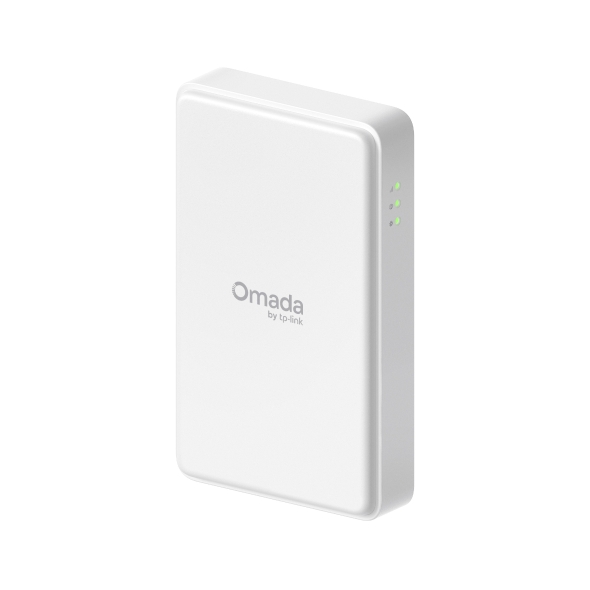

Omada 5G Outdoor Gateway
- 5G NR up to 7.01 Gbps (SA)/4.5 Gbps (NSA)*
- 2× Nano SIM Ensures Business Continuity

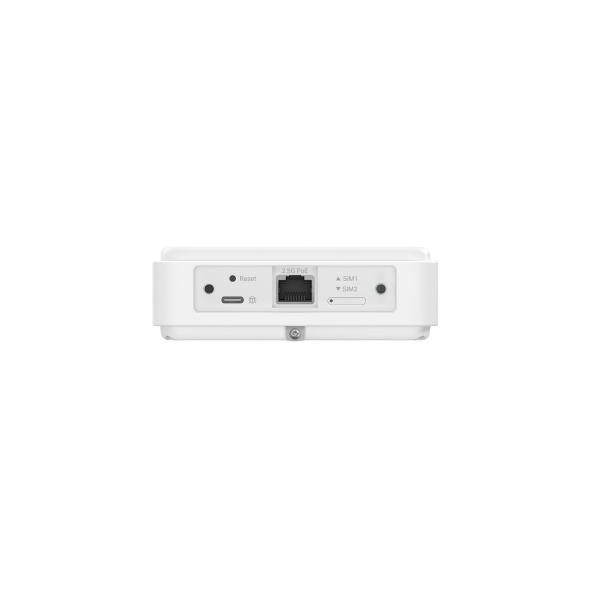

- 1× 2.5G PoE In Port (PoE Adapter Included)
- 9× internal Cellular Antennas and 1× Internal Wi-Fi Antenna
- App-Guided Antenna Alignment for Optimal 5G Performance

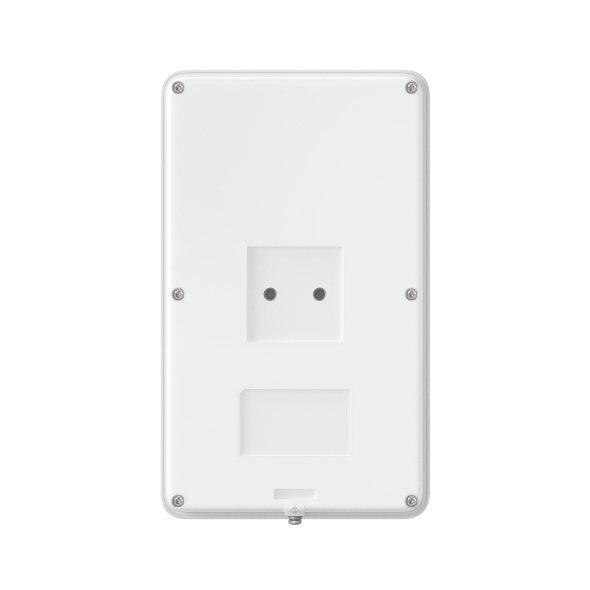

- Omada SDN for One-Click Setup, Pole/Wall/Window Mounting
- Centralized Cloud Management
- IP66 Weatherproof
TECHNICAL SPECIFICATIONS
| Details | |
|---|---|
| Dimensions | 7.2 × 4.3 × 1.4 in (183 × 110 × 36 mm) |
| Power Supply | 802.3at PoE: 42-57V 0.6A Passive PoE: 48V 0.375A |
| Max Power Consumption | 15.3W (802.3at PoE or Passive PoE) |
| Max Throughput | 5G NR Speed • SA: Downlink: 7.01 Gbps, Uplink: 1.25 Gbps • NSA: Downlink: 4.5 Gbps, Uplink: 730 MbpsLTE Speed • Downlink: 1.6 Gbps, Uplink: 211 MbpsWi-Fi Speed • 2.4 GHz: 150 Mbps |
| DRAM | 2GB LPDDR4x |
| Flash | 4GB eMMC Flash |
| Interface | 1×2.5G RJ45 Port |
