S310-48P4X

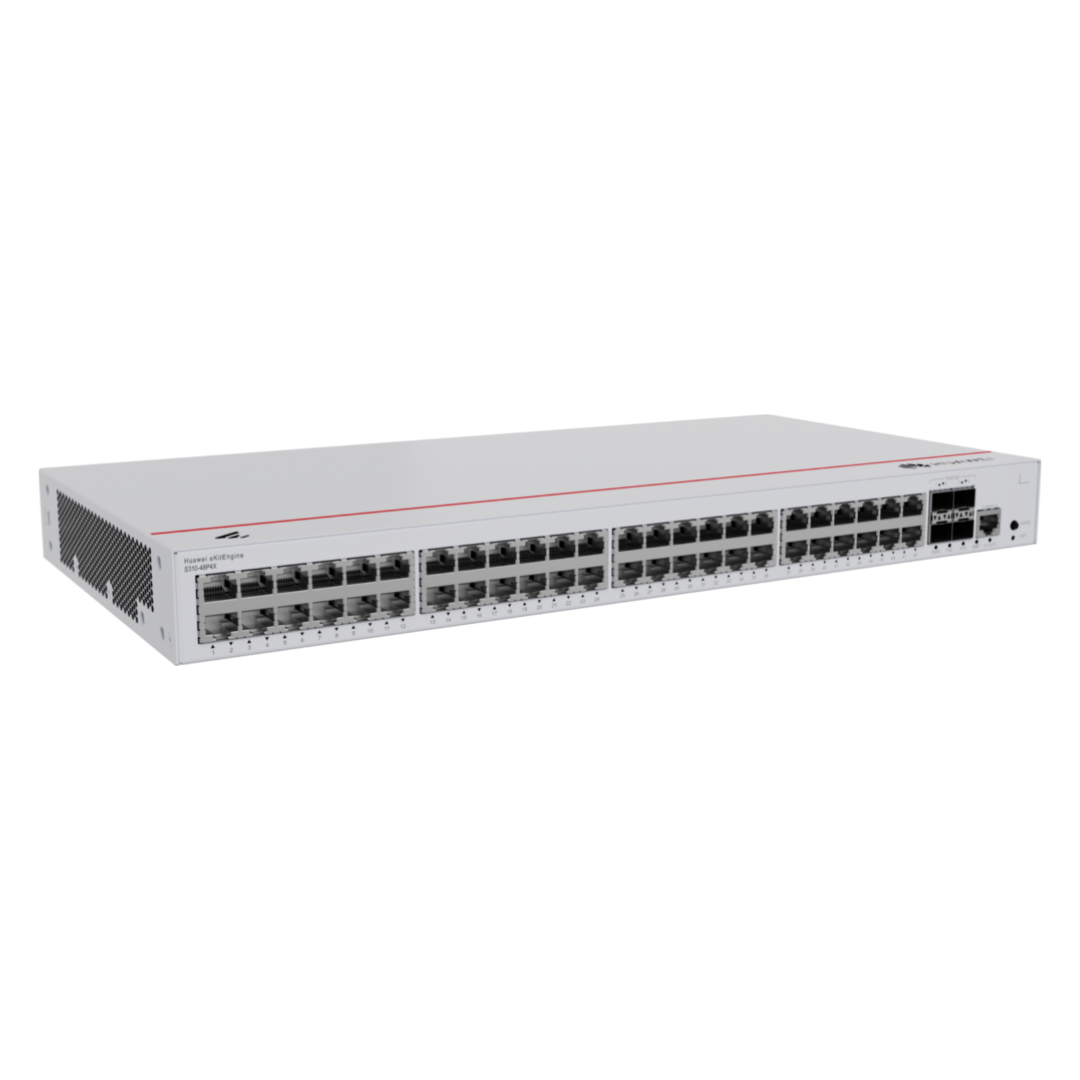

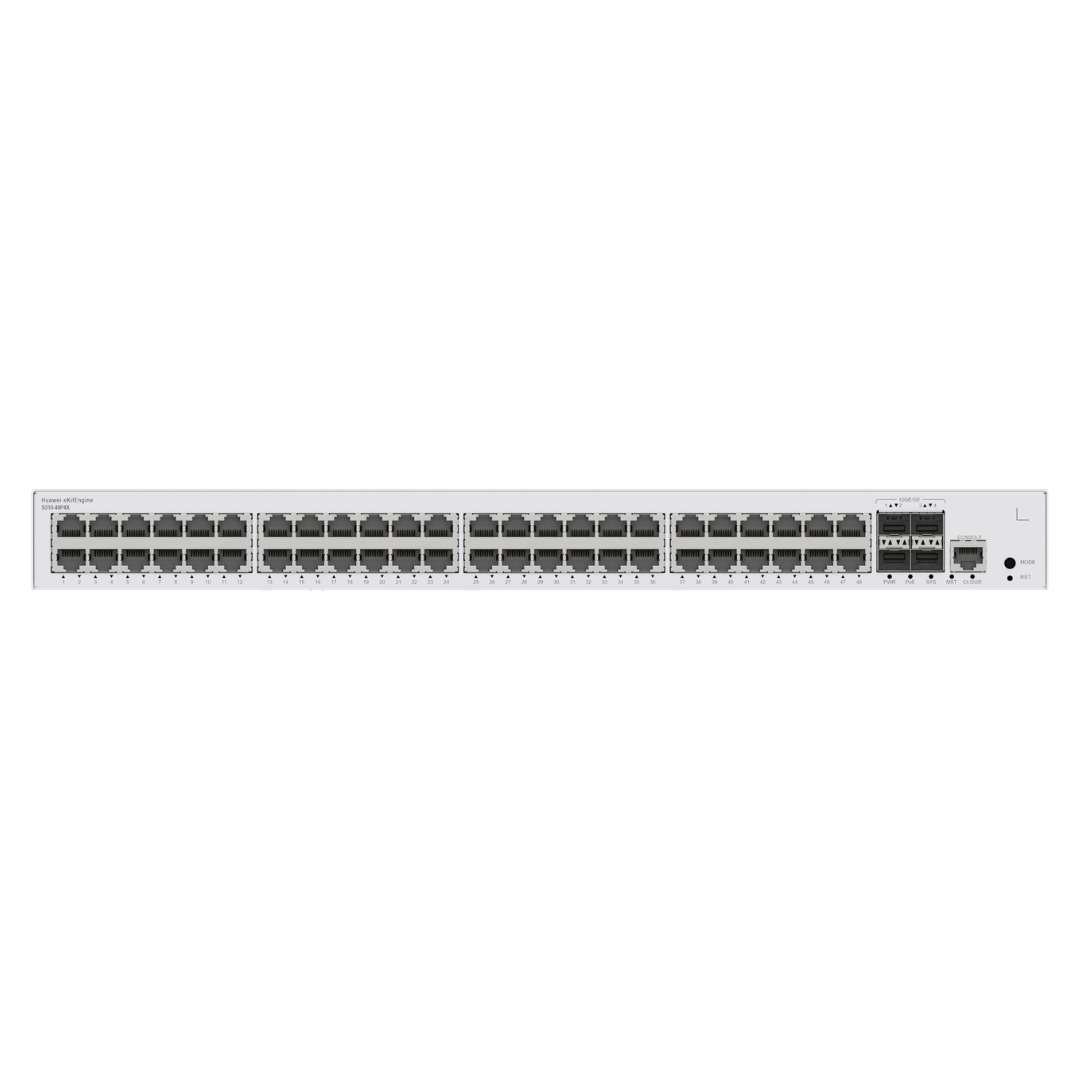

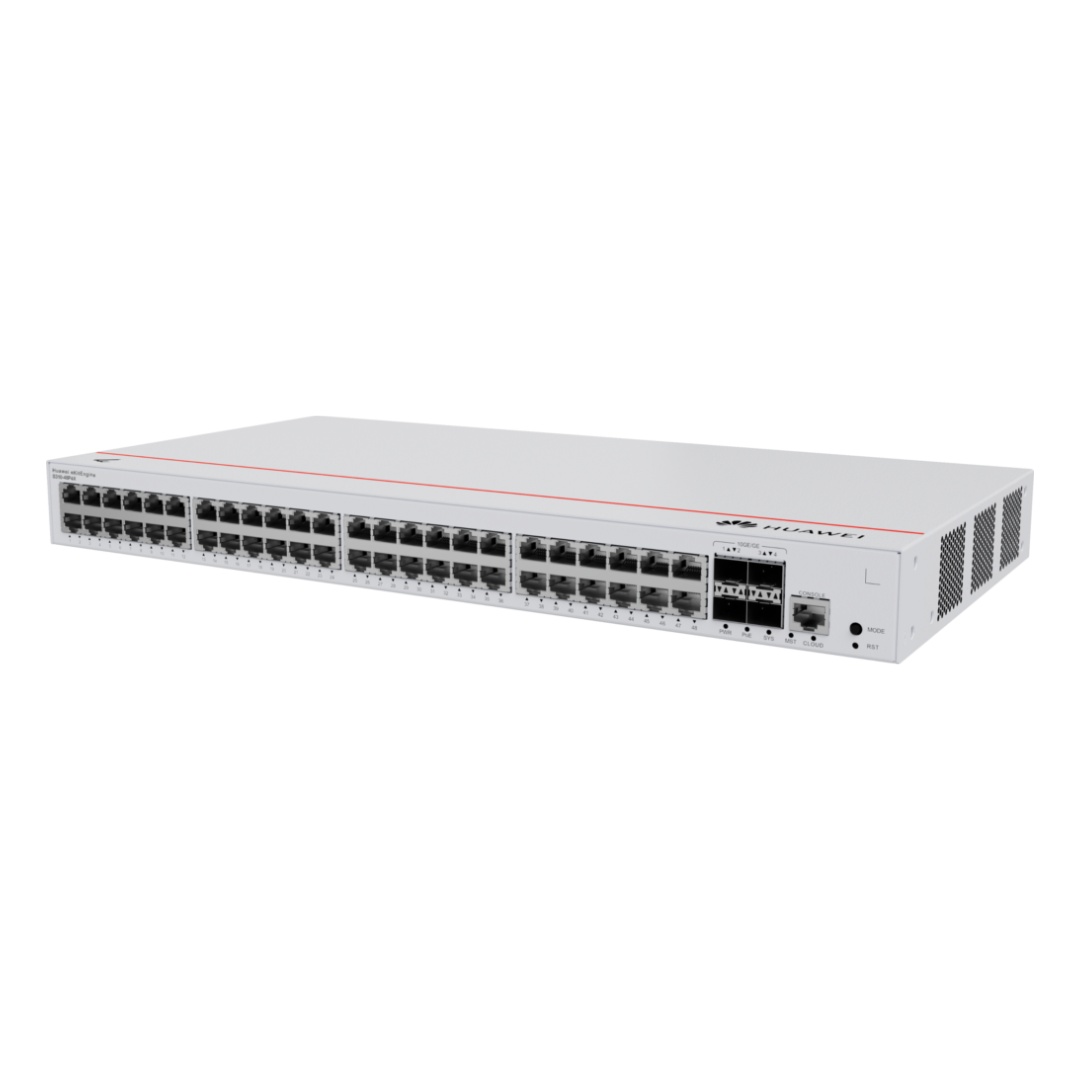

Huawei eKitEngine S310 Series Layer 3 Switches
- High Availability: Supports heavyweight features stacking and ERPS, improving the competitive position
- High Reliability: Independent hardware watchdog, preventing devices from being suspended
- Ultra-simplified O&M: “Easy Web” wizard-based configuration and easy local deployment in 6 min
TECHNICAL SPECIFICATIONS
| Details | |
|---|---|
| Fixed Service Port | 48 x 10/100/1000BASE-T ports (PoE+), 4 x GE SFP ports |
| Switching capacity | 104 Gbit/s |
| Forwarding rate | 77 Mpps |
| Installation type |
Rack mounting, Desk mounting, Wall mounting
|
| Power Consumption | – Without PoE: 63.7 W – Full PoE load: 462.8 W (PoE: 380 W) |
| Dimensions (W x D x H) (mm) | 43.6 mm x 442 mm x 220 mm |
| Unit Weight | 4.29 kg |
