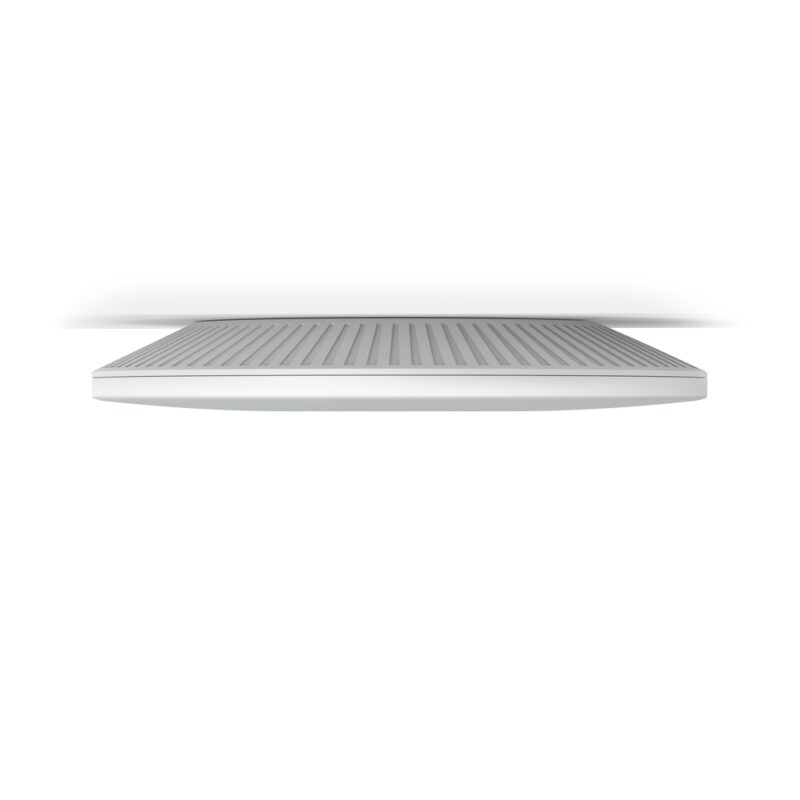

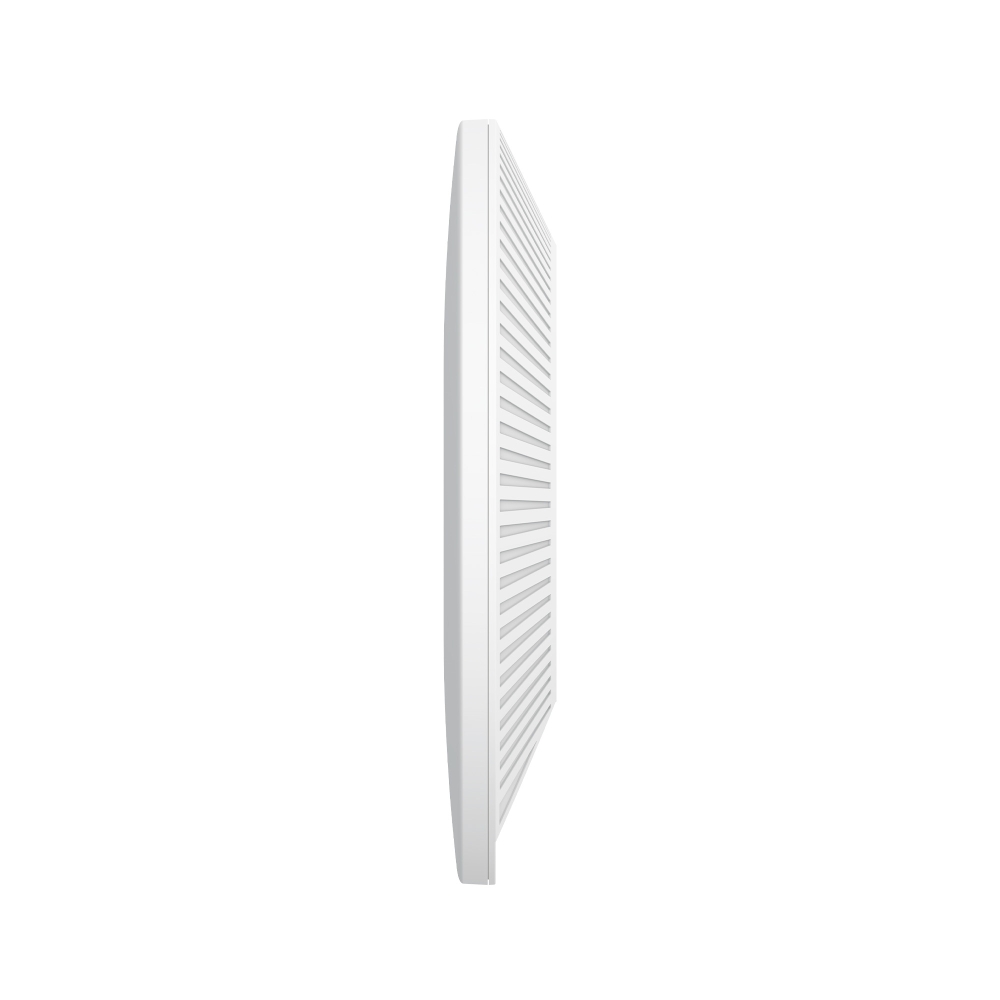

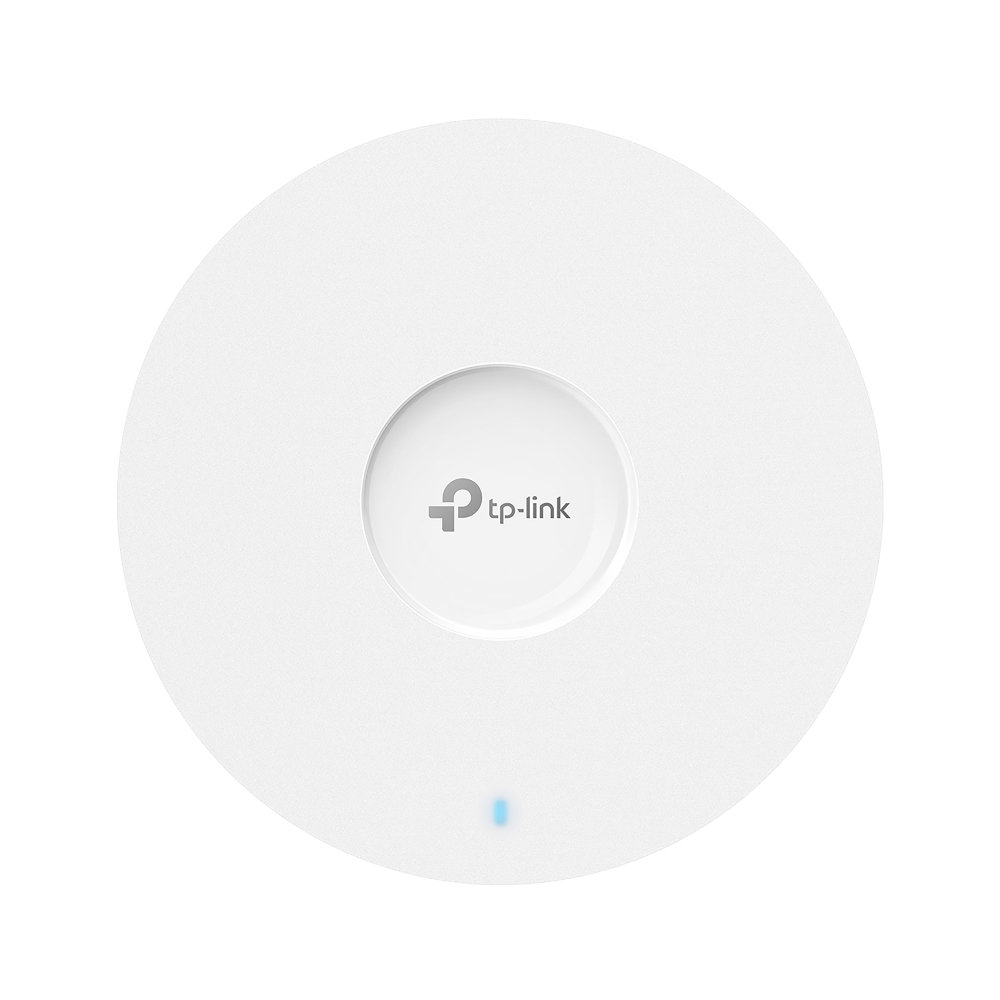

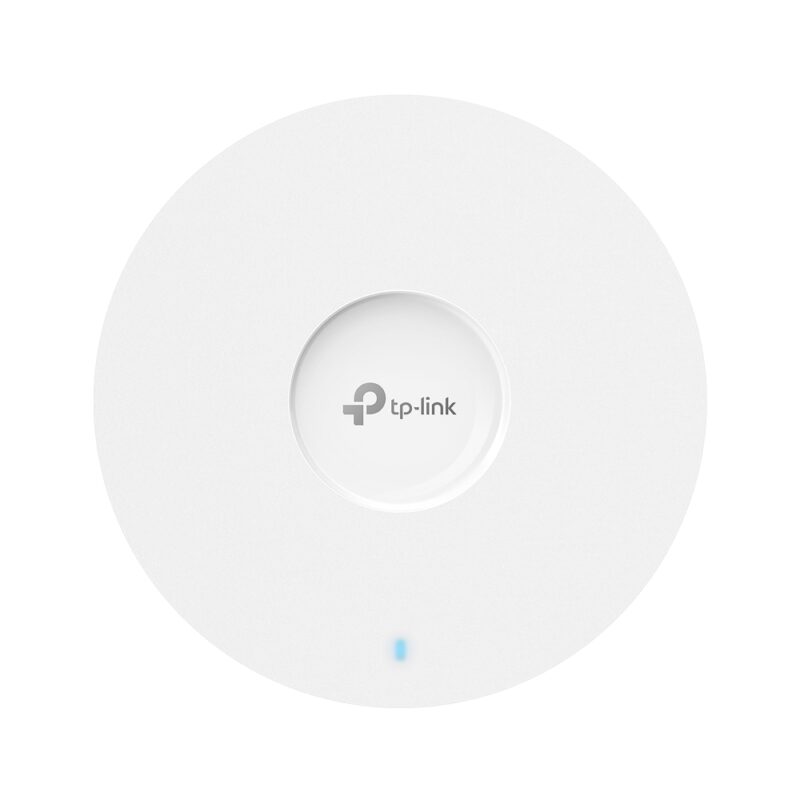

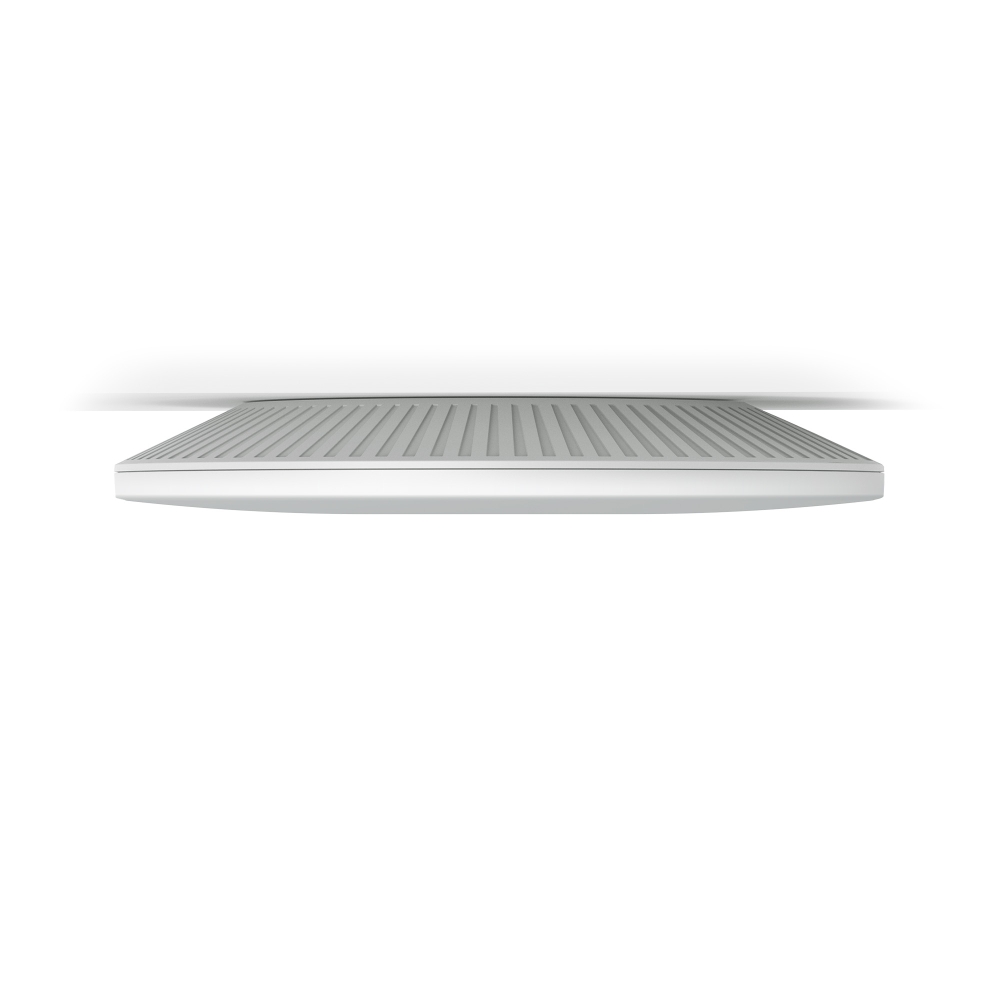

EAP683 UR
AX6000 Ceiling Mount WiFi 6 Access Point
- Up to 5952 Mbps WiFi 6 Speeds: 1148 Mbps on 2.4 GHz + 4804 Mbps on 5 GHz
- Ultra-range wireless coverage by 4×4 MIMO dual-band internal antennas with high transmission power.
- Supports WiFi 6 technologies, such as HE160, 1024-QAM, etc.
- Integrates with the Omada SDN platform for centralized management.
- Advanced Features: Omada Mesh, Seamless Roaming, and more.
- PoE+ Powered: Supports both 802.3at PoE+ and DC (adapter not included).
TECHNICAL SPECIFICATIONS
| Details | |
|---|---|
| Wi-Fi Standards | IEEE 802.11 a/b/g/n/ac/ax |
| Max. Speed | • 5 GHz: Up to 4804 Mbps • 2.4 GHz: Up to 1148 Mbps |
| Antenna | Internal Omni • 2.4 GHz: 4× 4 dBi • 5 GHz: 4× 5 dBi |
| Roaming Support | Seamless Roaming |
| Mesh Support | Yes |
| PoE Support | 802.3at PoE or 12V/1.5A DC |
| Service Ports | 1× 2.5 Gigabit PoE+ Port |
| Wireless Security | WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Management | Omada (Cloud-Based/Software/Hardware)Controller, Omada APP |

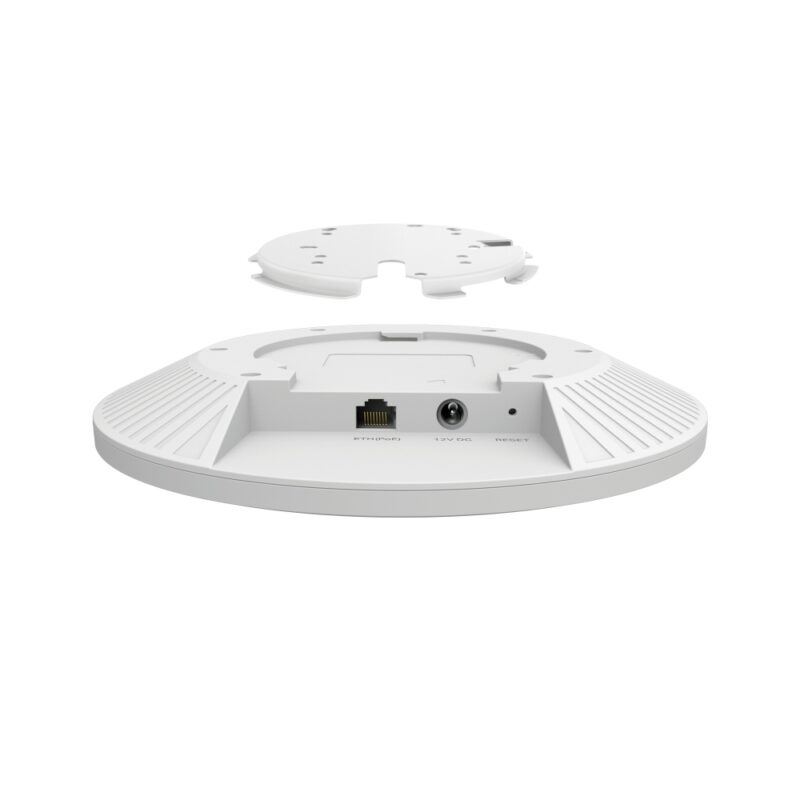

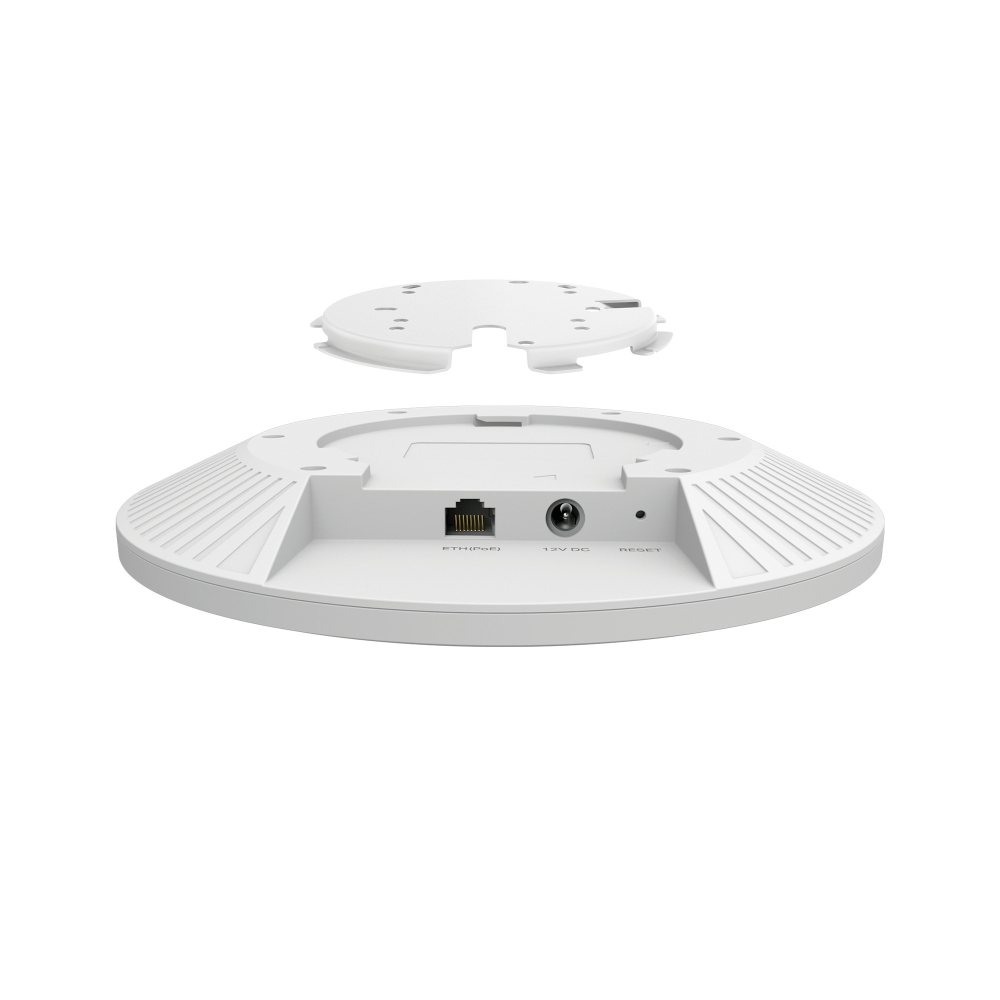

| Mounting Options | Ceiling /Wall Mounting (Kits included) |
| Operating Temperature | 0–40 ℃ (32–104 ℉) |
