SM311LM

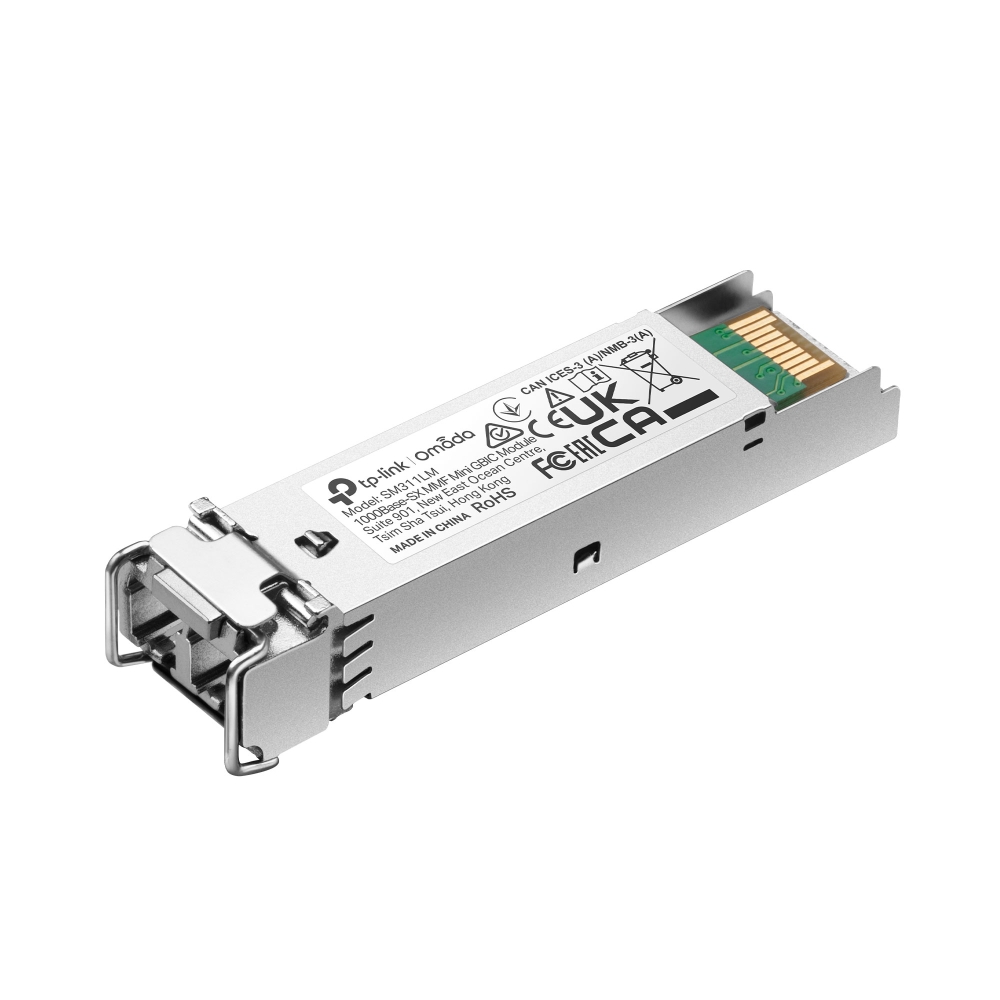

Omada 1000-Base-SX MMF Mini GBIC Module
- Multi-mode MiniGBIC module
- Supports Digital Diagnostic Monitoring (DDM)
- Compatible with Small Form Pluggable Multi-Source Agreement (SFP-MSA)
- Hot-Pluggable with maximum flexibility
- Commercial Product Operating Temperature Range: 0-70°C
TECHNICAL SPECIFICATIONS
| Details | |
|---|---|
| Wavelength (nm) | 850nm |
| DDM | Yes |
| Fiber Type | 50/125μm or 62.5/125μm Multi-mode |
| Standards and Protocols | IEEE 802.3z, CSMA/CD, TCP/IP |
| Data Rate | 1.25Gbps |
| Port Type | LC/UPC |
| Core Size | 9/125 |
| Cabling Distance | 550m |
