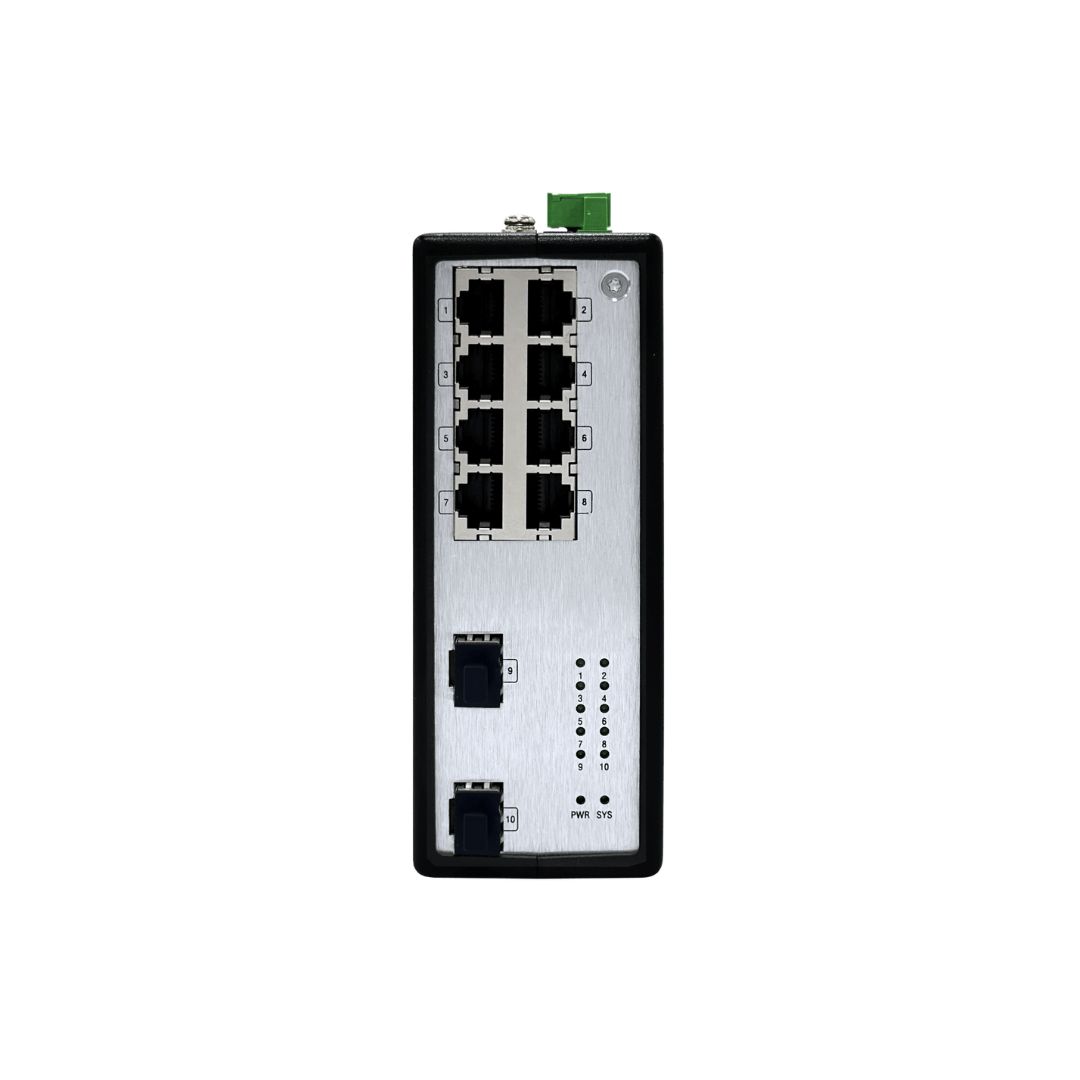

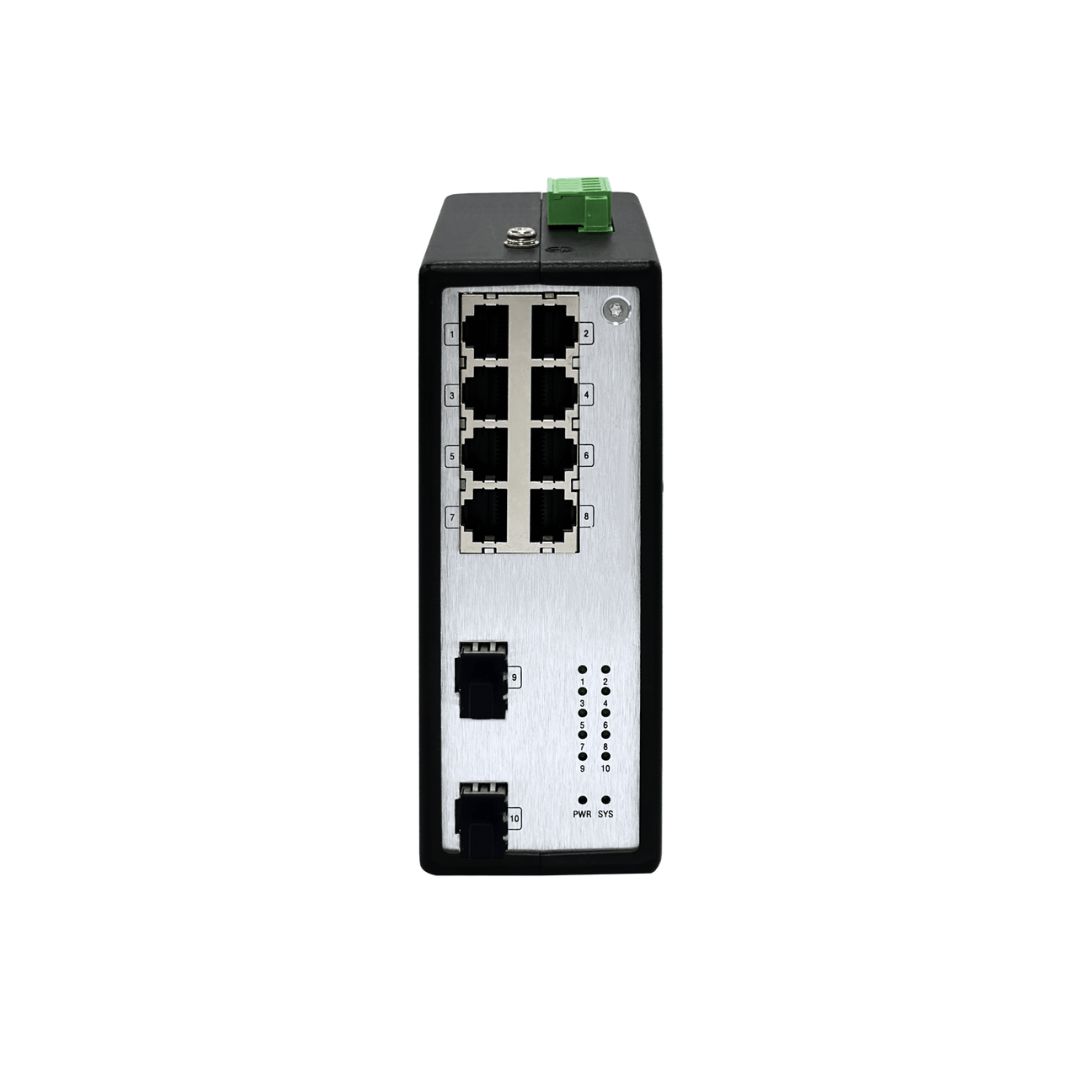

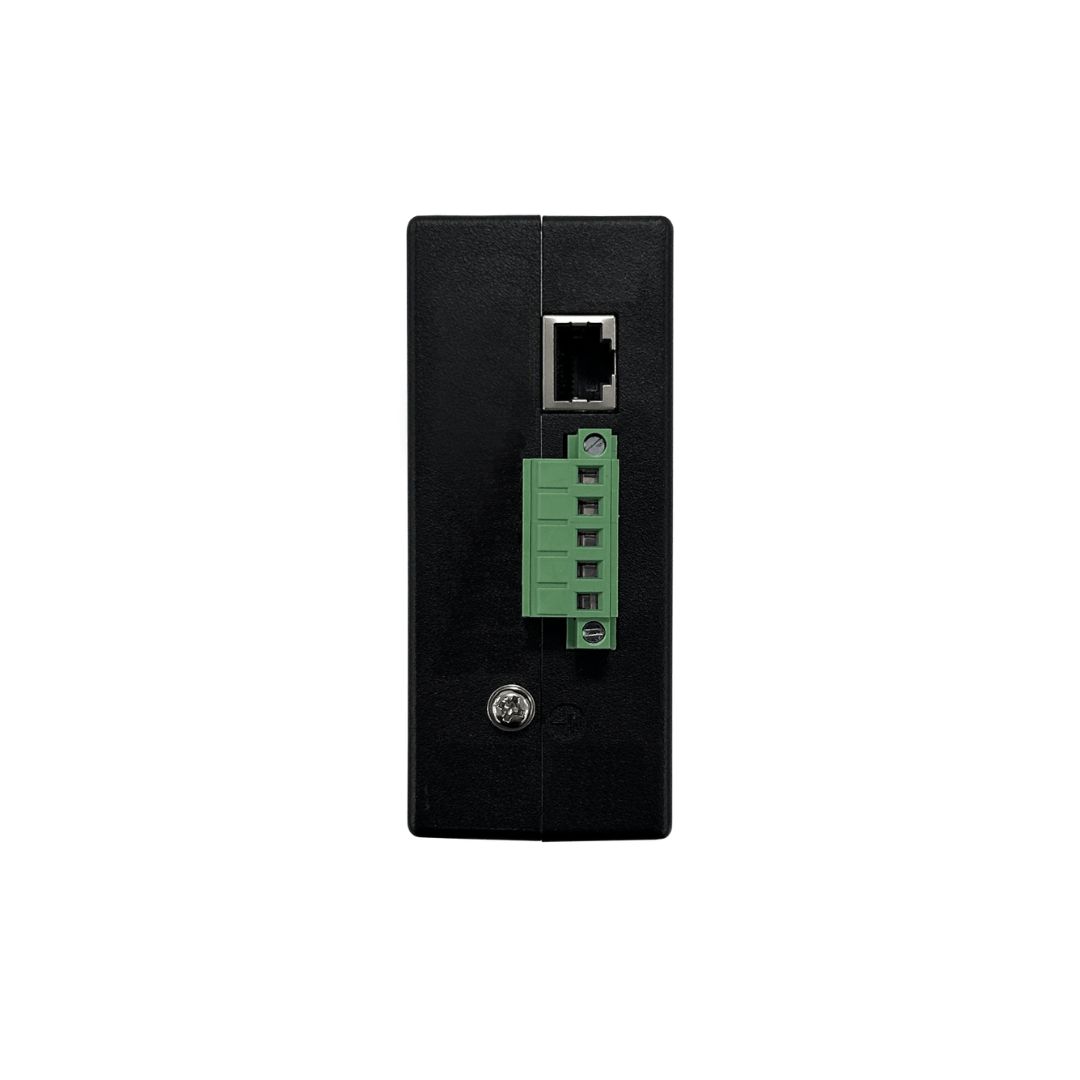

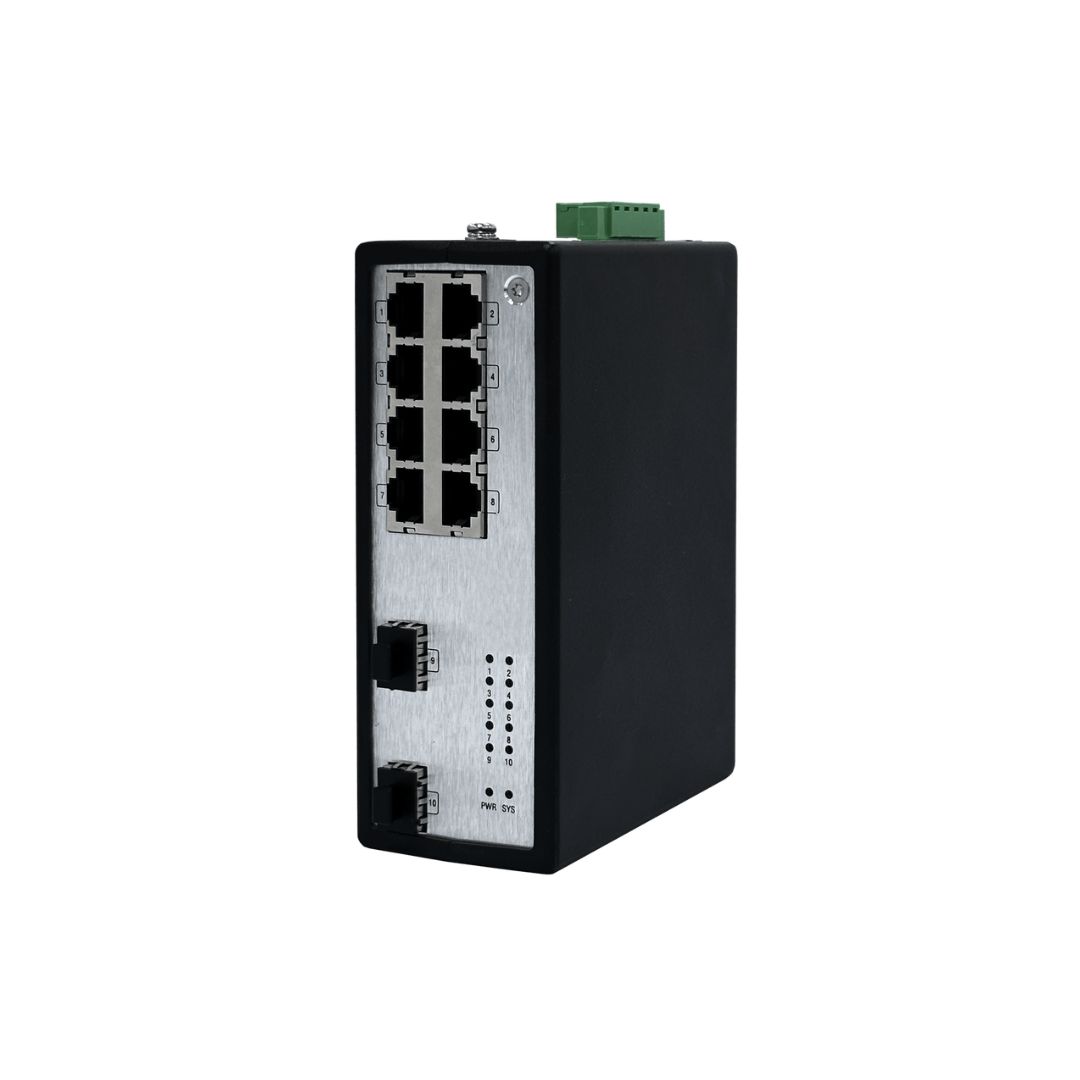

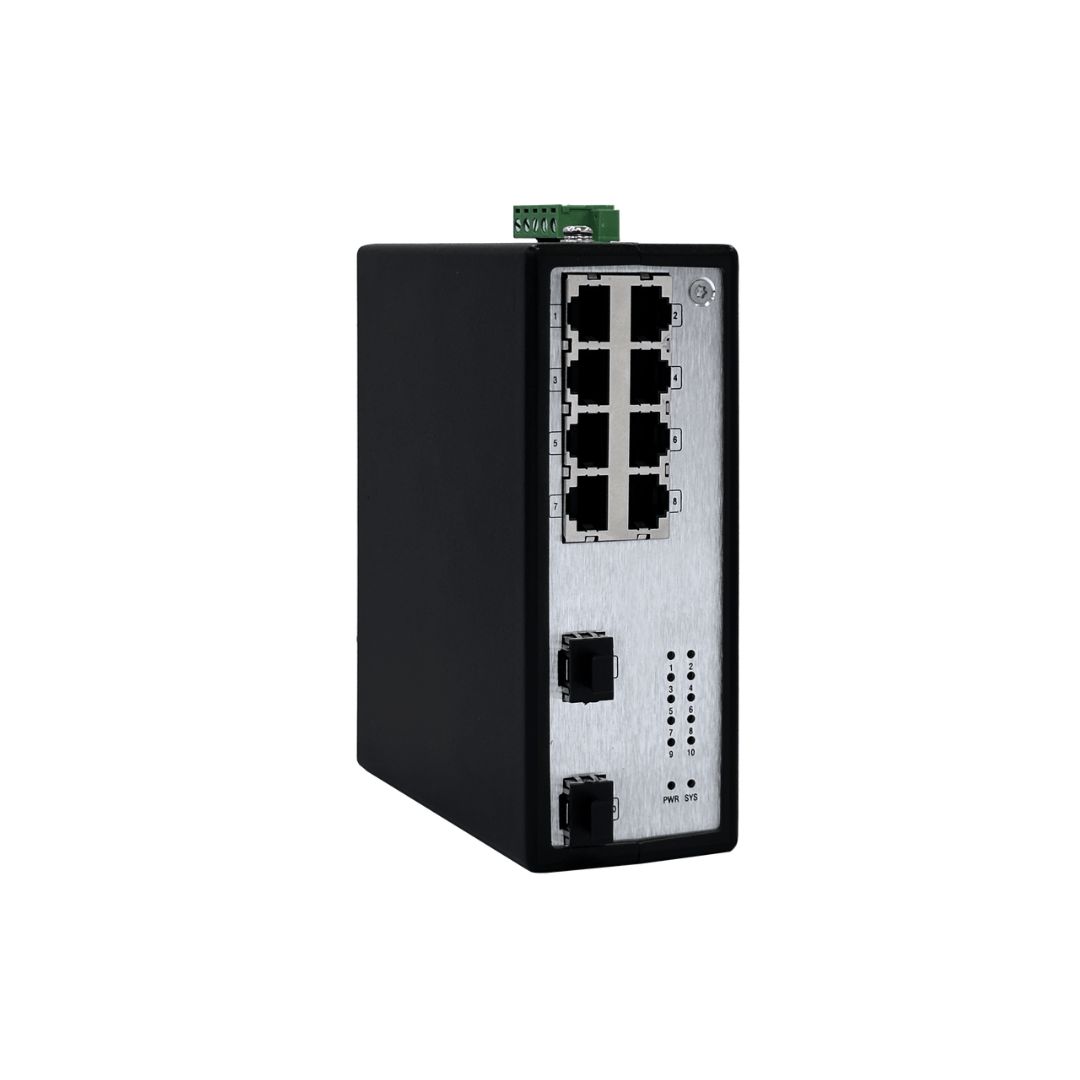

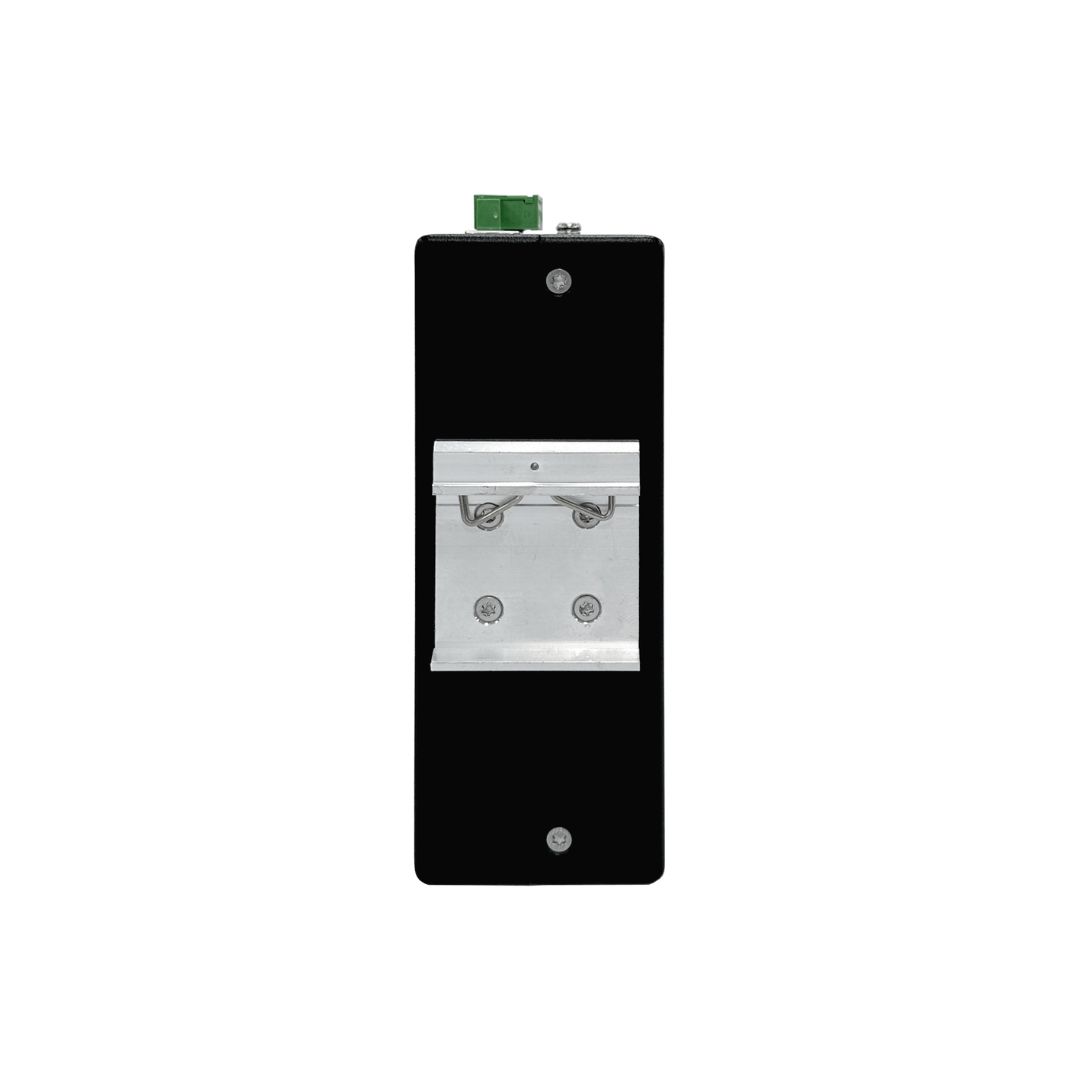

TOM1000-BHTB10R2080P
10-Port Layer 2 Industrial PoE Switch
- Up to 20Gbps backplane bandwidth
- Support network management
- Lightning protection: power supply port ±4KV, RJ45 port ±4KV
- Small and easy to install, plug and play without configuration
- Fanless design, wide working temperature and quiet operation
- PoE models support IEEE 802.3af/at compliant PoE
TECHNICAL SPECIFICATIONS
| Details | |
|---|---|
| Fixed Service Port | 2 x 100/1000BaseX SFP ports (SFP module not included) 8 x 10/100/1000BaseT PoE ports |
| Protection Class | IP30 |
| Forwarding/Exchange rate | 148,800 pps /100M port 1,488,000 pps/1000M port |
| MAC address table | 8000 |
| Operating temperature | -40℃ ~ +75℃. |
| Power Consumption | Dual 48~54VDC redundant power inputs |
| Dimensions (W x D x H) (mm) | 52mm x 140mm x 110mm |
| Unit Weight | < 0.6kg |
