SG3428XMP

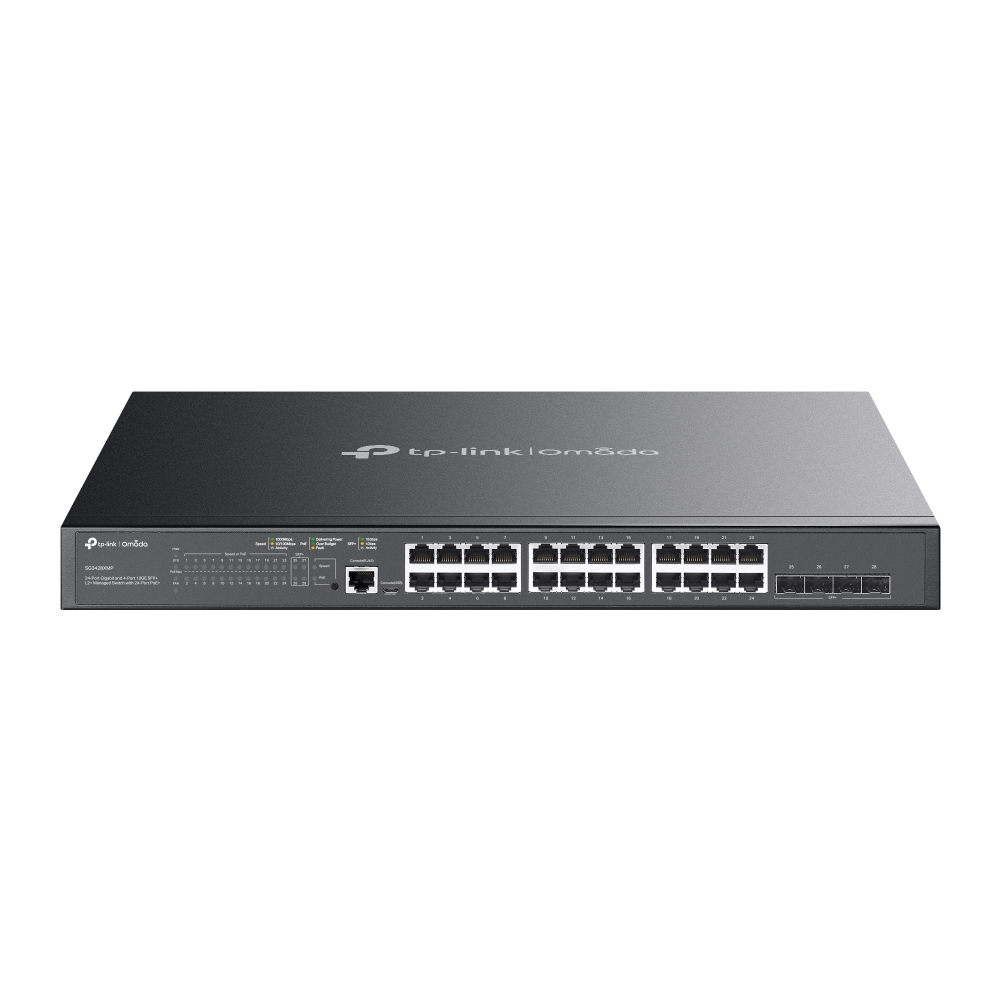

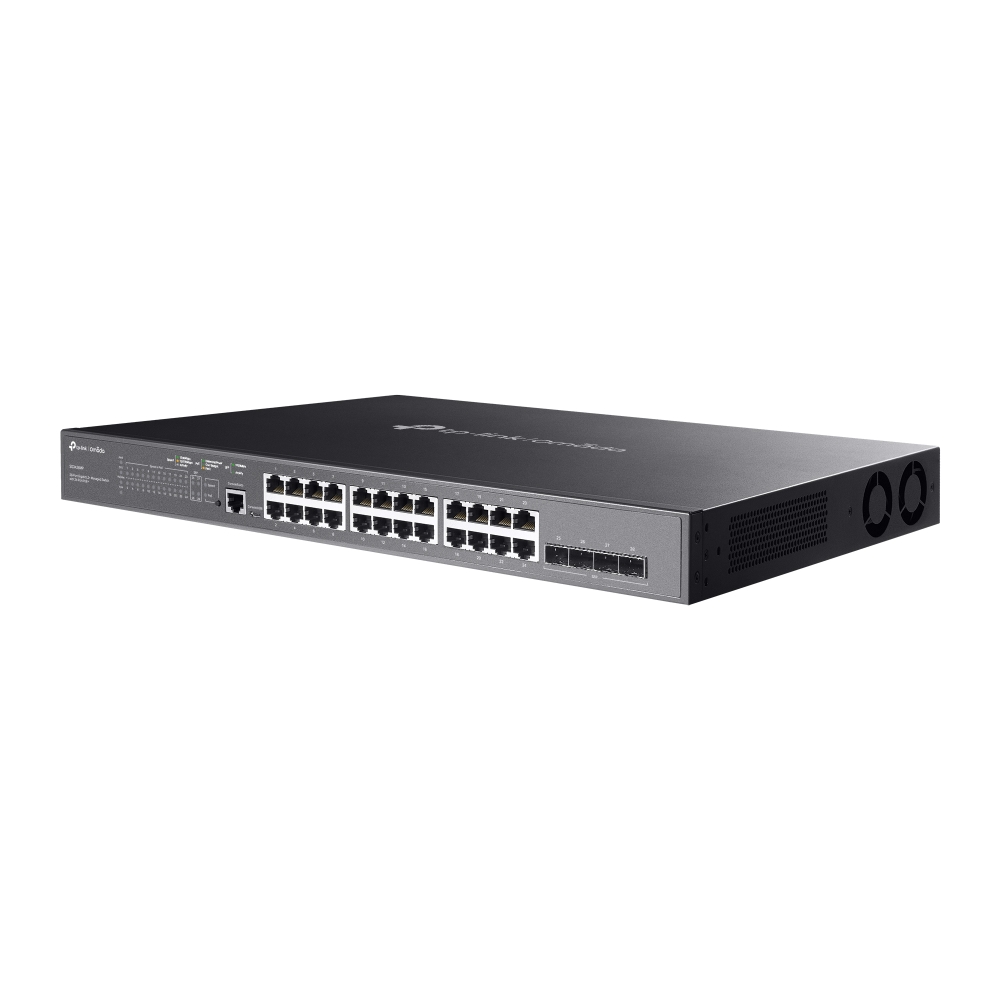

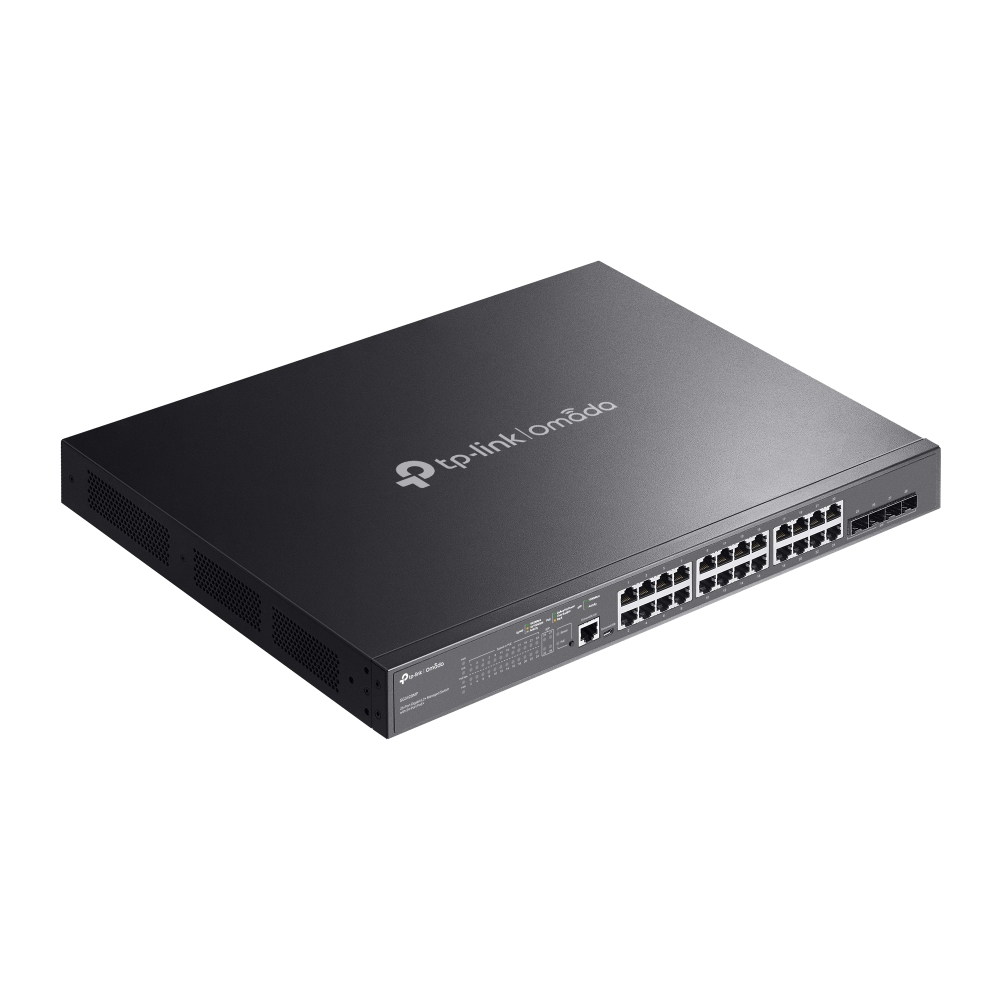

Omada 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 24-Port PoE+
- 384 W total PoE budget with up to 30 W PoE output per port
- Centralized cloud management via the web or the Omada app
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS supports rapid protection and recovery in a ring topology
- Durable metal casing and rack-mountable design
TECHNICAL SPECIFICATIONS
| Details | |
|---|---|
| Fixed Service Port | 24 × 10/100/1000Mbps RJ45 Ports 4 × 10GE SFP+ Slots 1 × RJ45 Console Port, 1 × Micro-USB Console Port |
| Switching capacity | 128 Gbps |
| Forwarding rate | 95.23 Mpps |
| Management | Omada (Cloud-Based/Software/Hardware)Controller, Omada APP |
| Max. Power Consumption | 486.2 W (110V/60Hz) ( with 384 W PD connected) |
| Dimensions (W x D x H) | 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm) |
| Operating Temperature | 0 °C to 45 °C (32 °F to 113 °F) |
