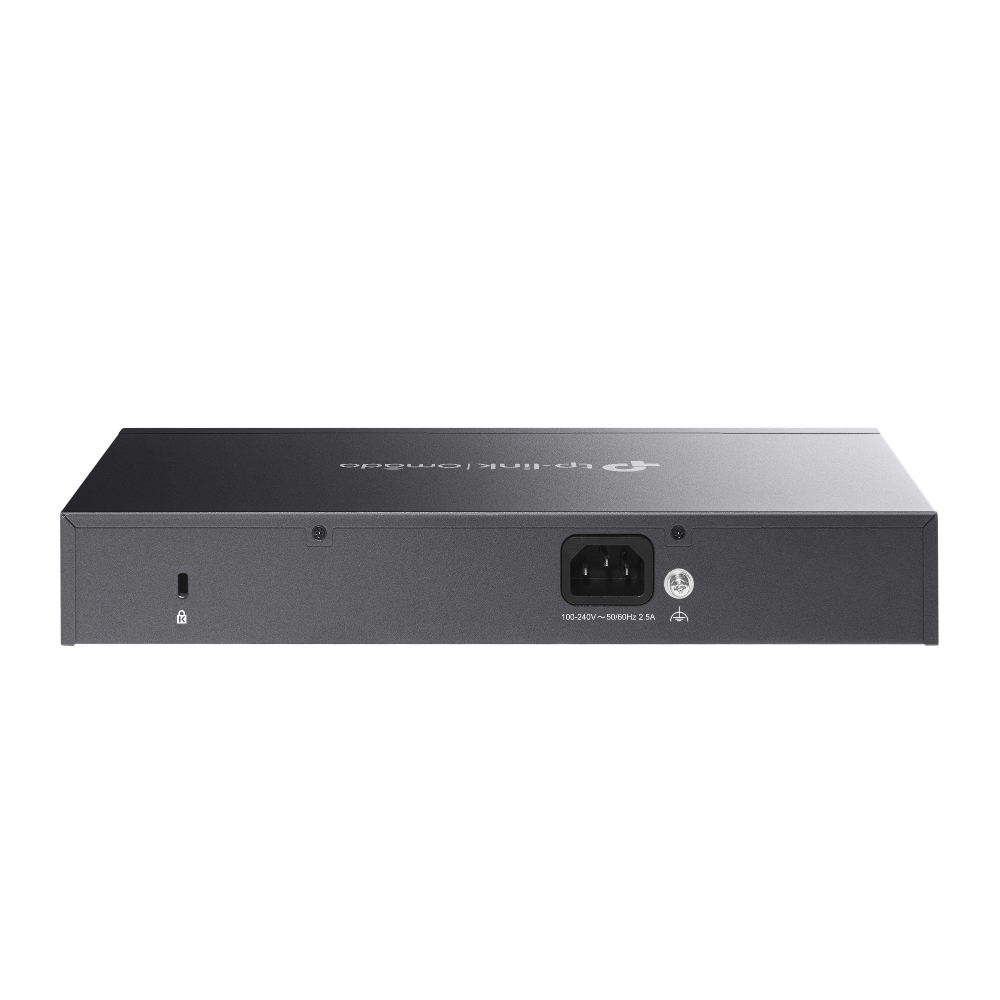

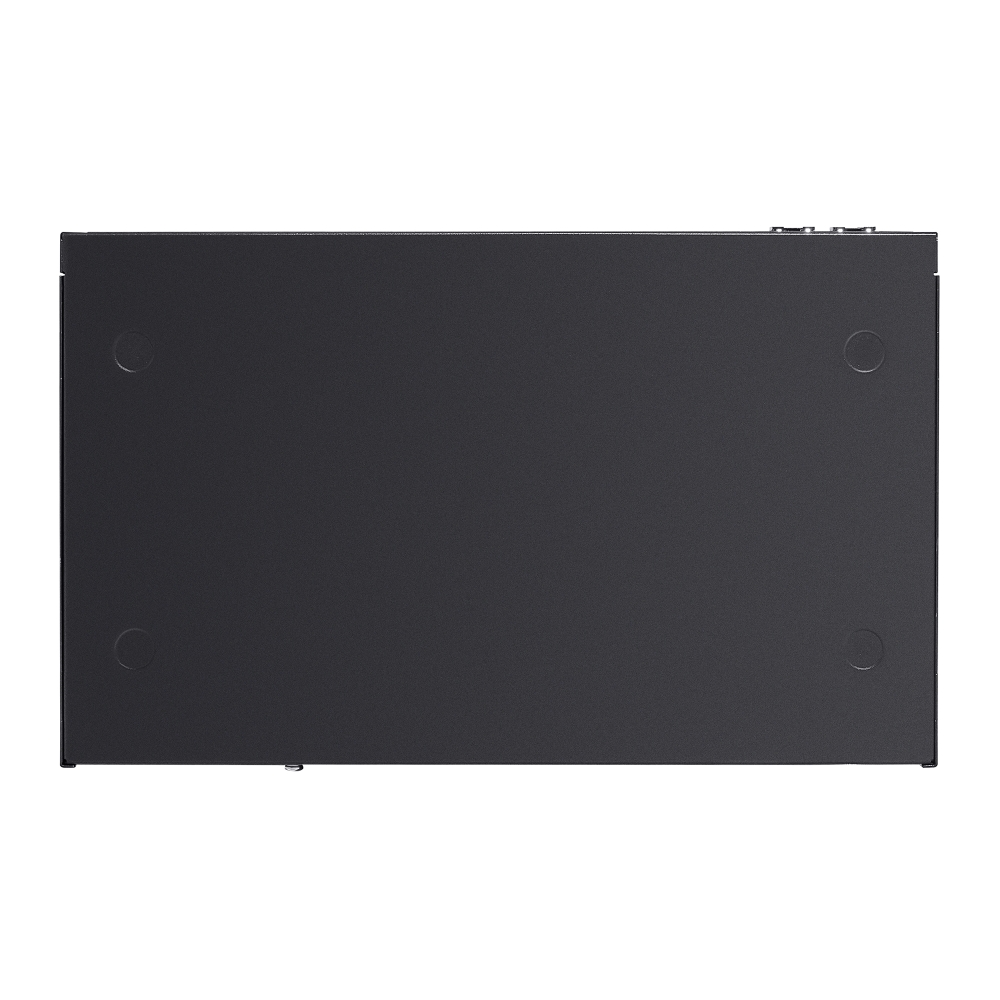

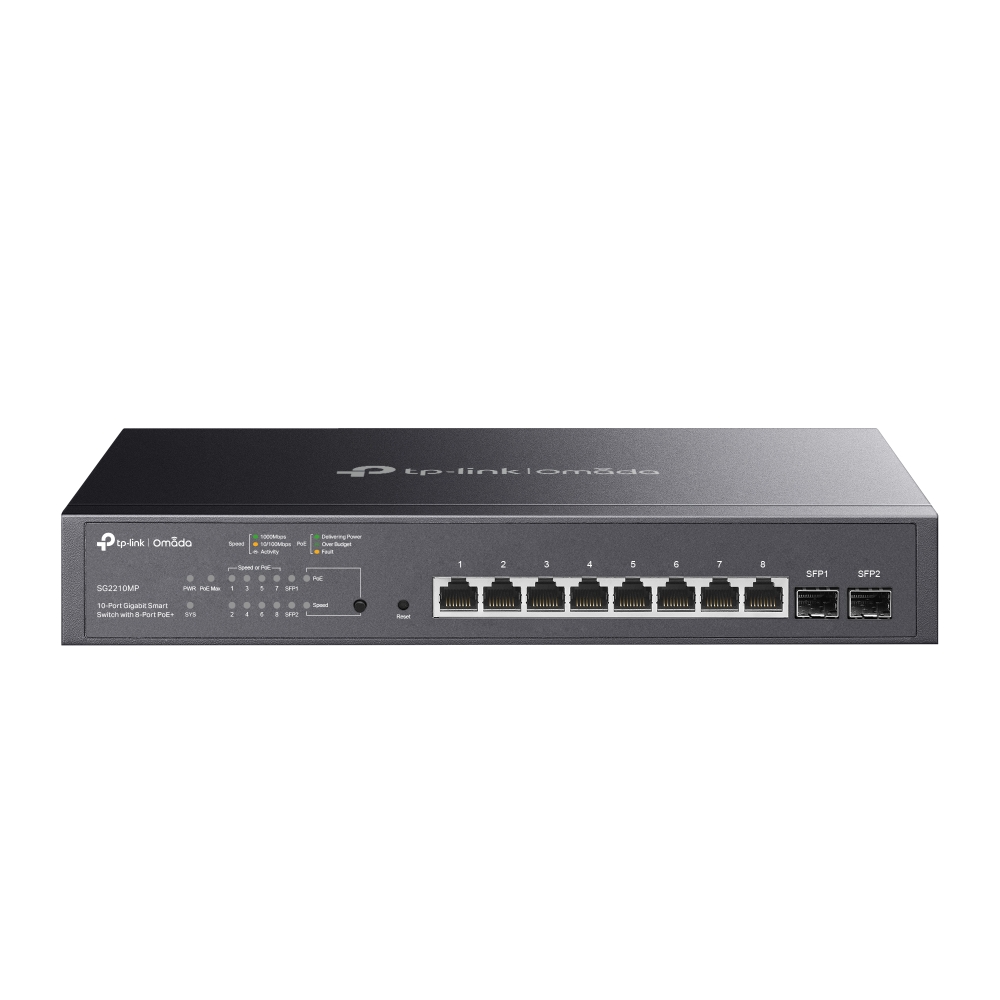

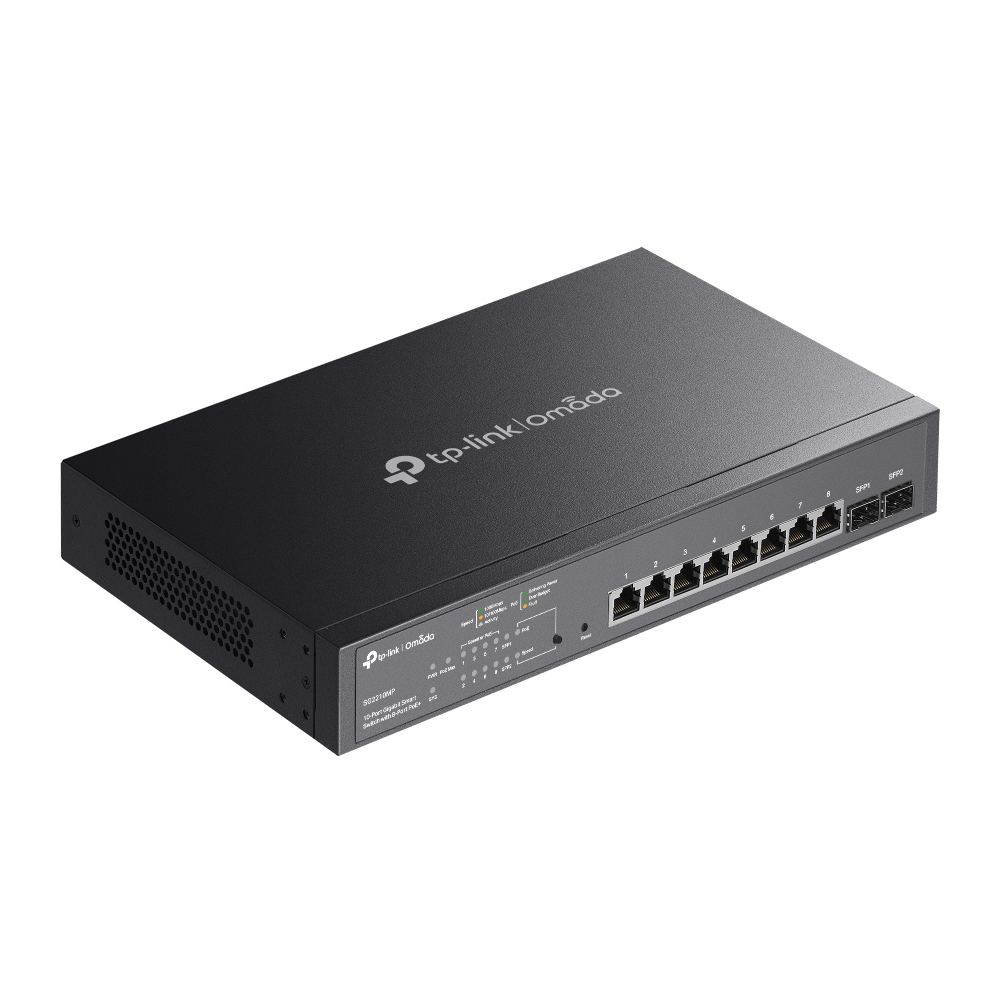

SG2210MP
Omada 10-Port Gigabit Smart Switch with 8-Port PoE+
- 8× Gigabit 802.3af/at PoE+ ports and 2× Gigabit SFP slots
- 150 W total PoE budget with up to 30 W PoE output per port*
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, and IGMP Snooping
- Durable metal casing and desktop/rack mounting design
TECHNICAL SPECIFICATIONS
| Details | |
|---|---|
| Fixed Service Port | • 8× 10/100/1000 Mbps RJ45 Ports, all supporting PoE+ (Auto-Negotiation/Auto MDI/MDIX) • 2× 100/1000 Mbps SFP Slots |
| Switching capacity | 20 Gbps |
| Forwarding rate | 14.9 Mpps |
| Management | Omada (Cloud-Based/Software/Hardware)Controller, Omada APP |
| Max. Power Consumption | 174.77 W (110 V/60 Hz) (with 150 W PD connected) |
| Dimensions (W x D x H) | 11.6×7.1×1.7 in (294×180×44 mm) |
| Operating Temperature | 0–50 ℃ (32–122 ℉) |
