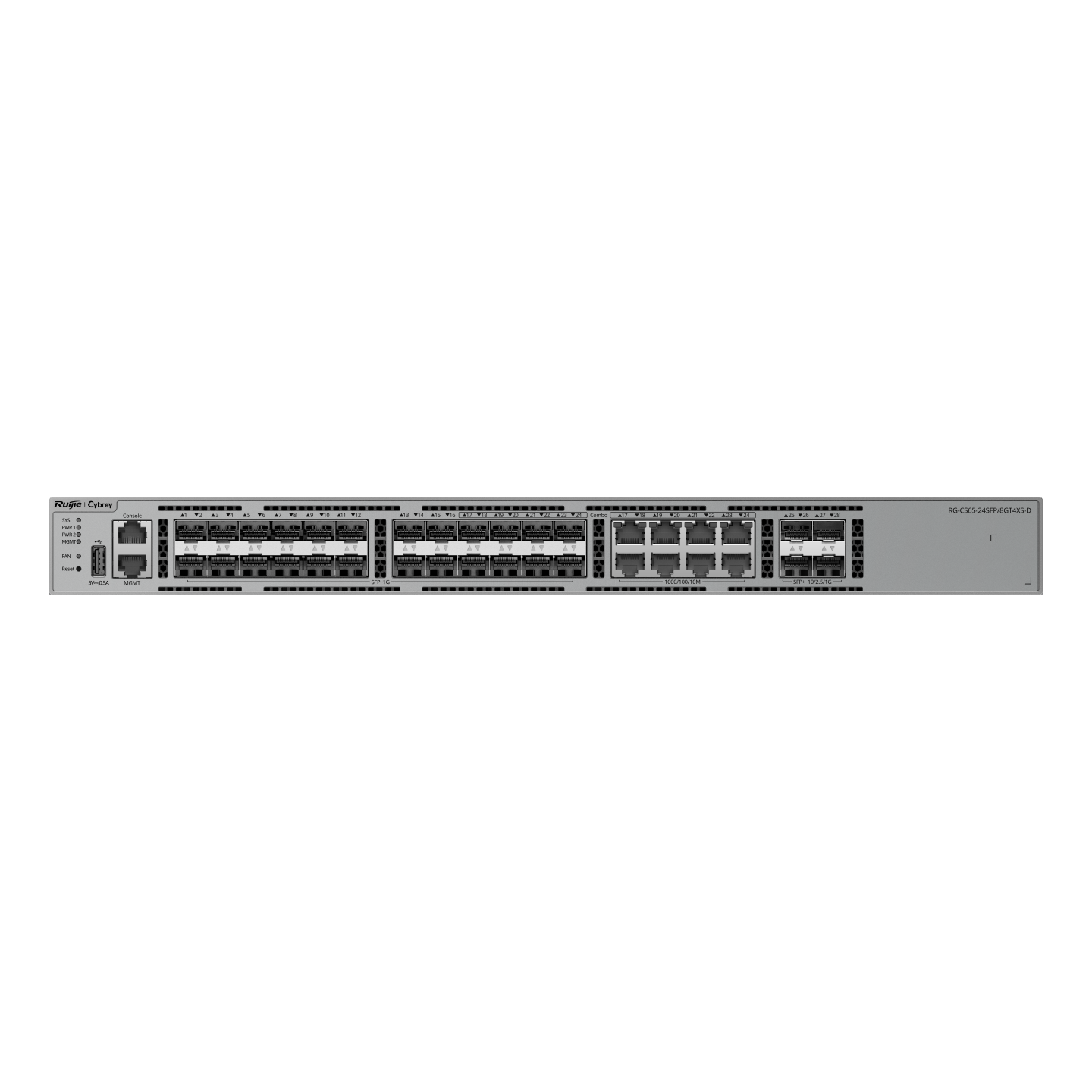

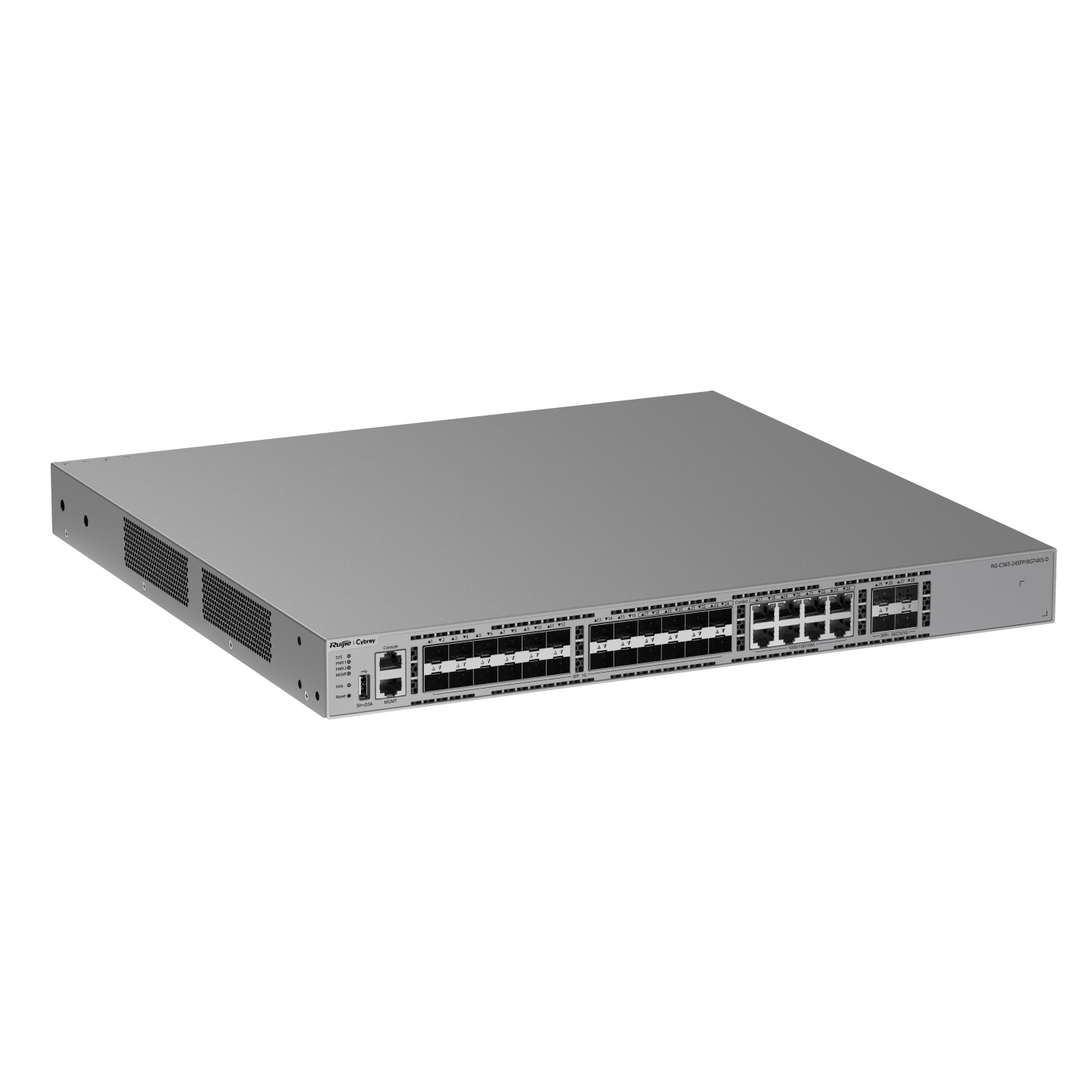

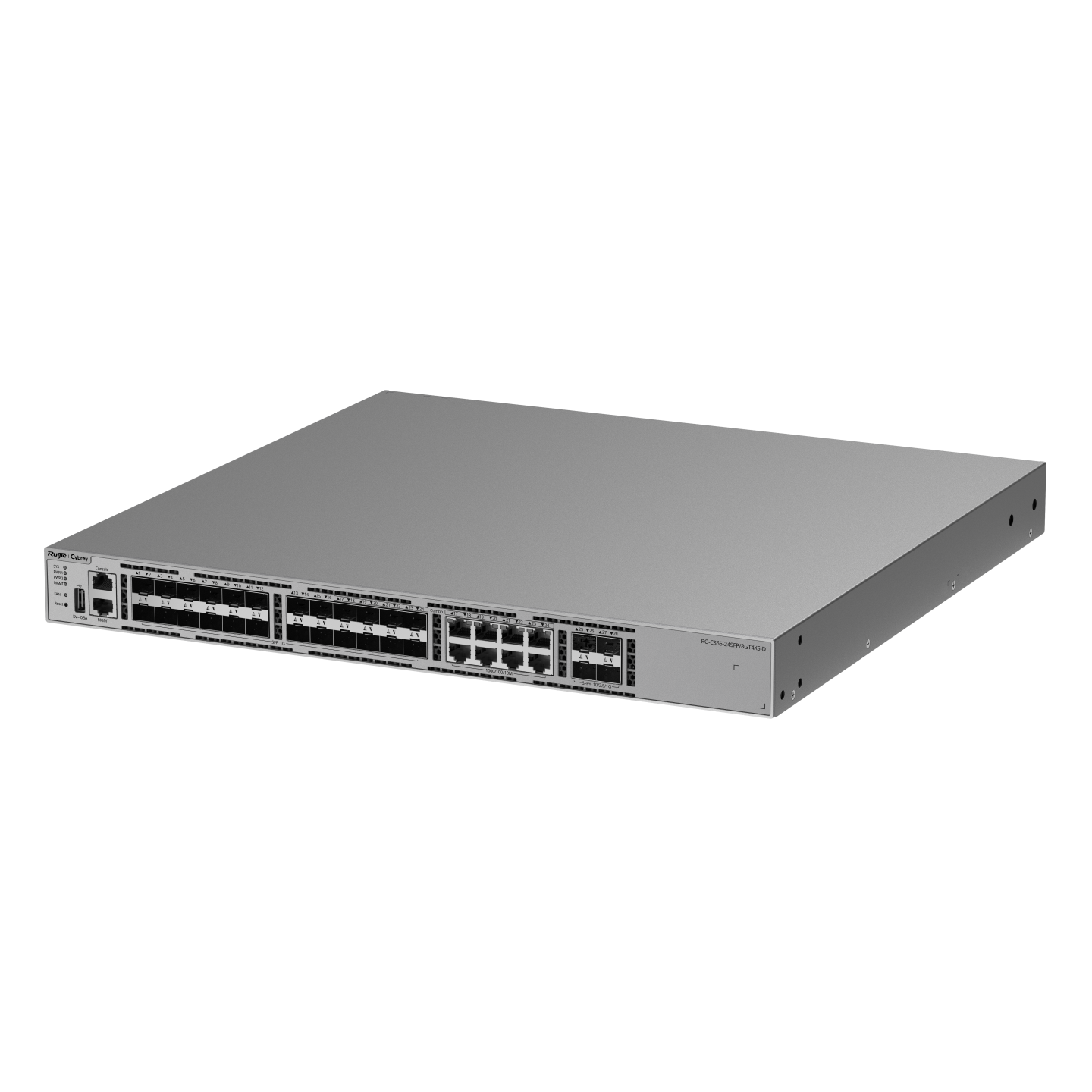

RG-CS65-24SFP/8GT4XS-D
Layer 3 Core/Aggregation Switch with 10G Uplinks & Versatile Fiber/Copper Connectivity
- Supports operating temperatures up to 50°C
- N+1 power supply and fan redundancy design
- Dual flash, dual boot, and dual bin
- Circuit isolation protection based on optical ports
- Supports up to 8 devices in a VSU
- Comprehensive Layer 3 service features
TECHNICAL SPECIFICATIONS
| Details | |
|---|---|
| Fixed Service Port | 24 x 1GE SFP ports (Ports 17 to 24 are 10/100/1000BASE-T combo ports) 4 x 1GE/2.5GE/10GE SFP+ ports |
| Fixed management ports | One MGMT port, one console port, and one USB port |
| Switching capacity | 128 Gbps (Gbit/s) |
| Forwarding rate | 95.23 Mpps |
| Power Consumption | 110 V: 100 W 220 V: 99 W |
| Dimensions (W x D x H) (mm) | 442 mm x 420 mm x 43.6 mm (17.4 in. x 16.54 in. x 1.72 in.) |
| Unit Weight | 5.40 kg (11.90 lbs) |
