RG-CS61-10GT2MS-P
Layer 3 Access Switches with 2.5G Uplinks
- 2.5G uplinks
- 10 kV port surge protection
- Supports operating temperatures up to 50°C
- Dual flash, dual boot, and dual bin
- Circuit isolation protection based on optical ports
- Supports up to 8 devices in a VSU
- Layer 3 service features
TECHNICAL SPECIFICATIONS
| Details | |
|---|---|

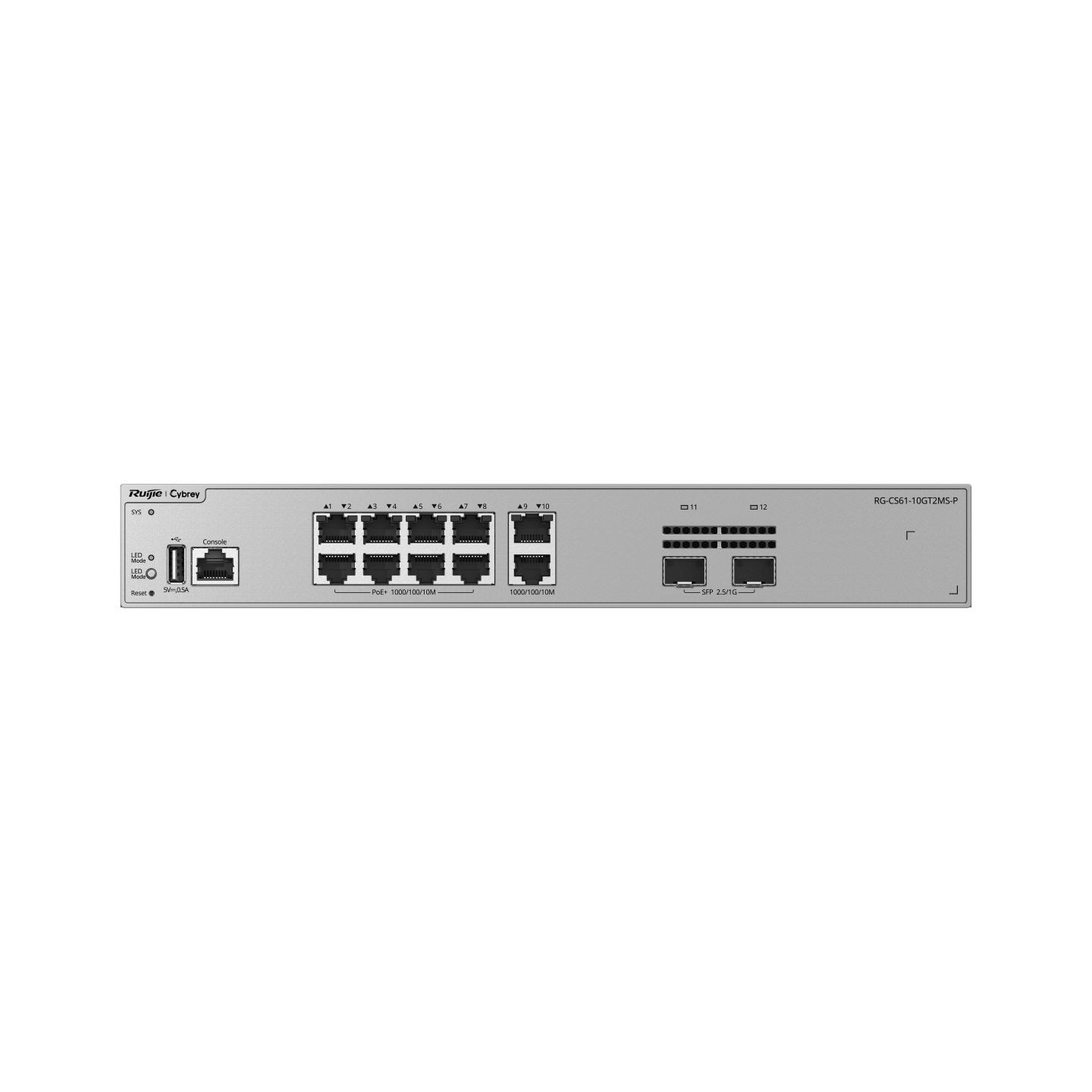

| Fixed Service Port | 10 x 10/100/1000BASE-T ports, ports 1 to 8 supporting PoE/PoE+ 2 x 1GE/2.5GE SFP ports |
| Fixed management ports | One console port, and one USB port |
| Switching capacity | 30 Gbps (Gbit/s) |
| Forwarding rate | 22.32 Mpps |
| Power Consumption | Full-load: 110 V: 144.88 W 220 V: 142.3 W No-load: 110 V: 14.2 W 220 V: 14.2 W |
| Dimensions (W x D x H) (mm) | 300 mm x 225.8 mm x 43.6 mm (11.81 in. x 8.89 in. x 1.72 in.) |
| Unit Weight | 2.10 kg (4.63 lbs) |
