RG-AP820-L(V2)

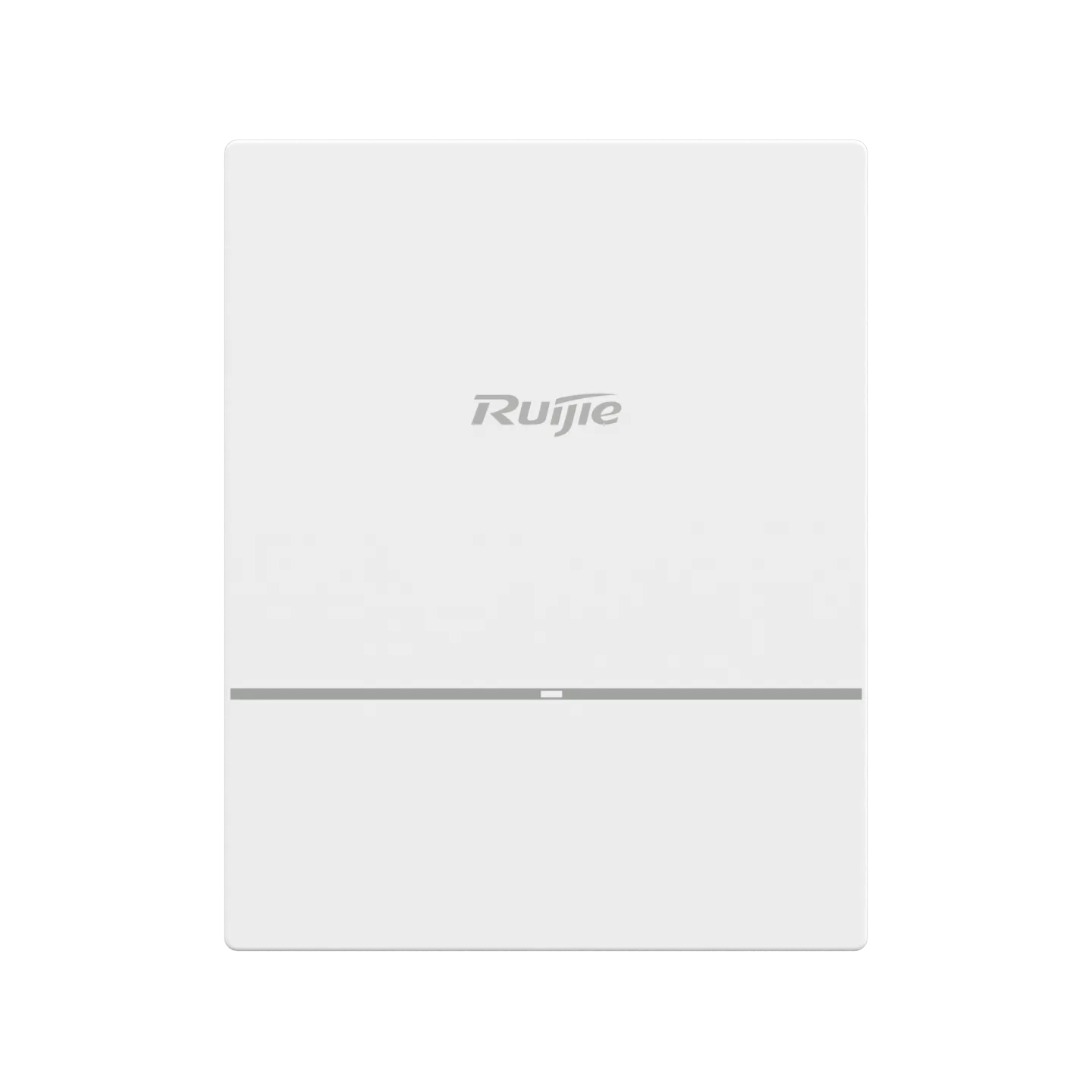

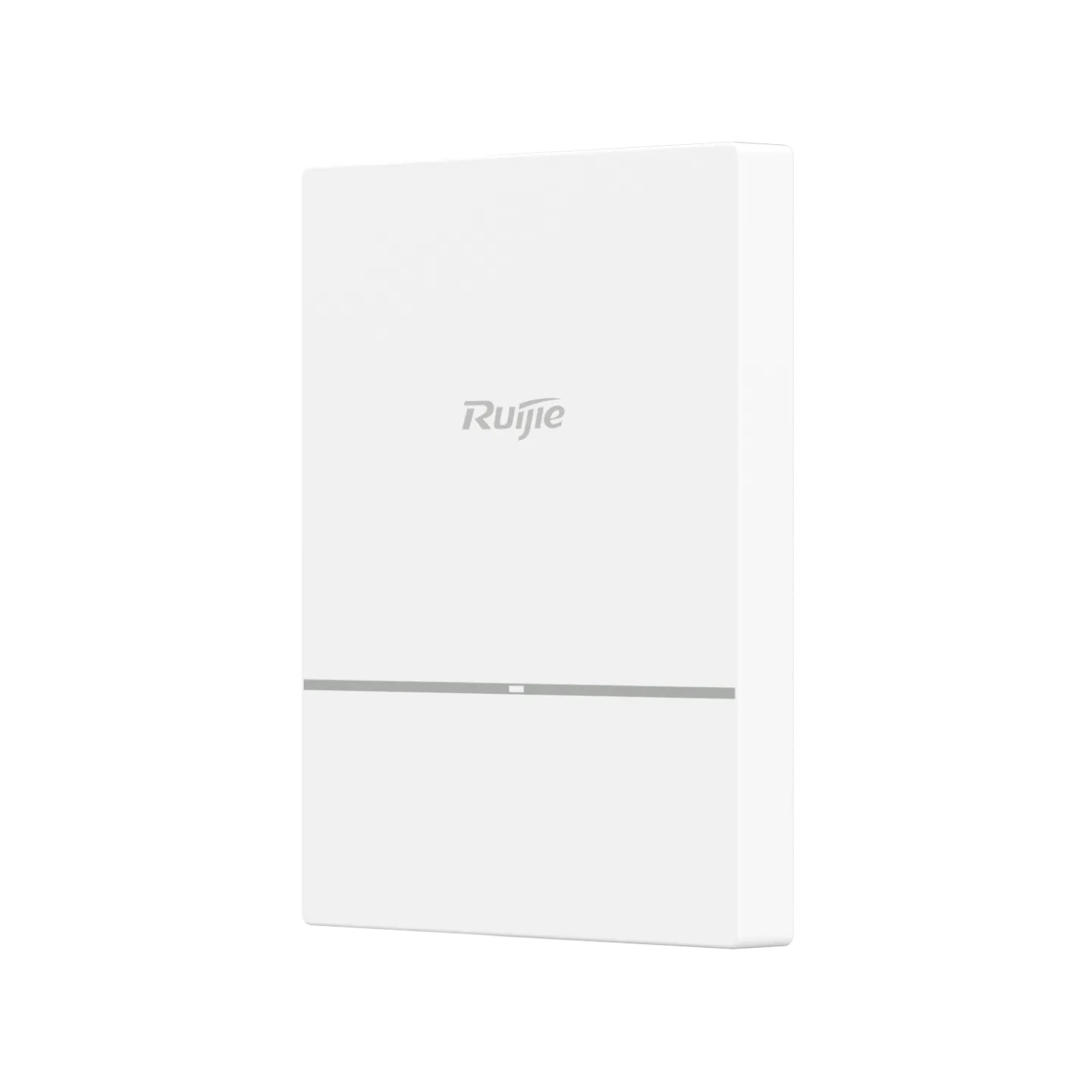

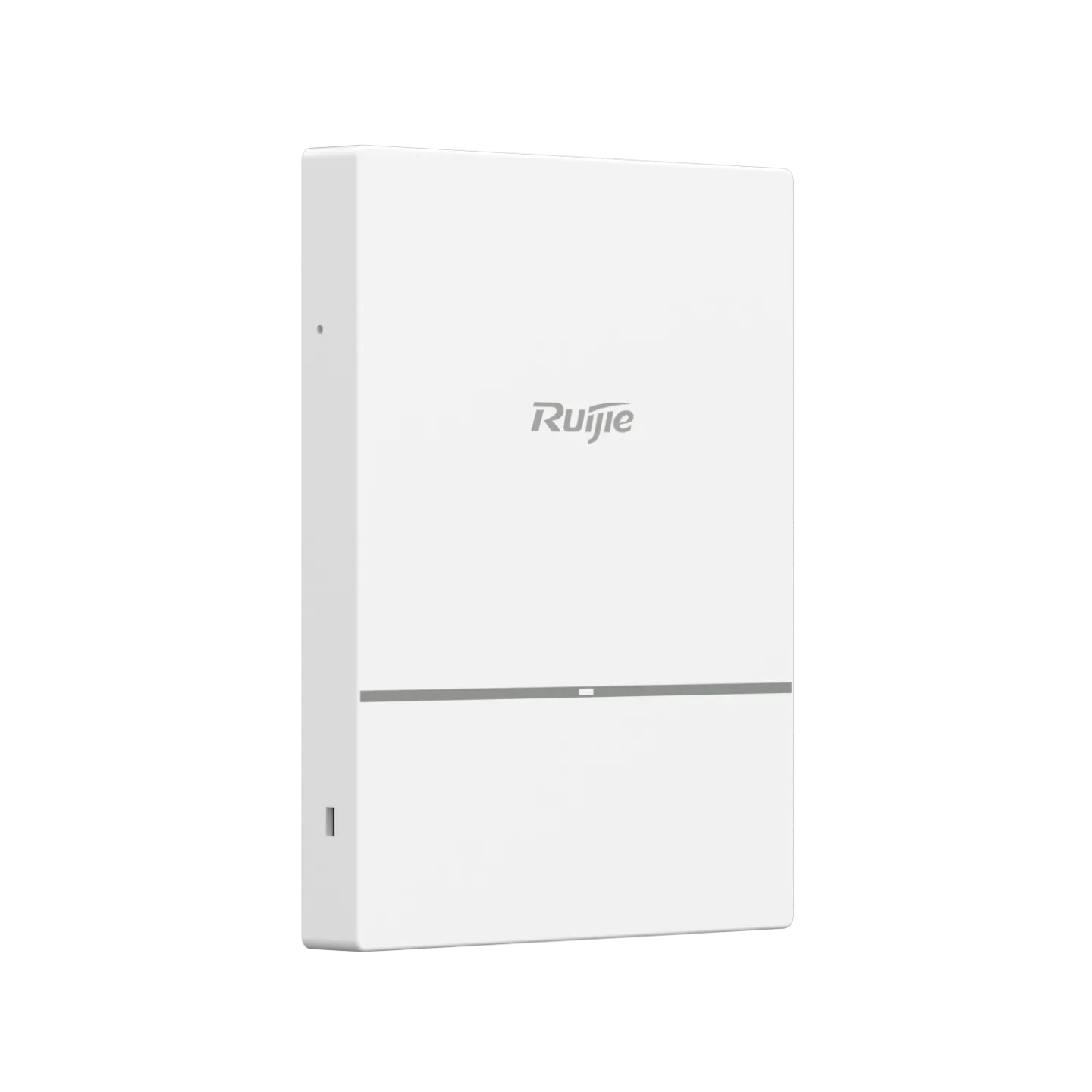

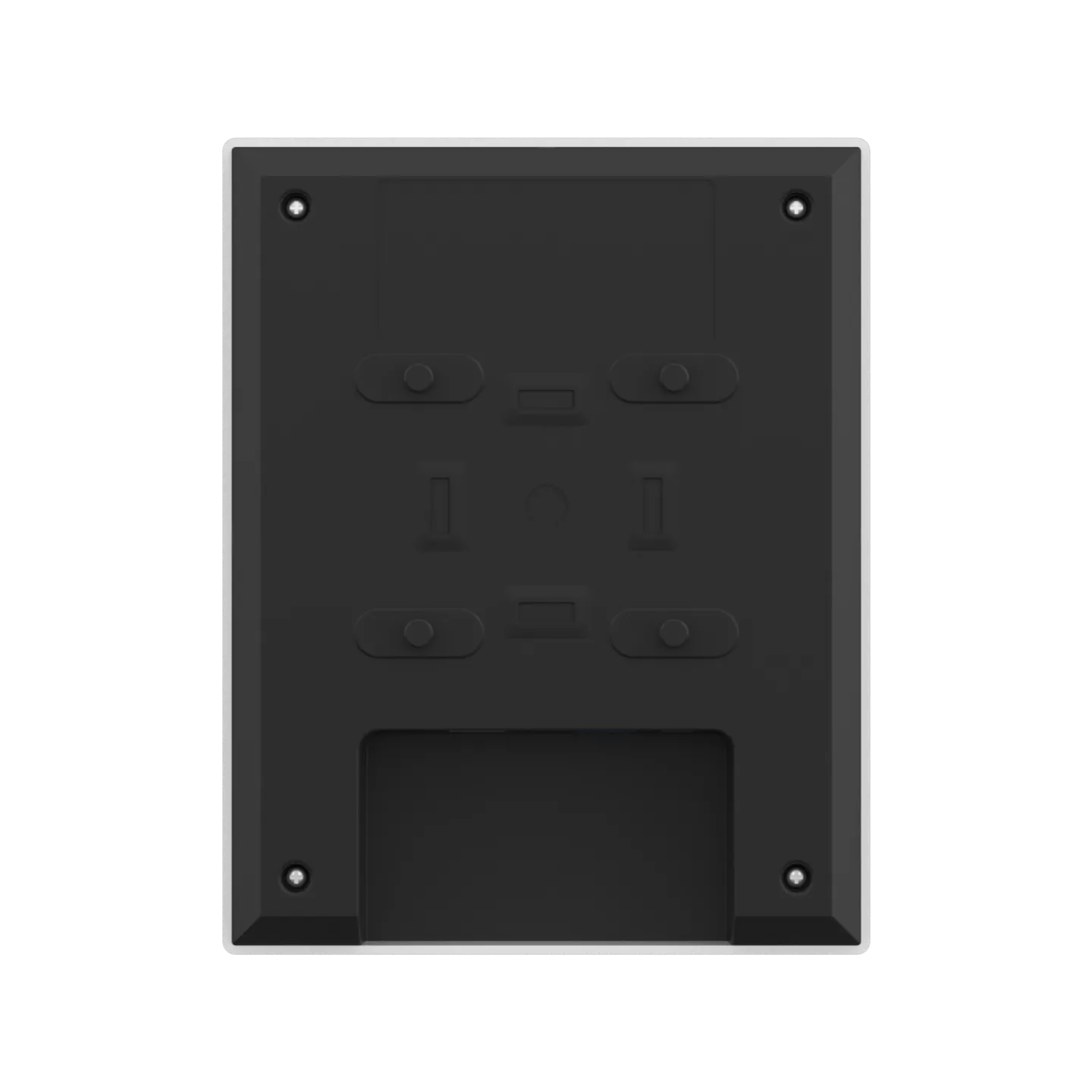

RG-AP820-L(V2) Wireless Access Point
RG-AP820-L(V2) is the Ruijie’s highest price-performance entry Wi-Fi 6 enterprise indoor access point. Certified by Tolly’s latest Test Report , the RG-AP820-L(V2) verified on user capacity upto 1024 Wi-Fi clients, and provide upto 65% higher total throughput in legacy Wi-Fi 5 environment.
The Ruijie RG-AP820-L(V2) supports selectable dual-band dual-radio (2.4G + 5G or 5G+5G) mode to guarantee for the best compatibility and highest performance. Maximum of 2.4Gbps wireless throughput when dual 5G radio high-performance mode adopted, and upto 1.775Gbps throughput at normal 2.4G+5G mode. The RG-AP820-L(V2) fully comply with Wi-Fi 6 OFDMA Modulation, MU-MIMO, and BSS Color Spatial Reuse, allowing RG-AP820-L(V2) guarantees minimal signal interference and a maximum of 1024 client connections.
TECHNICAL SPECIFICATIONS
| Protocol | Supports standard 802.11ax / dual-radio dual-band / concurrent 802.11ax and 802.11a/b/g/n/ac |
| Antenna Gain | 2.4G: 3dBi |
| 5G: 3dBi | |
| Max Throughput | Maximum throughput (5G+5G mode) per AP: 2.4Gbps |
| Radio1：5G low band 1.2Gbps | |
| Radio2：5G high band 1.2Gbps | |
| 2.4G+5G operation mode & maximum throughput per AP: 1.775Gbps | |
| Radio1：2.4G 0.574Gbps | |
| Radio2：5G 1.2Gbps | |
| IP Rating | IP41 |
| Dimensions (W x D x H) | 153mm ×193mm x26mm |
| Service Ports | 1 10/100/1000M Ethernet ports / PoE In |
| Management Port | 1 console port |
