RG-ANT20S-90

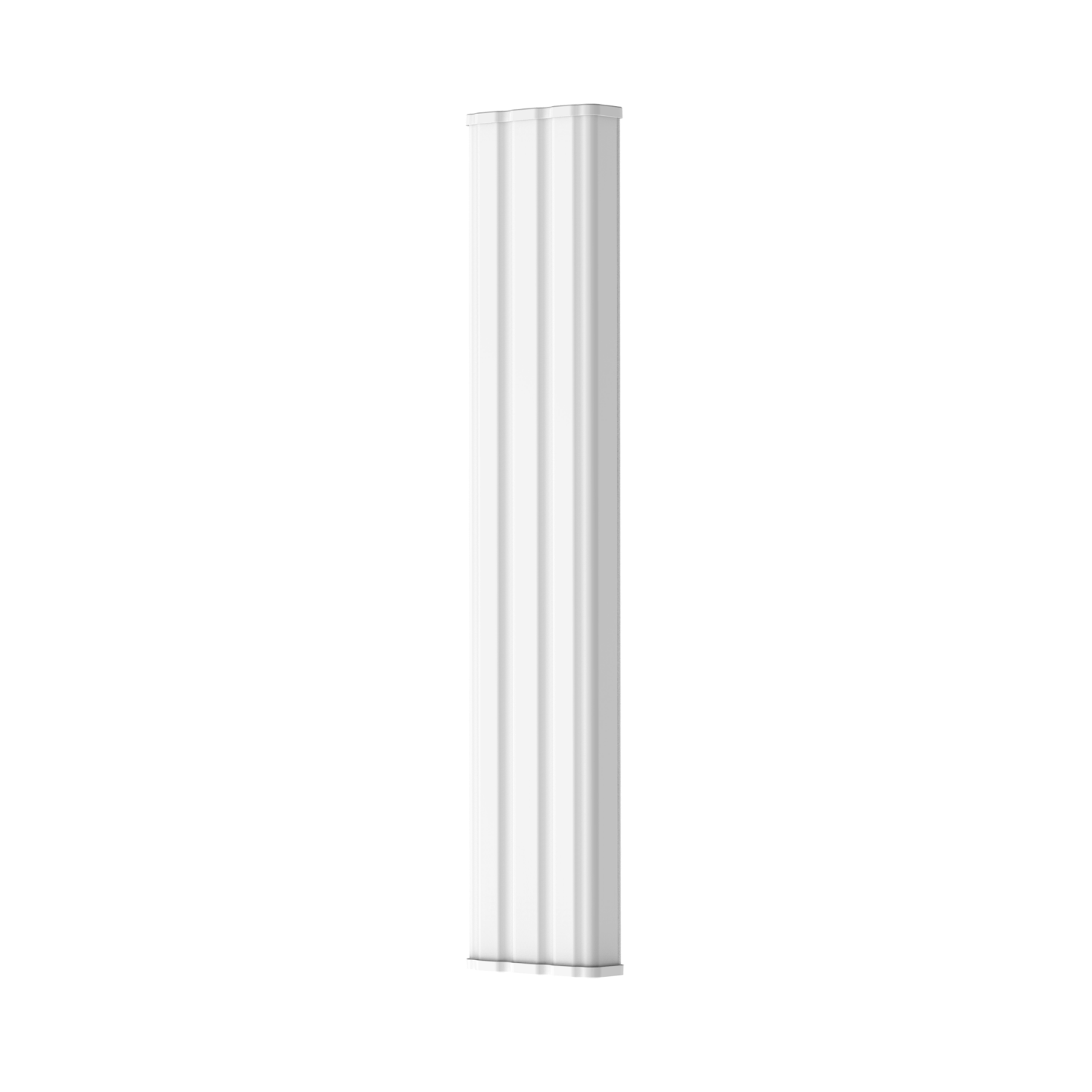

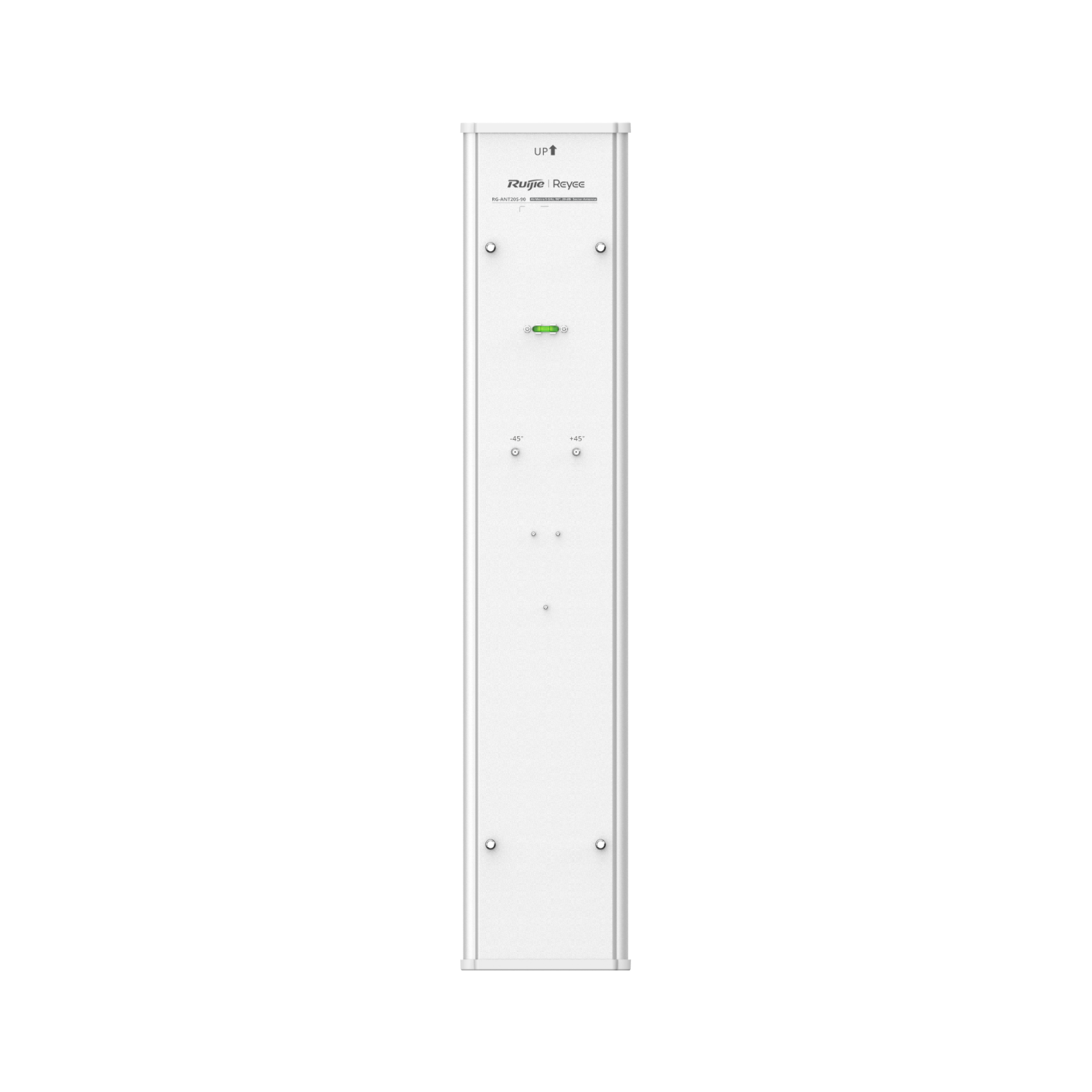

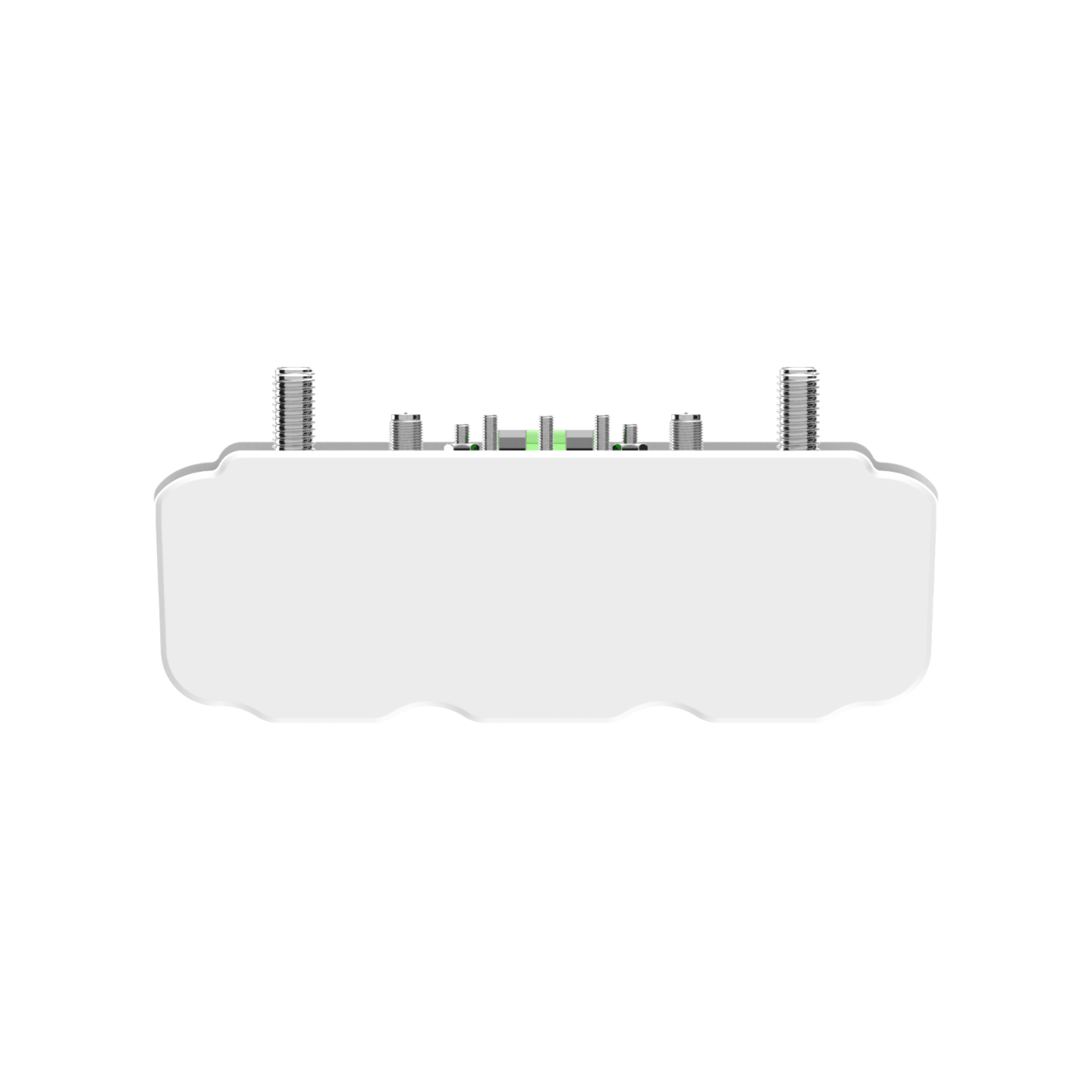

90° Sector Antenna of RG-AirMetro Series Wireless Bridges
- Choosed from Three Antennas for Diverse Scenarios
- IP55 Rating against Harsh Environment
- All-in-one Cloud Management Simplifies the User Journey
TECHNICAL SPECIFICATIONS
| Operating Band | 2.4 GHz: 802.11 b/g/n: 2.4000 GHz to 2.483 GHz
5 GHz: 802.11a/n/ac: 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz |
| Maximum Throughput | Up to 867 Mbps at 5 GHz |
| Antenna | Directional / horizontal: 90° / vertical: 7° / gain: 20 dBi |
| Bridging Distance | Up to 10 km (Recommended) |
| IP Rating | IP55 |
| Dimensions | 694 x 140 x 49 mm (27.3 x 5.5 x 1.9 in.) |
