RG-AirMetro550G-B

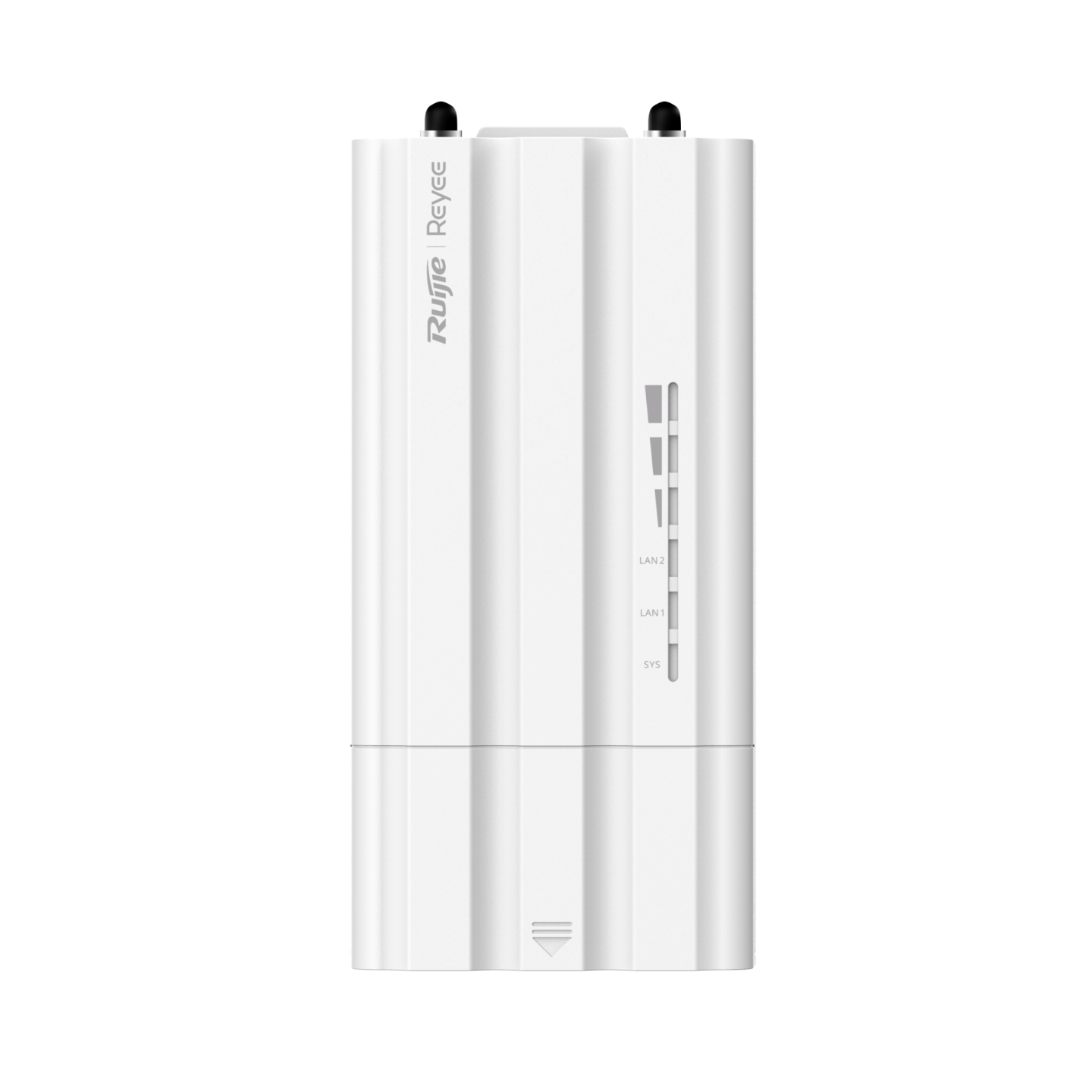

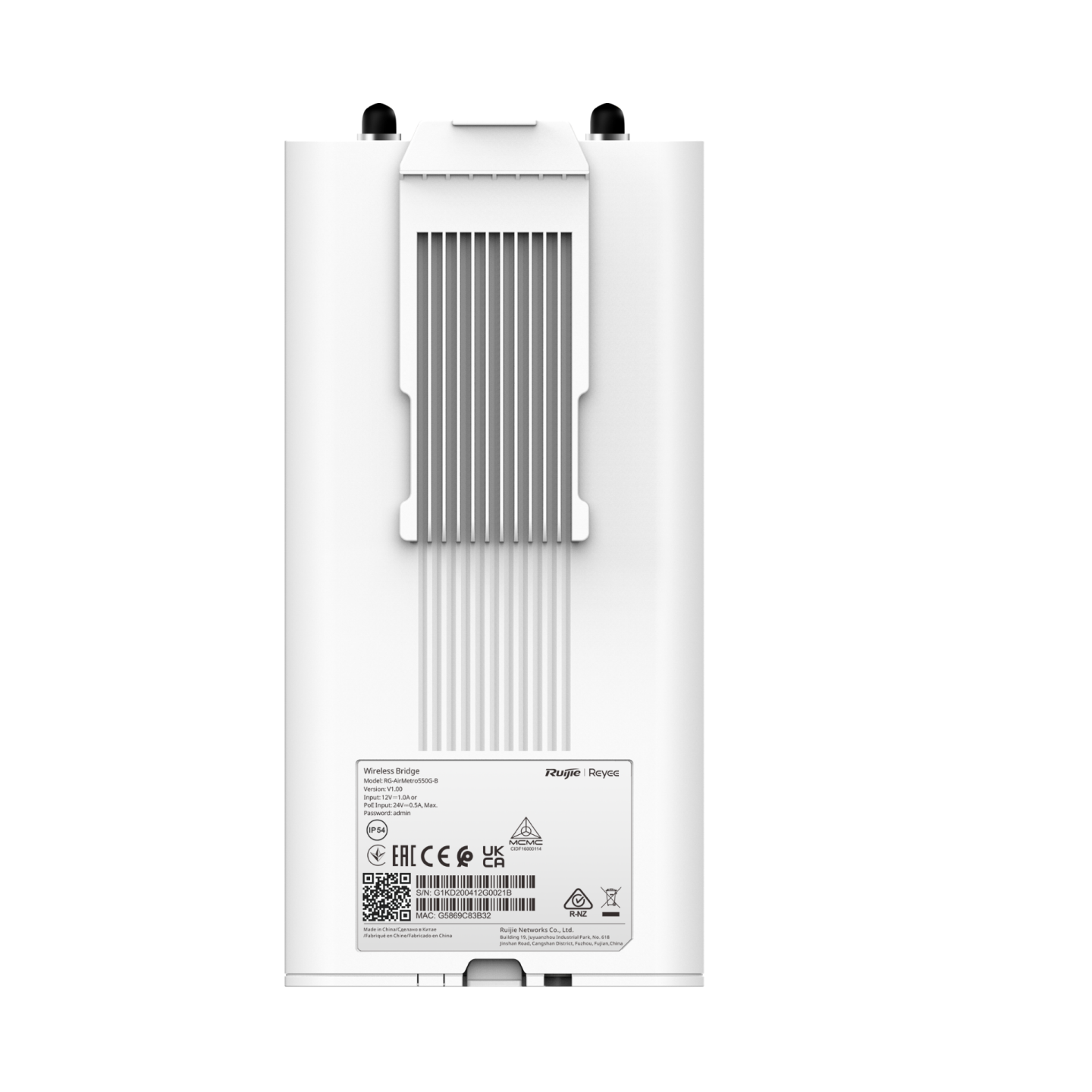

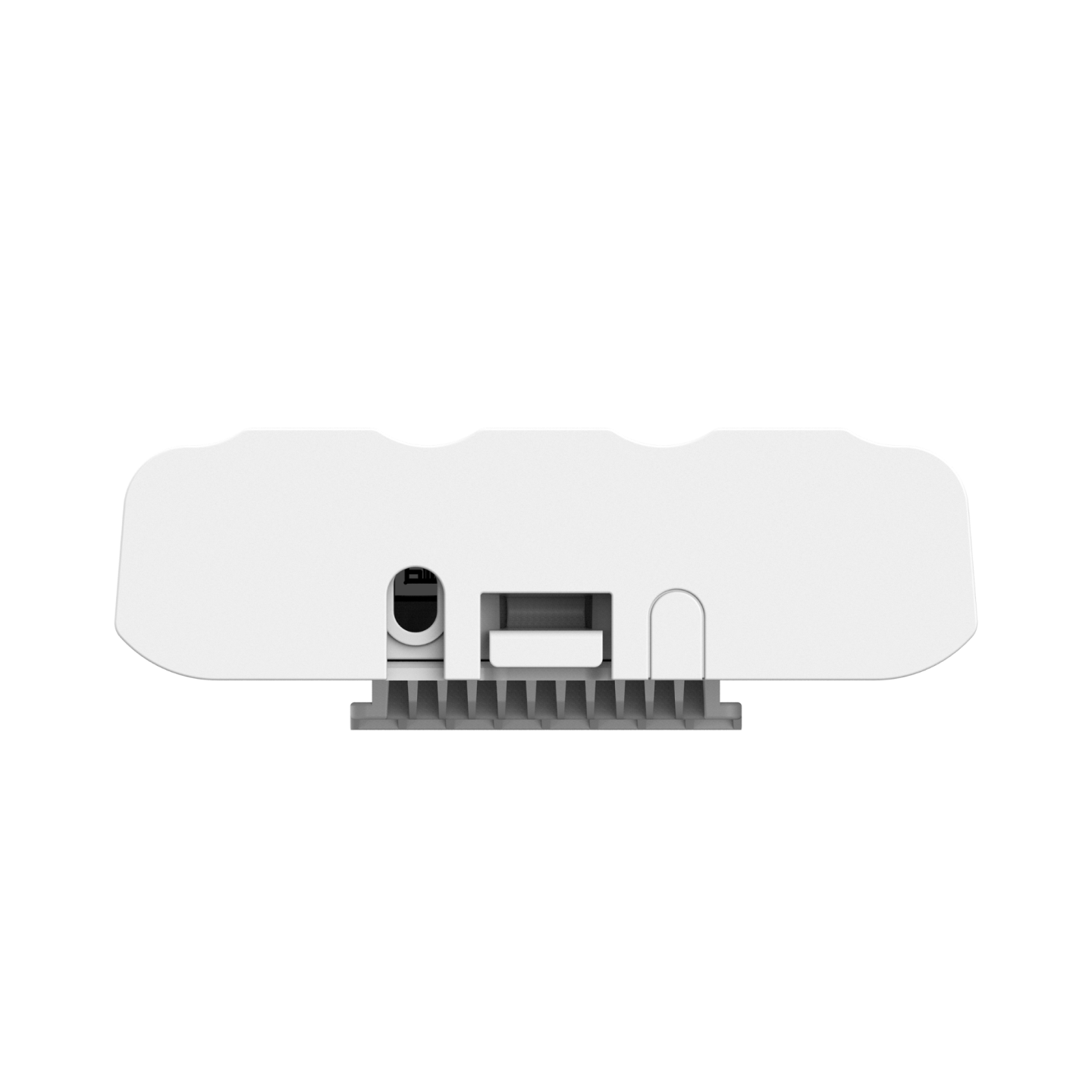

RG-AirMetro550G-B, Base Station of RG-AirMetro Series Wireless Bridges
- Up to 10 km Wireless Transmission Distance
- MAX. 1:32 PTMP Links, Easy Pairing in 30 sec

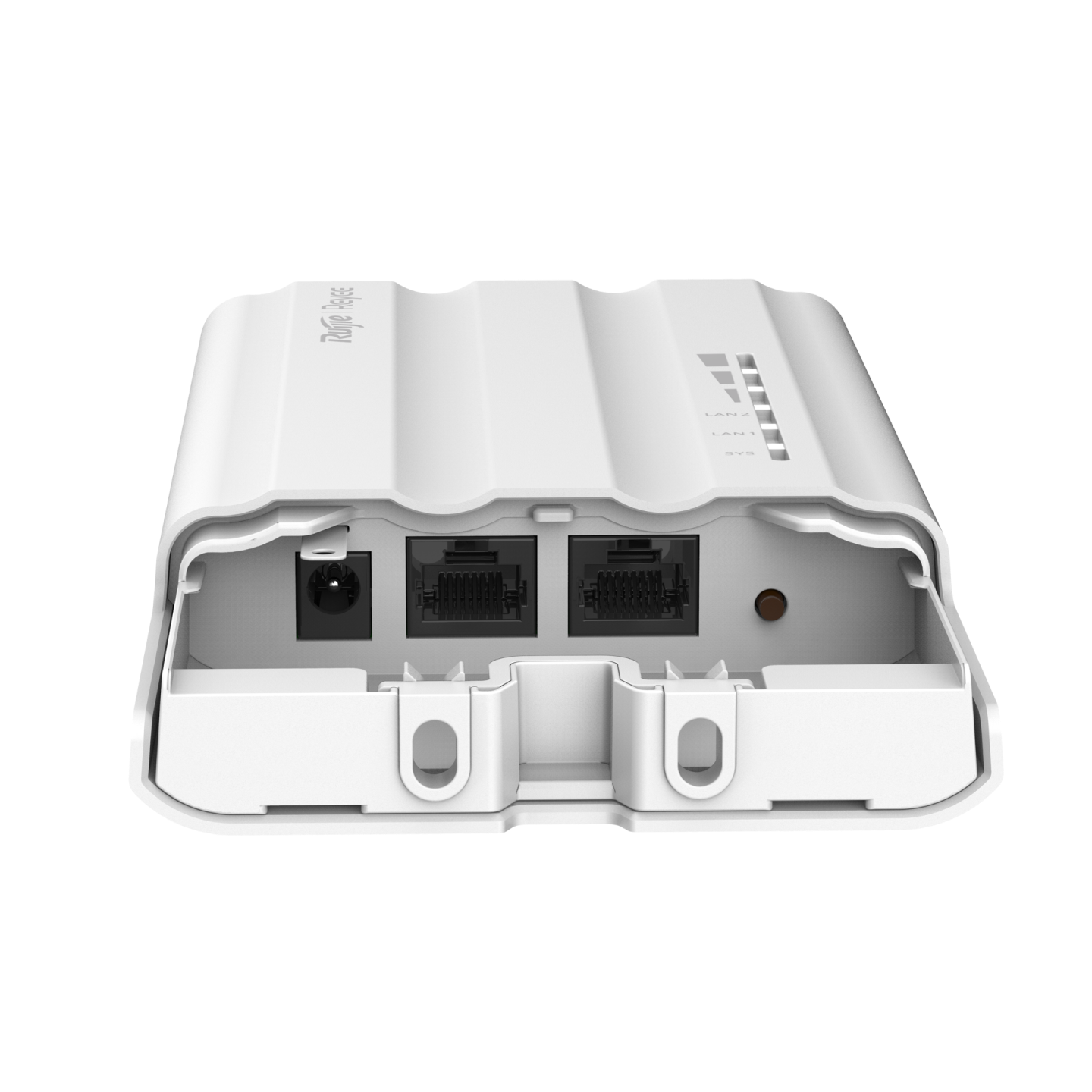

- 2 x GE Ports: More Possibilities of Connections
- 24 V Passive PoE and 12 V DC Input: Solar Power Supply
- IP55, 6 kV Surge Protection and ±24 kV ESD against Harsh Environment
- All-in-one Cloud Management Simplifies the User Journey
TECHNICAL SPECIFICATIONS
| Operating Band | 2.4 GHz: 802.11b/g/n: 2.4000 GHz to 2.483 GHz
5 GHz: 802.11a/n/ac: 5.150 GHz to 5.350 GHz, 5.470 GHz to 5.725 GHz, 5.725 GHz to 5.850 GHz Note: Country-specific restrictions apply |
| Capacity | 5 GHz, 867 Mbps |
| Antenna | Built-in antenna (horizontal/vertical): 90°/7°, 120°/10°, 360°/7°
Directional External Antenna : RG-ANT16S-120/RG-ANT20S-90 Omnidirectional External Antenna : RG-ANT13-360 |
| Bridging Performance | 200 Mbps/1 km (HT40)
180 Mbps/3 km (HT40) 100 Mbps/5 km (HT40) |
| IP Rating | IP55 |
| Service Ports | 2 x 10/100/1000 Mbps |
| Power Supply | 24 V passive PoE/12 V DC |
| Dimensions | 200 mm x 98.5 mm x 29 mm (7.87 in. x 3.88 in. x 1.14 in.) |
