Mini-GBIC-GT

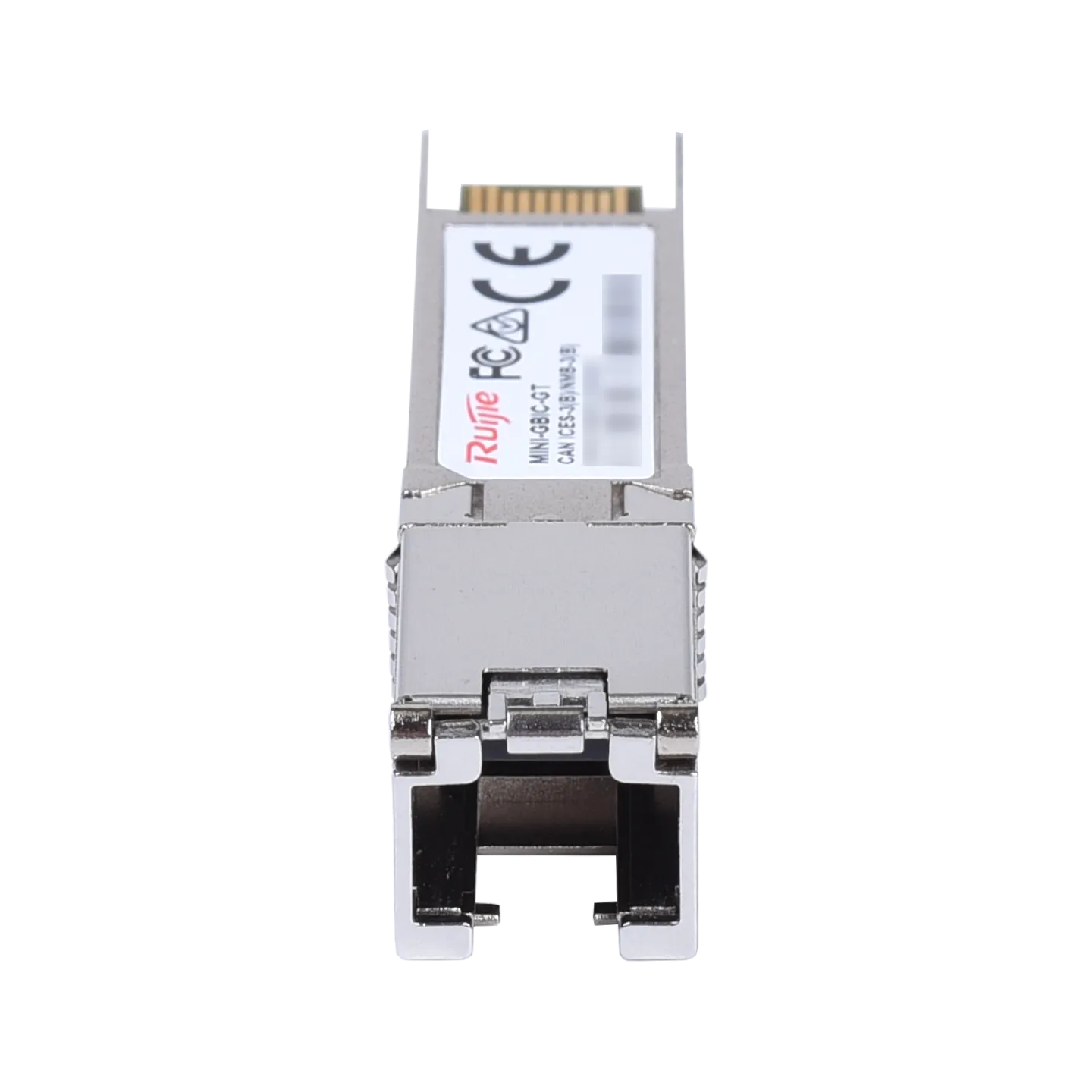

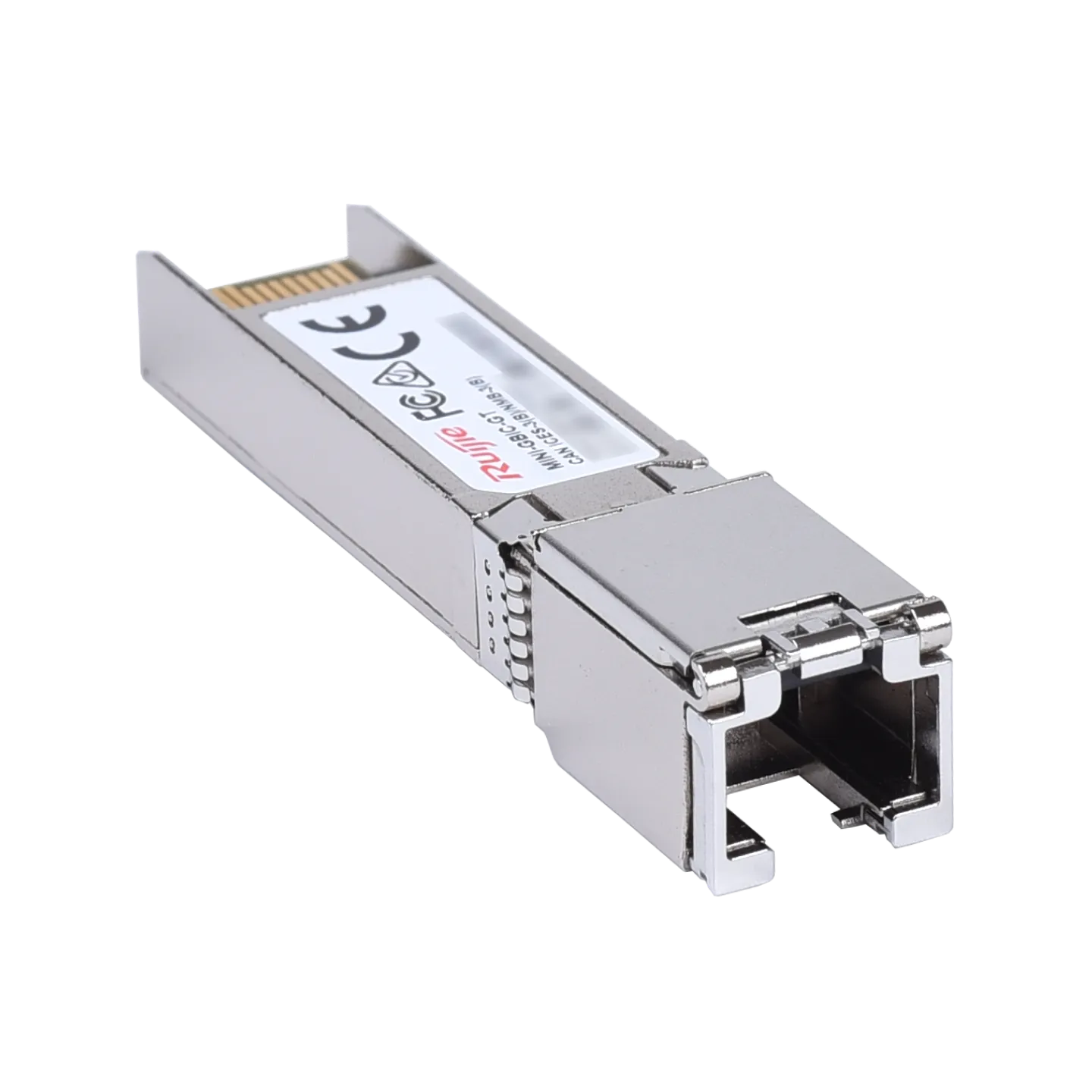

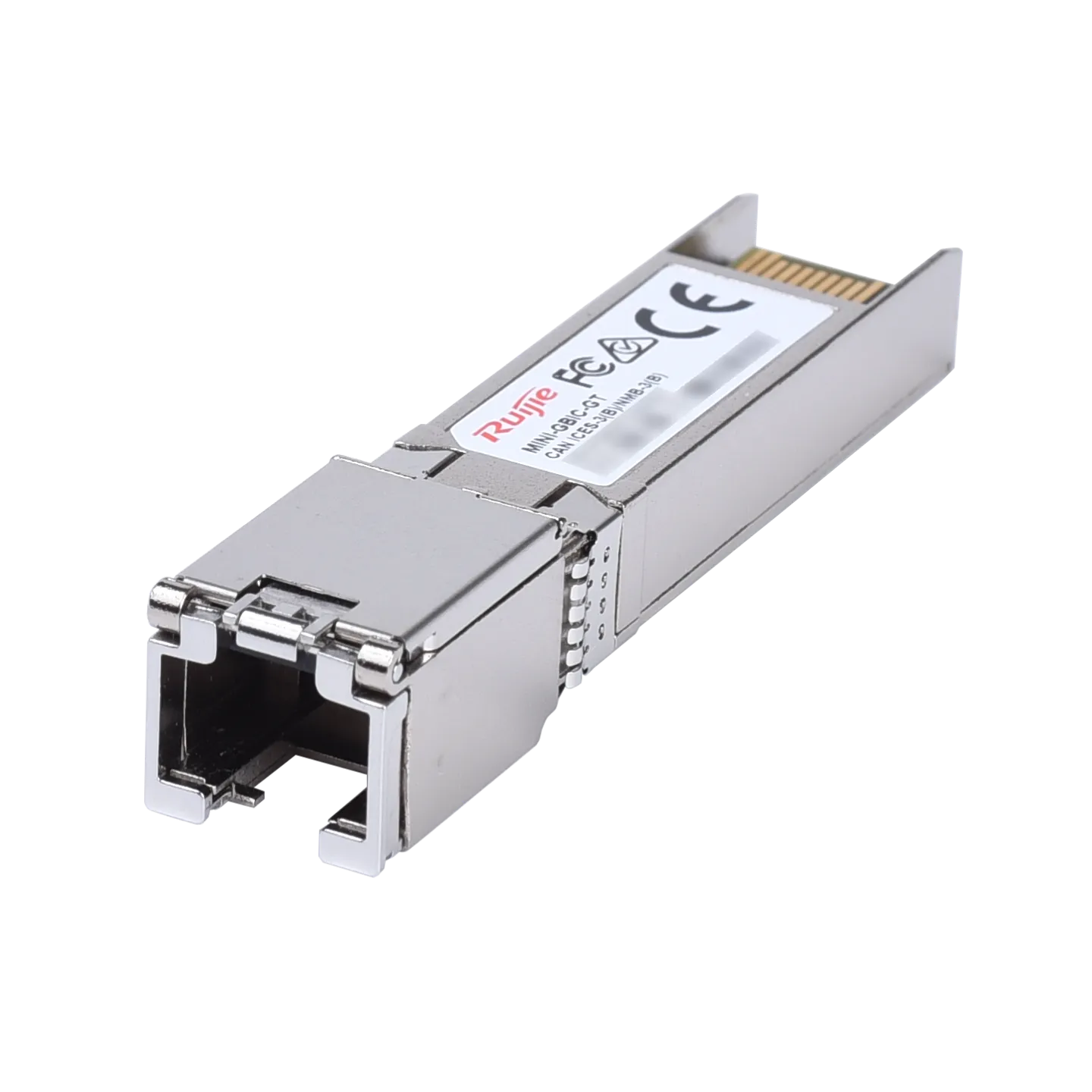

1000BASE-T SFP Copper RJ45 100-m Transceiver Module
- High-speed data transmission of up to 1.25Gbps
- Maximum transmission distance of up to 100 meters
- Hot-pluggable feature allows for easy installation or removal without disrupting the network
- Compatible with various networking equipment, making it a versatile choice for different setups
- Conforming to IEEE 802.3ab, SFP+ MSA, and RoHS standards
TECHNICAL SPECIFICATIONS
| Details | |
|---|---|
| Wavelength (nm) | N/A |
| DDM | Yes |
| Fiber Type | Cat 5e/6/6a |
| Transmit Sensitivity (dbm) | N/A |
| Receive Sensitivity(dbm) | N/A |
| Connector Type | BIDI LC |
| Data Rate (Gbps) | 1.25 |
| Reach | 100 m (328.08 ft.) |
