AX1800 Ceiling Mount WiFi 6 Access Point
- Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.
- High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.
- Centralized Cloud Management: Manage the whole network locally or from the cloud via web UI or Omada app.
- Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.
- Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.
- PoE+ Powered: Supports DC (adapter is not included), 802.3at PoE, and Passive PoE for flexible installations.
- Ultra-Slim Design: Φ160 mm × 33.6 mm elegant design brings more agility.
- Secure Guest Network: Along with multiple authentication options (SMS/Voucher, etc.) and abundant wireless security technologies.
Category: TPLINK
TECHNICAL SPECIFICATIONS
Details | |
---|---|
Wi-Fi Standards | IEEE 802.11 a/b/g/n/ac/ax |
Max. Speed | 574 Mbps (2.4 GHz) + 1201 Mbps (5 GHz) |
Antenna Type | Internal Omni Antenna/MU-MIMO |
Roaming Support | Seamless Roaming(802.11k/v/r) |
Mesh Support | Yes |
PoE Support | 802.3at PoE or 48 V Passive PoE or 12 V / 1 A DC (Power Adapter IS NOT included) |
Service Ports | 1× Gigabit Ethernet (RJ-45) Port |
Wireless Security | WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
Management | Omada (Cloud-Based/Software/Hardware)Controller, Omada APP |

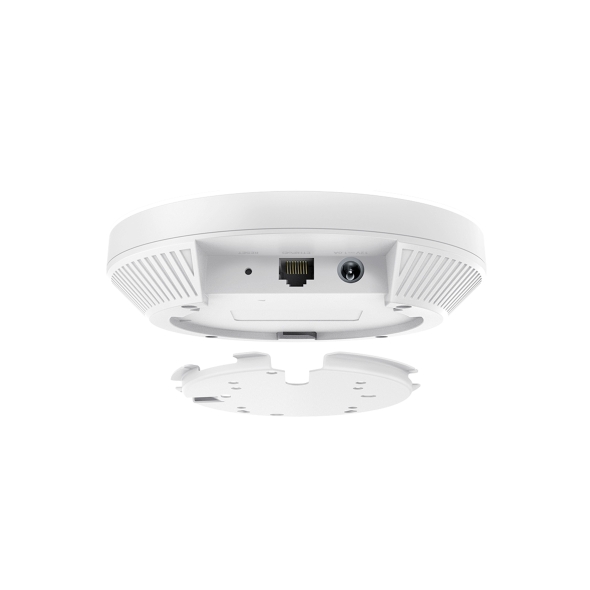

Mounting Options | • Ceiling /Wall Mounting/Junction Box Mounting (Kits included) |
Operating Temperature | 0–40 ℃ (32–104 ℉) |
