AX600-S

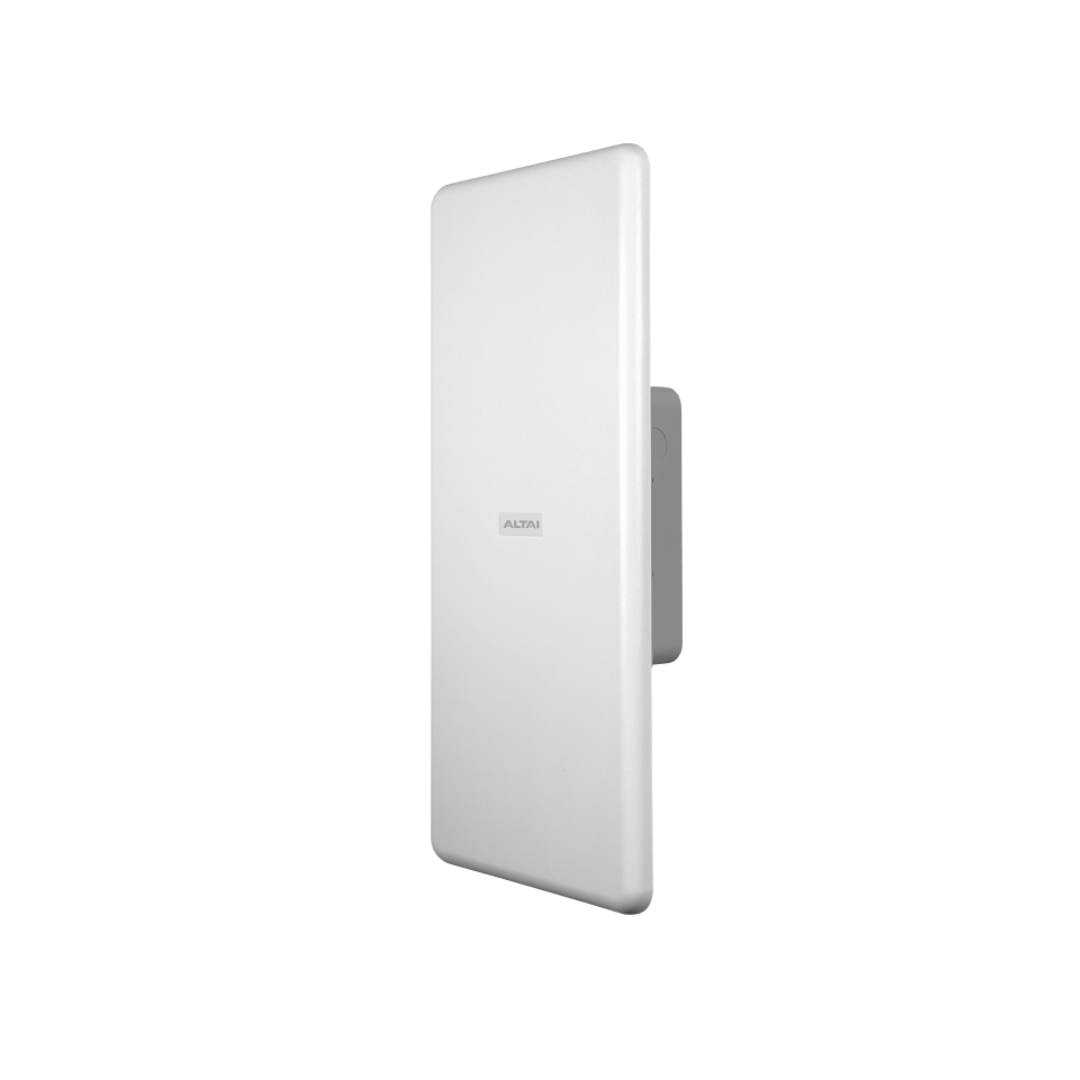

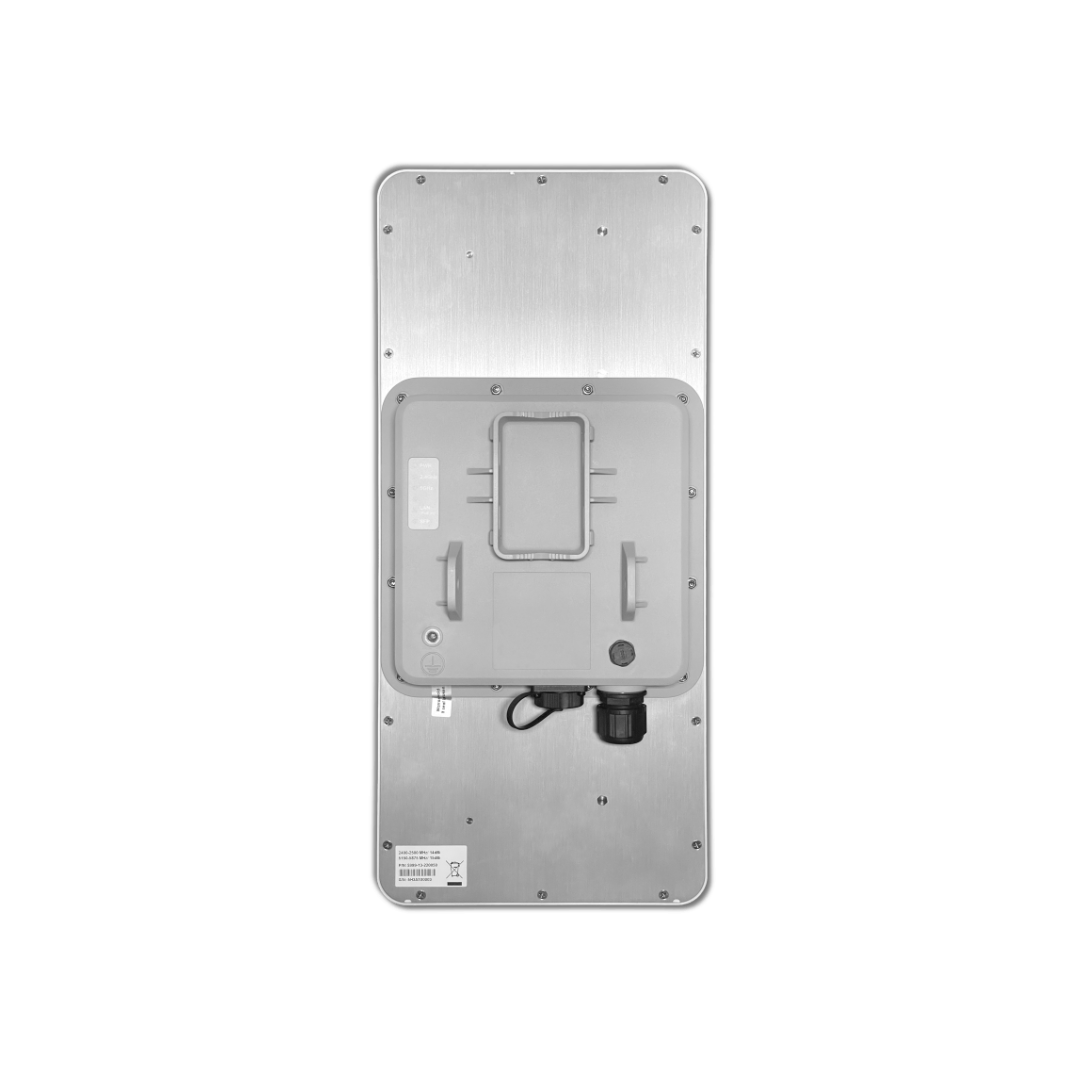

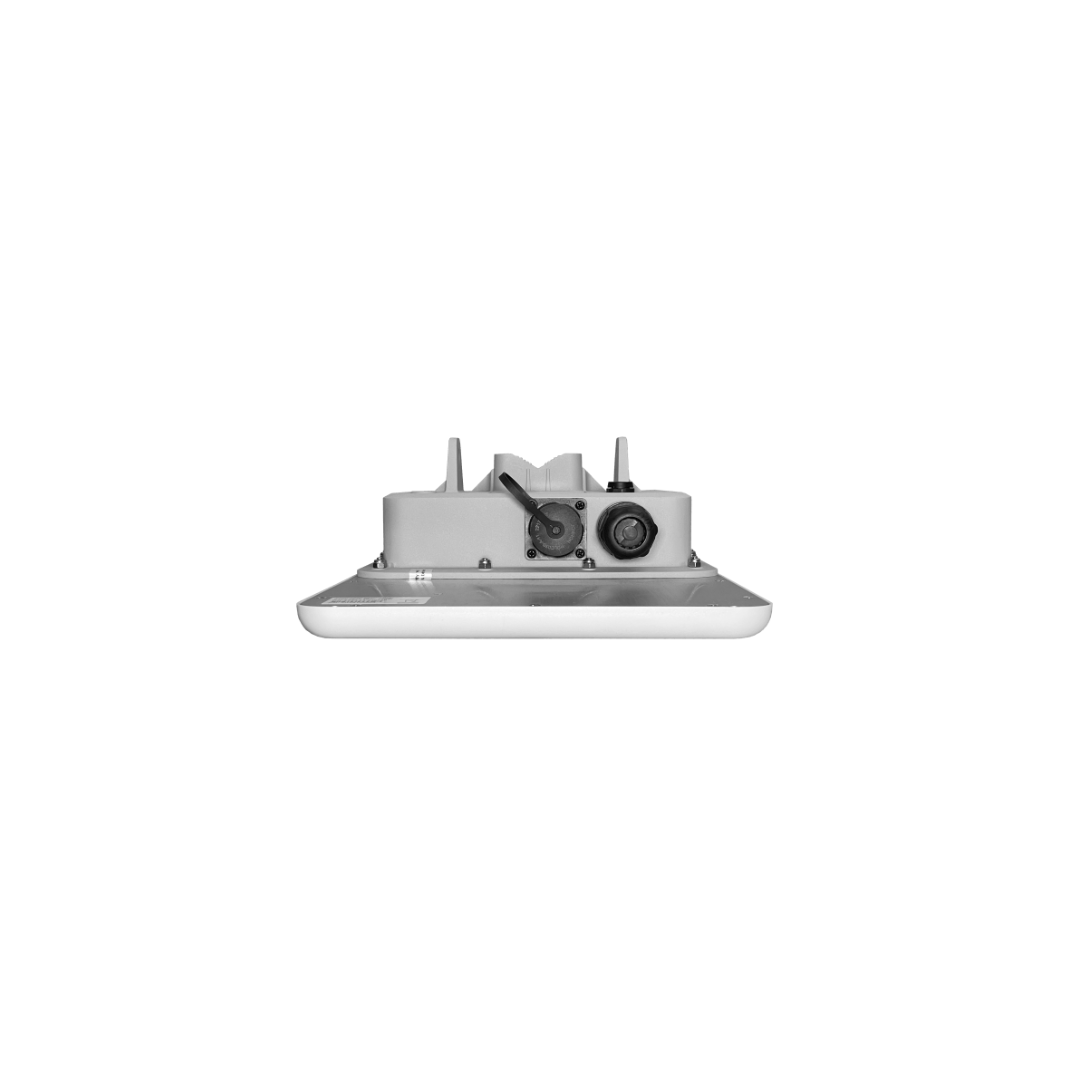

Altai AX600-S Dual-band 2×2 Wi-Fi 6 AP
• Wi-FI 6 Technology for enhanced multi-user efficiency and speed. Other features such as 1024 QAM of modulation, BSS coloring and Target Wake Time also help optimize performance
• Multi operating modes allowed: AP, bridge, repeater mode or CPE
• 2×2:2 MIMO for both 2.4 GHz (802.11b/g/n/ax) and 5 GHz (802.11a n/ac/ax) radios
• IP-67 rated carrier grade dual band AP for both outdoor and indoor applications.
TECHNICAL SPECIFICATIONS
| Details | |
|---|---|
| Wi-Fi Standards | Wi-Fi 6 (802.11ax) |
| Max. Wi-Fi Speed | 2.4 GHz: 574 Mbps 5 GHz: 1201 Mbps |
| Fixed Port | 1 x 2.5 GbE RJ-45 Port 1 x optical SFP connector |
| Power Supply | 802.3bt PoE PD or 48 – 56VDC Passive PoE PD |
| Operating Mode | AP CPE (STA) / Repeater |
| Dimensions (W x D x H) (mm) | 491 x 221 x 100mm |
| Weight | 2.68 kg (Without Mounting Kit) |
