2.5G-SFP-LX03-SM1550-BIDI-I

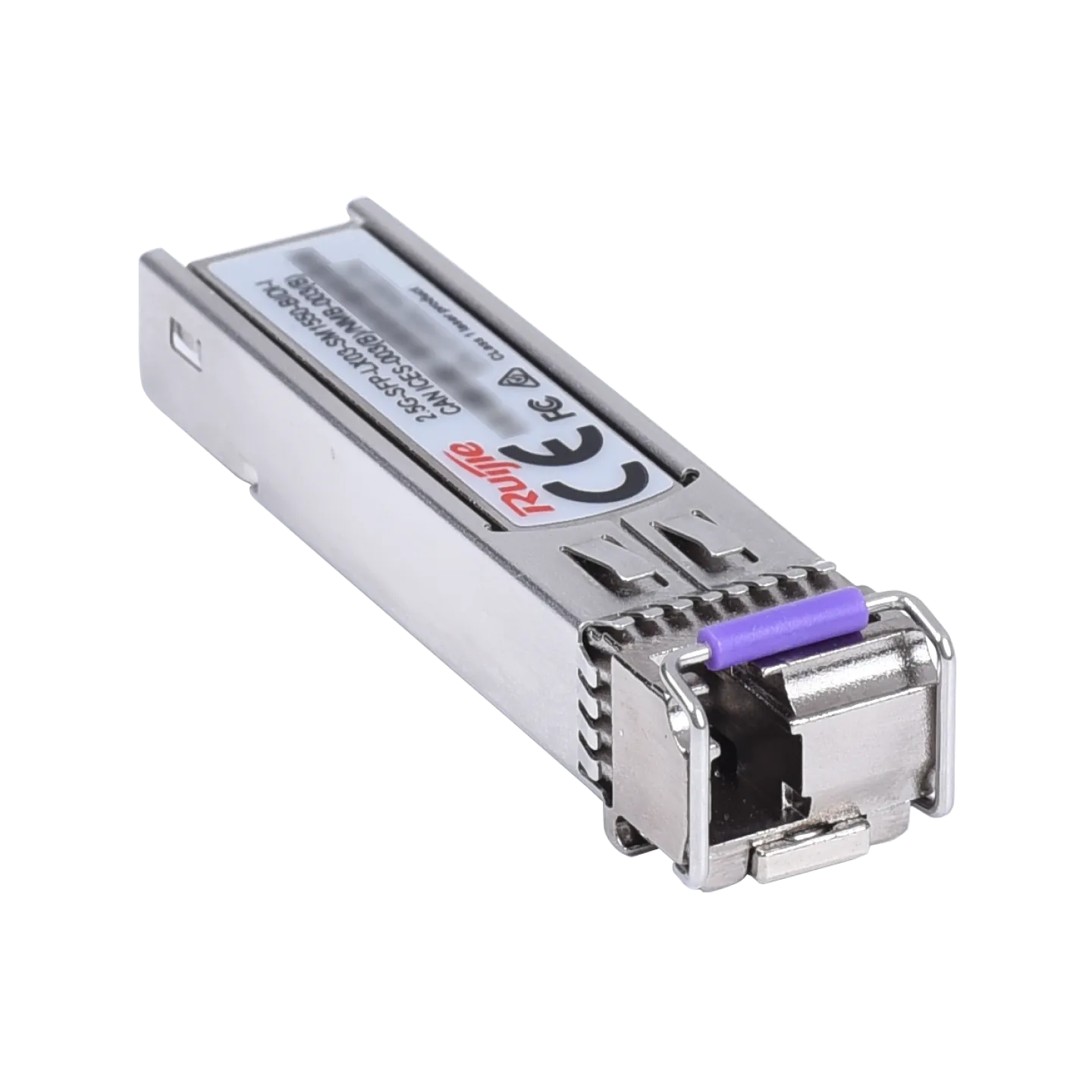

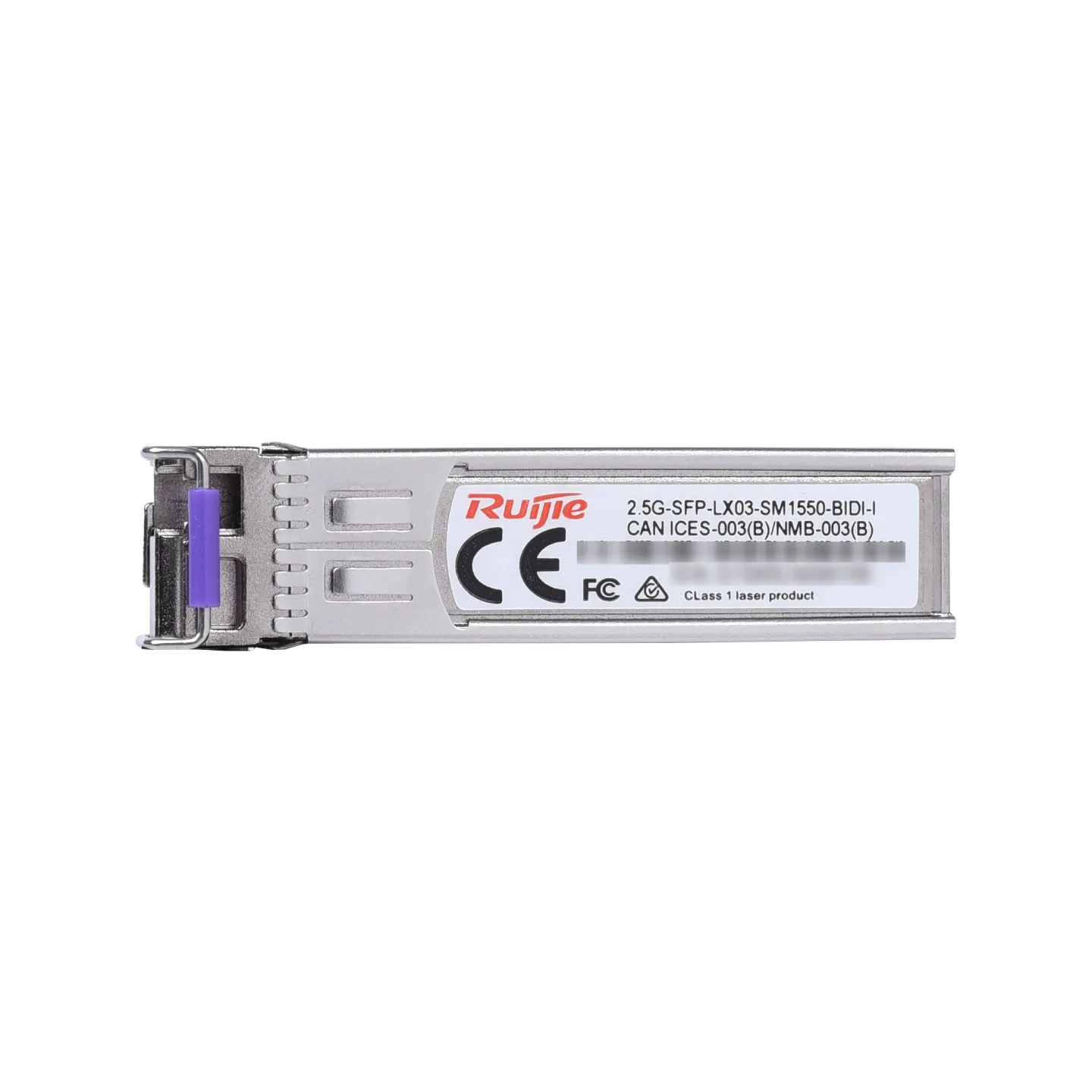

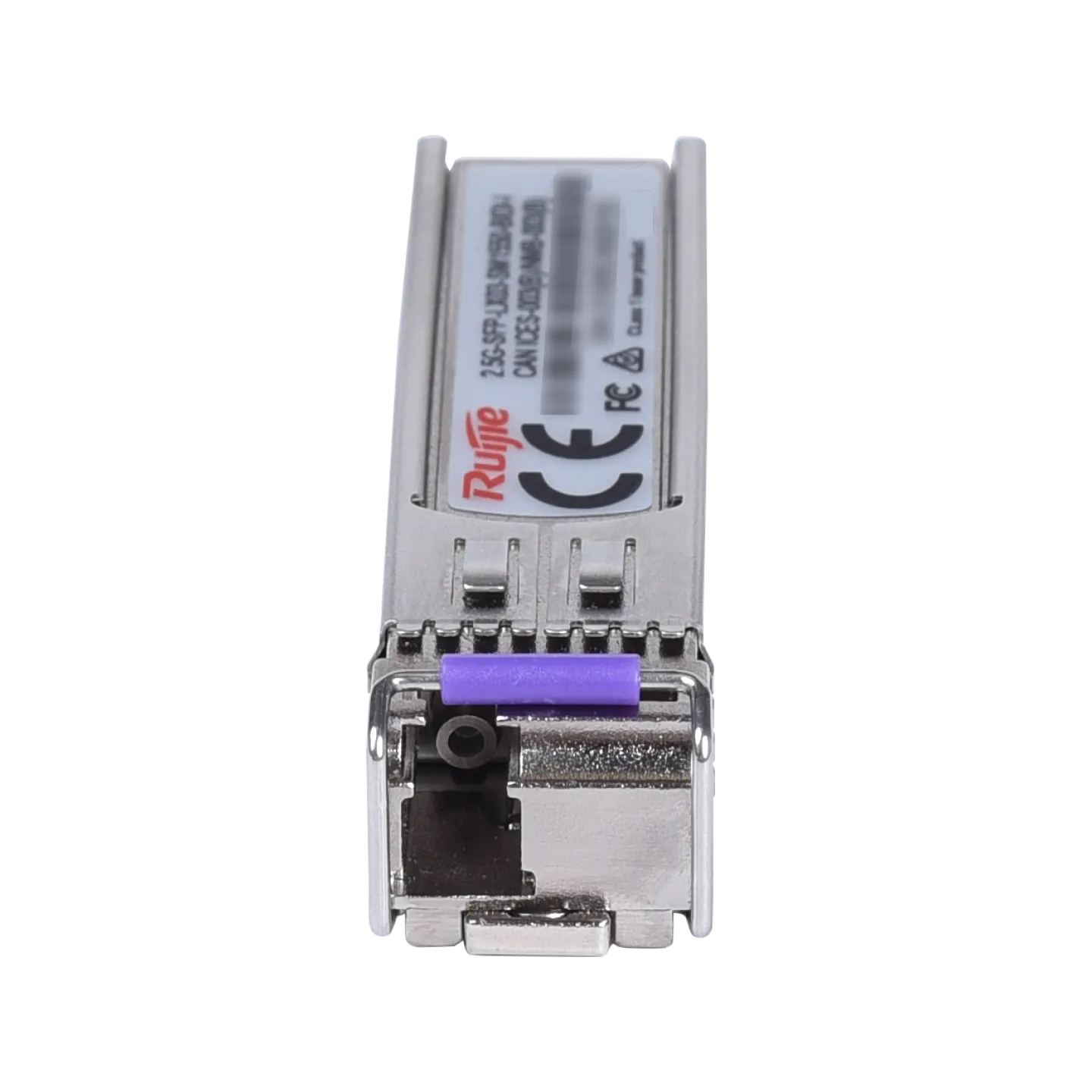

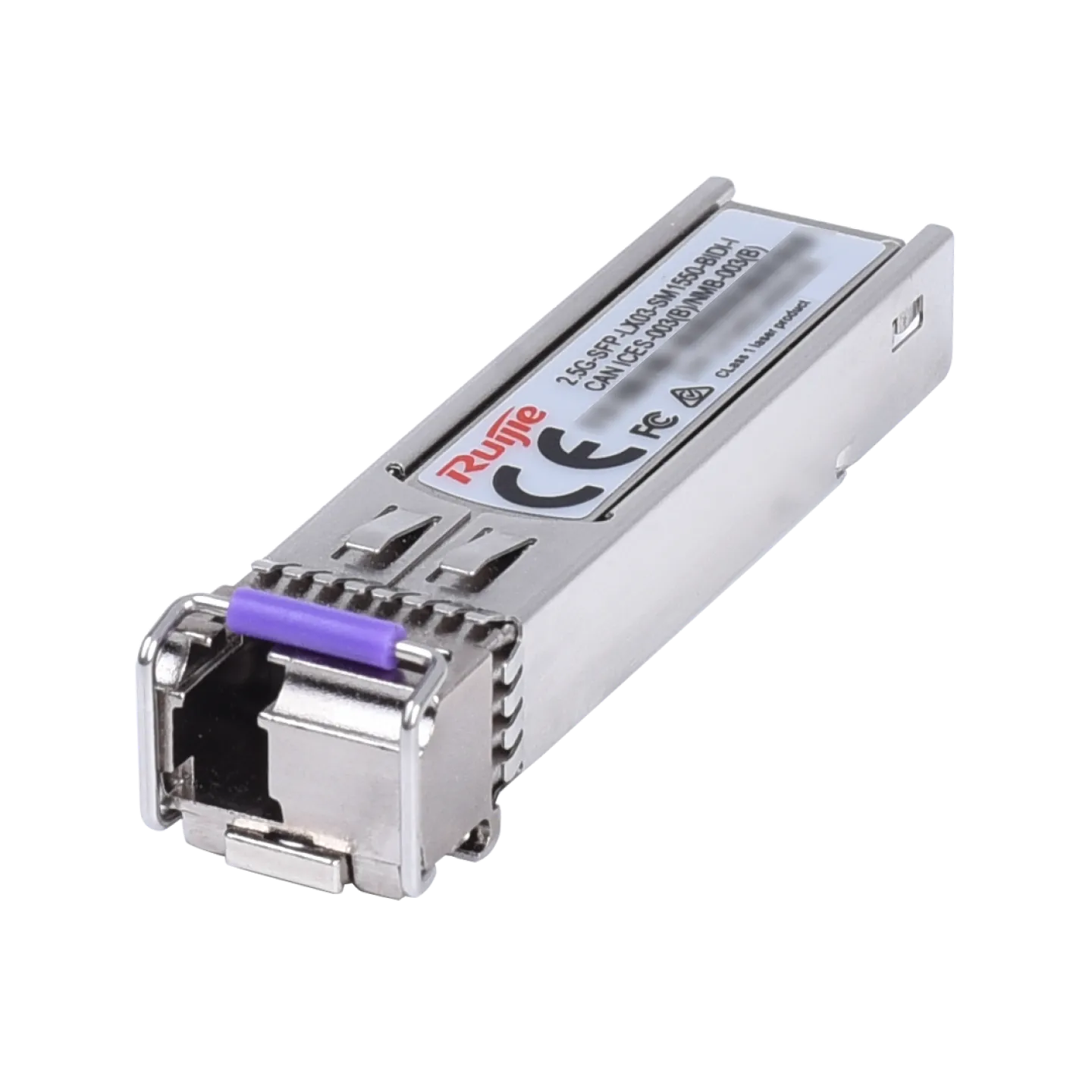

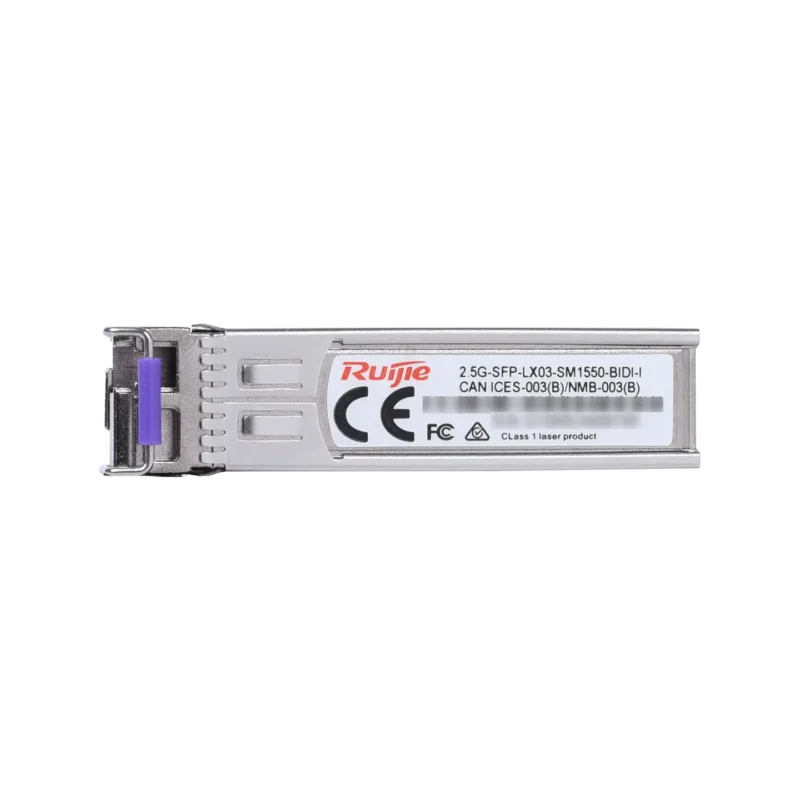

2.5G BiDi SFP 1550nm-TX/1310nm-RX 3-km DOM Simplex LC SMF Transceiver Module
- Max. power consumption 1 W.
- Saving half fiber by using only one fiber for transmiting and receiving.
- Hot pluggable SFP MSA compliant.
- Digital optical monitoring capability for strong diagnostic capabilities.
- Compliant with IEEE 802.3z Gigabit Ethernet.
- Class 1 Laser safety and RoHS compliant.
TECHNICAL SPECIFICATIONS
| Details | |
|---|---|
| Wavelength (nm) | 1550 nm TX
1310 nm RX |
| DDM | Yes |
| Fiber Type | SMF |
| Transmit Sensitivity (dbm) | Min: -9, Max: -3 |
| Receive Sensitivity (dbm) | < –16 |

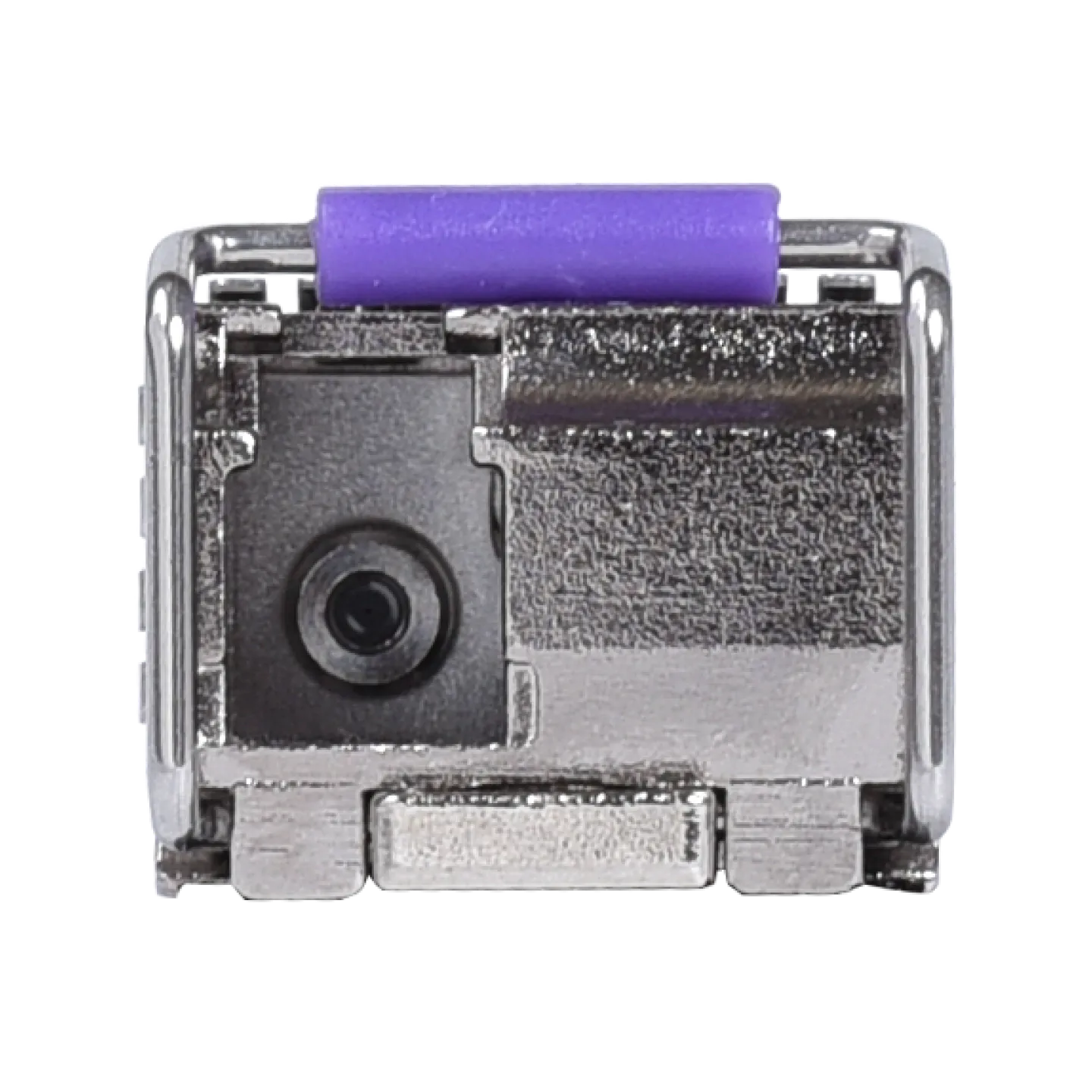

| Connector Type | BIDI LC |
| Transmitter Type | DFB |
| Reach | 3 km (9,842.52 ft.) |
