Wall-Mount Access Point Series

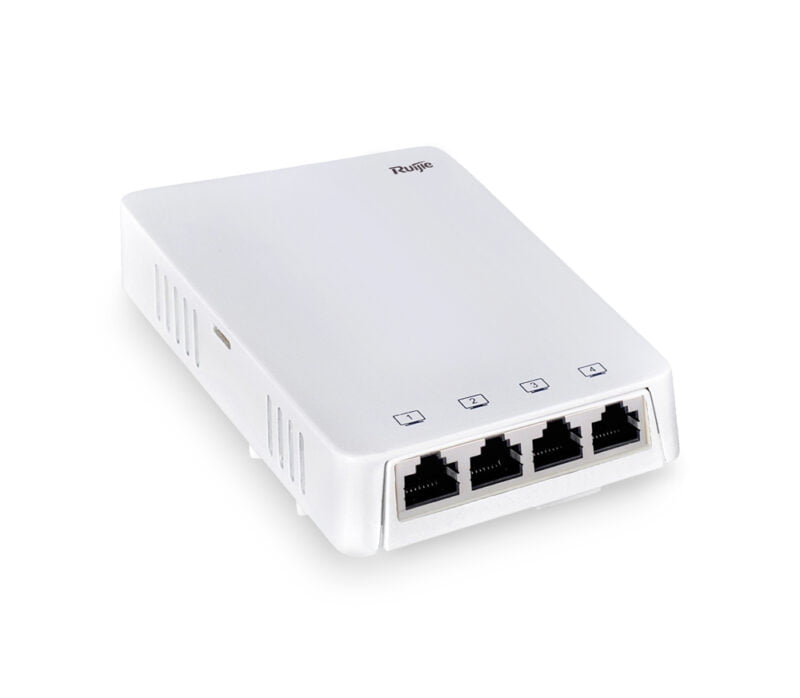

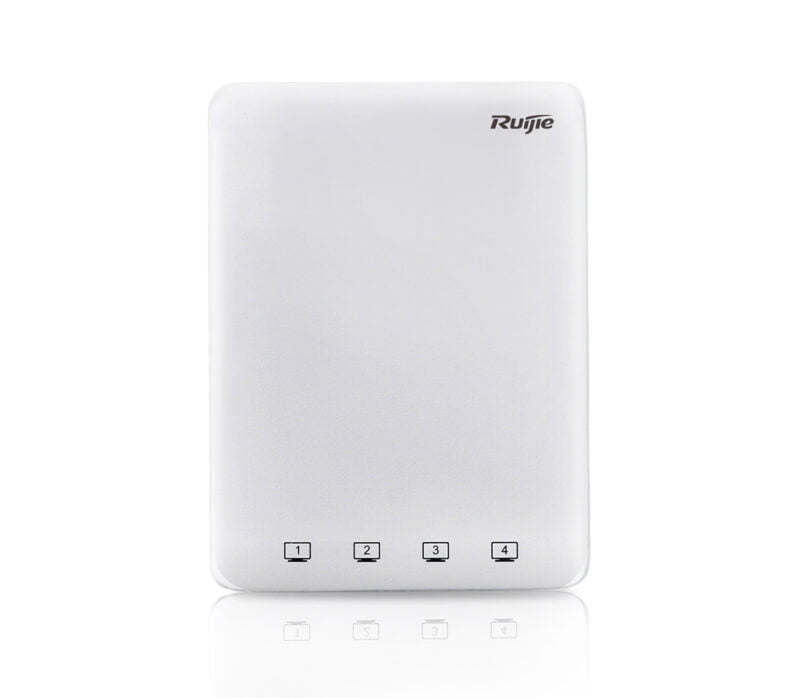

- Ruijie RG-AP130(W2)V2 is designed for wireless deployment in hotels, offices, villa and apartment buildings alike. The wall-mountable AP has design for universal socket standard with integrated multiple Ethernet LAN ports for extended connectivity for IPTV or Office Equipment application purpose. Featuring a concise design and easy deployment, the AP enables zero disruption to the interior finishes and offers the best solution for scenarios with delicate interior design.
The RG-AP130(W2)V2 can be centrally managed by Enterprise-grade Ruijie Cloud Service at Lifetime FREE, allowing fast provisioning, flexible authentication and stable wireless even at extreme environment. The RG-AP130(W2)V2 is the latest Wi-Fi5 Wave2 dual-radio, dual-band wall plate AP, and provides 4 10/100/1000Mbps LAN ports. delivering optimal wireless network coverage and cost protection with additional wired network interfaces.
Radio 1: 2.4G 11ax: 2×2 MIMO
Radio 2: 5G 11ax: 2×2 MIMO
|Protocol||Support concurrent dual-band 802.11 a/b/g/n/ac|
|Antenna Gain||3.5dBi 2×2 MIMO|
|Max Throughput||Maximum throughput per AP: 1.167Gbps|
|Service Ports||Front：4 10/100/1000Mbps Ethernet ports|
Rear：1 10/100/1000Mbps uplink port
|Power Supply||Support PoE(802.3af)|
Support local power supply (DC Power adapters should be purchased from third-party vendors separately if needed)
|Dimensions (W x D x H) (mm)||115mm * 86mm *37mm|
